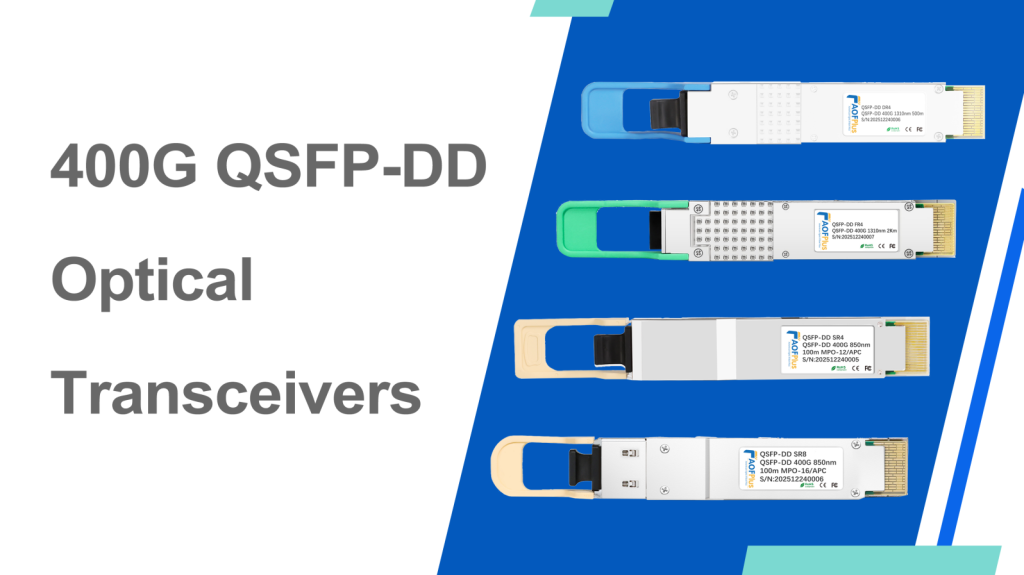

What IS 400G QSFP-DD Optical Transceiver?

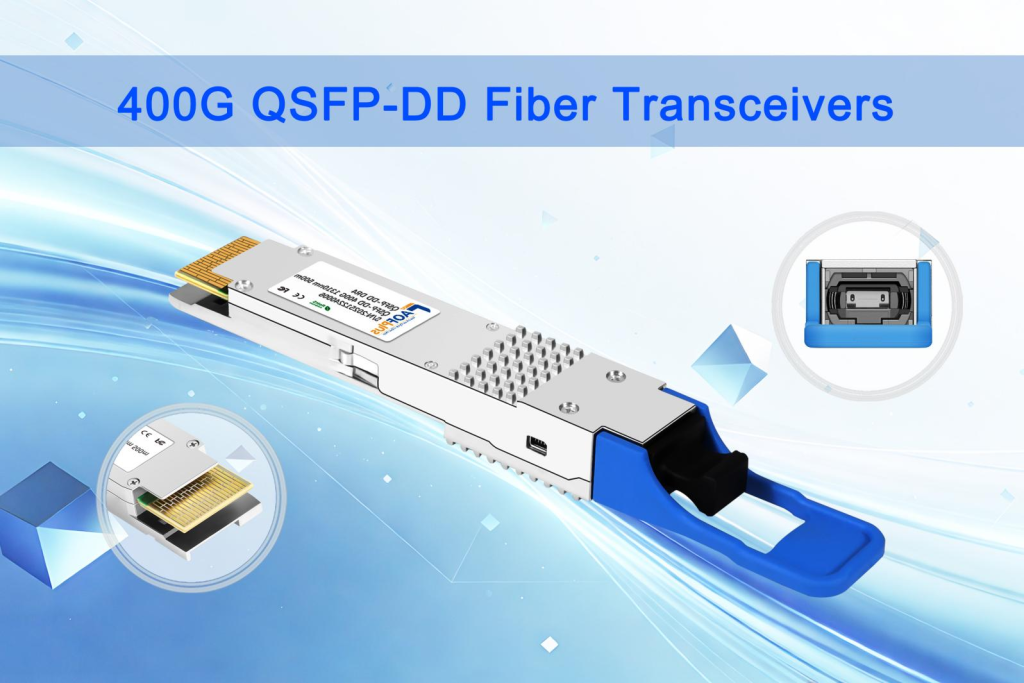

The 400G QSFP-DD optical transceiver is a pluggable transceiver module for high-speed optical communication networks. It adopts the QSFP-DD (Quad Small Form-factor Pluggable Double Density) interface standard and can provide a data transmission rate of 400Gbps. This fiber transceiver achieves high-speed data transmission in optical fiber through multi-channel high-speed electrical signal to optical signal conversion (typically using PAM4 modulation technology).
Classification of 400G QSFP-DD Optical Transceiver
400G QSFP-DD fiber optic transceivers can be classified based on factors such as transmission standards, fiber type, and transmission distance. Common types include 400G QSFP-DD SR8, 400G QSFP-DD DR4, and 400G QSFP-DD FR4.
SR8 optical transceivers are primarily used for short-distance data transmission, typically with multimode fiber, achieving transmission distances of approximately 100 meters, suitable for high-speed interconnections between data center racks.
DR4 transceiver modules generally use single-mode fiber, achieving transmission distances of approximately 500 meters, suitable for medium-distance interconnections within data centers.
FR4 optical transceivers use wavelength division multiplexing (WDM) technology to transmit four wavelengths over single-mode fiber, achieving transmission distances of approximately 2 kilometers, commonly used for longer-distance connections between data centers or campus networks. While longer-range 400G transceiver modules have emerged, their application in actual networks remains relatively limited. With the development of cloud computing, artificial intelligence, and large-scale data centers, the demand for higher-speed and larger-capacity data transmission continues to increase. In the future, ultra-long-distance 400G optical transceiver technology will gradually mature and be widely used in more network scenarios.
Advantages of 400G QSFP-DD Optical Transceivers
High Transmission Rate
400G QSFP-DD fiber transceivers support data transmission rates up to 400Gbps, significantly increasing bandwidth compared to traditional 100G or 200G fiber optic transceivers. Through multi-channel high-speed transmission and PAM4 modulation technology, higher data throughput can be achieved on the same fiber optic link. This high speed effectively meets the demands of cloud computing, big data analytics, and artificial intelligence applications for rapid transmission of massive amounts of data, while also reducing network congestion and improving overall network efficiency.
High Port Density
QSFP-DD transceiver modules employ a dual-density design, providing more electrical signal channels and higher interface density within the same panel size as traditional QSFP modules. This means that more 400G ports can be deployed on the same switch or router, significantly increasing the overall bandwidth capacity of the device. High port density not only saves equipment space but also reduces the number of devices and cabling complexity, improving the deployment efficiency of data center networks.
Low Power Consumption and High Efficiency
While 400G transceivers offer high transmission rates, their design incorporates more advanced chips and photoelectric conversion technologies, enabling them to maintain relatively low power consumption while ensuring high-speed transmission. Lower power consumption reduces heat generation during operation, alleviating the pressure on the cooling system and thus improving the stability and reliability of network equipment. Furthermore, using low-power optical transceivers in large-scale data centers can effectively reduce overall energy consumption and operating costs.
Good Compatibility and Scalability
QSFP-DD interfaces are designed with network upgrade needs in mind, offering good compatibility and scalability. Some QSFP-DD interface devices are backward compatible with lower-speed QSFP series transceivers, allowing for a gradual transition during network upgrades without requiring a one-time replacement of all equipment. Simultaneously, 400G technology provides the foundation for future higher-speed network development, supporting the ever-growing bandwidth demands of data centers and communication networks.
Applications of 400G QSFP-DD Optical Transceivers
Data Centers
Data centers typically house a large number of servers, storage devices, and high-speed switches, requiring high-speed optical communication equipment for rapid exchange of large volumes of data. 400G QSFP-DD optical transceivers, characterized by high bandwidth, high port density, and low power consumption, effectively improve the overall performance of data center networks. In practical applications, they can be used for high-speed connections between servers and switches, backbone links between switches, and data interconnection between storage systems. For example, in a Spine-Leaf architecture within a data center, 400G transceiver modules are commonly used for high-speed links between core switches and aggregation switches. Furthermore, common standards such as 400GBASE-SR8 and 400GBASE-DR4 can meet the high-speed transmission requirements of different distances within a data center, thereby improving network throughput and scalability.
Communication Networks
With the widespread adoption of 5G communication technology and the rapid growth of internet traffic, the demand for transmission rates and bandwidth capacity in communication networks continues to increase. To cope with the ever-growing data traffic, operators need to deploy higher-speed optical communication equipment in backbone and metropolitan area networks. 400G QSFP-DD fiber transceivers can provide transmission rates up to 400Gbps, significantly improving network link capacity and efficiency. In communication networks, these fiber optic transceivers are typically used for high-speed connections between devices such as Optical Transport Networks (OTN), core routers, optical switches, and data center interconnects. For example, in metropolitan area networks (MANs) or data center interconnect scenarios, transceivers using the 400GBASE-FR4 or 400GBASE-LR4 standards can achieve high-speed fiber transmission over distances of several kilometers to tens of kilometers, thus meeting the demands of carrier networks for high-capacity, long-distance, and high-reliability transmission.
High-Performance Computing (HPC)
High-Performance Computing (HPC) systems are widely used in scientific research, artificial intelligence training, weather forecasting, gene sequencing, and large-scale data analysis. These applications require processing massive amounts of data and high-speed communication between numerous computing nodes, thus placing extremely high demands on network bandwidth and latency performance. 400G QSFP-DD fiber optic transceivers provide high-speed, low-latency, and high-reliability data transmission capabilities, making them ideal for deployment in high-performance computing cluster networks. In HPC environments, 400G transceivers are typically used for high-speed interconnects between compute nodes, communication between GPU servers, and data exchange between storage systems and compute clusters. Deploying a 400G high-speed interconnect network can significantly improve the efficiency of data exchange between compute nodes, thereby enhancing overall computing performance and system scalability, and providing robust network support for artificial intelligence model training and large-scale scientific computing.
Conclusion
400G QSFP-DD optical transceiver plays an important role in modern high-speed optical communication networks. With advantages and high performance, it can effectively meet the growing demand for large-capacity data transmission. With the continuous development of cloud computing, artificial intelligence, and large-scale data centers, 400G QSFP-DD transceiver modules will be more widely applied in future network infrastructures. AOFPLUS is a professional optical module supplier dedicated to providing high-performance, high-reliability optical communication products and solutions. Our company’s products cover 10G, 40G, 100G, 200G, and even 400G and 800G series optical modules, with various packaging options, transmission distances, and wavelengths available. Welcome to purchase!
