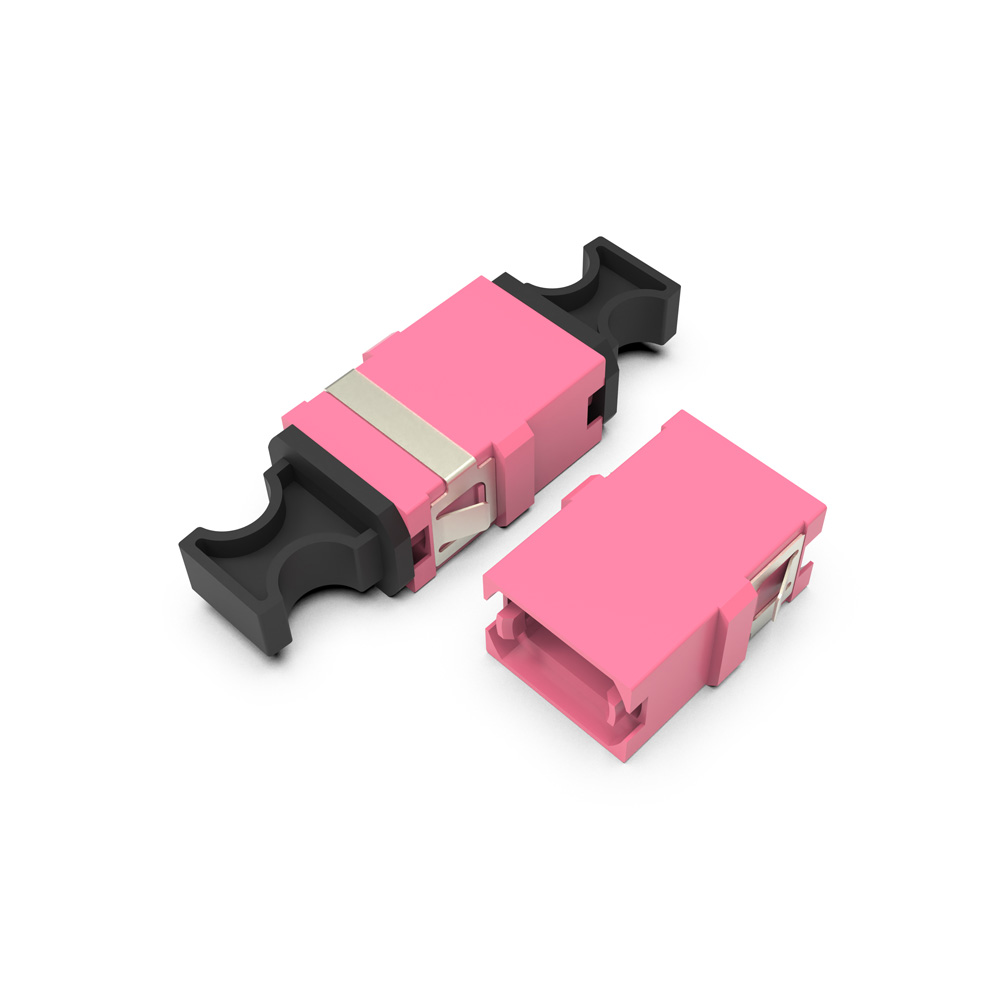

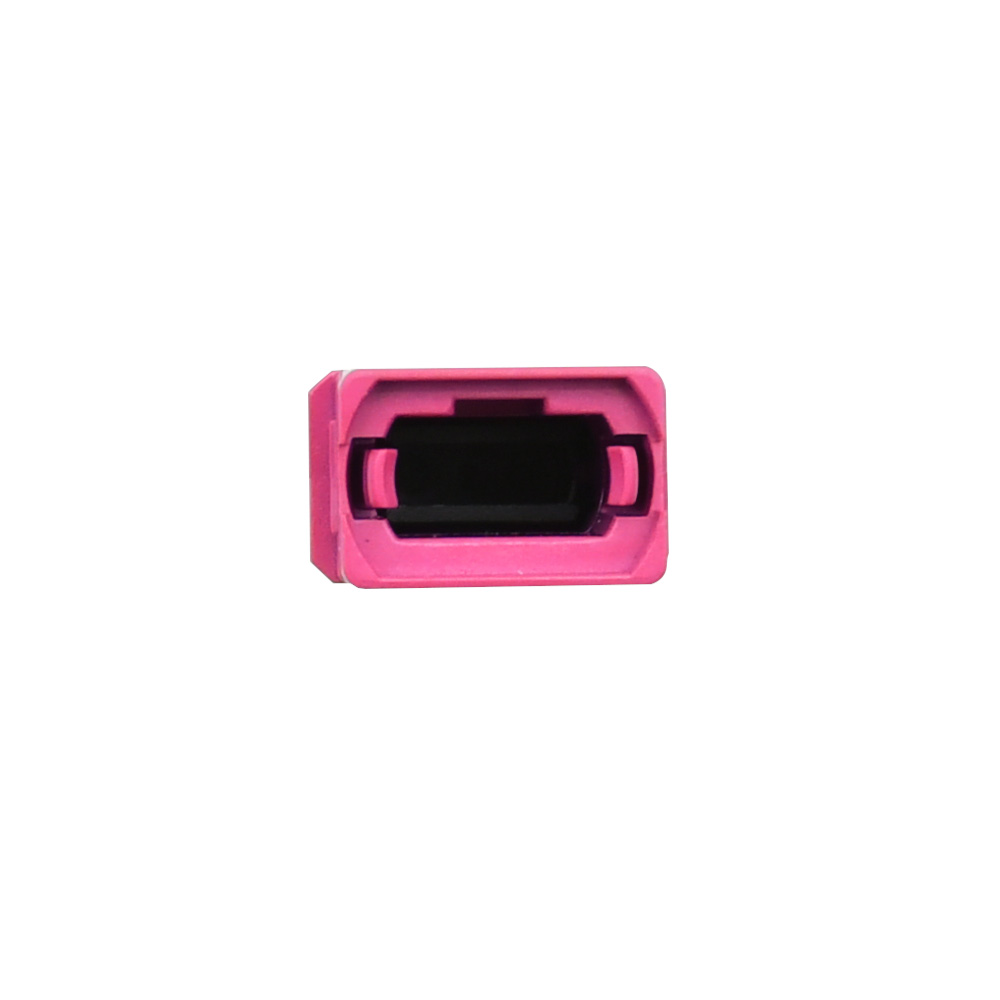

Fiber Optic Adapter|Mating Sleeve MPO/APC 8/12/24 Cores Multimode OM4 Type A/C Key Up/Key Up Flangeless Short Ear Erika Violet
SKU: AAMOM4ASEV
$5.50
Shipping next day
Shipping via DHL | 1 year Warranty
30 Days Returns
30 Days Exchange
Warranty Providing industry-leading limited lifetime warranty. Read the table for details of all products' warranty.
Returns & Exchange Refunds will be received about 5 business days after the receipt of returned items. Items in stock for replacement can be shipped within 1 business day. Read the full return policy for details.
Free Shipping on Orders over $99 for Whole USA
Fiber Optic Adapter|Mating Sleeve MPO/APC 8/12/24 Cores Multimode OM4 Type A/C Key Up/Key Up Flangeless Short Ear Erika Violet
Specifications
MPO/APC adapter specially built for multimode OM4 fiber, Type A/C interface and Key Up/Key Up design ensure precise 8/12/24 core mating and efficient and stable data transmission. The lightweight design of the flangeless short ear saves a lot of space in high density equipment deployment scenarios, while the connection strength is by no means inferior. The Erika violet appearance makes device differentiation simple and intuitive, integrates naturally with the equipment room environment, and its dirtresistant property reduces maintenance input, providing reliable support for fiber optic link connections.
Connector Type
MPO
Keyway
Key Up/Key Up
Polish Type
APC
Footprint
SC
Insertion Loss
≤0.35dB
Durability
1000 times
Mounting Type
Flangeless
Adapter Port
Single
Color
Erika Violet
Flammability Rate
UL 94V-0
Videos
Applications
FAQ
Yes, but ensure the boot clearance is at least 5mm from the adapter face to prevent interference with the flange.
Yes, it complies with industry-standard MPO dimensions and works with connectors from major brands, though we recommend testing compatibility for mission-critical applications.
A positive click sound and flush connector face alignment indicate proper seating. The short ears should be parallel to the adapter body when fully inserted.
While the friction-fit design is secure, in high-vibration areas we recommend using supplemental retention clips or panel locking mechanisms to prevent accidental disconnection.
The short ears provide sufficient grip for installation while minimizing protrusion, allowing tighter spacing between adapters in high-density applications.
