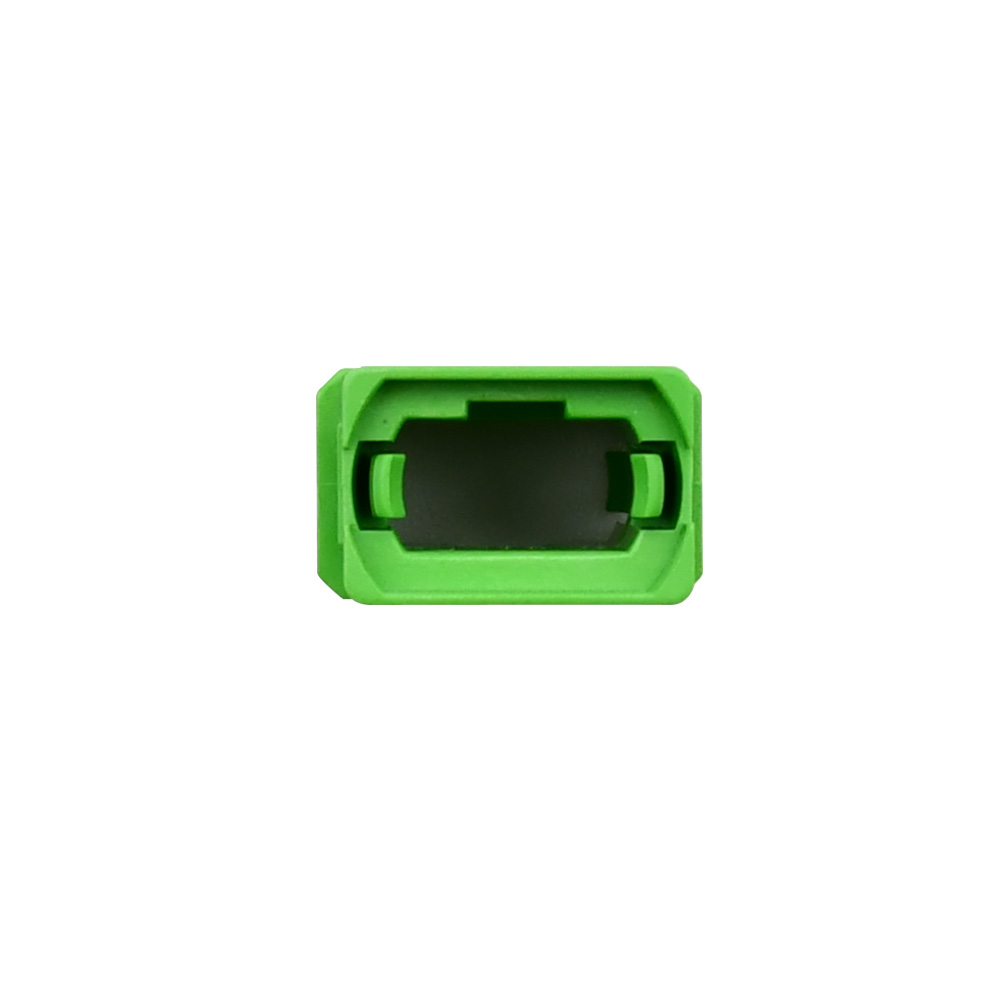

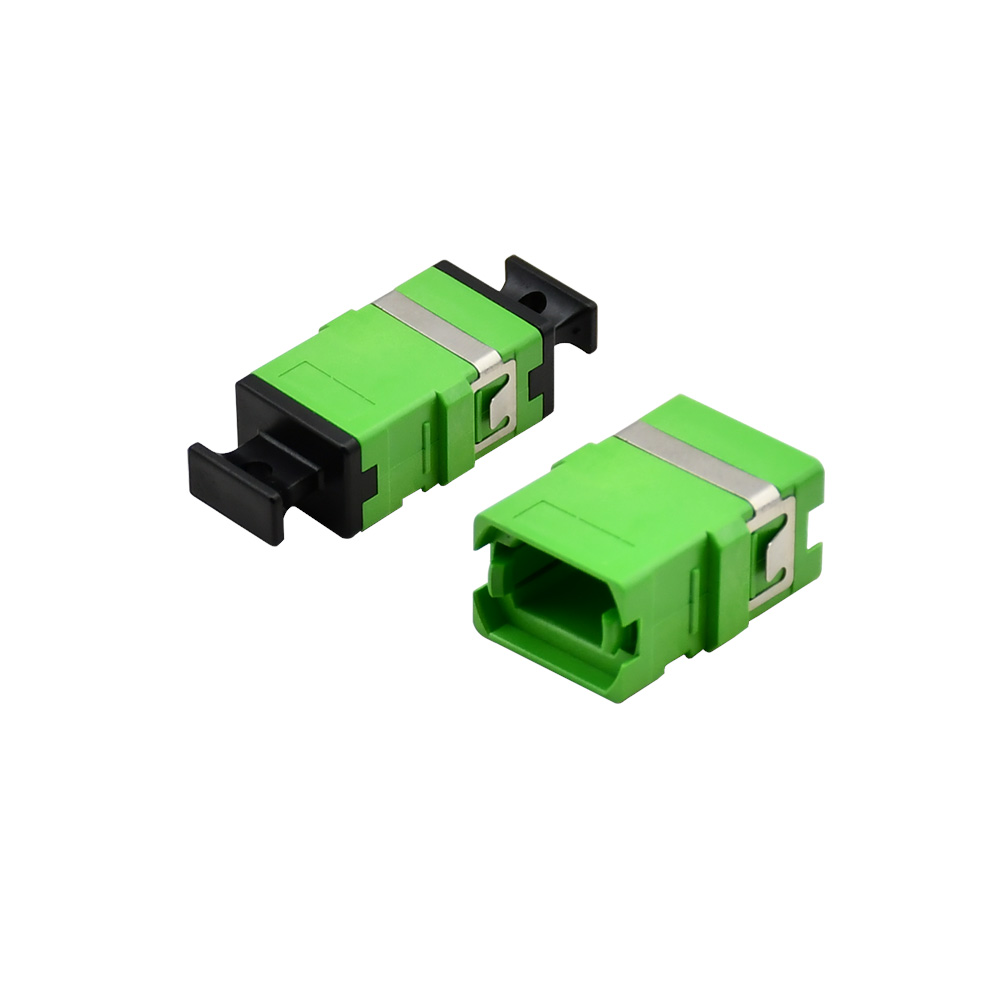

Fiber Optic Adapter|Mating Sleeve MPO/APC 8/12/24 Cores Single Mode OS2 Type A/C Key Up/Key Up Flangeless Short Ear Green
SKU: AAMOS2ASGR
$5.50
Shipping next day
Shipping via DHL | 1 year Warranty
30 Days Returns
30 Days Exchange
Warranty Providing industry-leading limited lifetime warranty. Read the table for details of all products' warranty.
Returns & Exchange Refunds will be received about 5 business days after the receipt of returned items. Items in stock for replacement can be shipped within 1 business day. Read the full return policy for details.
Free Shipping on Orders over $99 for Whole USA
Fiber Optic Adapter|Mating Sleeve MPO/APC 8/12/24 Cores Single Mode OS2 Type A/C Key Up/Key Up Flangeless Short Ear Green
Specifications
AOFPLUS's MPO/APC fiber optic adapter supports 8/12/24 core specifications and is compatible with single mode OS2 fiber, meeting the needs of high capacity data transmission in various scenarios. It adopts the Type A/C interface standard and a Key Up/Key Up design to ensure precise connection alignment, effectively reduce insertion loss, and ensure stable and complete signal transmission. The flangeless short ear structure makes it more space saving during installation and is suitable for space constrained environments. The green appearance makes it easy to identify and distinguish, improving management efficiency.
Connector Type
MPO
Keyway
Key Up/Key Up
Polish Type
APC
Footprint
SC
Insertion Loss
≤0.35dB
Durability
1000 times
Mounting Type
Flangeless
Adapter Port
Single
Color
Green
Flammability Rate
UL 94V-0
Videos
Applications
FAQ
Typically, the insertion loss of a single-mode APC adapter is 0.3dB Max, and the return loss is 60dB Min..
OS2 is a type of single-mode fiber, characterized by a zero-dispersion wavelength of 1310nm and the ability to support longer transmission distances. Compared to the OS1 single-mode type, OS2 fiber core diameters are more precise and attenuation is lower.
During installation, be sure to keep the adapter connector clean to avoid dust and debris. Align the keying and polarity, and gently insert the MPO patch cable, avoiding forceful insertion or removal.
It can be installed on a panel or chassis using screws through the "Long Ear" flange. No special tools are required, but it is recommended to wear an anti-static wrist strap to prevent static electricity from damaging the optical fiber.
If the transmission signal is interrupted or attenuated excessively, it could be a faulty adapter.
