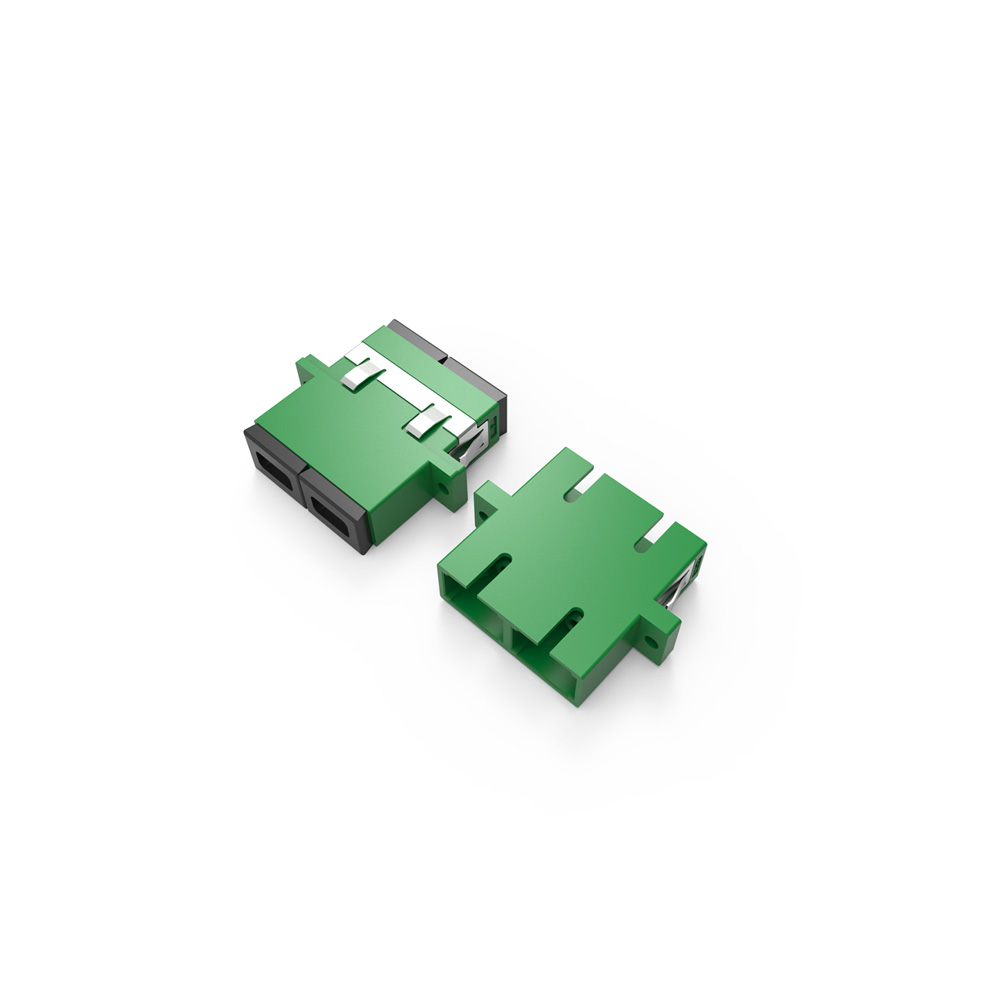

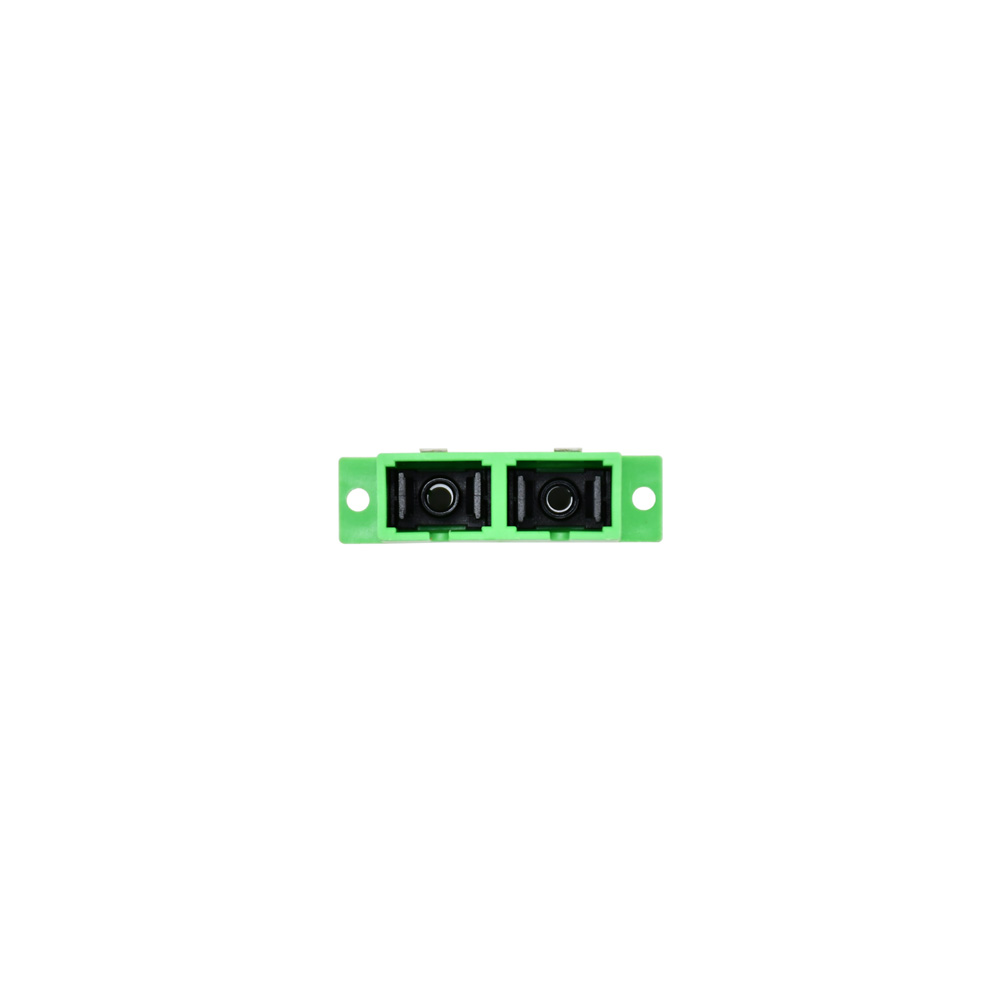

Fiber Optic Adapter|Mating Sleeve SC/APC Duplex Single Mode OS2 Flange Long Ear Green
Fiber Optic Adapter|Mating Sleeve SC/APC Duplex Single Mode OS2 Flange Long Ear Green - Image 2

Fiber Optic Adapter|Mating Sleeve SC/APC Duplex Single Mode OS2 Flange Long Ear Green

SKU: AASADS2LGR

Price range: $0.83 through $0.94
Buy more to save

  • Shipping via DHL/FedEx |
  • 1 year Warranty
  • 30 Days Returns
  • 30 Days Exchange

Warranty
Providing industry-leading limited lifetime warranty. Read the table for details of all  products' warranty.

Returns & Exchange
Refunds will be received about  5 business days after the receipt of returned items. Items in stock  for replacement can be shipped within  1 business day. Read the full return policy for details.

  • Free Shipping on Orders over $99 for Whole USA
  • Ship Next Day
QuantityPrice
1 - 49 $0.94
50 - 99 $0.89
100 + $0.83

Fiber Optic Adapter|Mating Sleeve SC/APC Duplex Single Mode OS2 Flange Long Ear Green

Specifications

Meet AOFPlus's sm fiber optic adapter, featuring SC/APC duplex design for high performance single mode OS2 networks. The duplex configuration enables simultaneous bidirectional data transmission, boosting efficiency in busy setups like data centers and telecom hubs. Equipped with a long-ear flange, it ensures secure, stable connections, resisting vibrations and accidental tugs. The APC polish minimizes return loss, preserving signal integrity over long distances. Its vibrant green color allows quick identification, simplifying installation and maintenance. Built to endure frequent use, this sc duplex adapter is a reliable choice for robust, high speed network infrastructures.
Connector Type SC-SC Body Style Duplex
Polish Type APC Fiber Mode OS2 9/125μm
Insertion Loss ≤0.2dB Durability 500 times
Mounting Type Full flanged Alignment Sleeve Material Ceramic
Color Green RoHS Compliancy Status Compliant
Operating Temperature -40 to 85℃(-40 to 185℉) Storage Temperature -10 to 60℃(14 to 140℉)

Videos

Applications

FAQ

Yes, this SC/APC duplex adapter is designed with standard dimensions and a flange with long ears, making it fully compatible with standard SC panel cutouts and enclosures.
Absolutely. Each port is equipped with a high-precision zirconia sleeve to ensure low insertion loss and consistent performance across both SC/APC connectors.
The green color is functional, it identifies this as an APC (Angled Physical Contact) adapter, which is key for low return loss. It helps users distinguish it from UPC adapters and avoid mismatched connections.
Yes, this duplex adapter is fully compatible with OS2 single mode fiber. It's ideal for high speed, long distance transmission in data centers, telecom, and FTTH setups.
Very secure. The long ear flange allows firm mounting, and the duplex design keeps both connectors aligned and stable. You'll get a consistent, tight connection that won't shift under normal handling.
