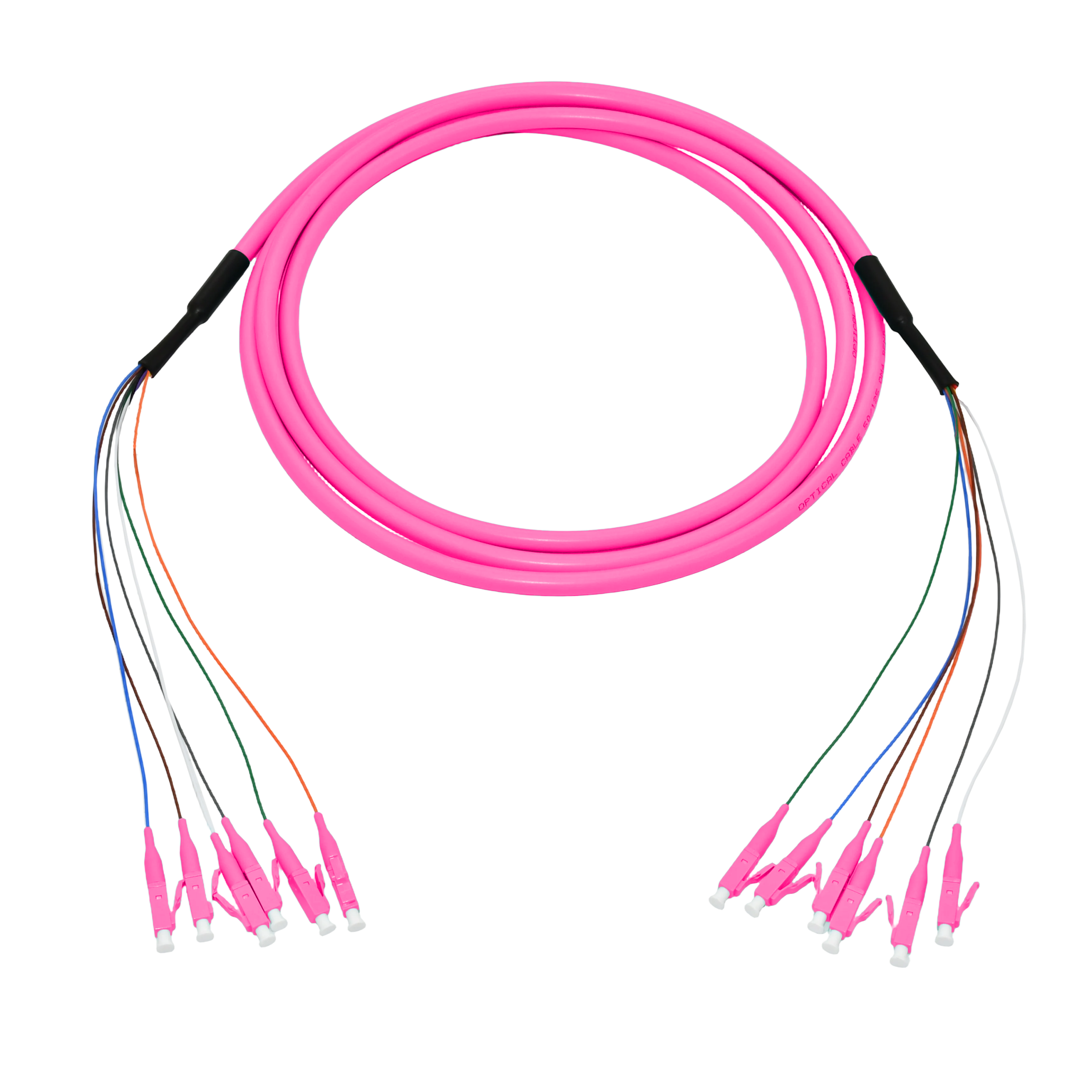

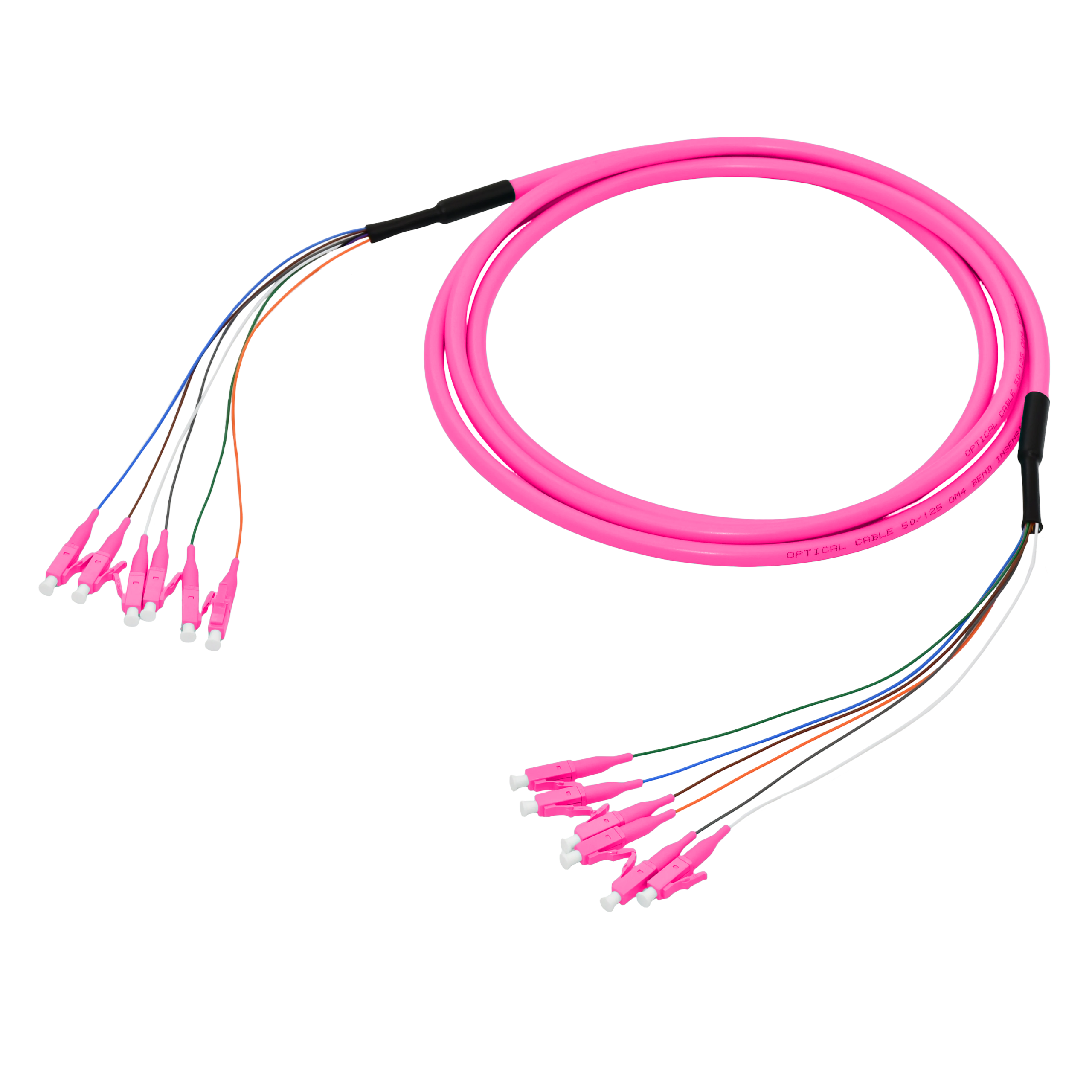

AOFPLUS's 6-core fiber optic distribution patchcord features multimode OM4 50/125um fibers and the LC/PC connectors. Durable LSZH jacket withstands temperatures ranging from -20??C to 70??C. With a low insertion loss of ??0.3dB and high return loss of ??35dB, distribution fiber optic patchcord ensures stable and reliable transmission.

Connector A	LC/PC	Connector B	LC/PC
Fiber Count	6 Fiber	Fiber Grade	Bend Insensitive
Fiber Mode	OM4 50/125um	Wavelength	850/1300nm
Breakout Length	0.3m	Breakout Cable Diameter(OD)	0.9mm
Cable Type	Distribution	Cable Jacket	LSZH
Min. Bend Radius (Optical Fiber)	7.5mm	Min. Bend Radius (Fiber Cable)	20/10D (Dynamic/Static)
Connector Durability	500 Times	Standard	RoHS Compliant
Attenuation at 850nm	0.30dB/km	Attenuation at 1300nmm	1.0dB/km
Insertion Loss	≤0.3dB	Return Loss	≥35dB
Operating Temperature	-10 to 70°C (14 to 158°F)	Storage Temperature	-20 to 70°C (-4 to 158°F)
