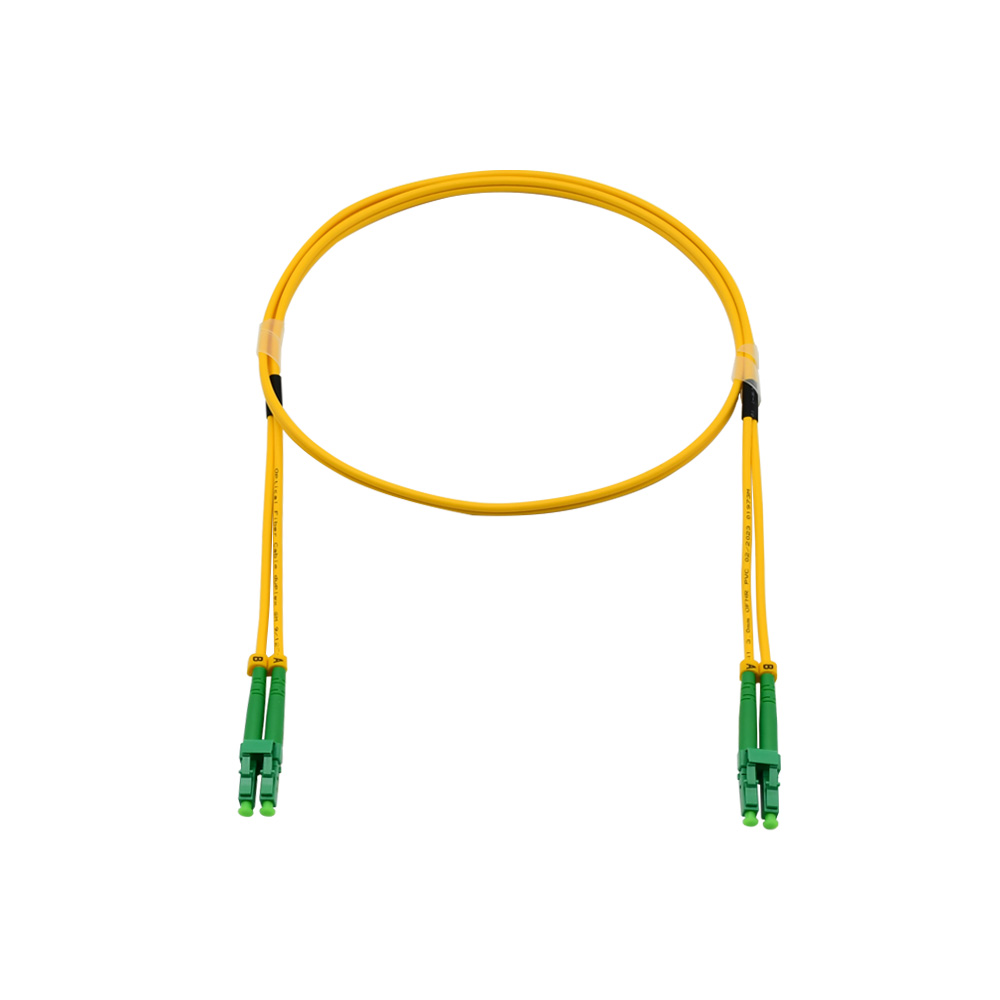

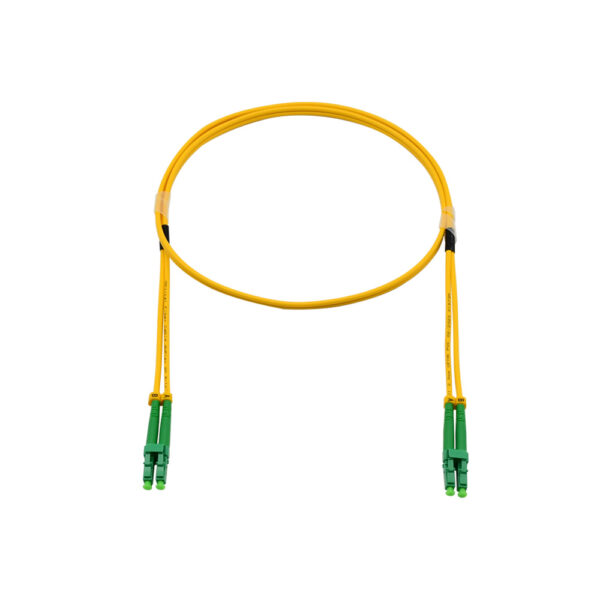

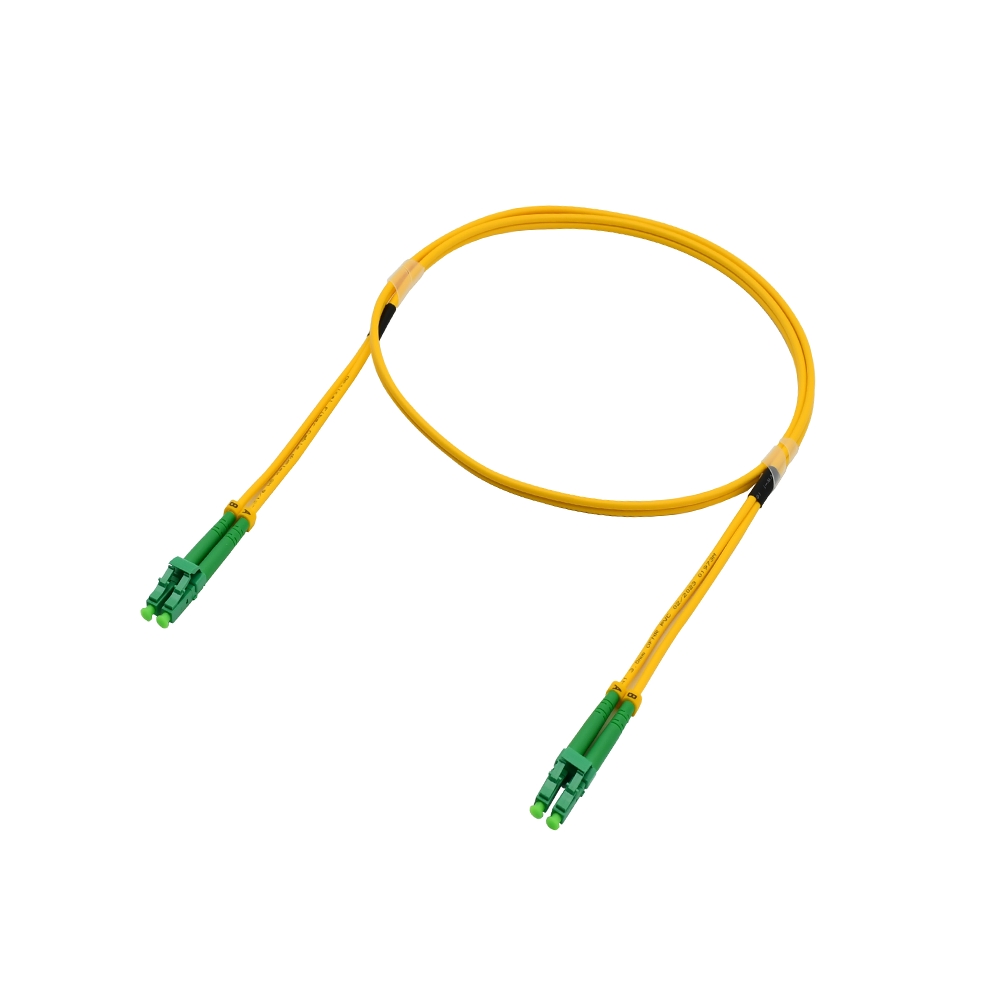

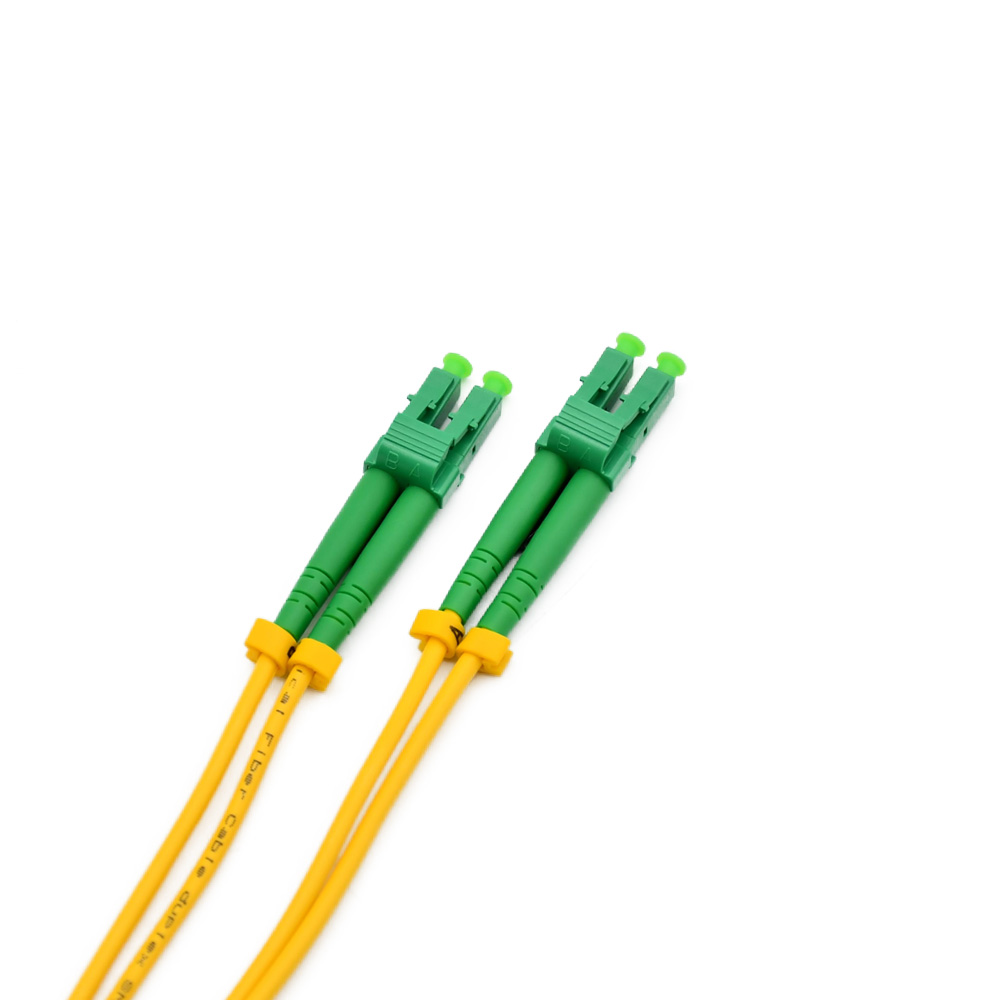

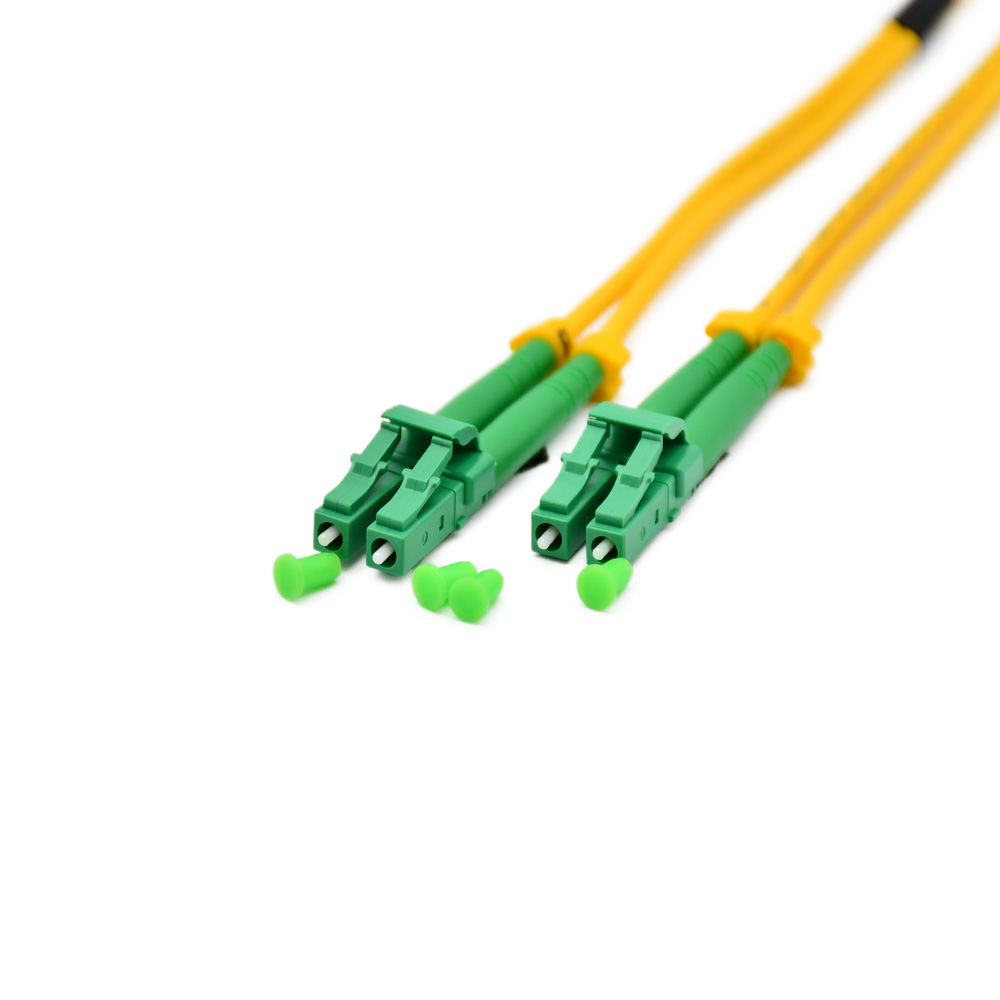

Fiber Optic Patch Cable|Fiber Optic Patchcord LC/APC-LC/APC Single Mode OS2 Corning SMF-28 Ultra Duplex 2.0mm Flame Retardant LSZH 1m(3ft)

SKU: ALALAS2UDFL01

Price range: $3.75 through $4.81
Buy more to save

Warranty
Providing industry-leading limited lifetime warranty. Read the table for details of all  products' warranty.

Returns & Exchange
Refunds will be received about  5 business days after the receipt of returned items. Items in stock  for replacement can be shipped within  1 business day. Read the full return policy for details.

QuantityPrice
1 - 4$4.81
5 - 49$4.57
50 - 99$4.23
100 +$3.75

Fiber Optic Patch Cable|Fiber Optic Patchcord LC/APC-LC/APC Single Mode OS2 Corning SMF-28 Ultra Duplex 2.0mm Flame Retardant LSZH 1m(3ft)

Specifications

AFOPLUS's lc to lc fiber optic patch cord is a reliable and high performance product for fiber optic connectivity. The Corning Ultra Duplex 2.0mm cable, with its single mode OS2 fiber, is designed to handle high-bandwidth applications, such as data center interconnects and fiber-to-the-premise deployments. The LC/APC connectors provide a secure and stable connection. The APC design helps in reducing signal reflection, which is essential for maintaining high speed data transfer. The LSZH flame-retardant jacket provides protection against fire, making it suitable for use in areas with high fire risks, such as chemical plants. The 2.0mm lc to lc fiber patch cable is flexible and durable, suitable for installation in harsh industrial environments.
Connector ALC APC DuplexConnector BLC APC Duplex
Fiber Count2 FiberFiber GradeOS2
Fiber Mode9/125μmWavelength1310/1550nm
RoHS Compliancy StatusCompliantCable TypeTight-Buffered
Cable Outside Diameter (OD)2.0mmCable JacketFlame Retardant LSZH
Min. Bend Radius (Optical Fiber)10mmMin. Bend Radius (Fiber Cable)10/5D (Dynamic/Static)
Connector Durability500 times Tensile Strength (Long/Short Term)60/100N
Insertion Loss≤0.3dB Return Loss≥60dB
Attenuation at 1310 nm0.36dB/km Attenuation at 1550 nm0.22dB/km
Operating Temperature-20 to 70°C (-4 to 158℉)Storage Temperature-40 to 80°C (-40 to 176℉)

Videos

Applications

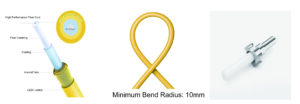

Using LC to LC Fiber Patch Cord to Connect Your NetworkThe LC/APC fiber patch cord can often be found in applications such as DAS, FTTH, CCTV, GPONs and passive optical LANs because many of these systems use RF signals to deliver video. And LC/APC patch cord could be using to connect the fiber optic patch panel to achieve the connection or using LC/APC-LC/UPC fiber patch cord connect the cassette module and transceivers.High Quality Fiber Patch Cord, Building Your Fiber Optic NetworkThe LC fiber patch cord will be using high-quality aramid yarn to protect the fiber cable, and increasing tensile strength. In addition, it can provide a minimum bend radius of 10mm, making it easy for fiber patch cord to reach narrow spaces. The use of high-grade precision zirconia ceramic ferrule can achieve an insertion life of up to 1000 times, providing precise alignment to ensure signal integrity.Meet the Various Indoor Installation Needs by LC-LC Fiber Patch CordThe single mode LC-LC fiber patch cord suitable for network cabinet connection, ceiling channel wiring and under-floor wiring in the data center, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed. Providing a higher rate of speed at transfers data, more clearly data signals when transmitting, and a greater bandwidths needed carries data to internet, cable TV and phone subscribers.

FAQ

Reviews

1 review for Fiber Optic Patch Cable|Fiber Optic Patchcord LC/APC-LC/APC Single Mode OS2 Corning SMF-28 Ultra Duplex 2.0mm Flame Retardant LSZH 1m(3ft)

  1. admin-afo

    Flexible installation and maintenance fiber cord, embossed A/B position labels on the duplex clip provide quick ID when installing and troubleshooting.
