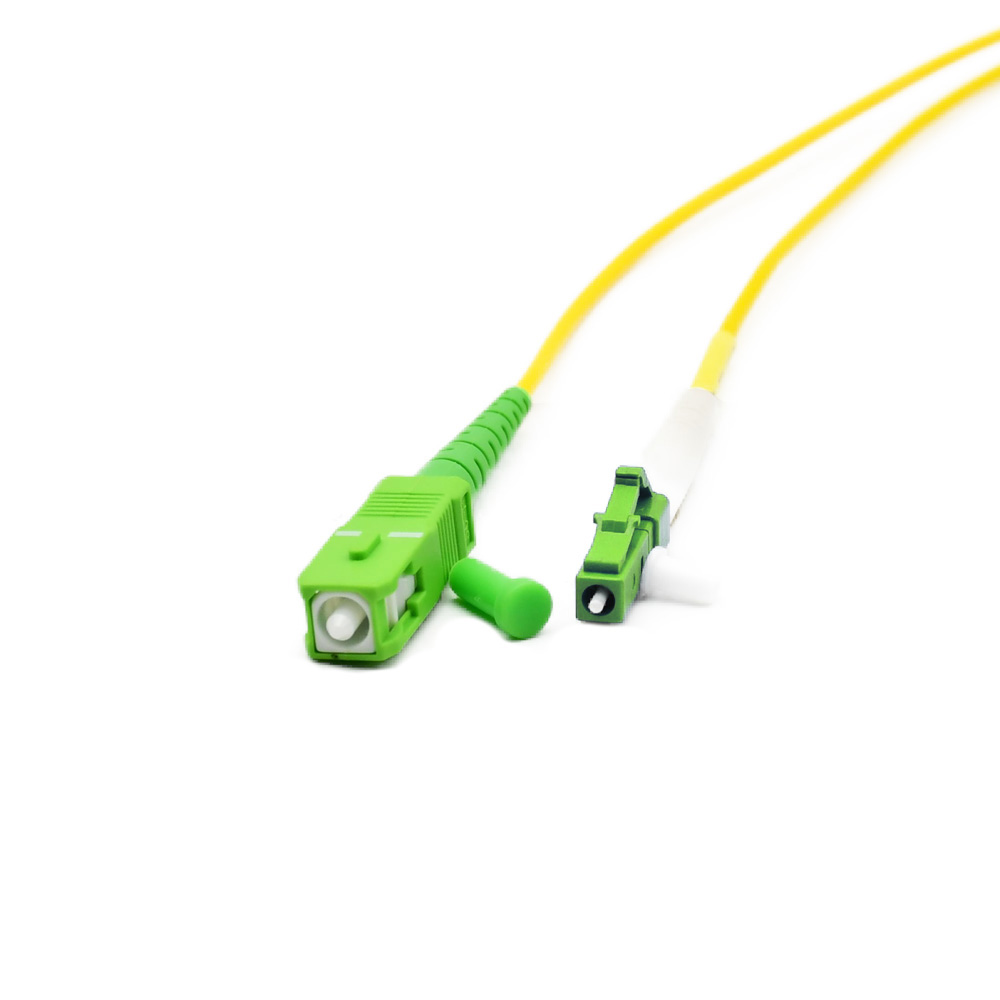

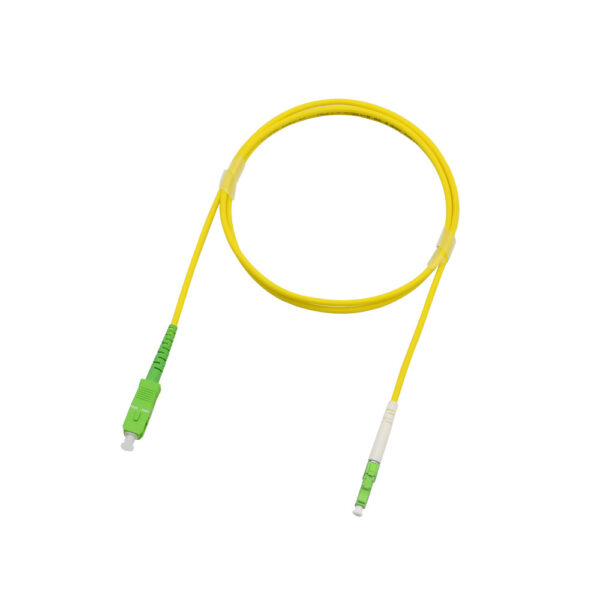

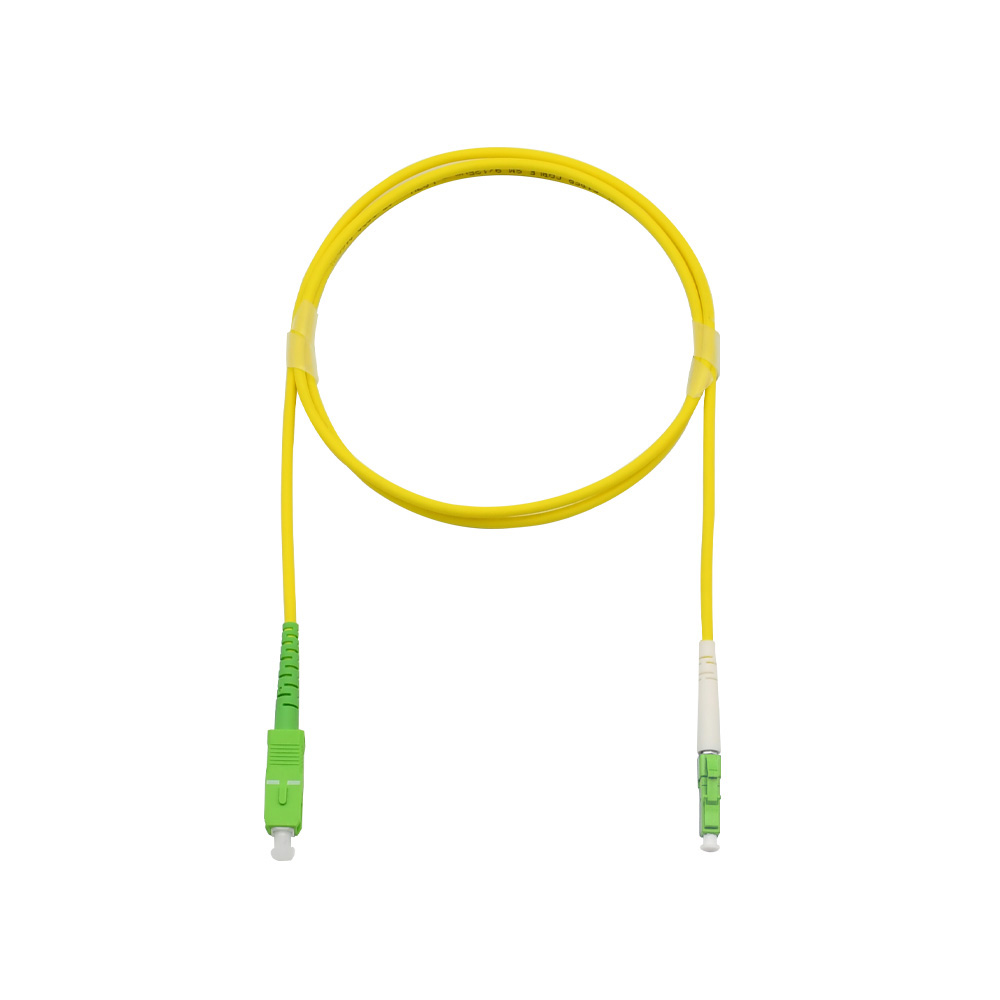

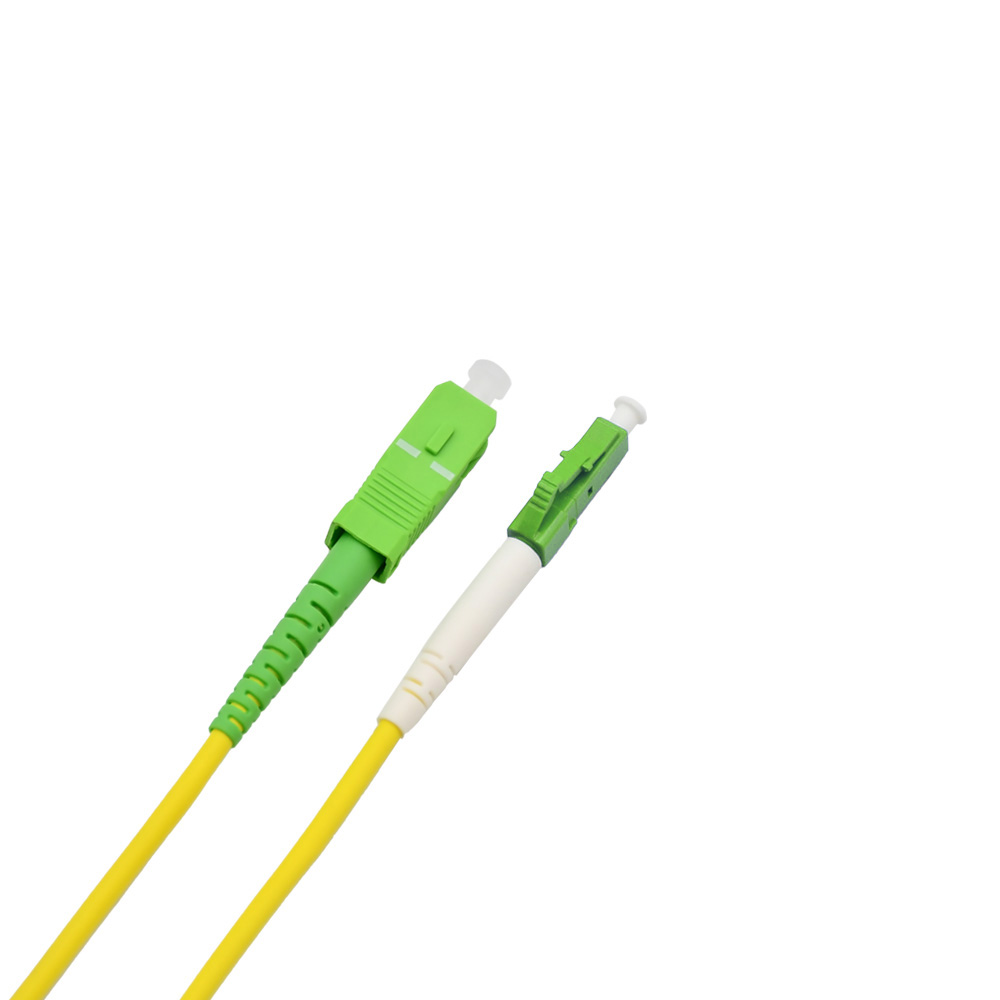

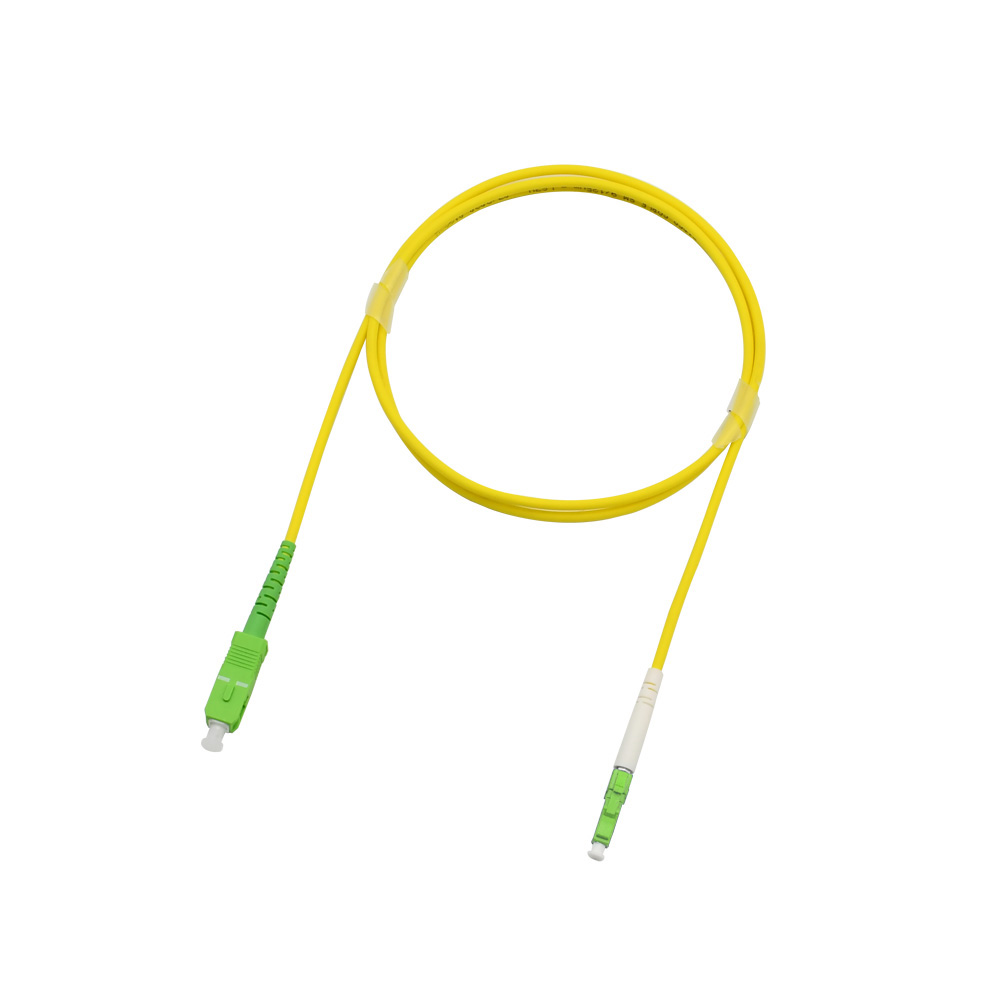

Searching for a fiber cable patch cord that combines top-notch performance with robust durability? AFOPLUS's lc to sc fiber patch cable is here to exceed your expectations. The simplex G657A1 single mode fiber is a marvel of modern engineering, offering exceptional flexibility and reliability. The LC/APC to SC/APC connector combination is a testament to precision and quality. The APC polish on the connectors optimizes light coupling, reducing signal loss and improving the overall performance of your fiber optic network. The 2.0mm OFNR riser jacket is a key feature of this single mode optic patch cord. Engineered for vertical installations in buildings, it meets strict fire safety standards, preventing the spread of flames and reducing smoke emissions in case of a fire. This fiber optic patch cord ensures seamless communication between floors, enabling you to build a reliable and future-proof network.

Connector A	LC APC Simplex	Connector B	SC APC Simplex
Fiber Count	1 Fiber	Fiber Grade	G657A1
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
RoHS Compliancy Status	Compliant	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	2.0mm	Cable Jacket	PVC-OFNR (Riser)
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	500 times	Tensile Strength (Long/Short Term)	60/100N
Insertion Loss	≤0.3dB	Return Loss	≥60dB
Attenuation at 1310 nm	0.36dB/km	Attenuation at 1550 nm	0.22dB/km
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)
