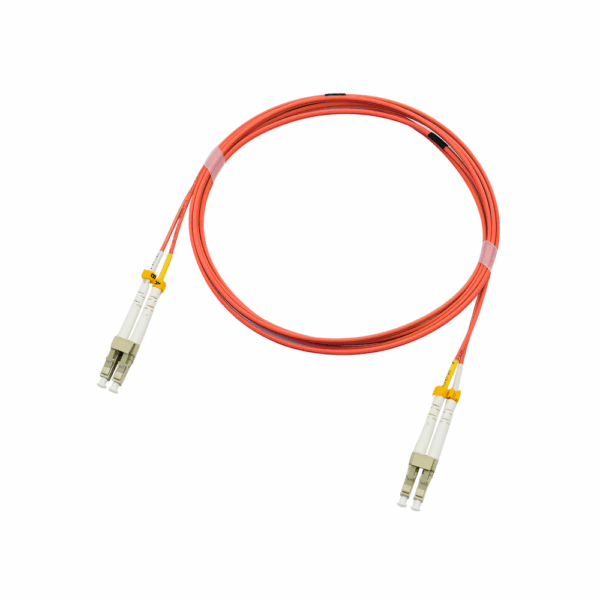

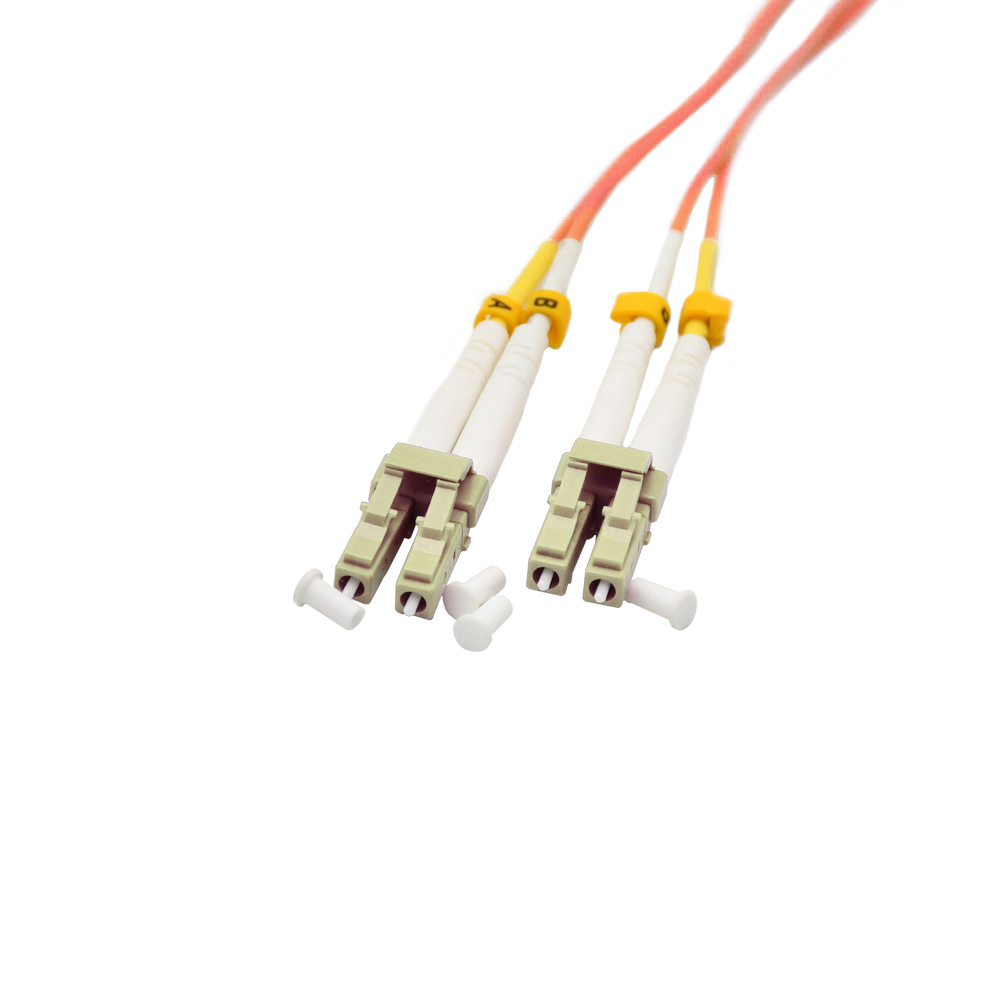

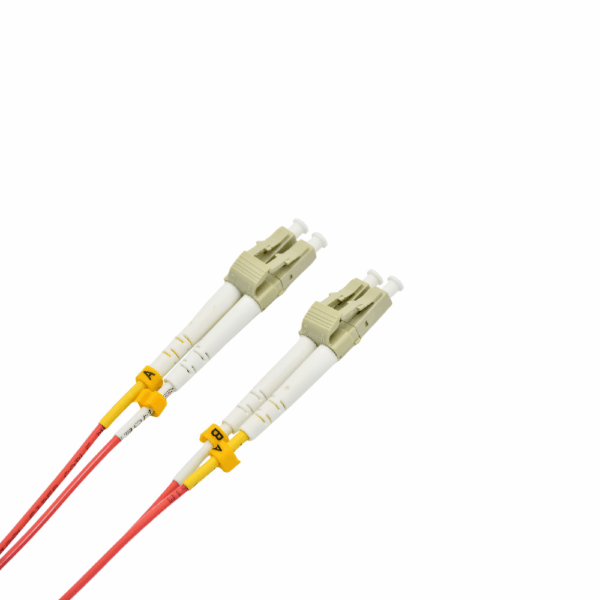

AFOPLUS's duplex 2.0mm LC/PC-LC/PC fiber optic patchcord is an excellent choice for your optical fiber connection. With its LC/PC connectors at both ends, it can be easily connected to various optical devices. The OM2 multimode fiber provides high bandwidth and low dispersion, ensuring clear and stable signal transmission. The duplex fiber cable enables simultaneous data transmission in both directions, increasing the speed and efficiency of data transfer. The 2.0mm Flame Retardant LSZH jacket not only provides protection against external factors but also meets the requirements of fire safety standards, making it suitable for use in a wide range of indoor applications, including data centers and communication rooms.

Connector A	LC PC Duplex	Connector B	LC PC Duplex
Fiber Count	2 Fiber	Fiber Grade	OM2
Fiber Mode	50/125um	Wavelength	850/1300nm
RoHS Compliancy Status	Compliant	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	2.0mm	Cable Jacket	Flame Retardant LSZH
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	500 times	Tensile Strength (Long/Short Term)	60/100N
Insertion Loss	≤0.3dB	Return Loss	≥35dB
Attenuation at 850 nm	3.0dB/km	Attenuation at 1300 nm	1.0dB/km
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)
