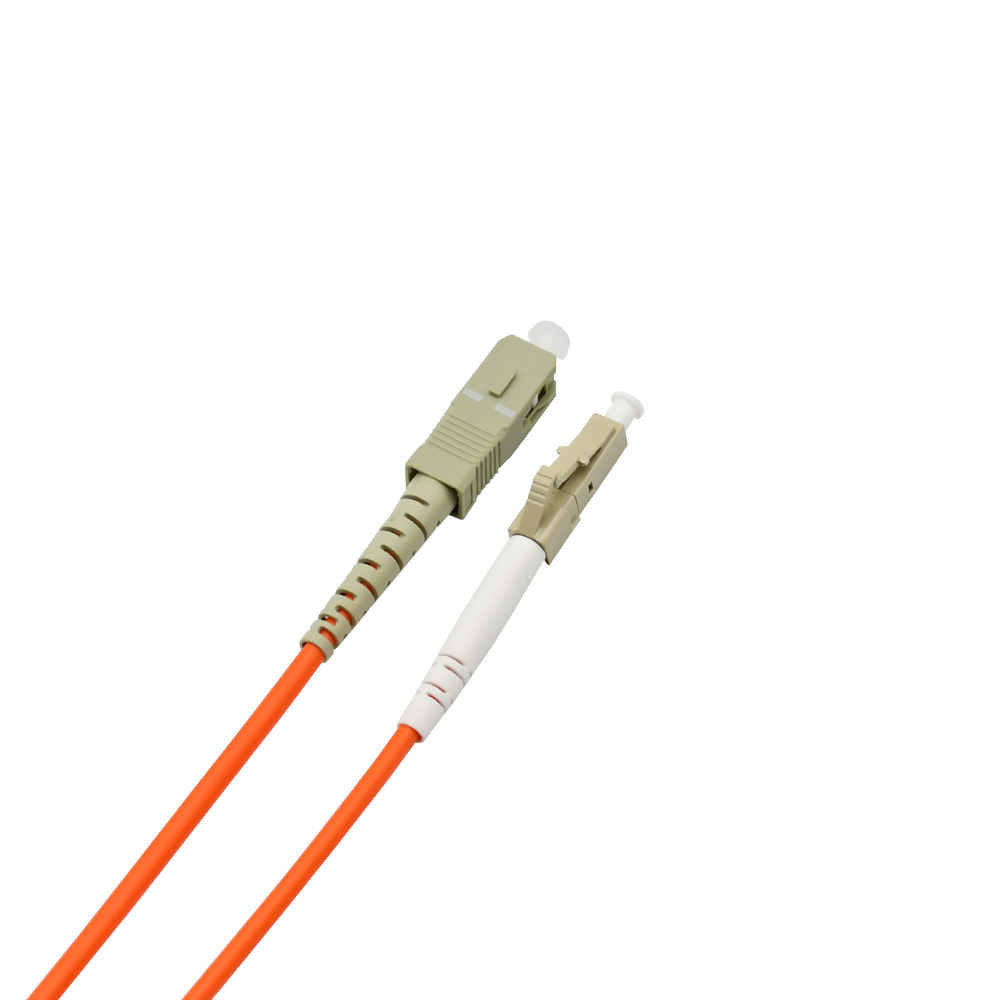

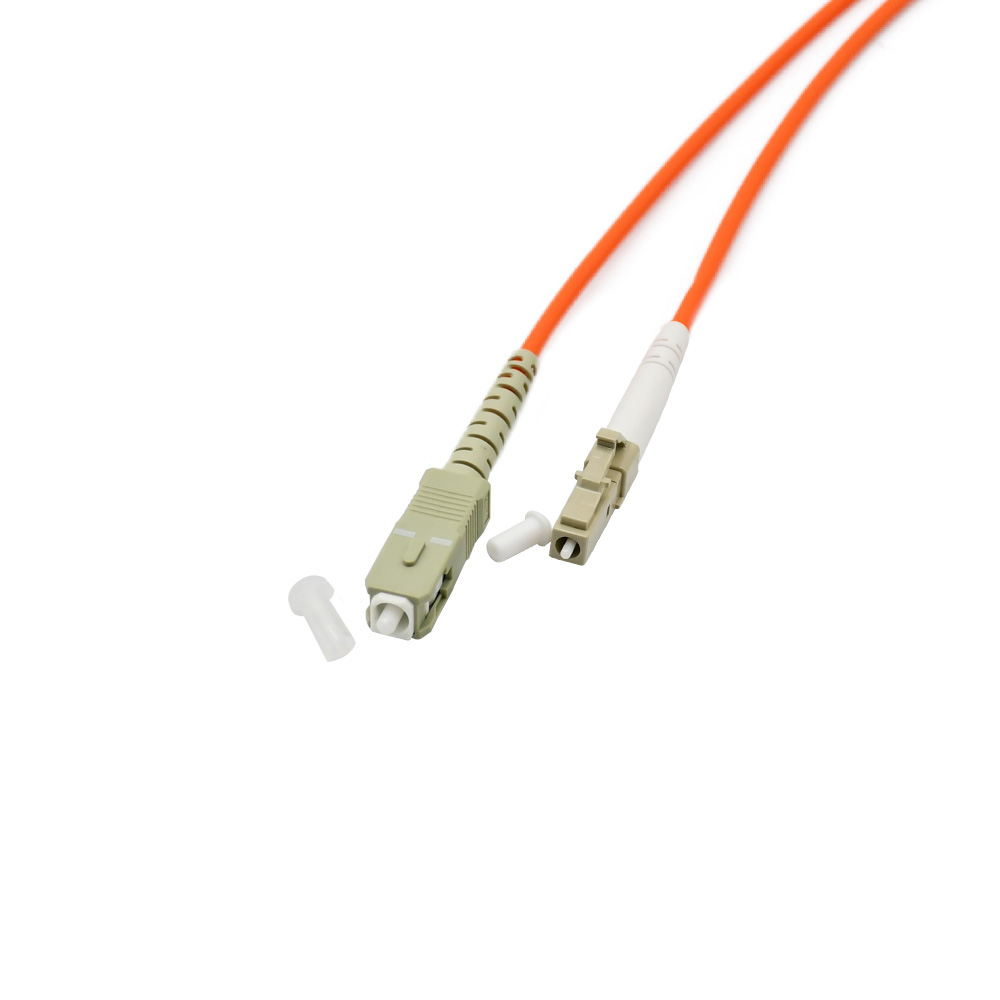

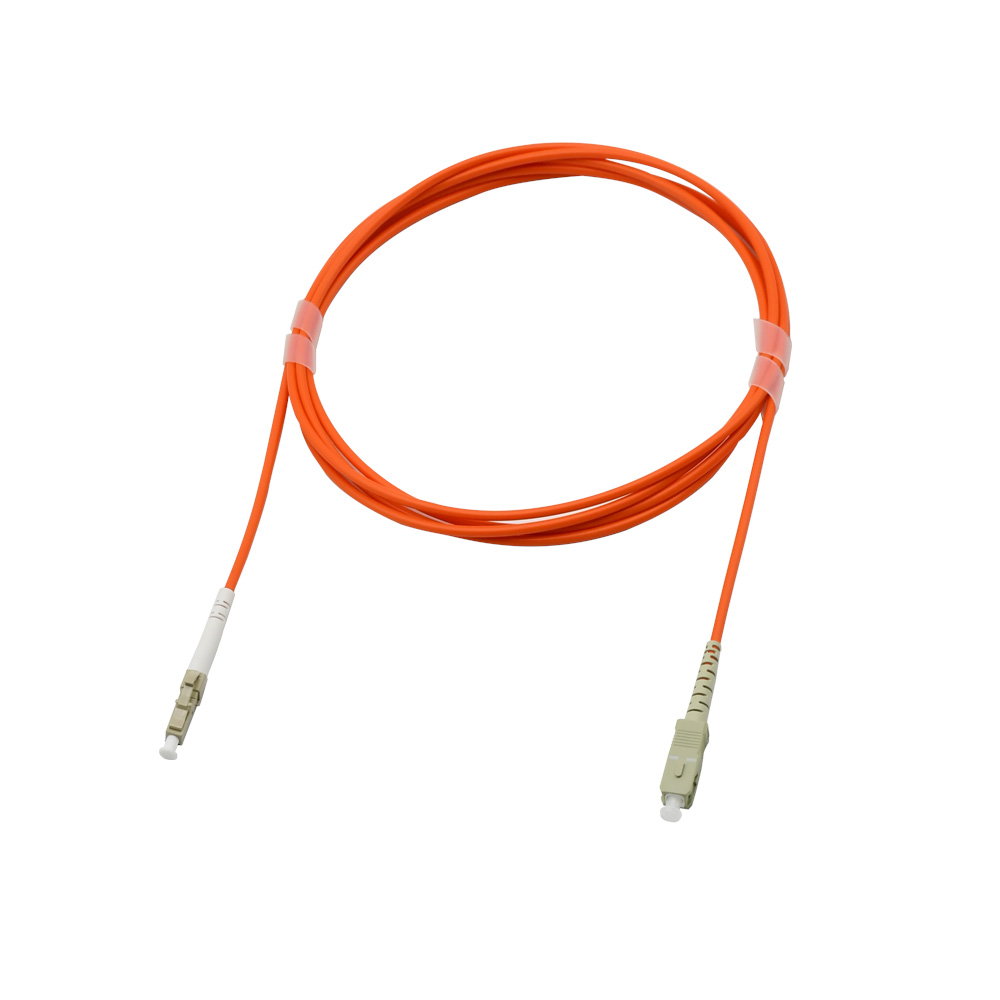

For seamless vertical fiber optic connectivity, look no further than AFOPLUS's LC/PC to SC/PC pre terminated fiber optic patch cord. The 50/125um OM2 combination is optimized for high speed data transfer in riser environments. The LC-SC connector offers a secure and easy-to-connect solution and provides compatibility with a wide range of fiber optic equipment, making it suitable for both new installations and upgrades. The OFNR riser jacket is designed to meet the strict fire-safety regulations for riser spaces. In case of a fire, the jacket helps contain the fire and prevents it from spreading to other floors, protecting the entire building's network.

Connector A	LC PC Simplex	Connector B	SC PC Simplex
Fiber Count	1 Fiber	Fiber Grade	OM2
Fiber Mode	50/125um	Wavelength	850/1300nm
RoHS Compliancy Status	Compliant	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	2.0mm	Cable Jacket	PVC-OFNR (Riser)
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	500 times	Tensile Strength (Long/Short Term)	60/100N
Insertion Loss	≤0.3dB	Return Loss	≥35dB
Attenuation at 850 nm	3.0dB/km	Attenuation at 1300 nm	1.0dB/km
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)
