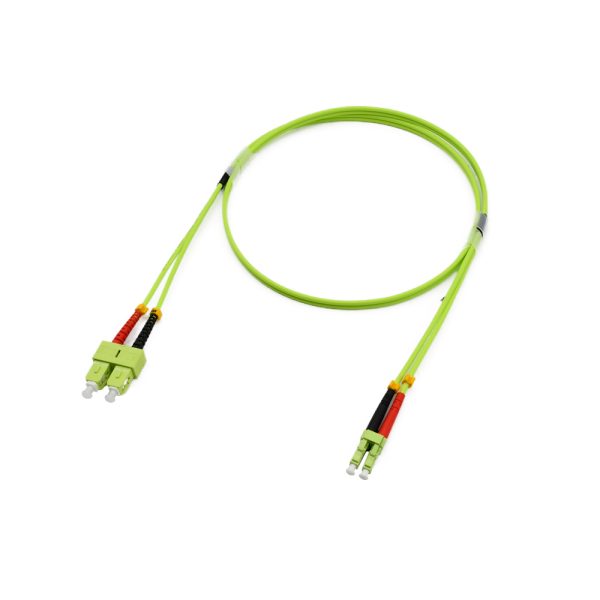

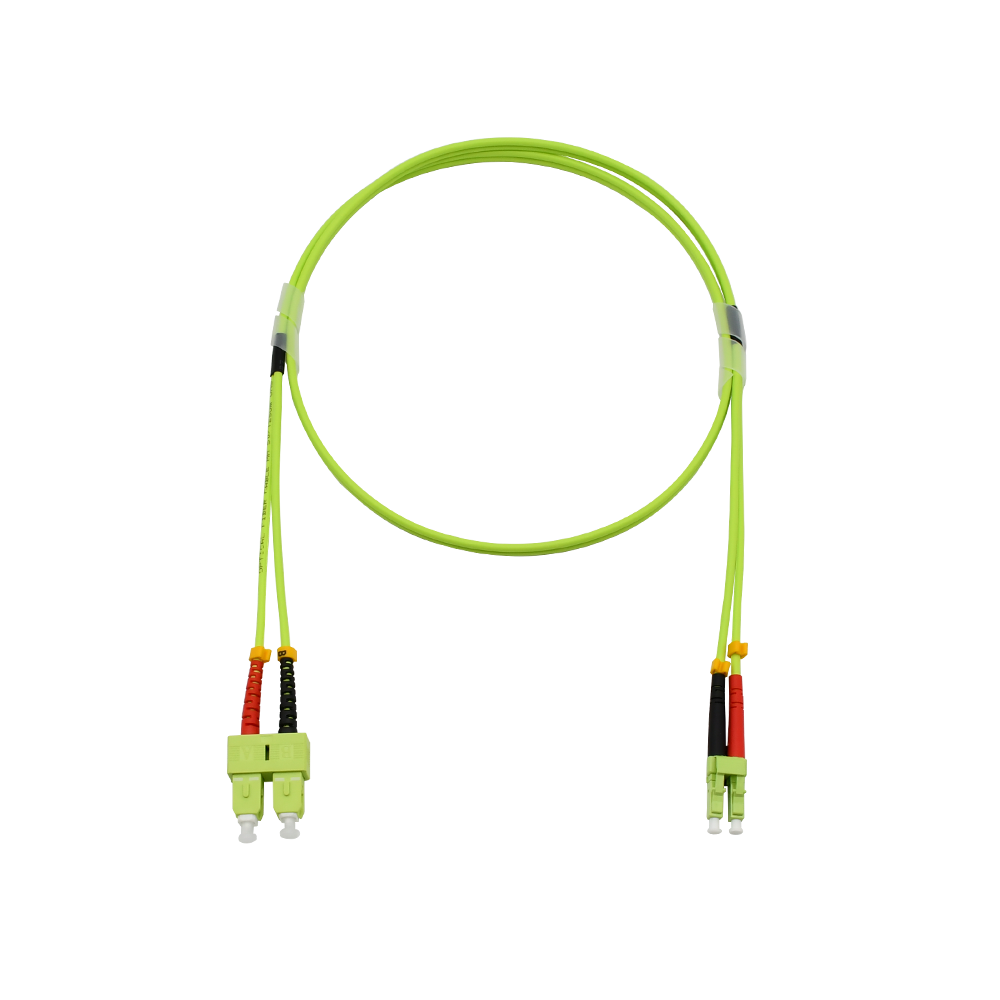

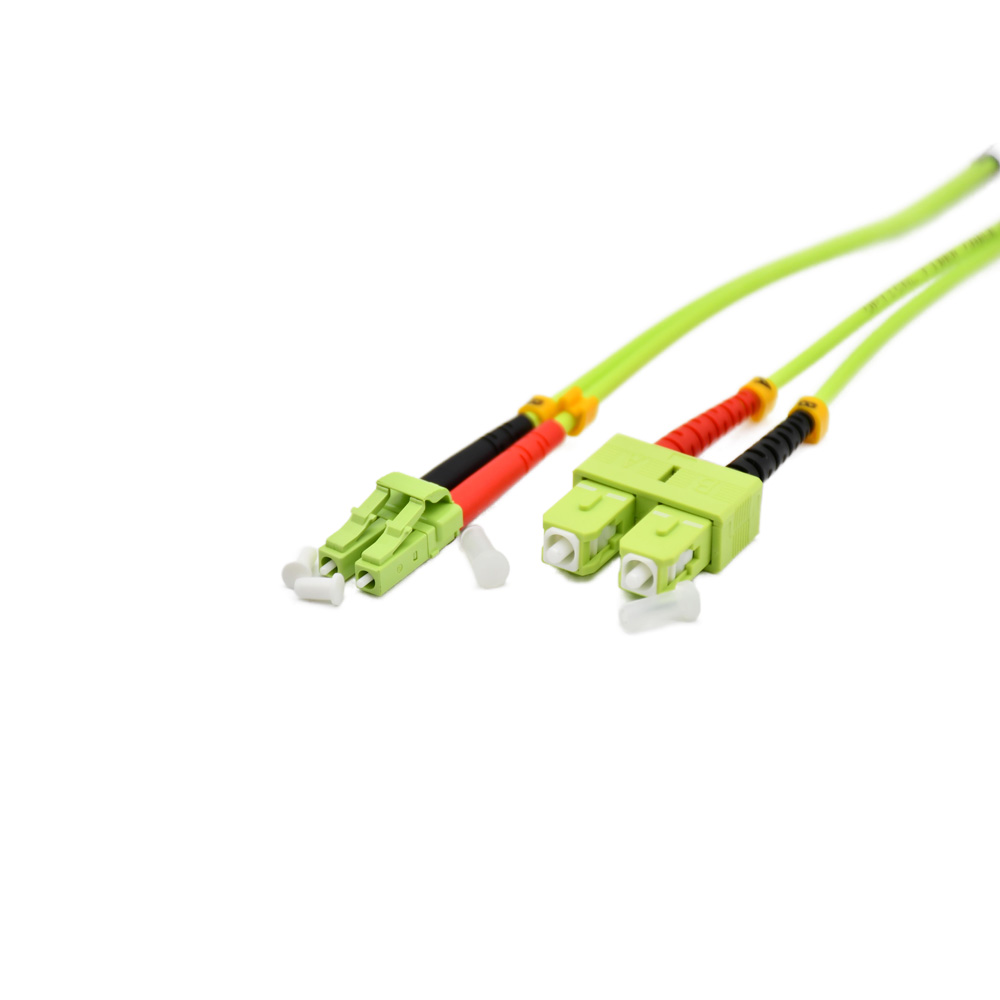

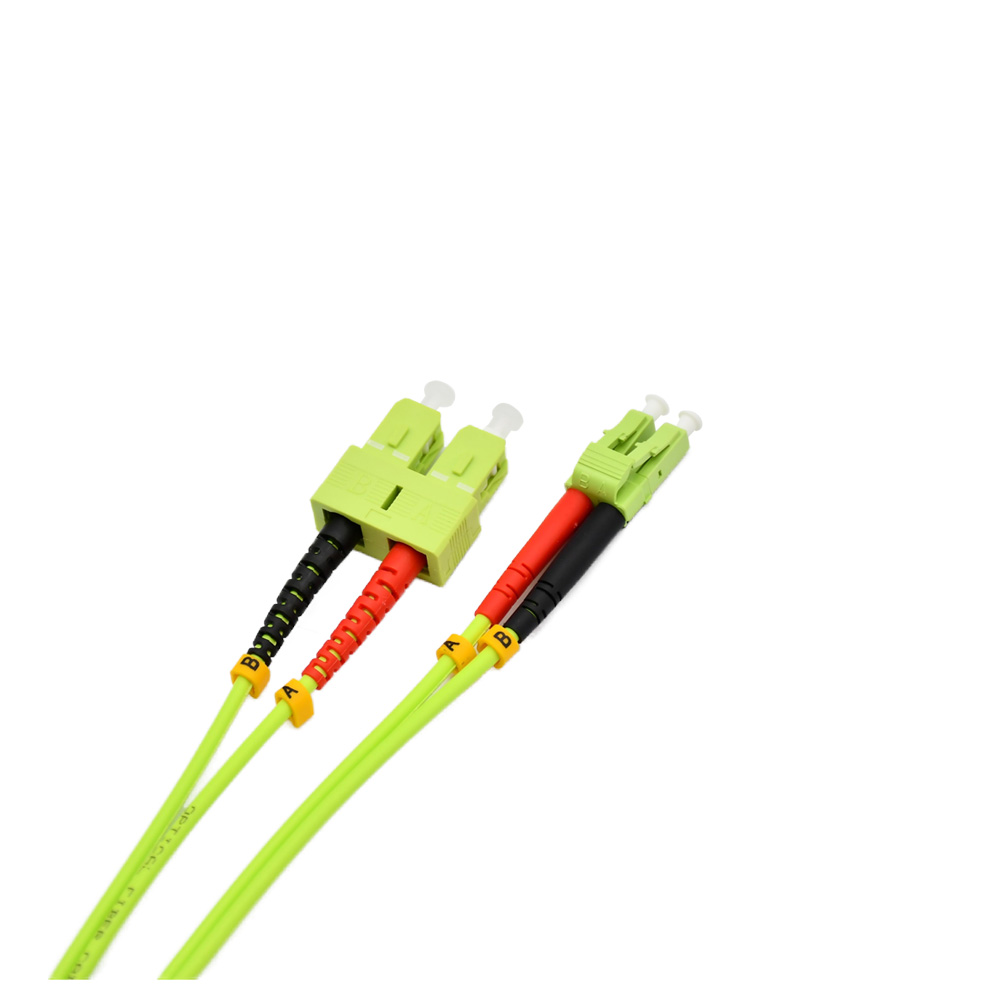

Unlock the potential of your network with AFOPLUS's advanced om5 fiber patch cord. The LC/PC to SC/PC connectors offer excellent repeatability and low insertion loss, ensuring reliable connections every time. The 50/125um multimode OM5 optical fiber is designed to handle a variety of data rates. The duplex 2.0mm sc lc fiber optic patchcord is engineered for easy installation and maintenance, with a smooth outer surface that reduces snagging. Its OFNP Plenum jacket allows it to be used in plenum ceilings and walls, meeting the requirements of modern building designs where concealed cabling is prevalent and fire safety is a must.

Connector A	LC PC Duplex	Connector B	SC PC Duplex
Fiber Count	2 Fiber	Fiber Grade	OM5
Fiber Mode	50/125um	Wavelength	850/1300nm
RoHS Compliancy Status	Compliant	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	2.0mm	Cable Jacket	PVC-OFNP (Plenum)
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	500 times	Tensile Strength (Long/Short Term)	60/100N
Insertion Loss	≤0.3dB	Return Loss	≥35dB
Attenuation at 850 nm	3.0dB/km	Attenuation at 1300 nm	1.0dB/km
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)
