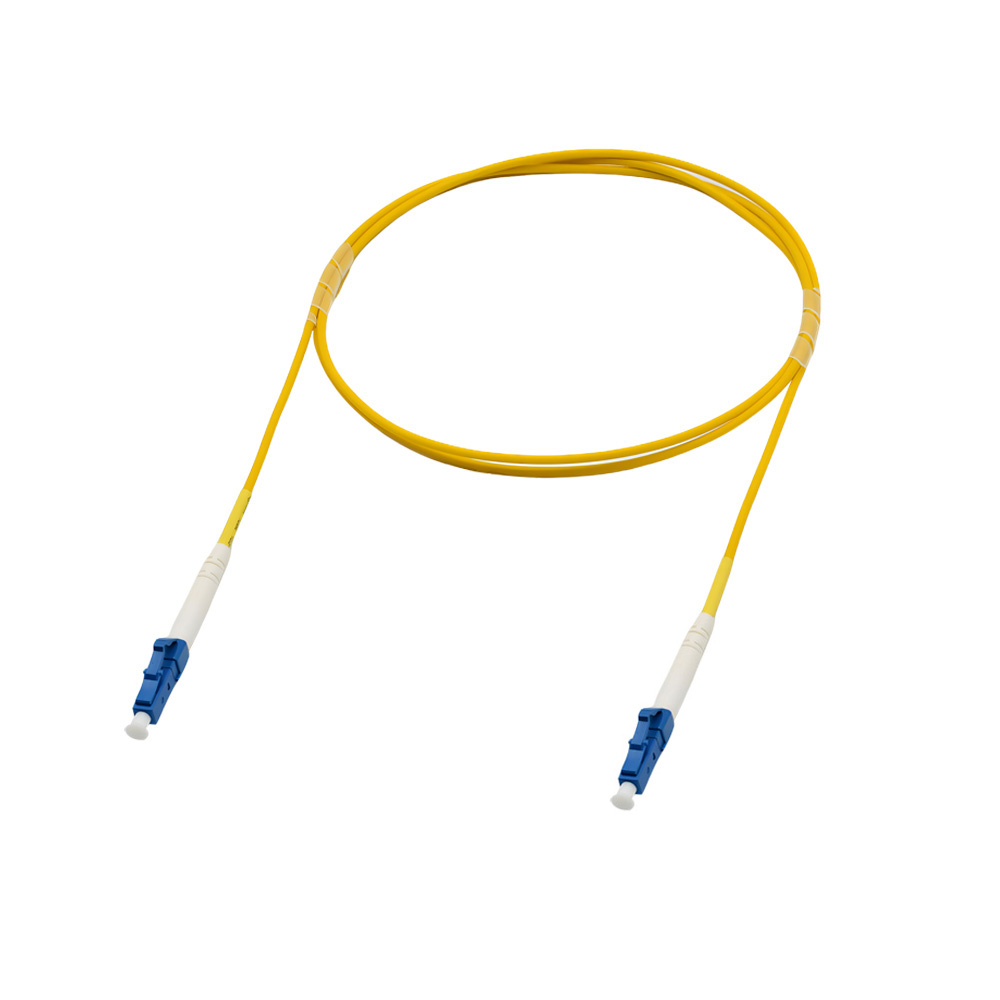

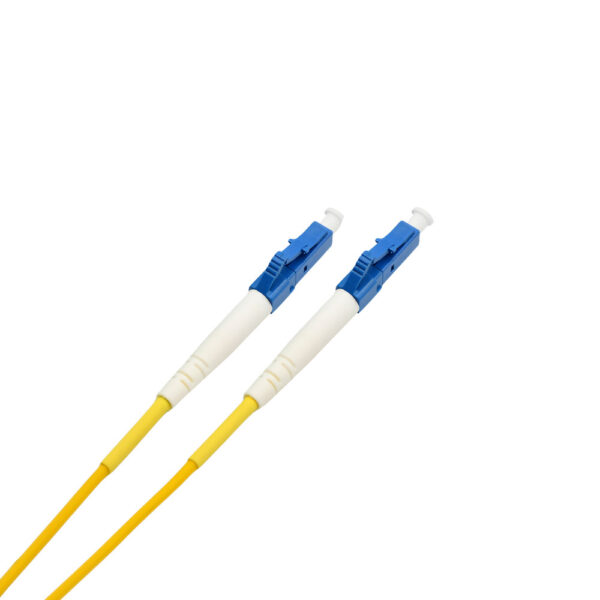

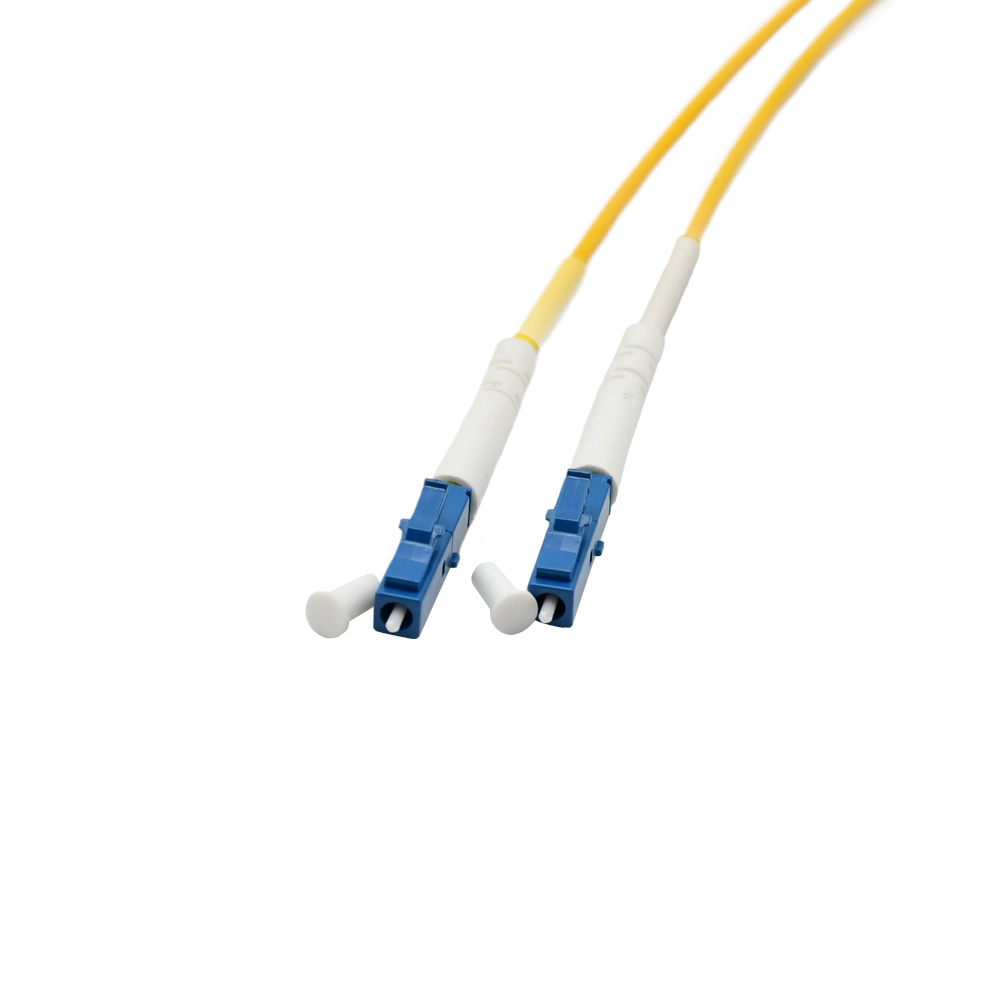

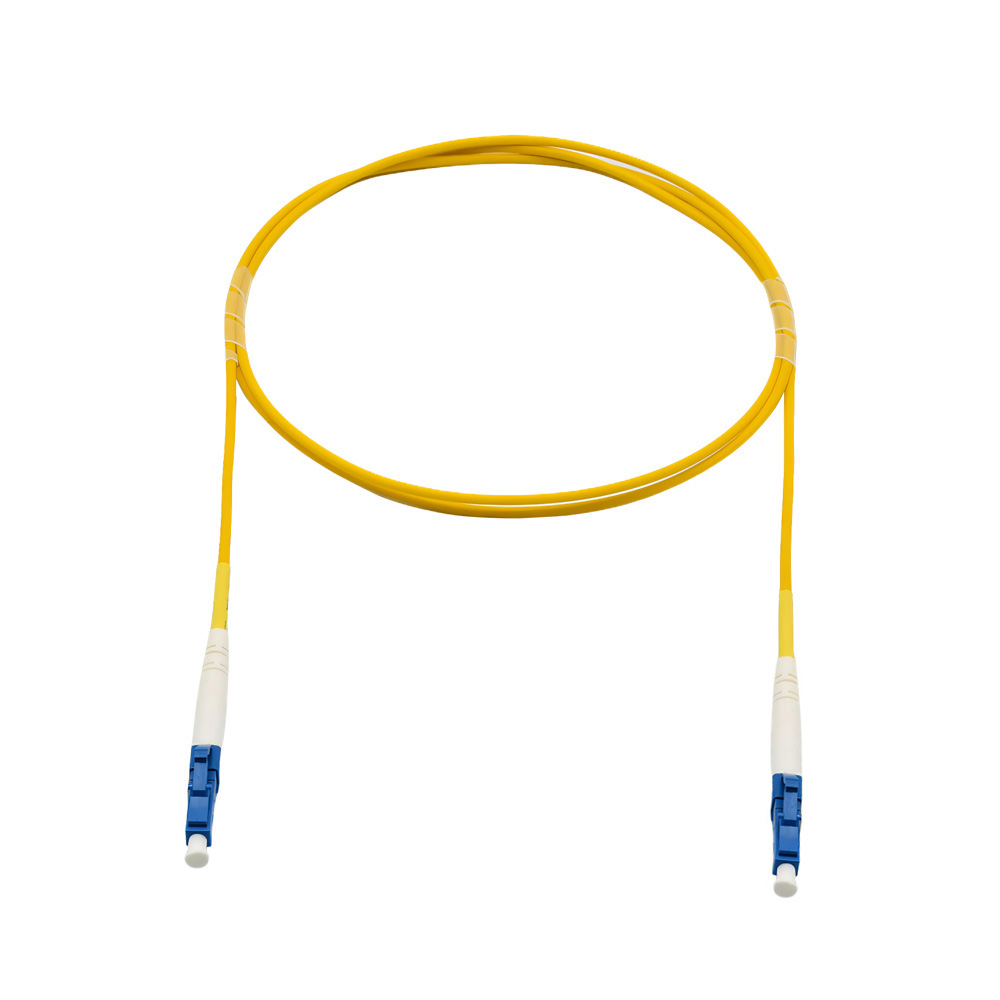

Unleash the power of long range and high speed data transfer with AFOPLUS's single mode sx fiber patch cable. The OS2 singlemode fiber is designed for optimal performance over extended distances. With a maximum attenuation of 0.36dB/km, it can support data transmission up to 200km in some cases, making it ideal for WAN connections. Whether it's connecting different branches of a multinational company across cities or setting up a backbone network for a large scale campus, this fiber optical patch cord can handle the task with ease. The G657A1 fiber ensures good bend resistance, and the LC/UPC connectors provide a reliable connection. The flame retardant LSZH jacket ensures safety in case of fire, making it suitable for various installation environments.

Connector A	LC UPC Simplex	Connector B	LC UPC Simplex
Fiber Count	1 Fiber	Fiber Grade	G657A1
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
RoHS Compliancy Status	Compliant	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	2.0mm	Cable Jacket	Flame Retardant LSZH
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	500 times	Tensile Strength (Long/Short Term)	60/100N
Insertion Loss	≤0.3dB	Return Loss	≥50dB
Attenuation at 1310 nm	0.36dB/km	Attenuation at 1550 nm	0.22dB/km
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)
