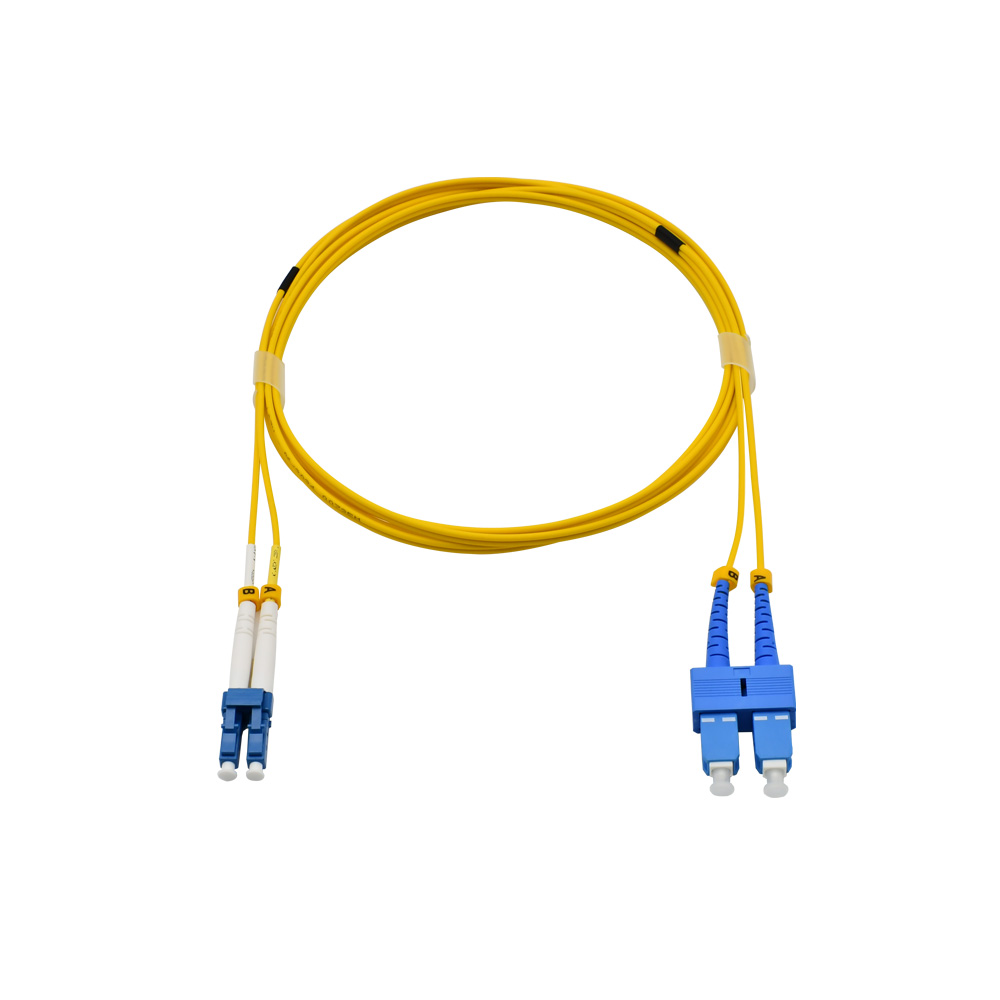

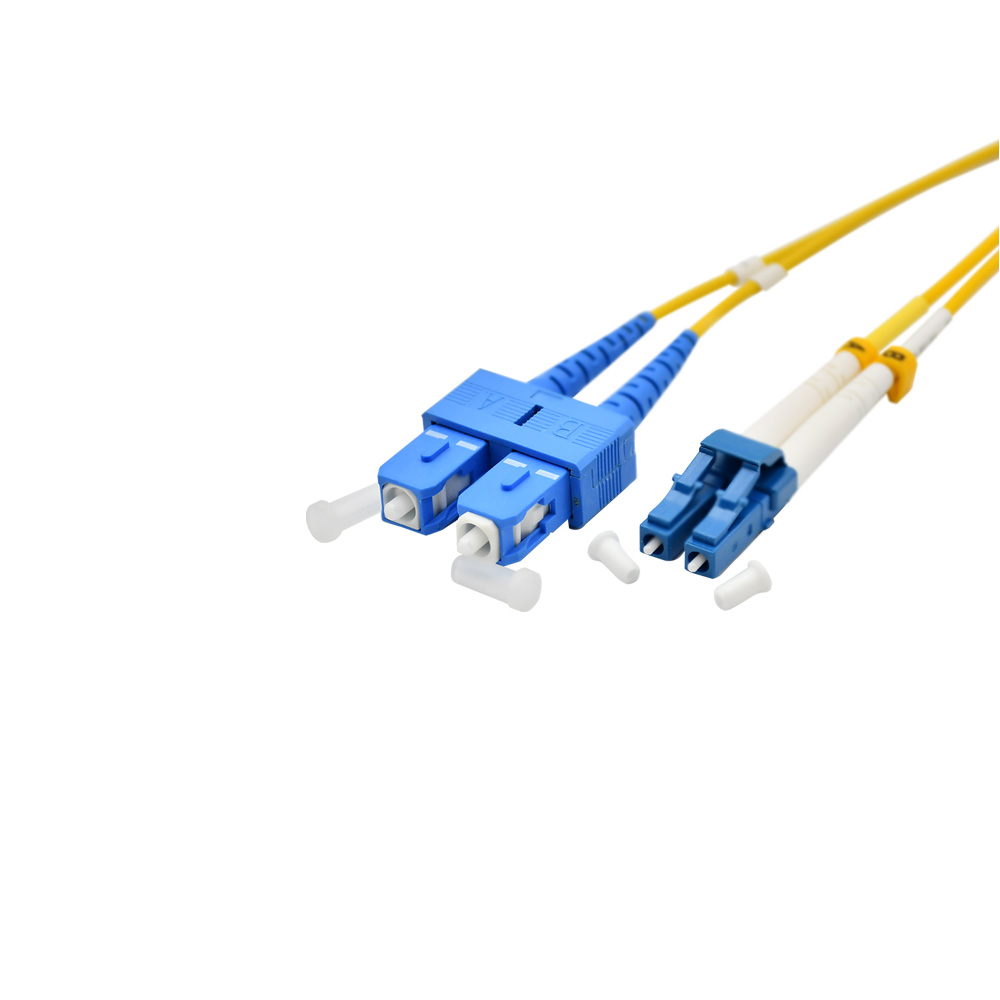

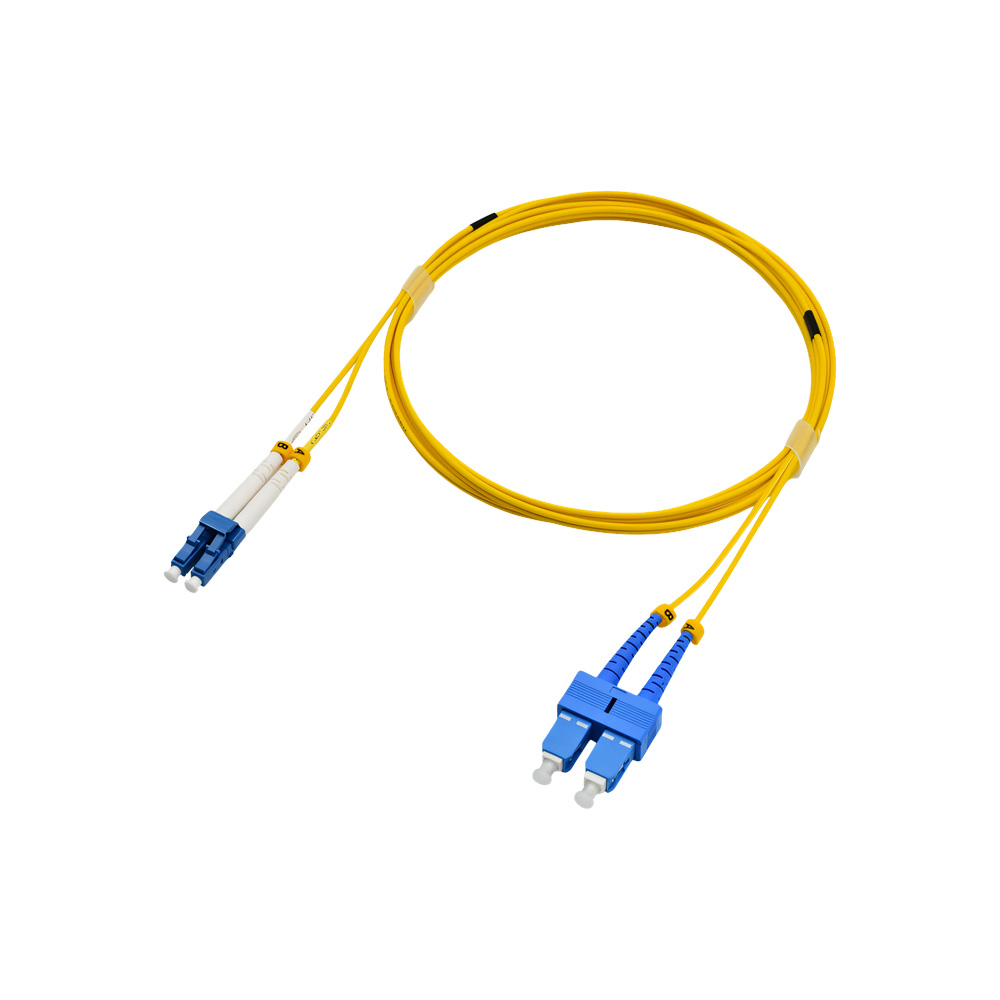

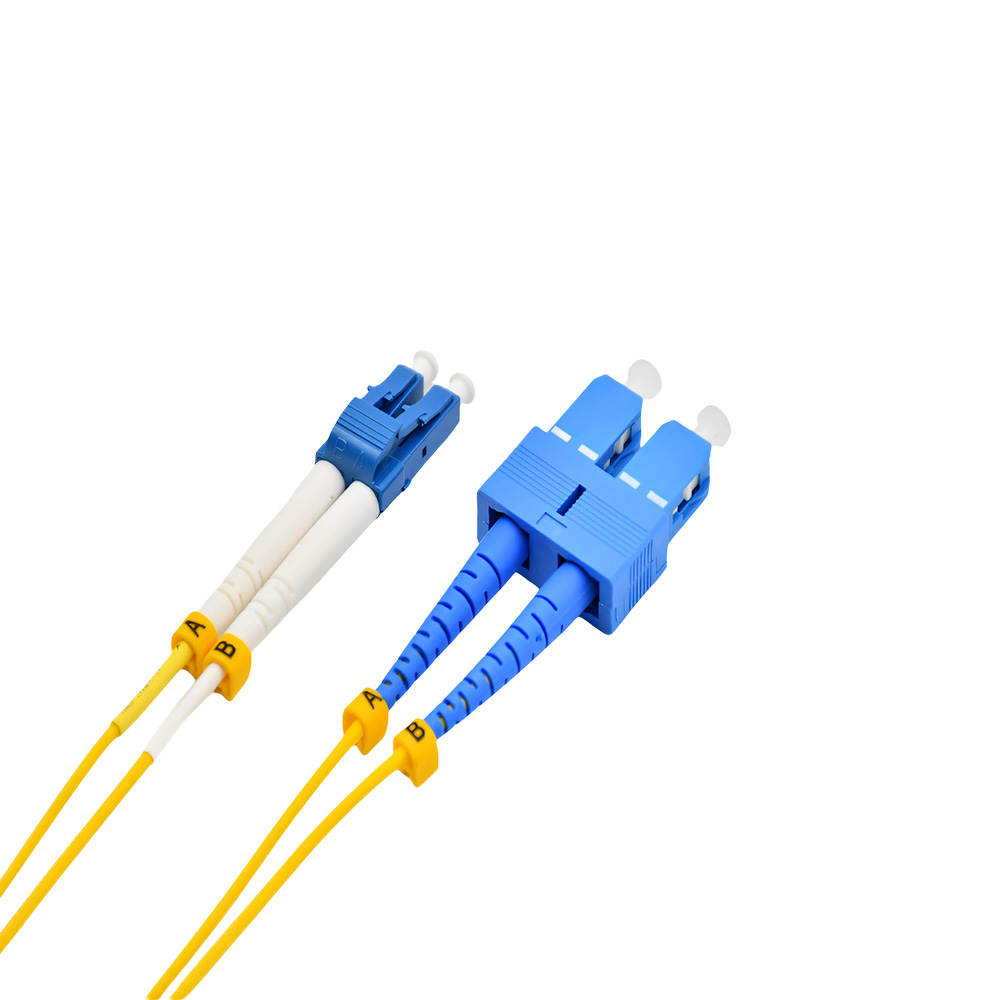

AFOPLUS's lc sc fiber optic cord is a masterpiece of fiber optic engineering. The LC-SC/UPC connectors are engineered to offer a stable and efficient connection. They are designed to minimize signal loss and interference, ensuring that your network operates smoothly. The 2.0mm sm duplex patch cord with G657A1 fiber is lightweight and flexible, making it easy to install in vertical riser applications. The OFNR Riser jacket is a crucial feature. In vertical riser shafts, where fire protection is essential, this fiber cable meets the strict fire-safety standards. It will not ignite easily and will limit the spread of flames in case of a fire. This duplex fiber patch cord is a must-have for any network that requires reliable fiber optic connectivity along with enhanced fire-safety measures in vertical building structures.

Connector A	LC UPC Duplex	Connector B	SC UPC Duplex
Fiber Count	2 Fiber	Fiber Grade	G657A1
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
RoHS Compliancy Status	Compliant	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	2.0mm	Cable Jacket	PVC-OFNR (Riser)
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	500 times	Tensile Strength (Long/Short Term)	60/100N
Insertion Loss	≤0.3dB	Return Loss	≥50dB
Attenuation at 1310 nm	0.36dB/km	Attenuation at 1550 nm	0.22dB/km
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)
