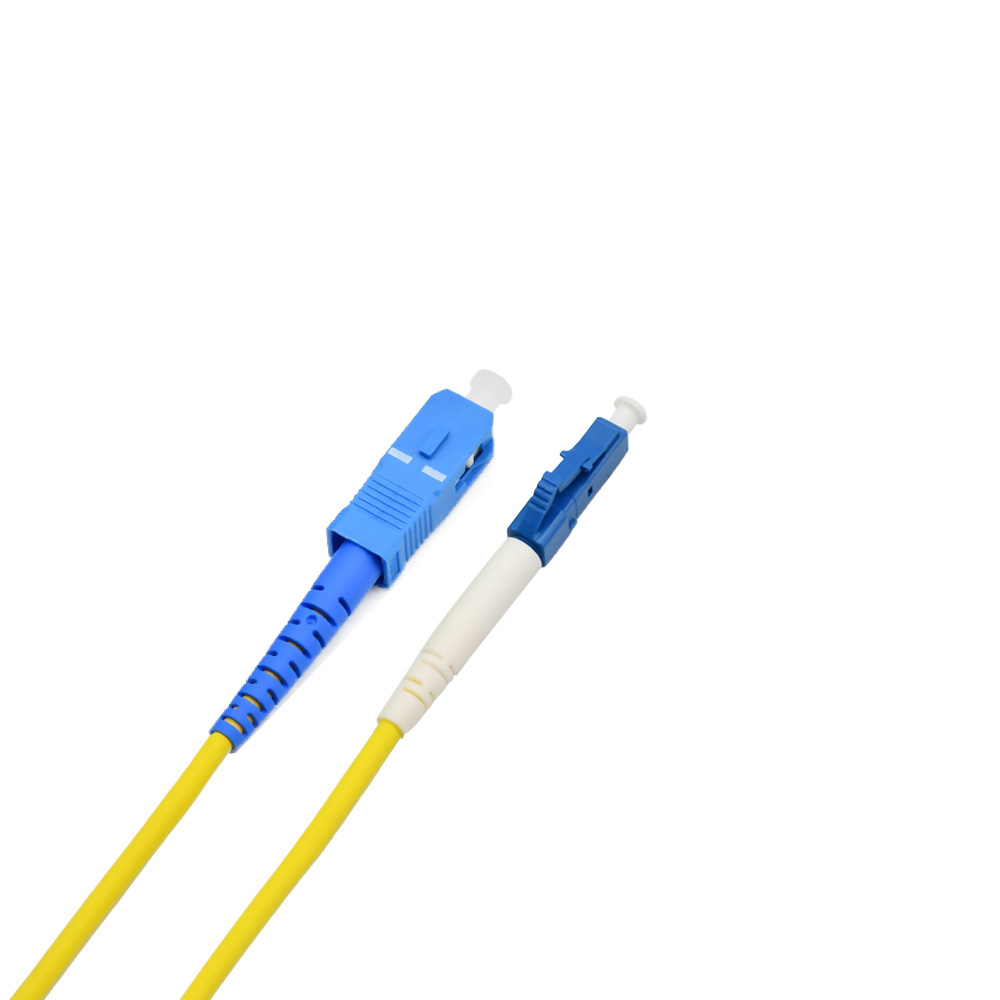

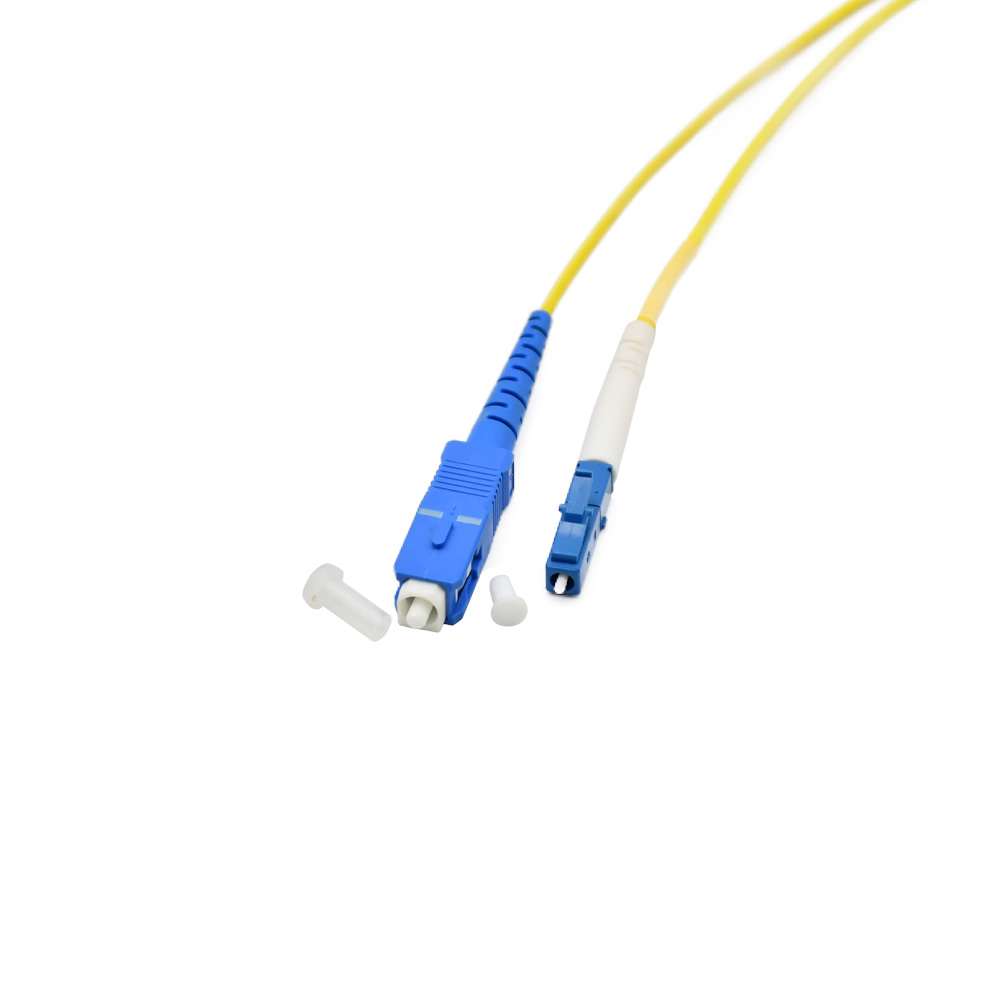

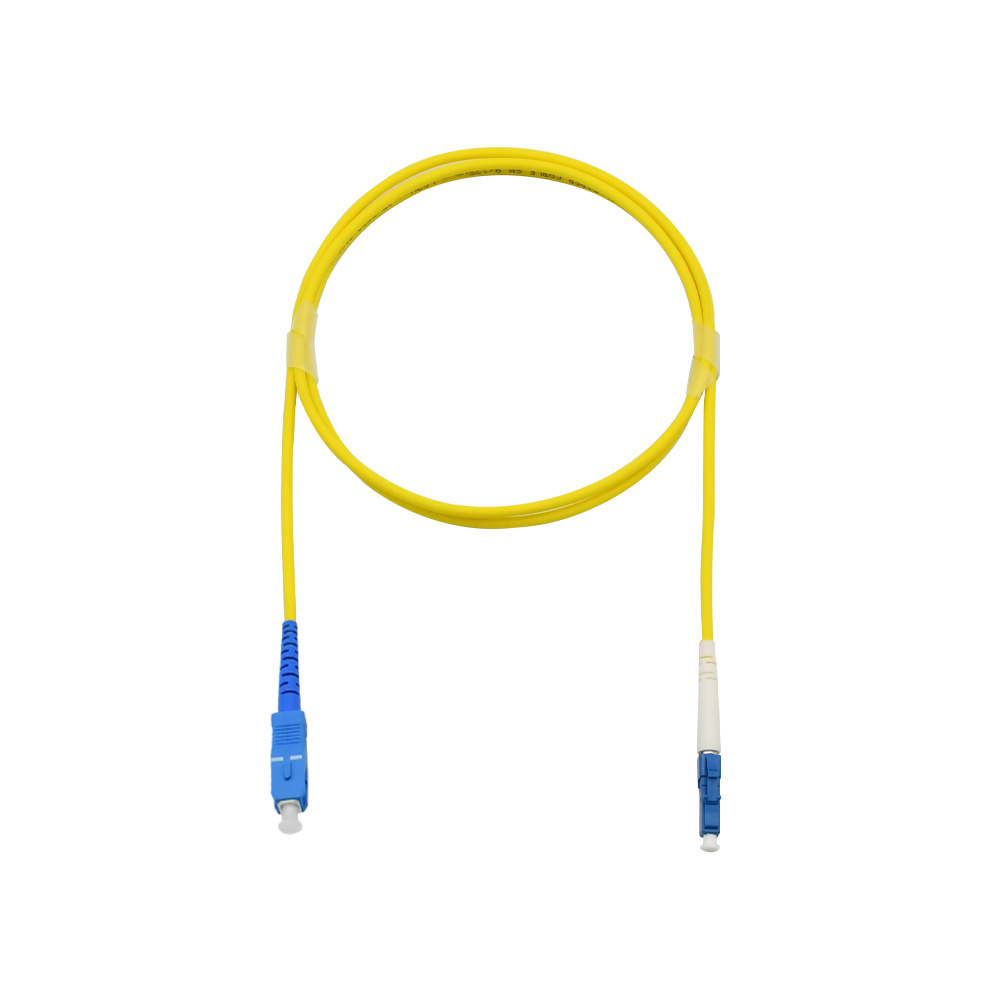

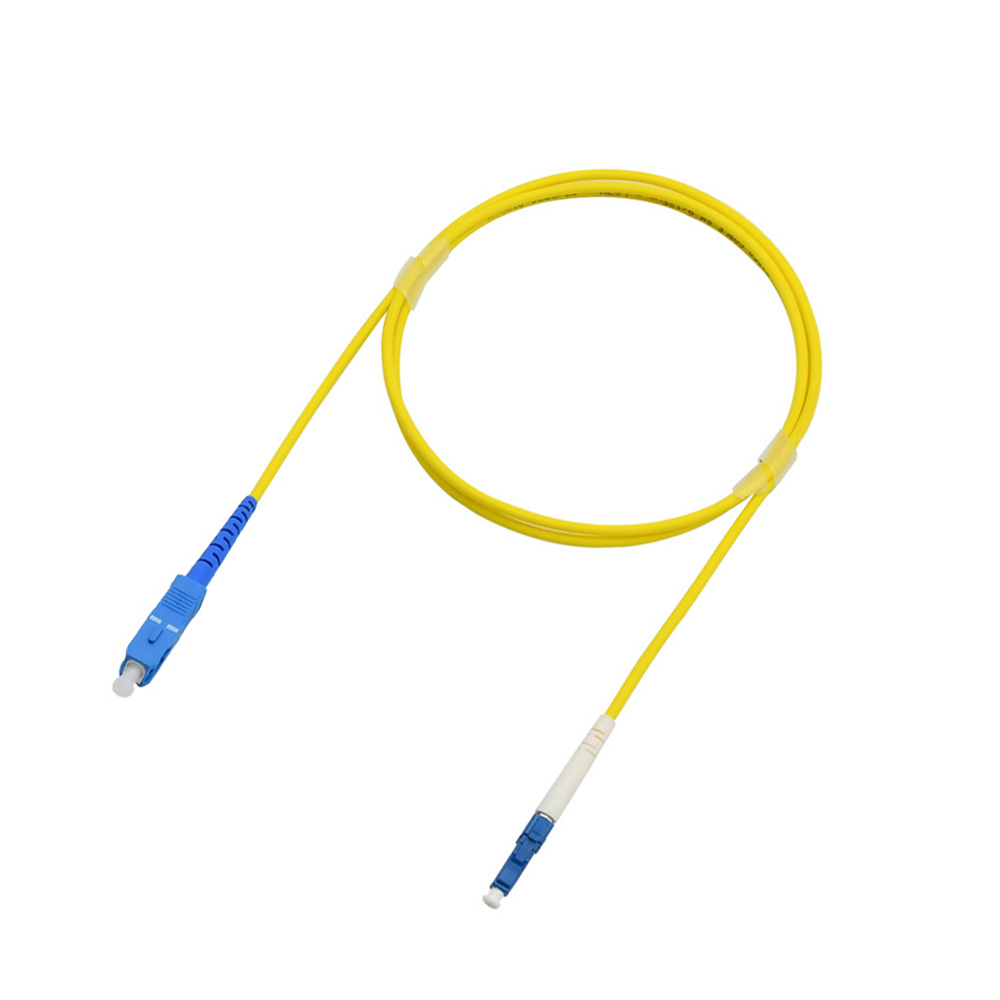

AFOPLUS's lc sc fiber patch cord is a revolutionary product that combines advanced technology with essential fire safety features for networking. The LC/UPC to SC/UPC connectors and single mode OS2 technology offer unparalleled data transfer capabilities, while the simplex G657A1 fiber provides excellent performance in terms of signal strength and stability. The OFNR Riser jacket makes it suitable for use in a wide range of vertical applications, from residential buildings with multiple floors to large-scale enterprise networks. For small and medium-sized businesses located in multi-story buildings, this os2 simplex patch cord offers a cost-effective solution that ensures reliable connectivity, fast data transfer, and enhanced fire safety in vertical riser areas.

Connector A	LC UPC Simplex	Connector B	SC UPC Simplex
Fiber Count	1 Fiber	Fiber Grade	G657A1
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
RoHS Compliancy Status	Compliant	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	2.0mm	Cable Jacket	PVC-OFNR (Riser)
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	500 times	Tensile Strength (Long/Short Term)	60/100N
Insertion Loss	≤0.3dB	Return Loss	≥50dB
Attenuation at 1310 nm	0.36dB/km	Attenuation at 1550 nm	0.22dB/km
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)
