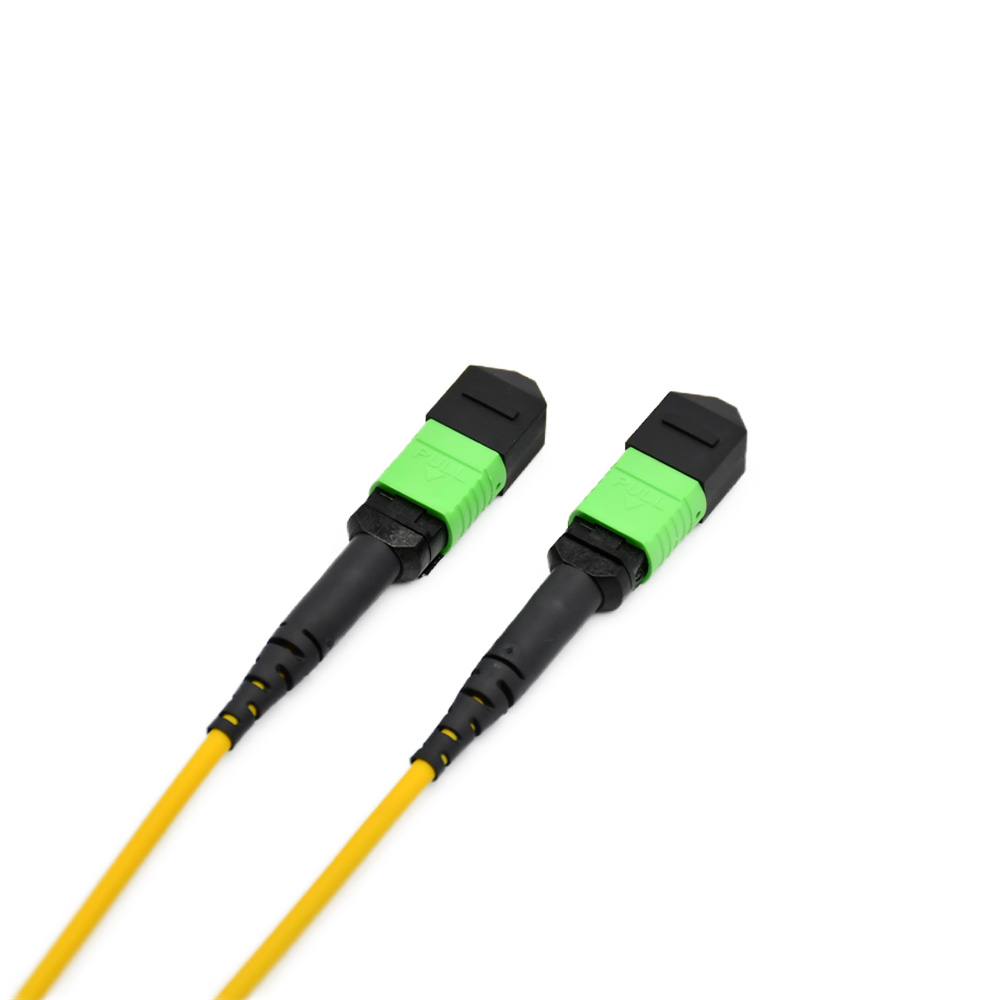

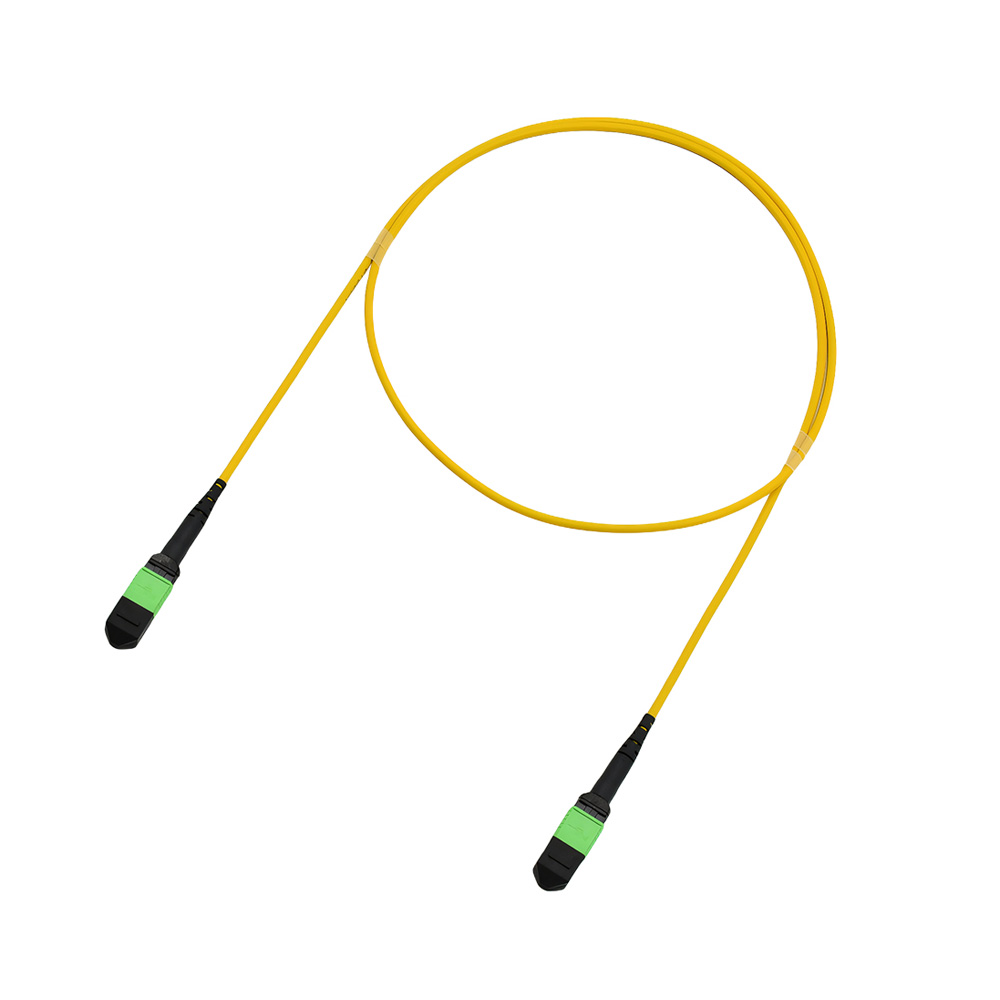

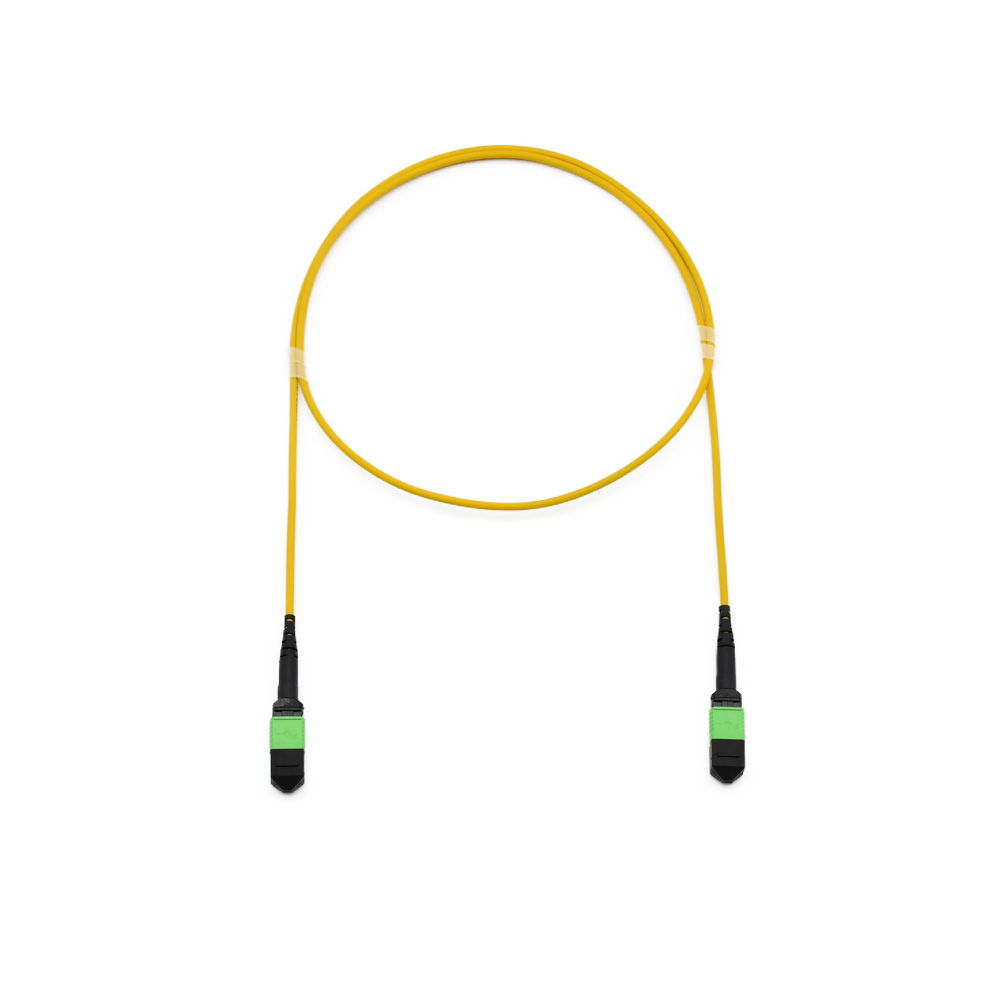

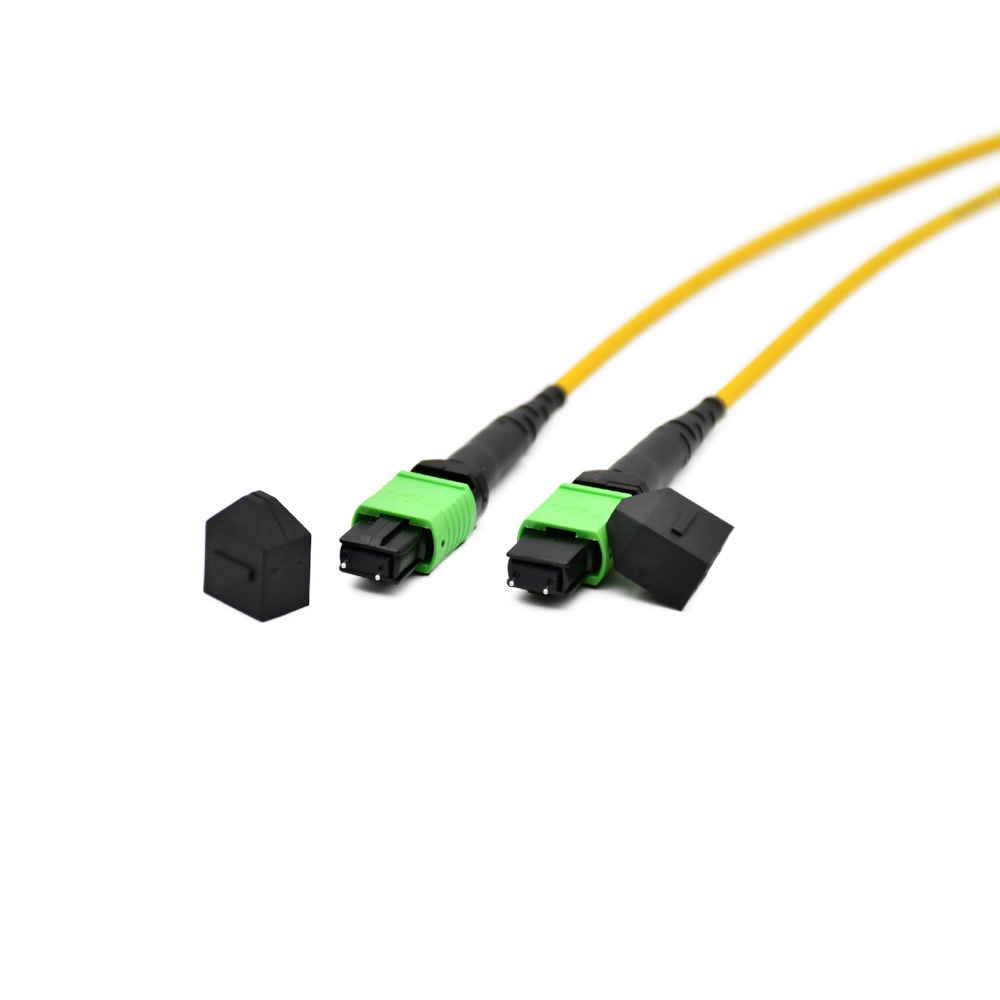

Designed for high density vertical networks, AFOPLUS's 24 core M to M MPO fiber patchcord excels with G657A1 OS2 fiber and OFNR riser certification. The low loss ≤0.35dB ensures reliable performance in long-haul vertical transmissions, such as between floors in data centers or telecom hubs. The 3.0mm jacket's riser jacket makes it a secure choice for financial institutions and government buildings with multi-story layouts, where fire safety in vertical shafts is critical. The 24 cores support high speed data transfer, ideal for cloud storage and 100G Ethernet, while the Type B configuration prevents polarity errors. Its bend-tolerant design allows the mpo cable routing around corners in riser shafts, simplifying installation in complex building structures.

Connector A	MPO Male	Connector B	MPO Male
Fiber Count	24 Fibers	Glass Fiber	G657A1 OS2 9/125μm
Polish Type	APC to APC	Cable Jacket	PVC-OFNR (Riser)
Wavelength	1310/1550nm	Polarity Type	Type B
Trunk Outside Diameter (OD)	3.0mm	Tensile Strength (Long/Short Term)	80/240N
Insertion Loss	≤0.35dB	Return Loss	≥60dB
Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)	Minimum Bend Radius (Optical Fiber)	10mm
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)
