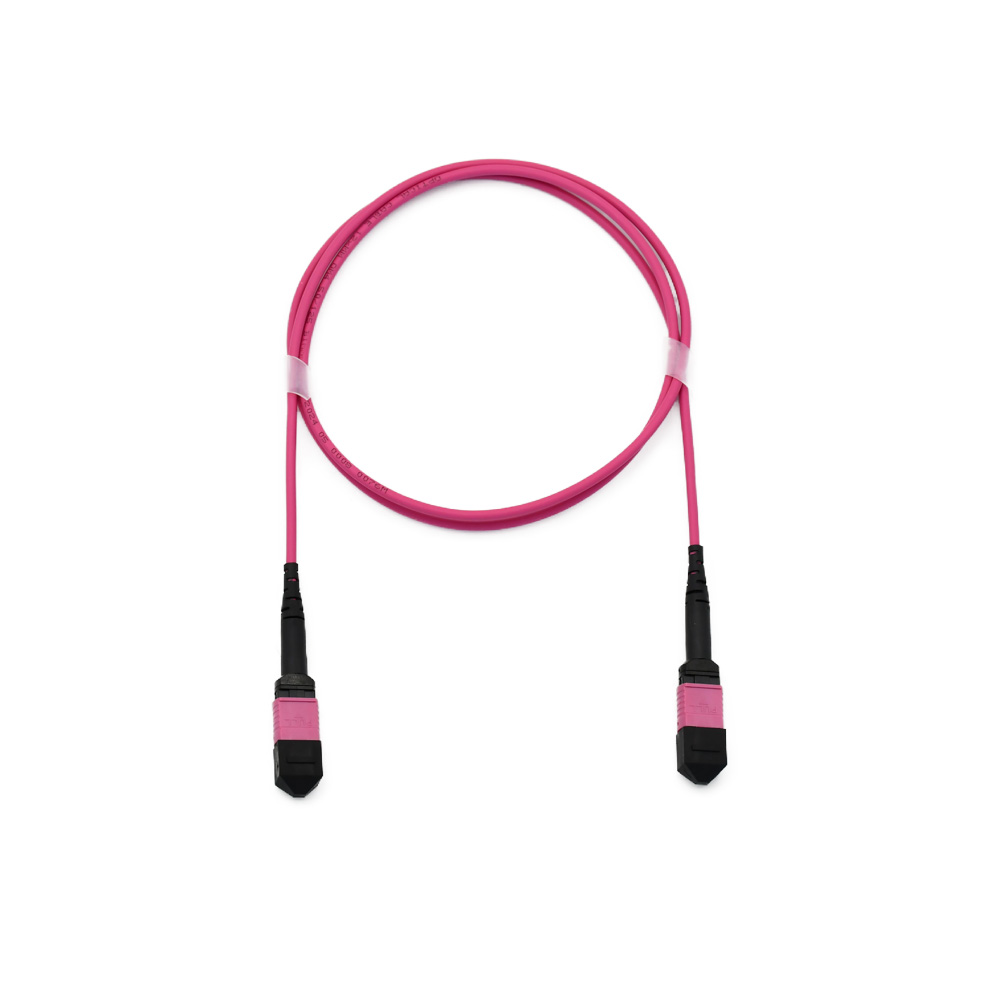

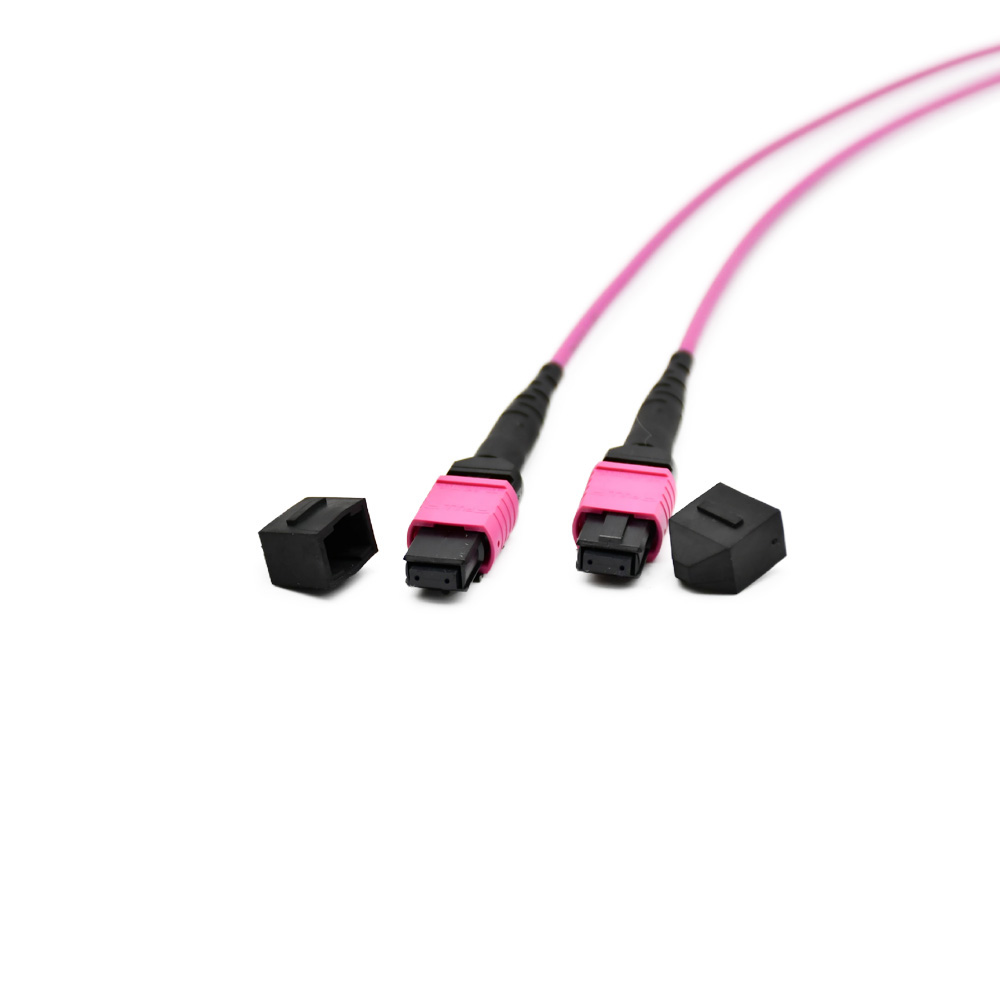

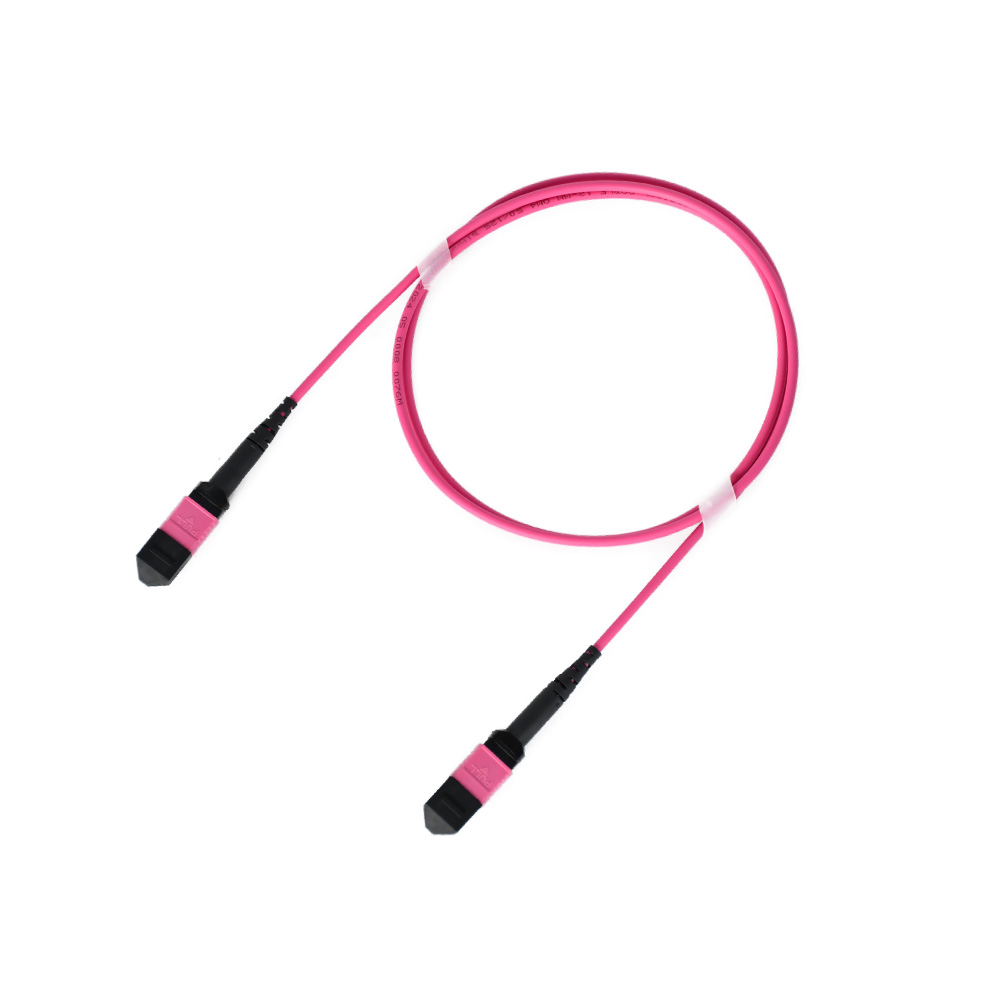

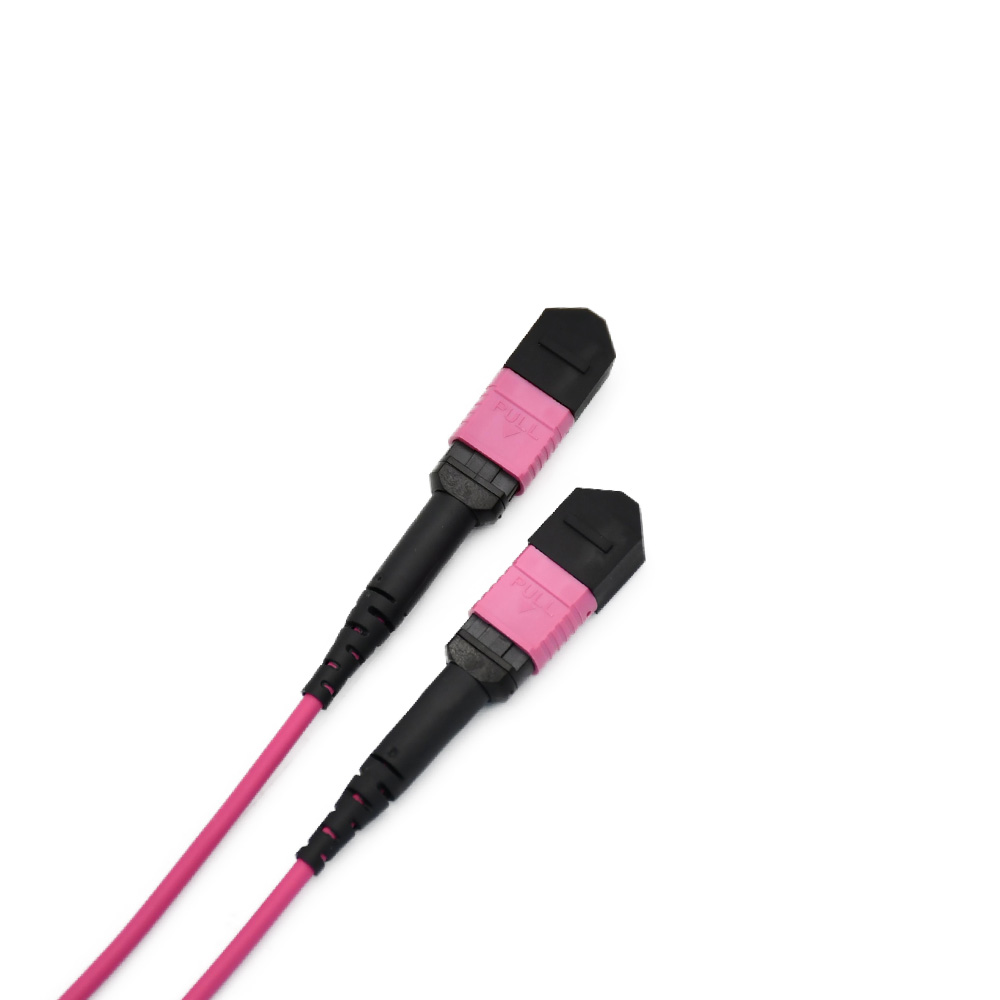

MTP fiber optic cable delivers uncompromised signal quality and fire-safe installation. Built with OM4 multimode fiber, it supports high-data-rate transmission for Ethernet and InfiniBand protocols up to 400Gbps. The elite low loss of ??0.35dB reduces signal degradation across long patching distances. Its 3.0mm LSZH jacket enhances fire protection and emits minimal toxic fumes, ensuring safety in populated, enclosed environments. Female MTP connectors on both ends enable precise alignment for plug-and-play deployment in dense MPO systems. With Type B polarity, it provides consistent channel pairing, making it suitable for modular connections and structured cabling infrastructures.

Connector A	MTP® Female Elite	Connector B	MTP® Female Elite
Fiber Count	24 Fibers	Polish Type	PC to PC
Fiber Mode	OM4 50/125μm	Wavelength	850/1300nm
Polarity Type	Type B	Cable Jacket	Flame Retardant LSZH
Trunk Outside Diameter (OD)	3.0mm	Connector Durability	500 times
Minimum Bend Radius (Fiber Cable)	20/10D (Dynamic/Static)	Cable Tensile Strength (Long/Short Term)	100/200N
Insertion Loss	≤0.35dB	Return Loss	≥30dB
Operating Temperature	-20 to 60°C (-4 to 140℉)	Storage Temperature	-20 to 60°C (-4 to 140℉)
