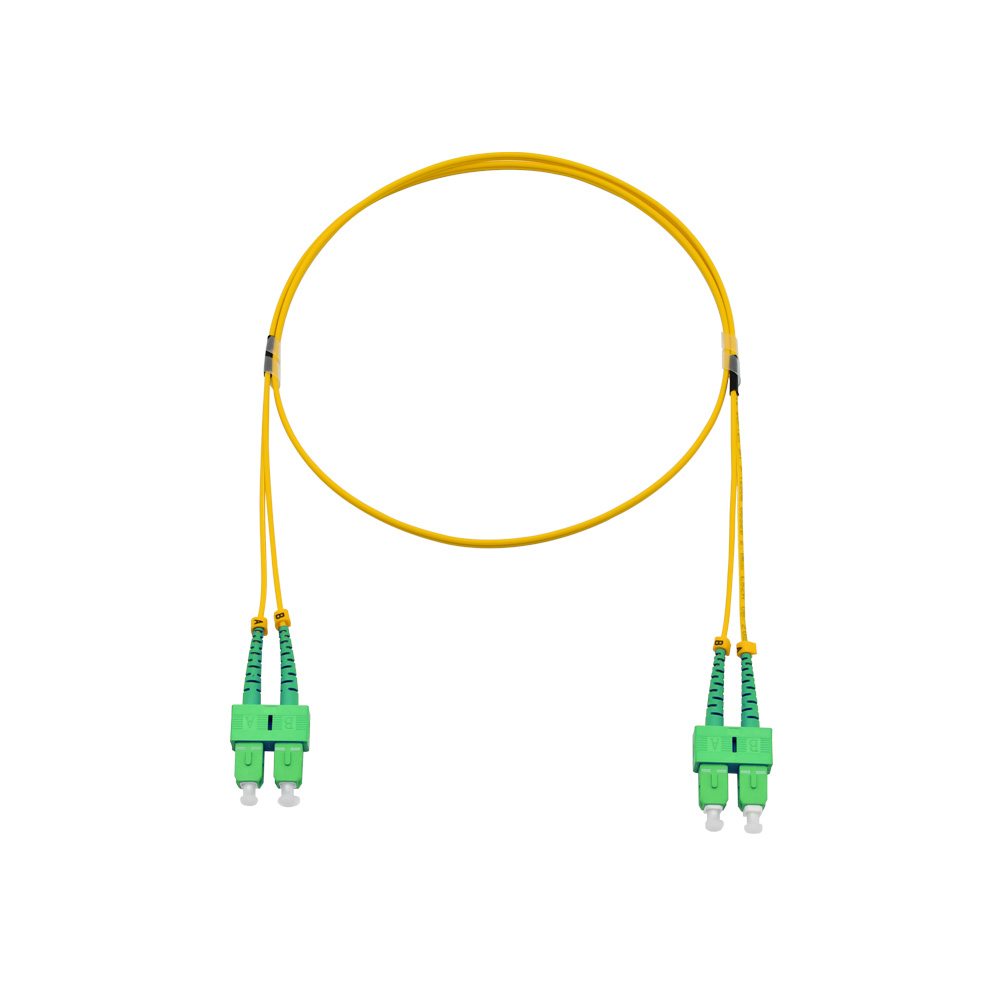

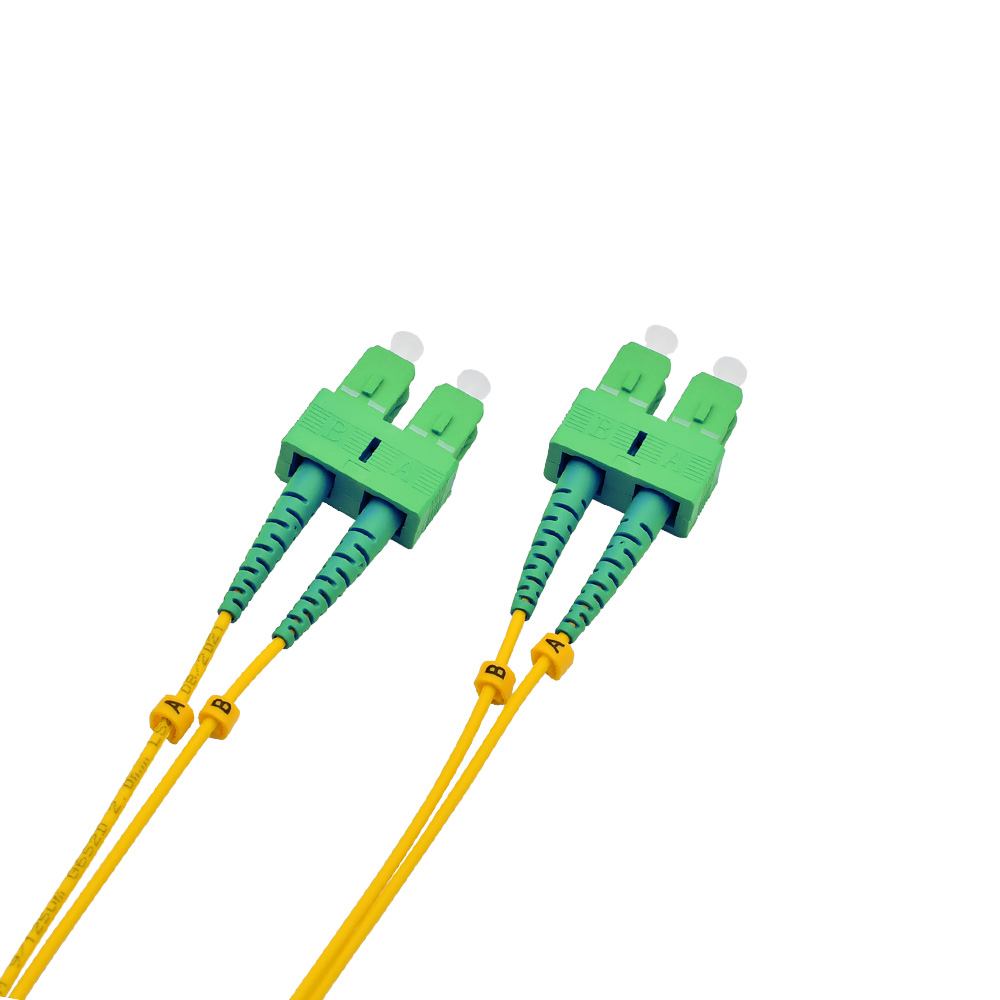

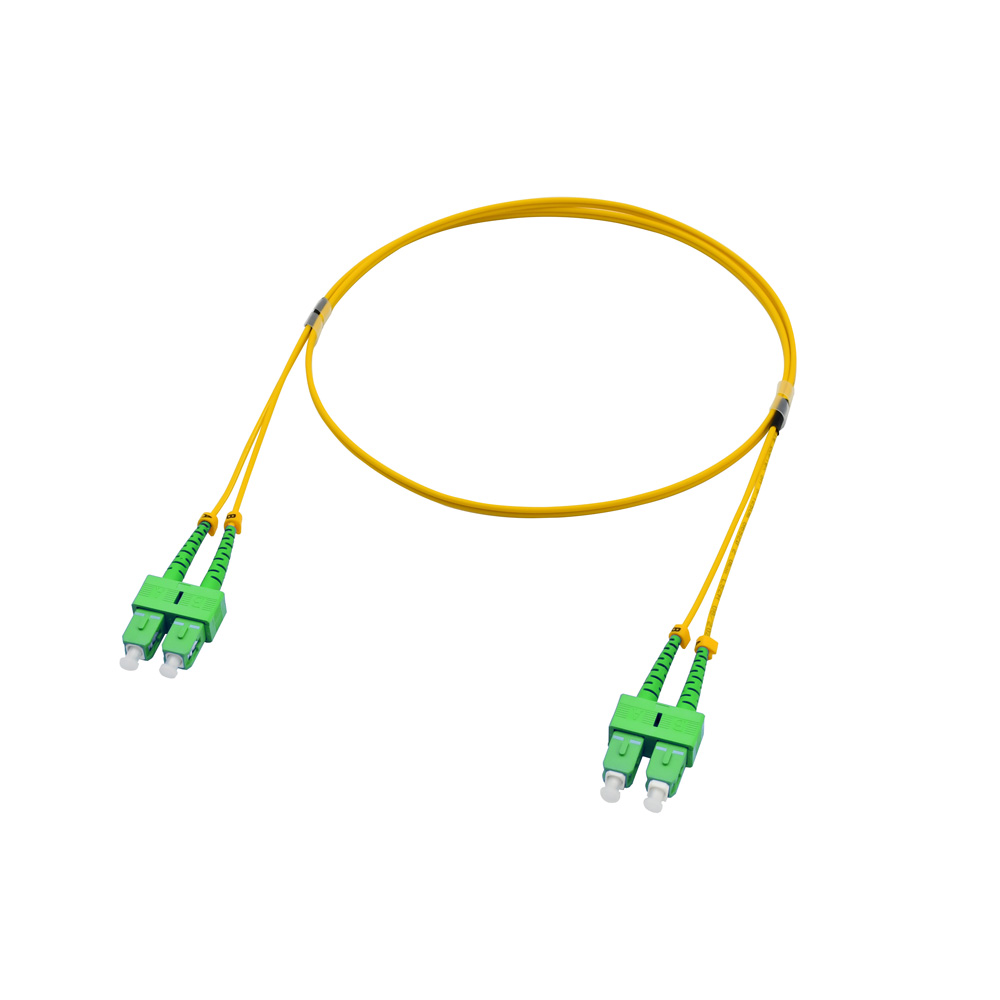

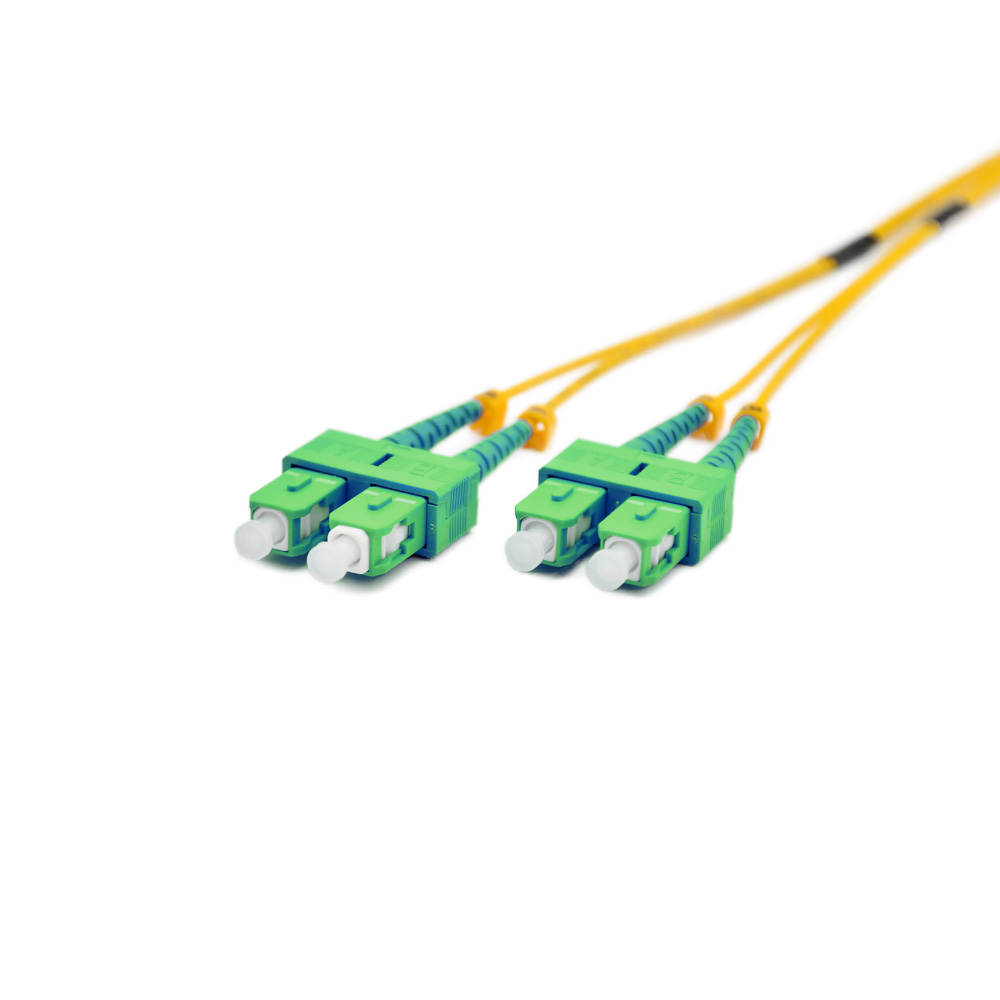

AFOPLUS's sc to sc corning fiber patch cable is a testament to our dedication to quality and innovation in fiber optic products. The SC/APC connectors are precision-made to ensure a snug fit and reliable connection. The APC design helps to improve the signal quality by reducing the amount of reflected light. The OFNR riser jacket of the fiber optic patch cable is a major advantage. It allows for safe installation in vertical riser spaces, which are common in multi-story buildings. This compliance with fire-safety standards means that you can install the sm duplex fiber patch cord with confidence, knowing that it will not pose a fire risk in case of an emergency.

Connector A	SC APC Duplex	Connector B	SC APC Duplex
Fiber Count	2 Fiber	Fiber Grade	OS2
Fiber Mode	9/125μm	Wavelength	1310/1550nm
RoHS Compliancy Status	Compliant	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	2.0mm	Cable Jacket	PVC-OFNR (Riser)
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	500 times	Tensile Strength (Long/Short Term)	60/100N
Insertion Loss	≤0.3dB	Return Loss	≥60dB
Attenuation at 1310 nm	0.36dB/km	Attenuation at 1550 nm	0.22dB/km
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)
