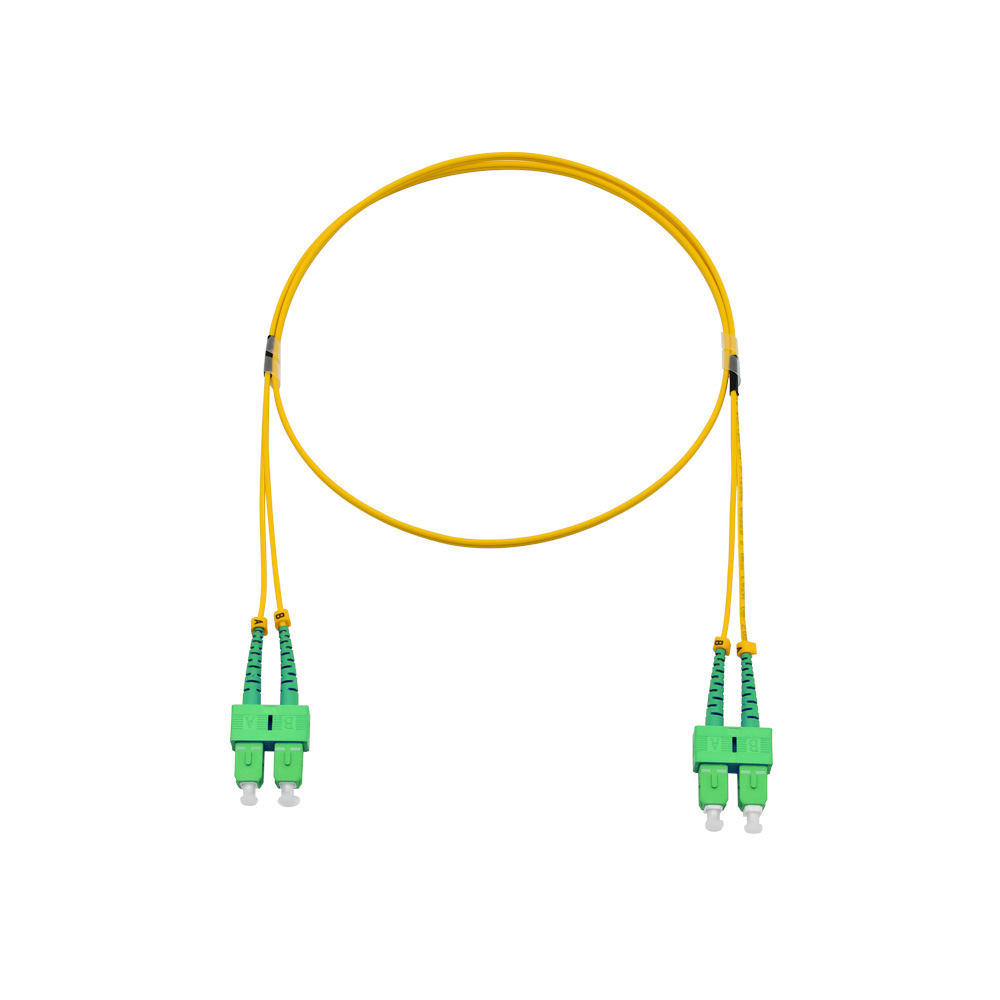

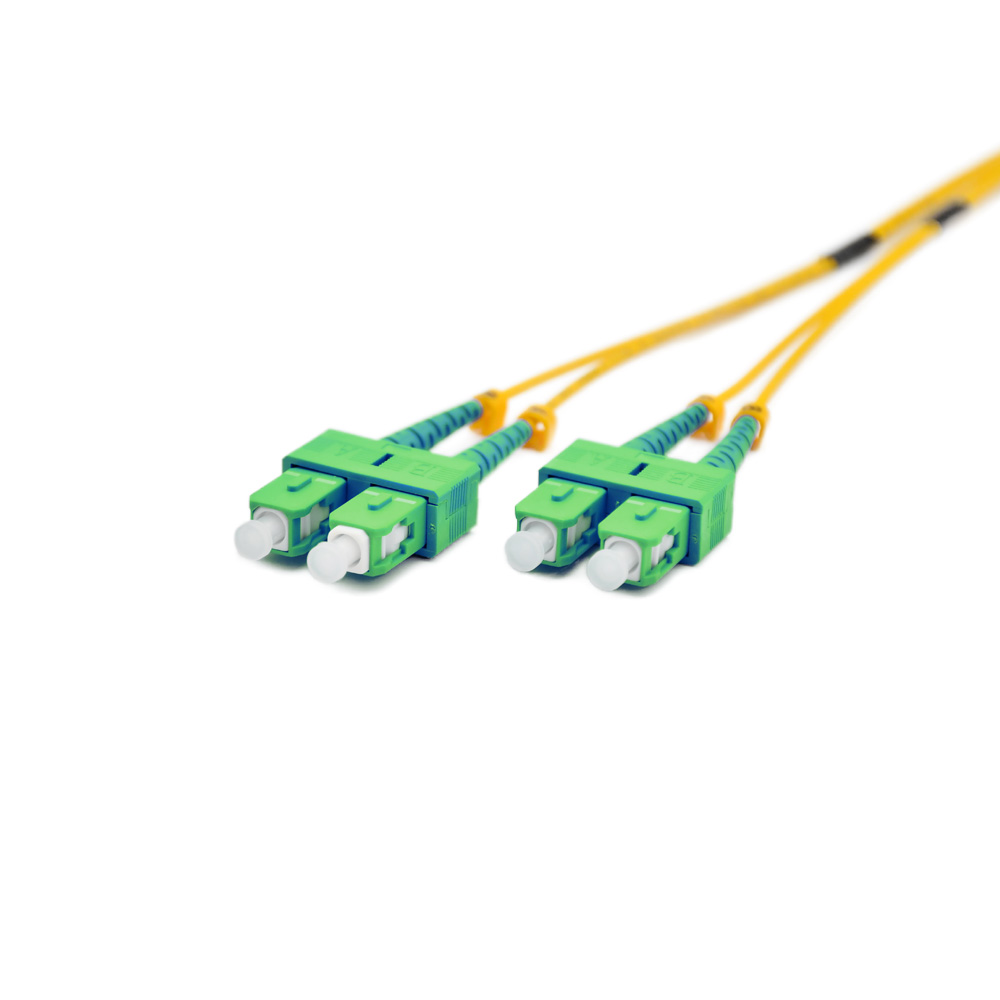

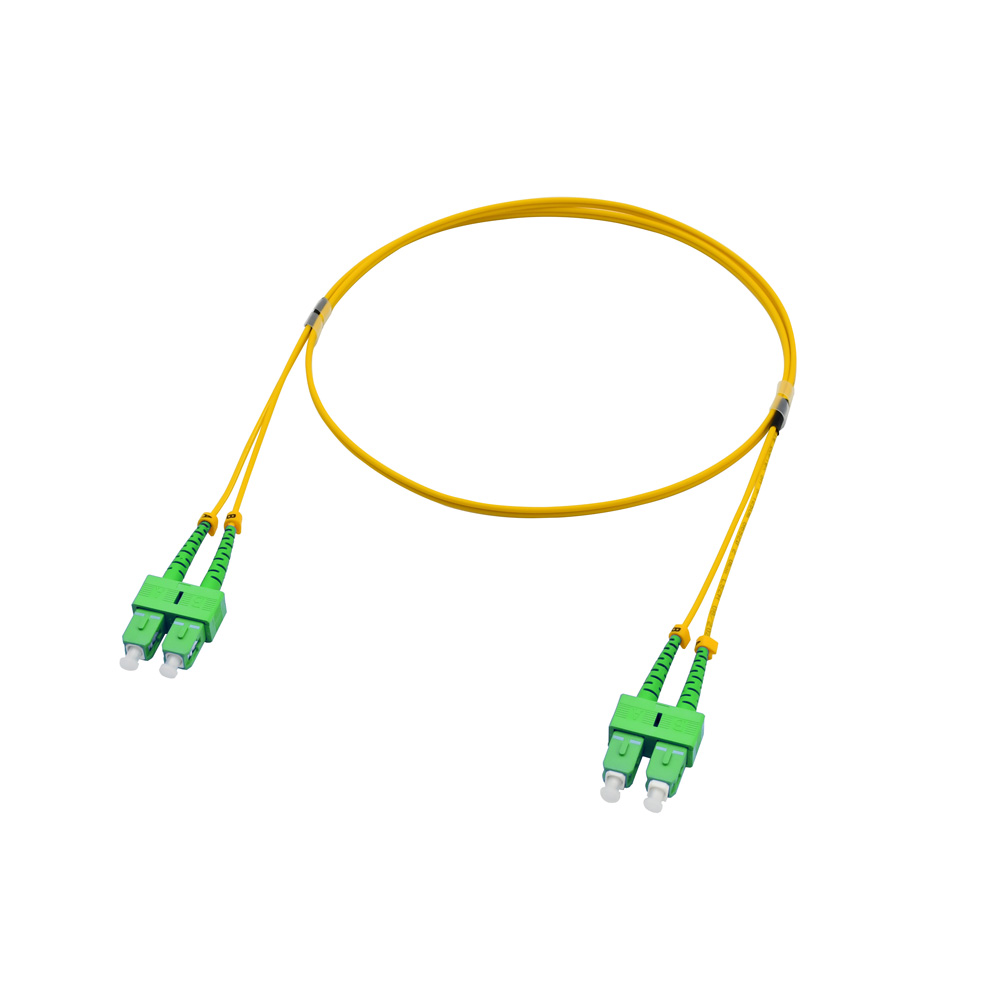

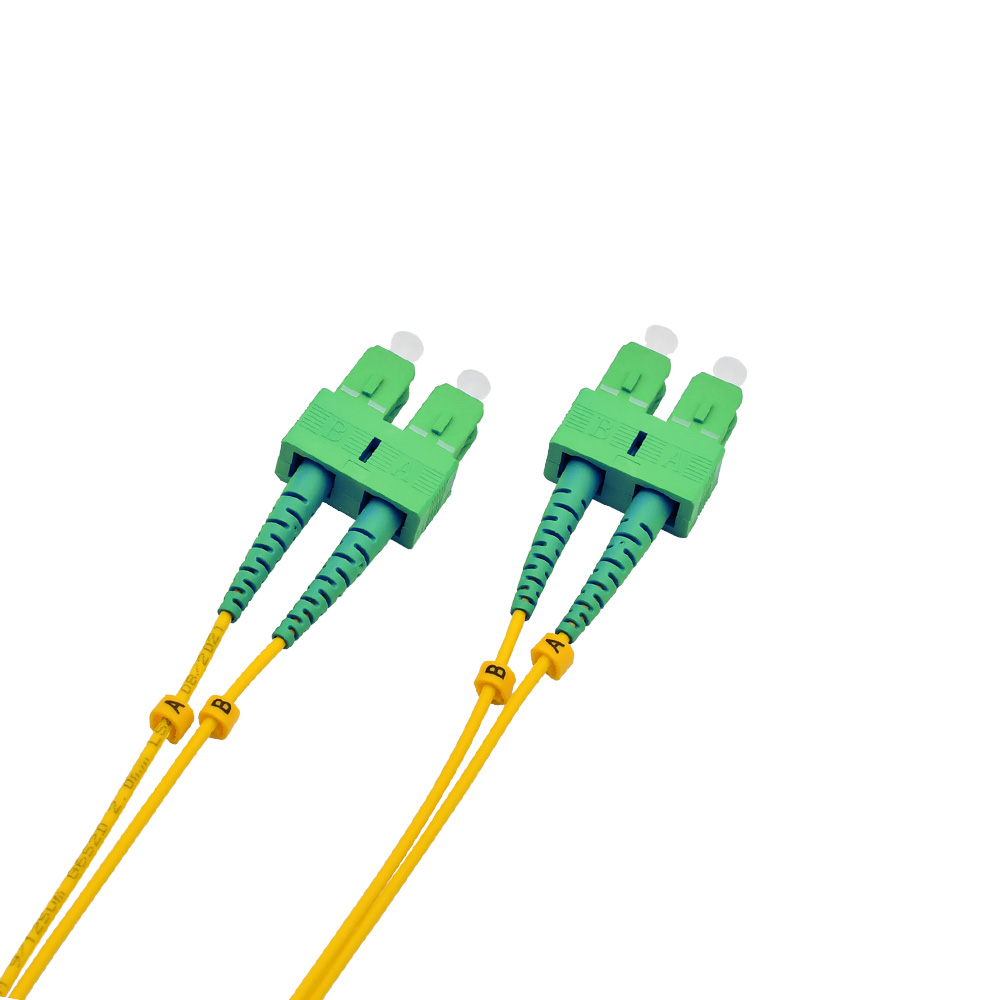

Optimized for energy-conscious installations, this OS2 single mode sc to sc apc patch cord achieves 99.8% light transmission efficiency through proprietary core alignment technology. The SC/APC-SC/APC configuration provides backward compatibility with existing SC infrastructure. G657A1 fiber enables tight 10mm bend radii without mode distortion - a critical feature for 5G small cell deployments and edge computing racks. The halogen-free OFNP jacket ensures smoke-free operation during thermal events. This fiber optic patch cable is optimal for 5G fronthaul/backhaul, hyperscale cloud campuses, and green data center retrofits.

Connector A	SC APC Duplex	Connector B	SC APC Duplex
Fiber Count	2 Fiber	Fiber Grade	G657A1
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
RoHS Compliancy Status	Compliant	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	2.0mm	Cable Jacket	Flame Retardant LSZH
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	500 times	Tensile Strength (Long/Short Term)	60/100N
Insertion Loss	≤0.3dB	Return Loss	≥60dB
Attenuation at 1310 nm	0.36dB/km	Attenuation at 1550 nm	0.22dB/km
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)
