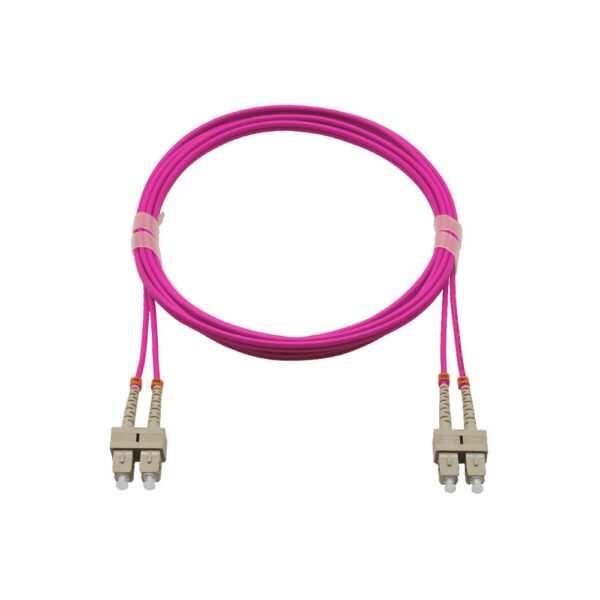

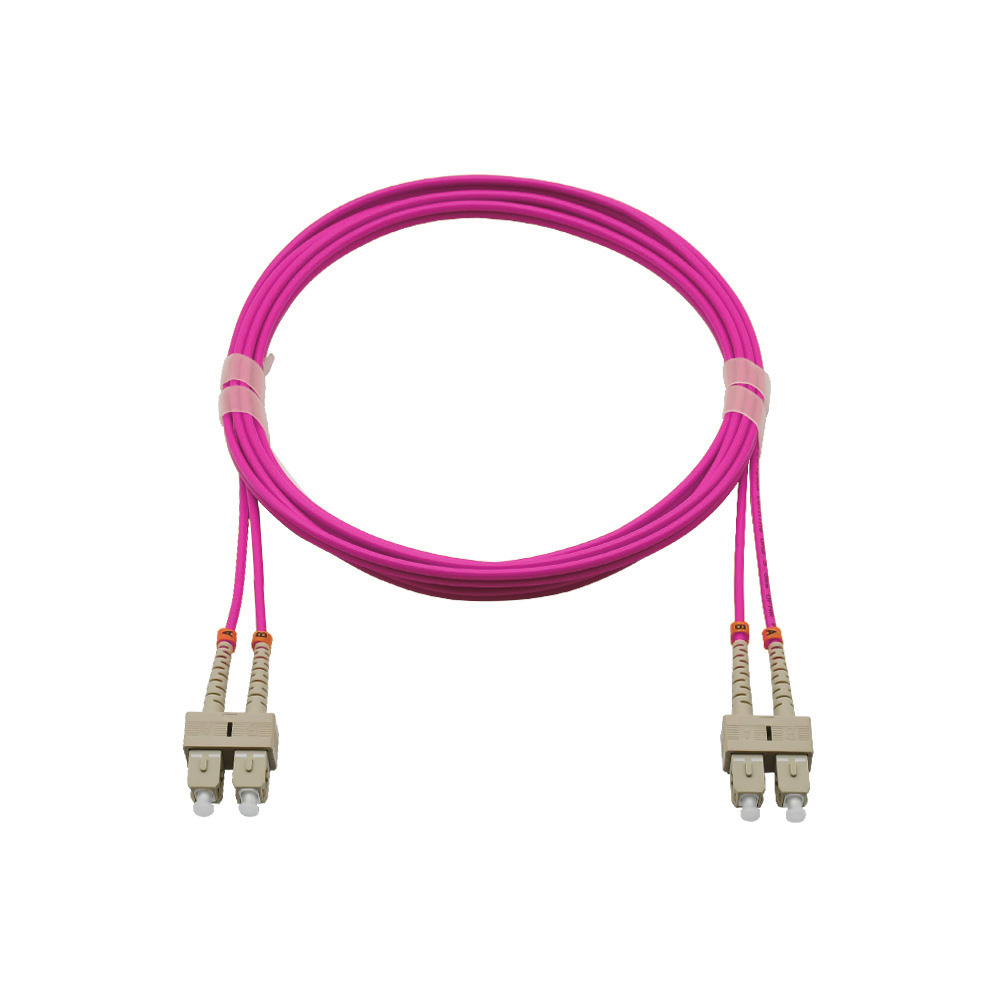

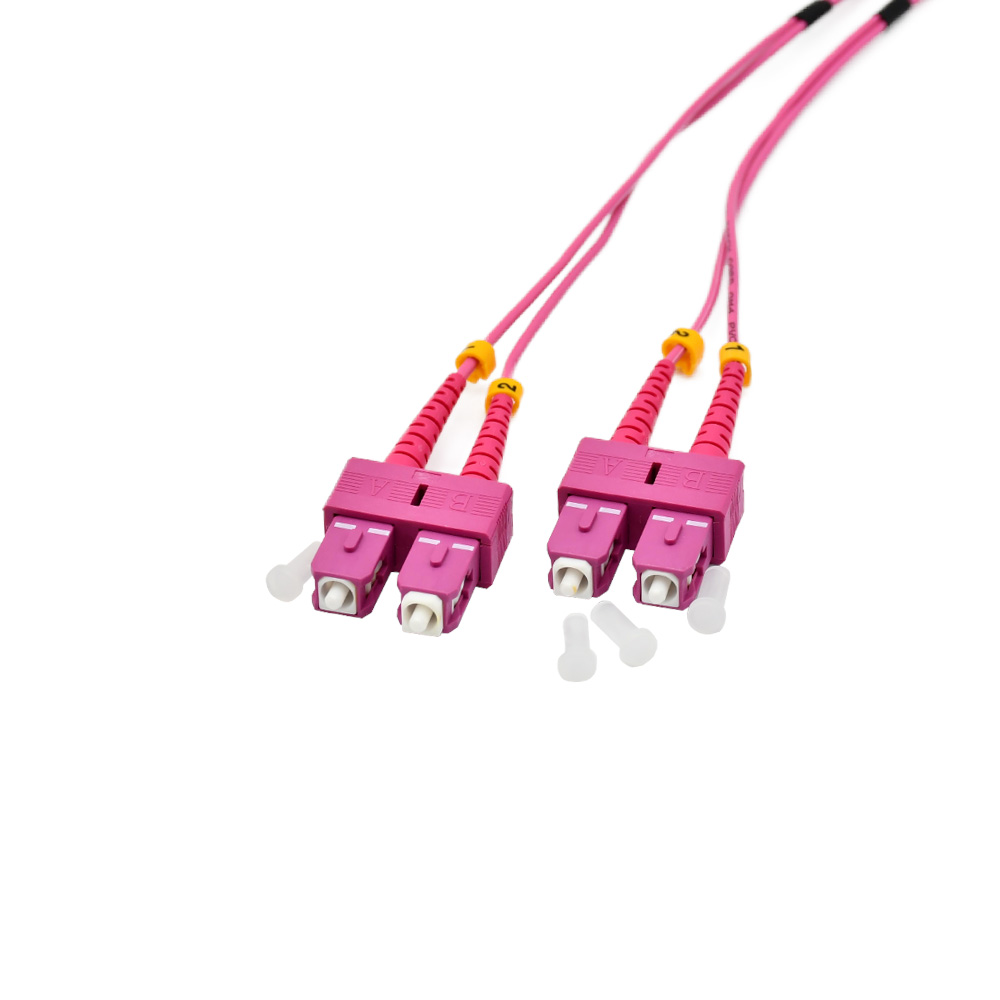

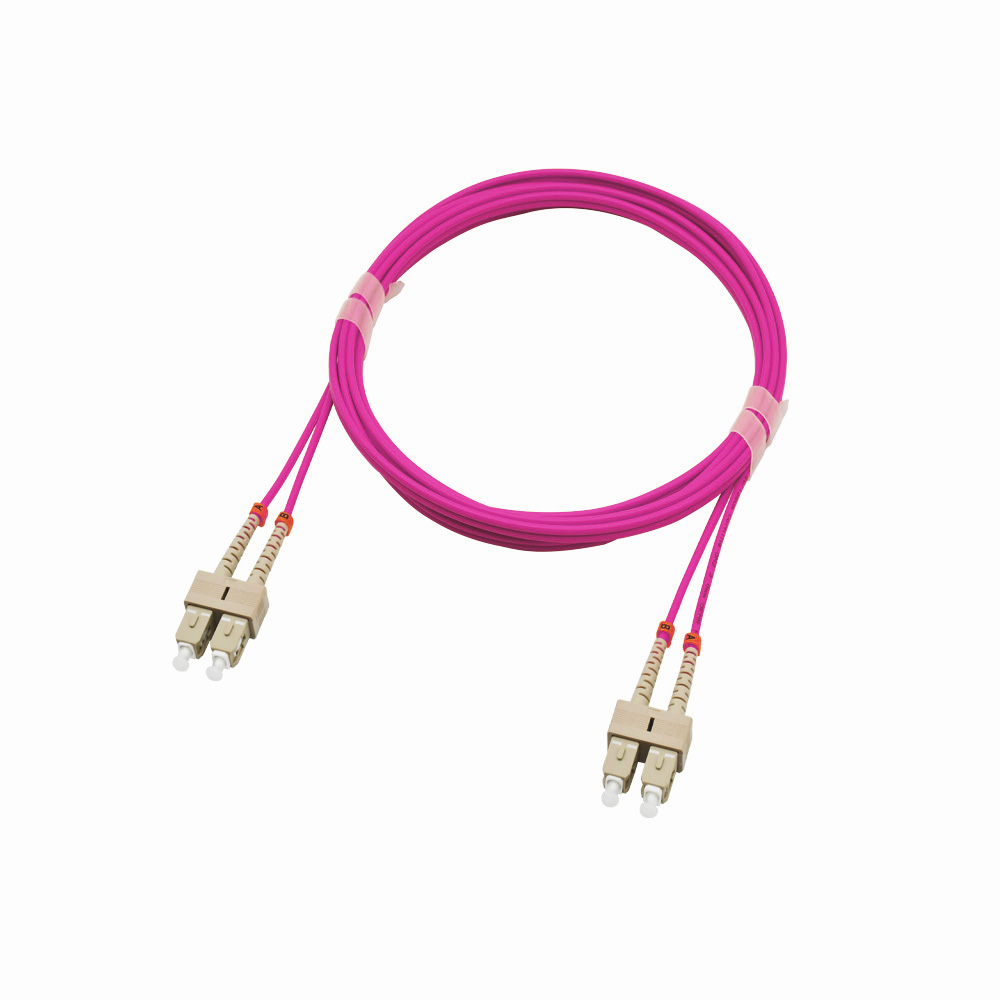

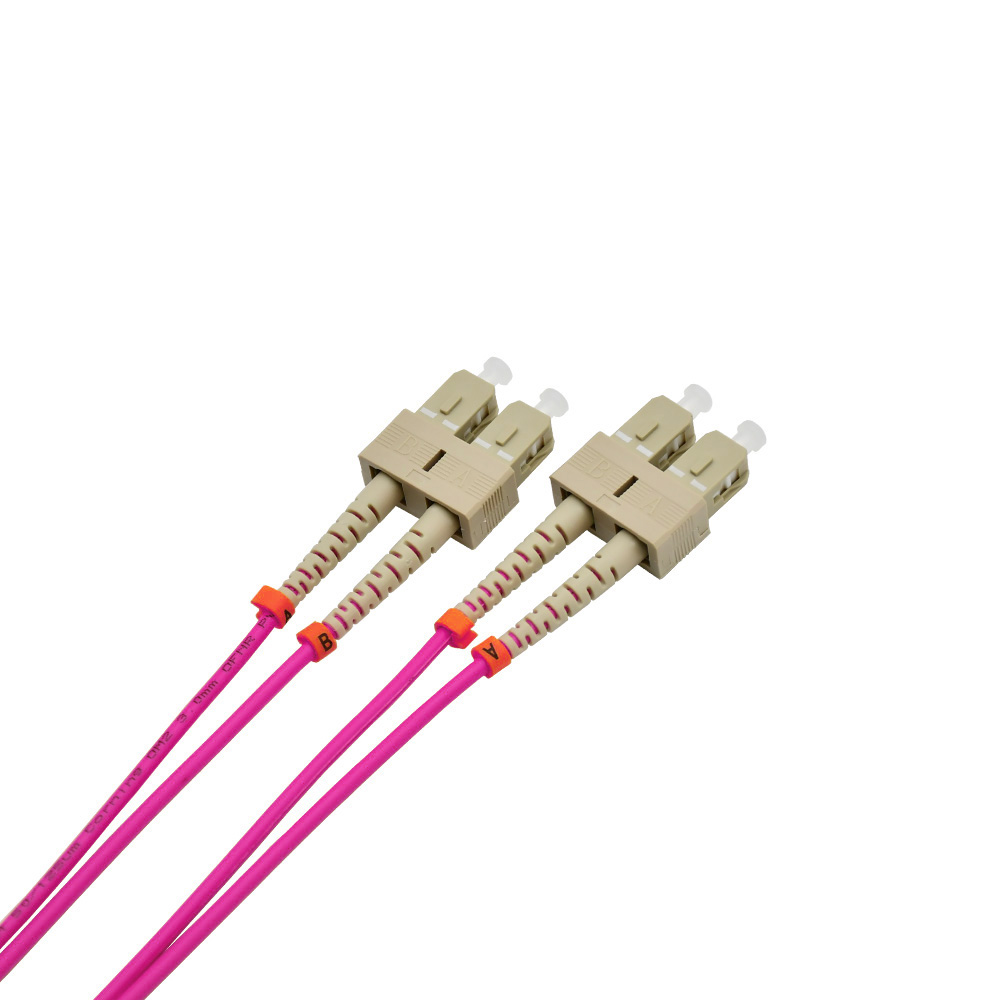

AFOPLUS's sc sc fiber patch cord is a premium product designed for fiber optic enthusiasts and professionals alike. The multi mode om4 duplex 2.0mm cable is engineered for excellence, it allows for stable short distance data travel with minimal signal loss, making it suitable for applications such as connecting data centers in different geographical locations. The OFNR riser jacket is a safety essential. It is designed to prevent the spread of fire in vertical cable runs. Whether you're setting up a new network from scratch or upgrading an existing one, this om4 fiber patch cable will not disappoint.

Connector A	SC PC Duplex	Connector B	SC PC Duplex
Fiber Count	2 Fiber	Fiber Grade	OM4
Fiber Mode	50/125um	Wavelength	850/1300nm
RoHS Compliancy Status	Compliant	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	2.0mm	Cable Jacket	PVC-OFNR (Riser)
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	500 times	Tensile Strength (Long/Short Term)	60/100N
Insertion Loss	≤0.3dB	Return Loss	≥35dB
Attenuation at 850 nm	3.0dB/km	Attenuation at 1300 nm	1.0dB/km
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)
