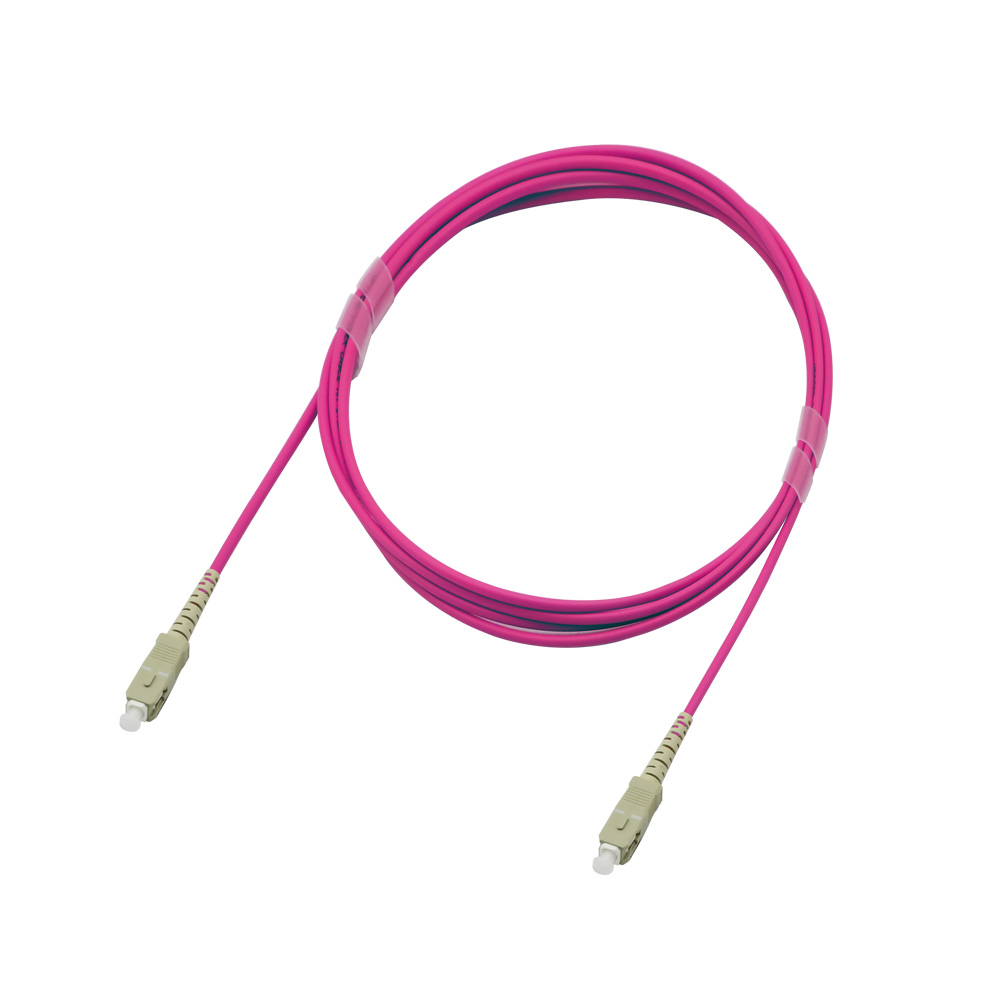

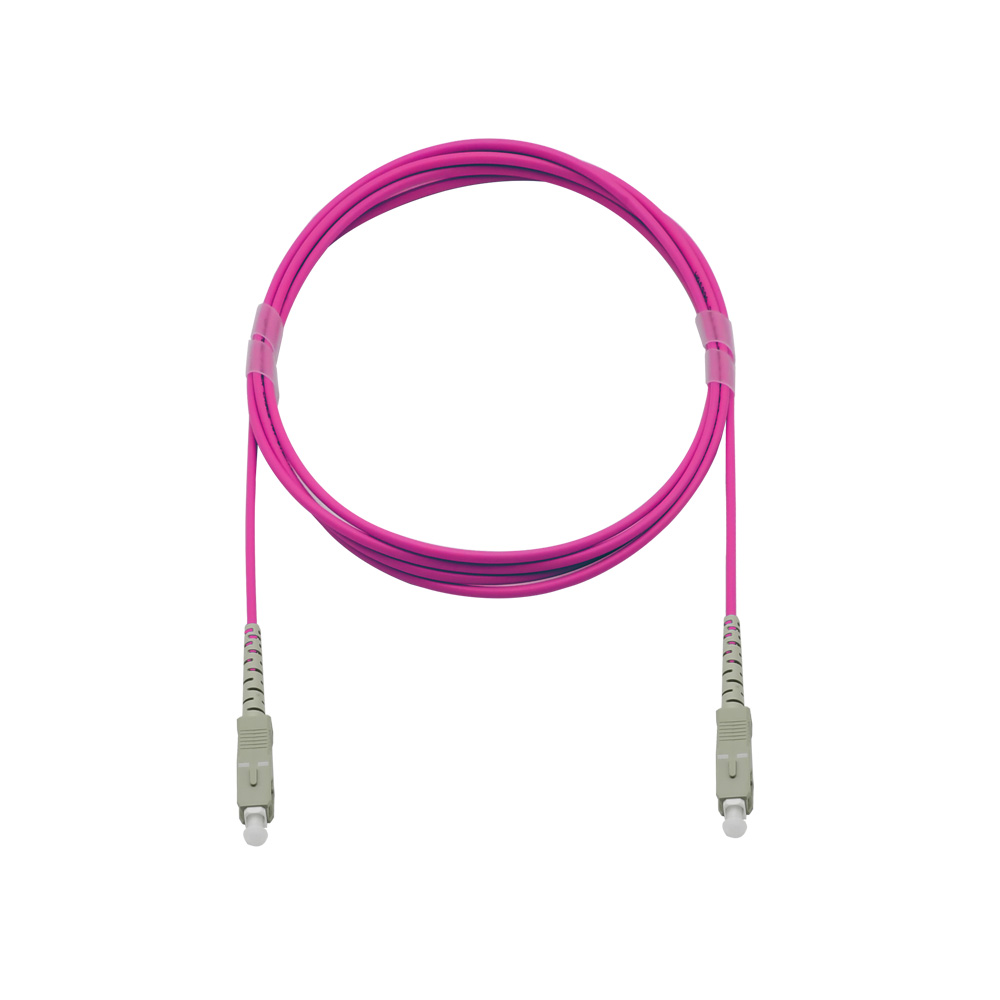

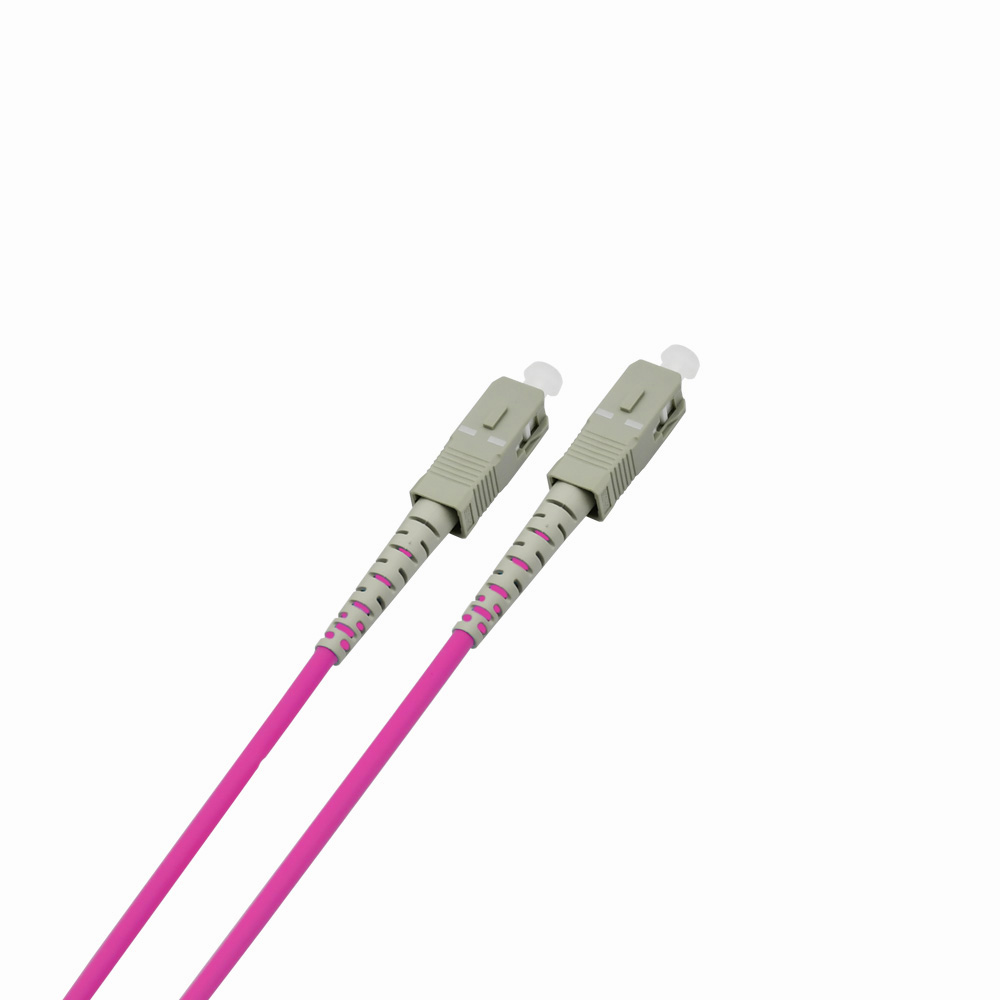

Discover AFOPLUS's multimode om4 fiber optic patch cord type, a high performance solution for your fiber optic connectivity needs. This sc mm fiber patchcord features the 50/125um om4 fiber, which is known for its durability and performance. The SC/PC connectors on both ends of the patchcord are engineered to provide a secure and stable connection. This makes the multi mode fiber patch cable an ideal choice for critical network applications where signal integrity is of utmost importance. The 2.0mm OFNR riser jacket of the patchcord is a significant advantage. It is designed to meet the fire-afety requirements for vertical installations in buildings. This means that you can use it in a variety of commercial and residential settings, knowing that it complies with the necessary safety standards.

Connector A	SC PC Simplex	Connector B	SC PC Simplex
Fiber Count	1 Fiber	Fiber Grade	OM4
Fiber Mode	50/125um	Wavelength	850/1300nm
RoHS Compliancy Status	Compliant	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	2.0mm	Cable Jacket	PVC-OFNR (Riser)
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	1000 times	Tensile Strength (Long/Short Term)	60/100N
Insertion Loss	≤0.3dB	Return Loss	≥35dB
Attenuation at 850 nm	3.0dB/km	Attenuation at 1300 nm	1.0dB/km
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)
