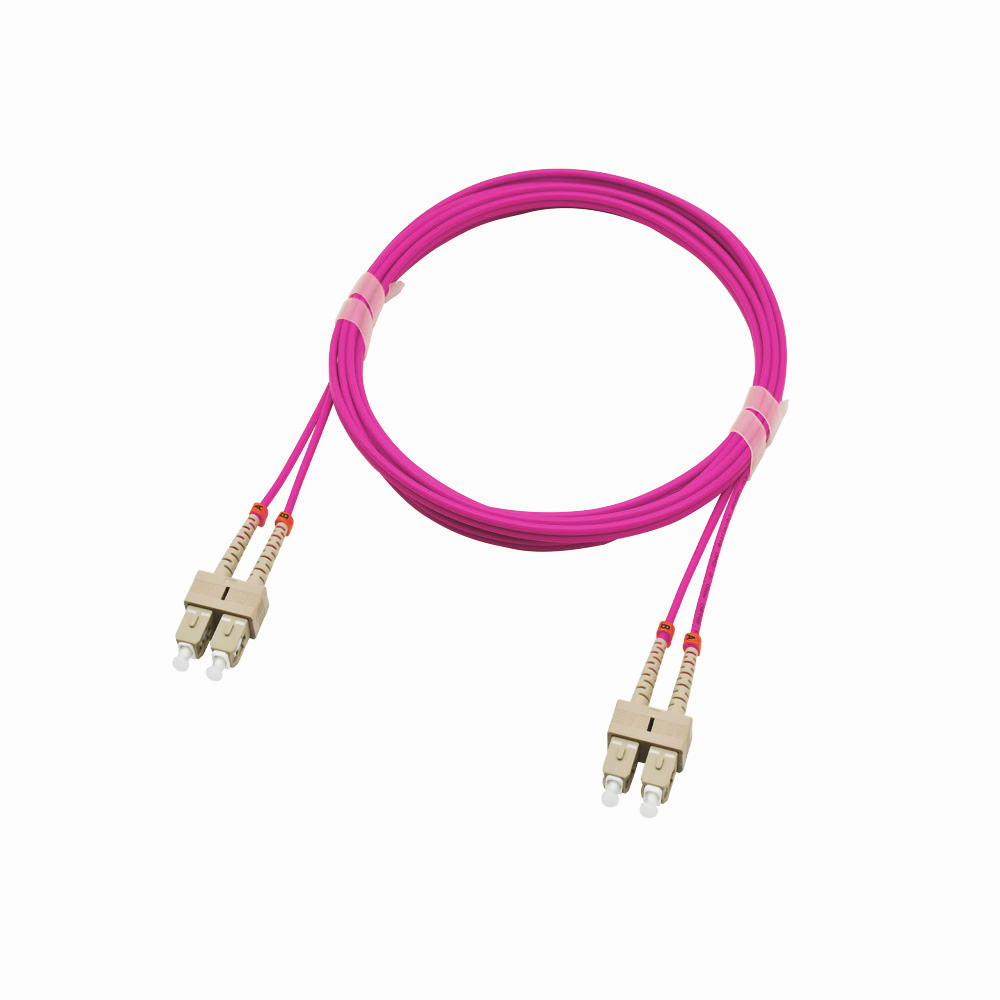

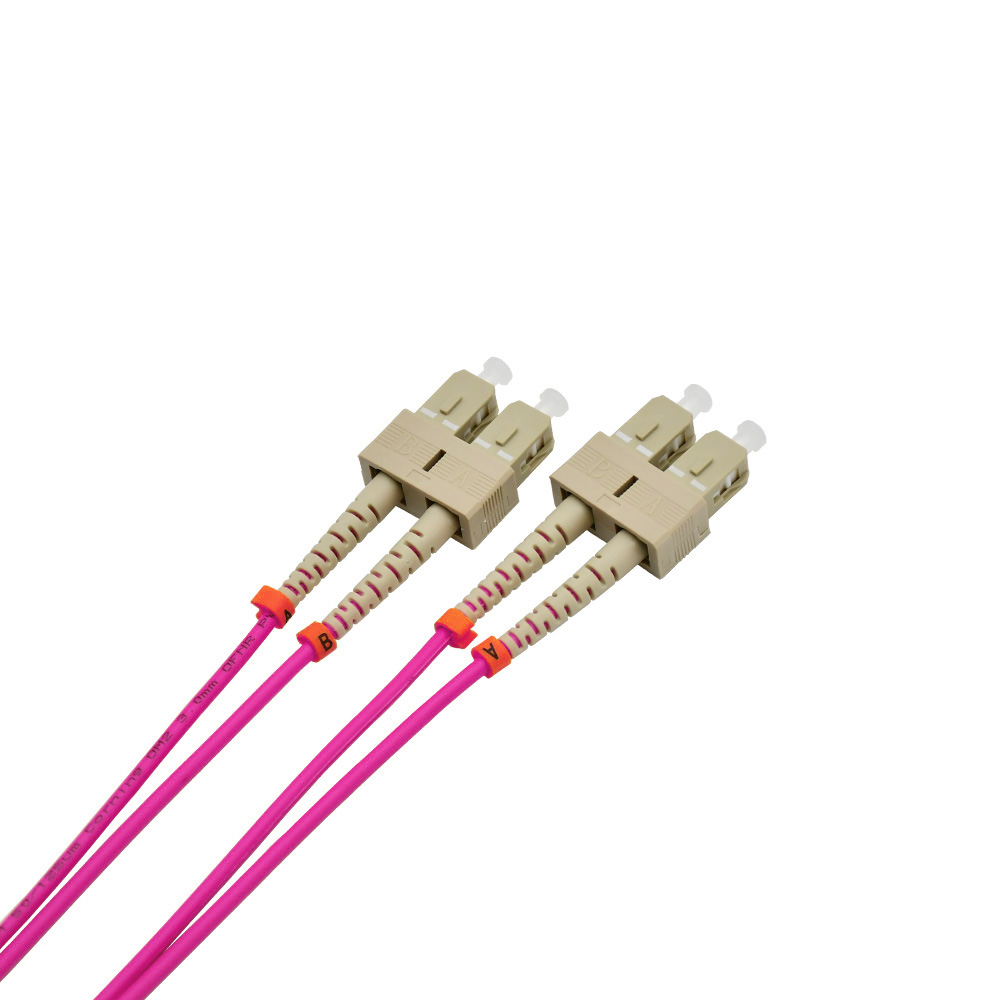

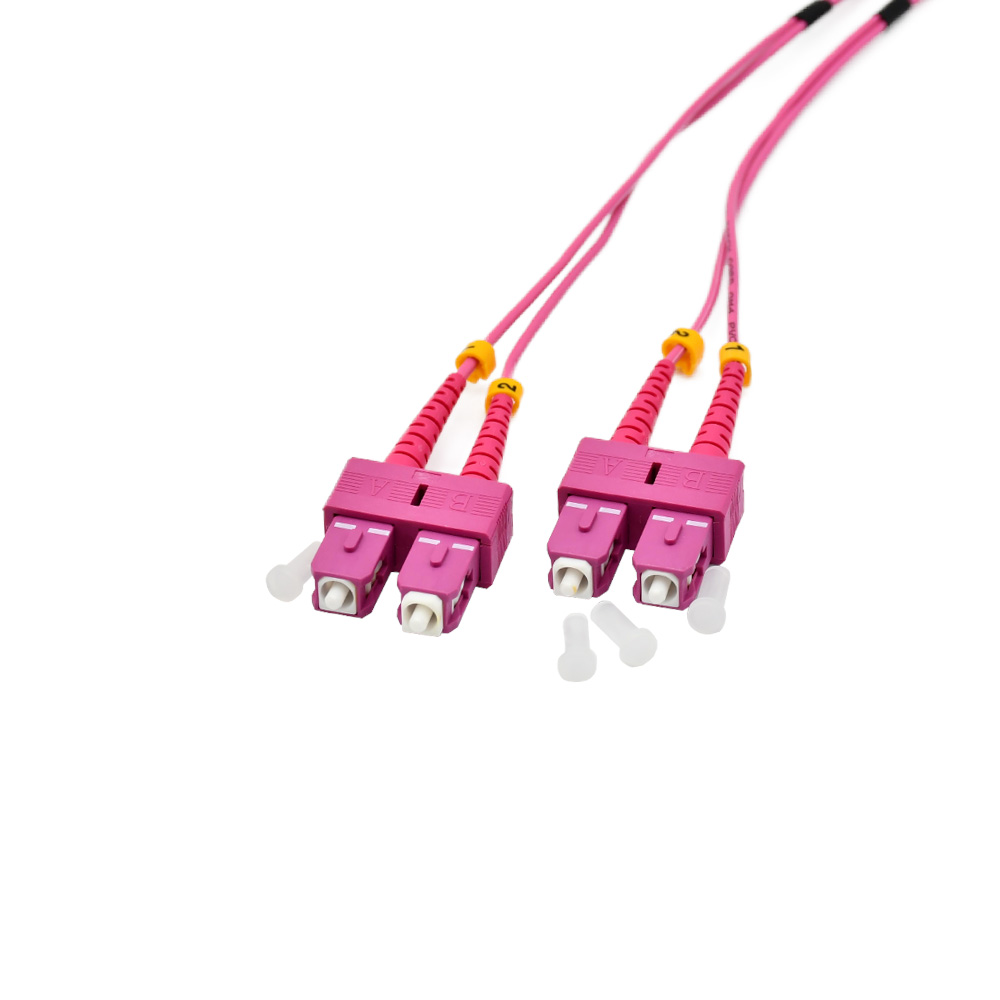

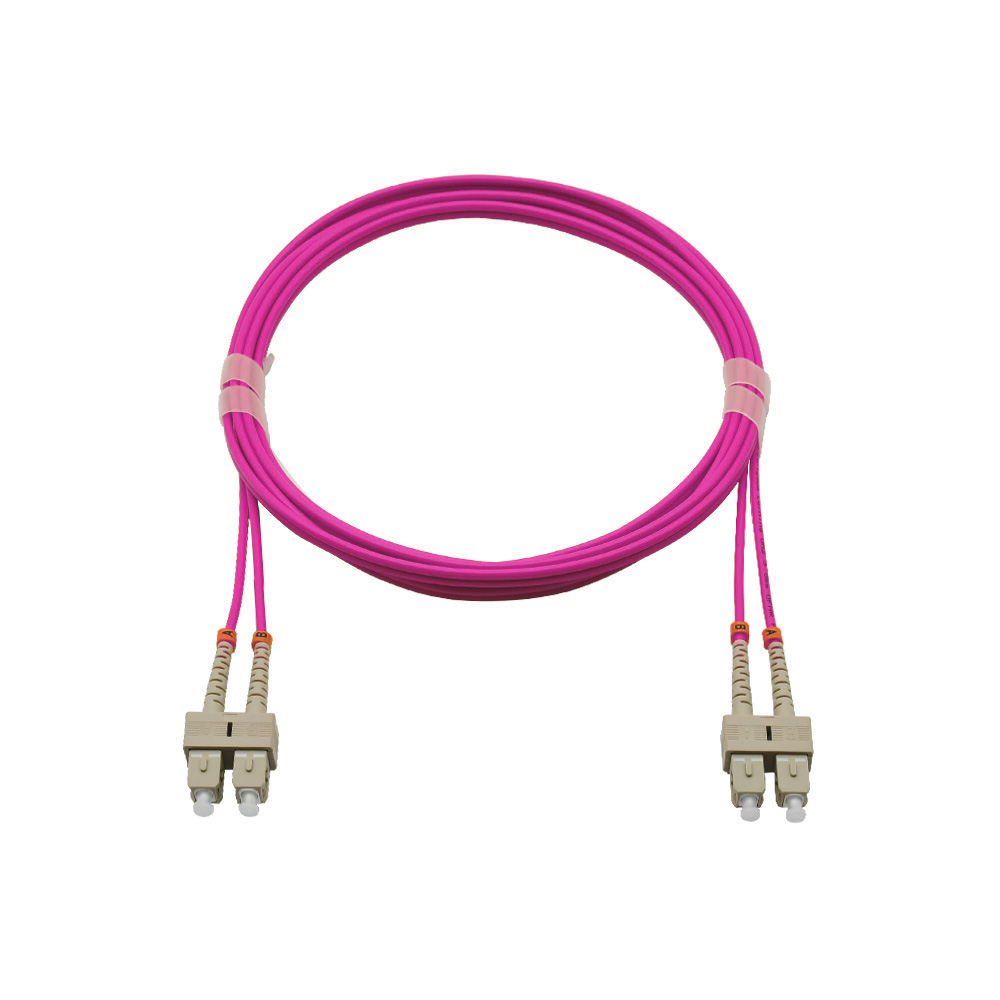

AFOPLUS's sc sc mm duplex patch cord is a testament to quality and performance in the fiber optic realm. The multi mode om4 2.0mm cable is optimized for long-haul data transmission, it allows for efficient communication over short distances, making it ideal for connecting remote offices within a large corporate network. The SC/PC connectors ensure a low loss connection. This results in a more reliable data transfer, reducing the chances of signal interruptions. The OFNR riser jacket is a crucial safety feature. Designed for use in vertical runs between floors, it complies with fire-safety regulations.

Connector A	SC PC Duplex	Connector B	SC PC Duplex
Fiber Count	2 Fiber	Fiber Grade	OM4
Fiber Mode	50/125um	Wavelength	850/1300nm
RoHS Compliancy Status	Compliant	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	2.0mm	Cable Jacket	PVC-OFNR (Riser)
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	500 times	Tensile Strength (Long/Short Term)	60/100N
Insertion Loss	≤0.3dB	Return Loss	≥35dB
Attenuation at 850 nm	3.0dB/km	Attenuation at 1300 nm	1.0dB/km
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)
