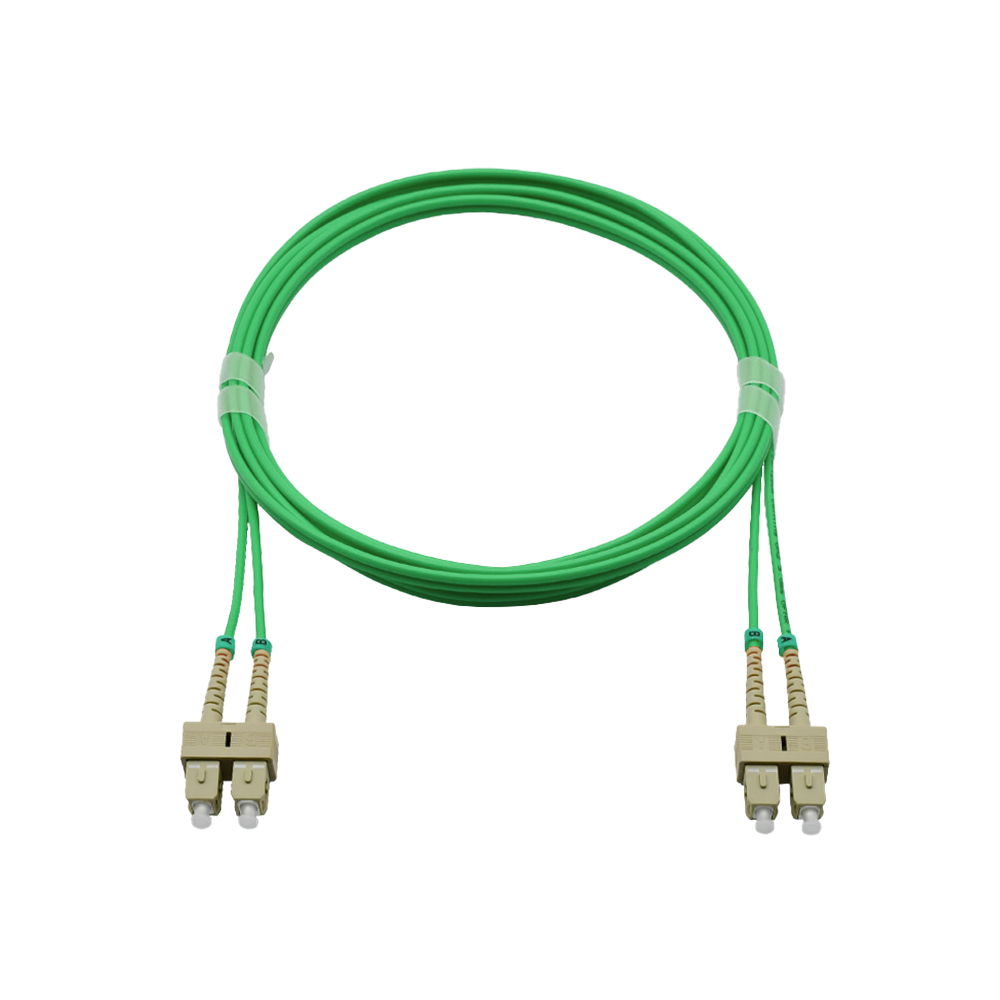

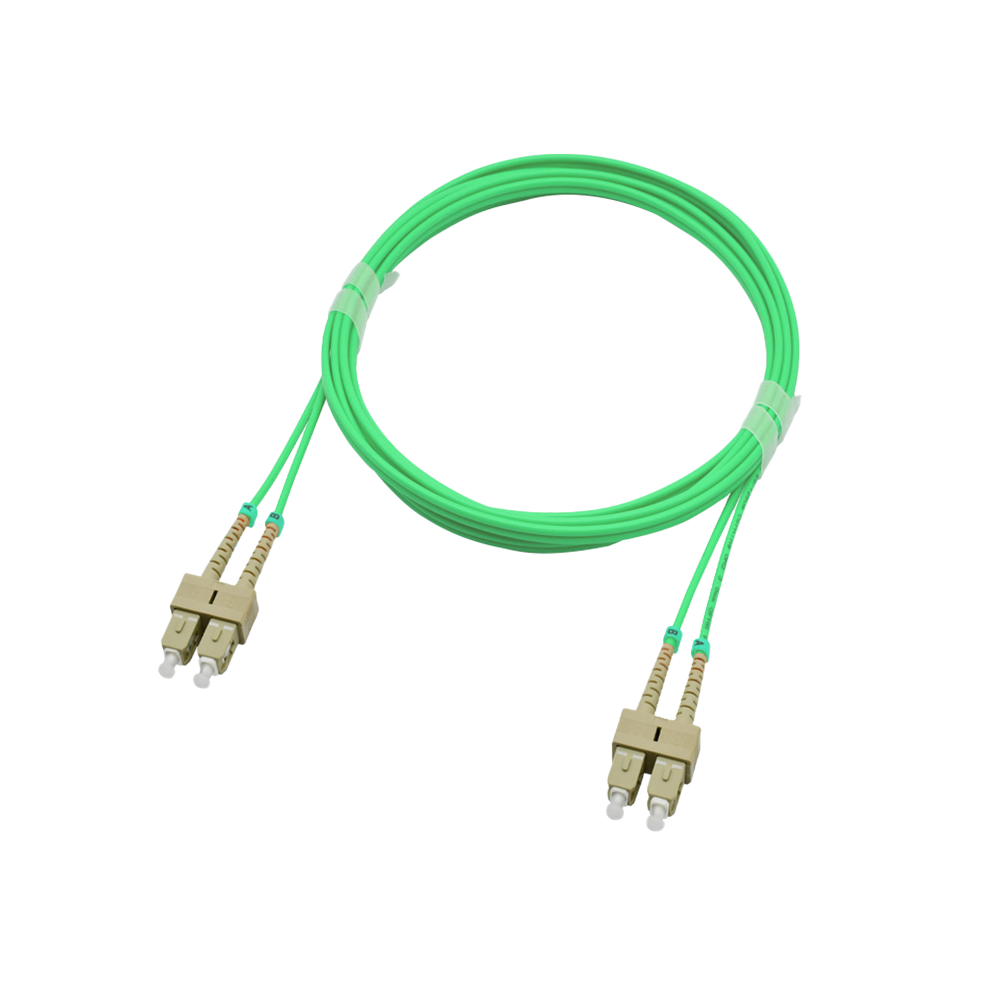

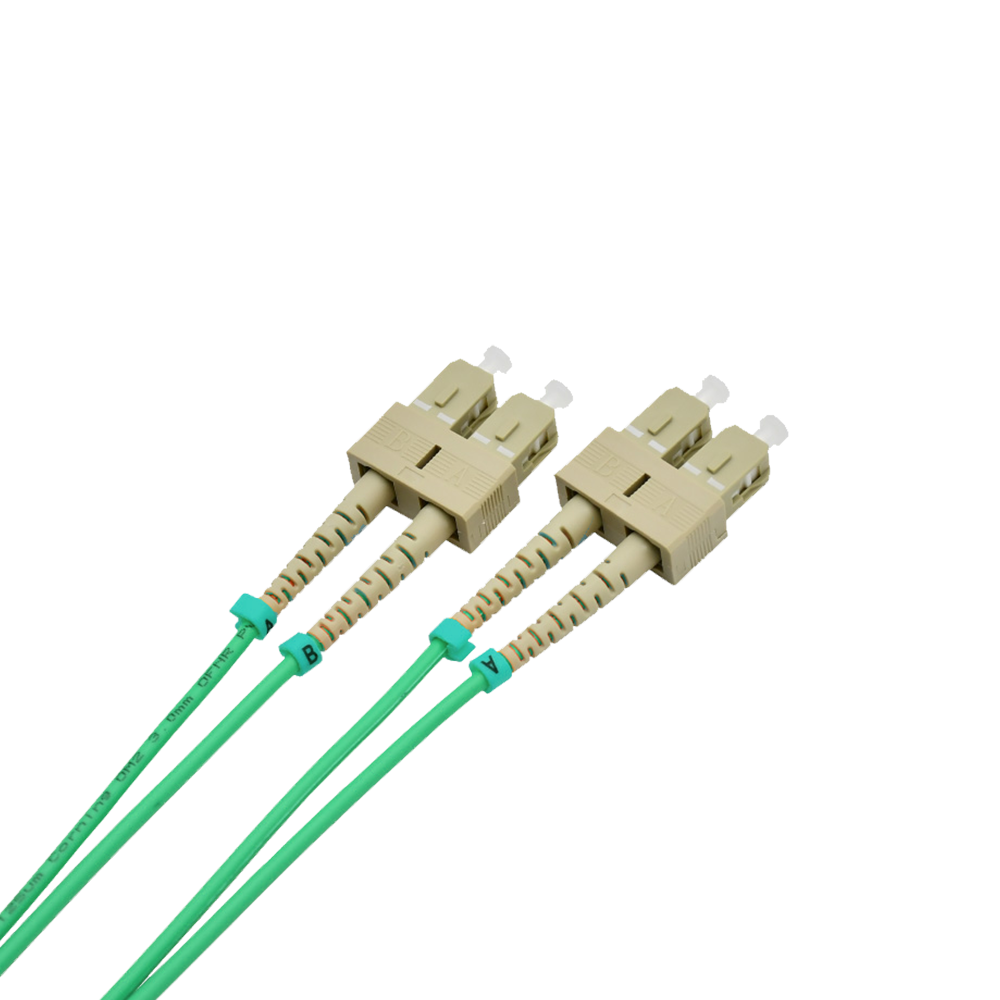

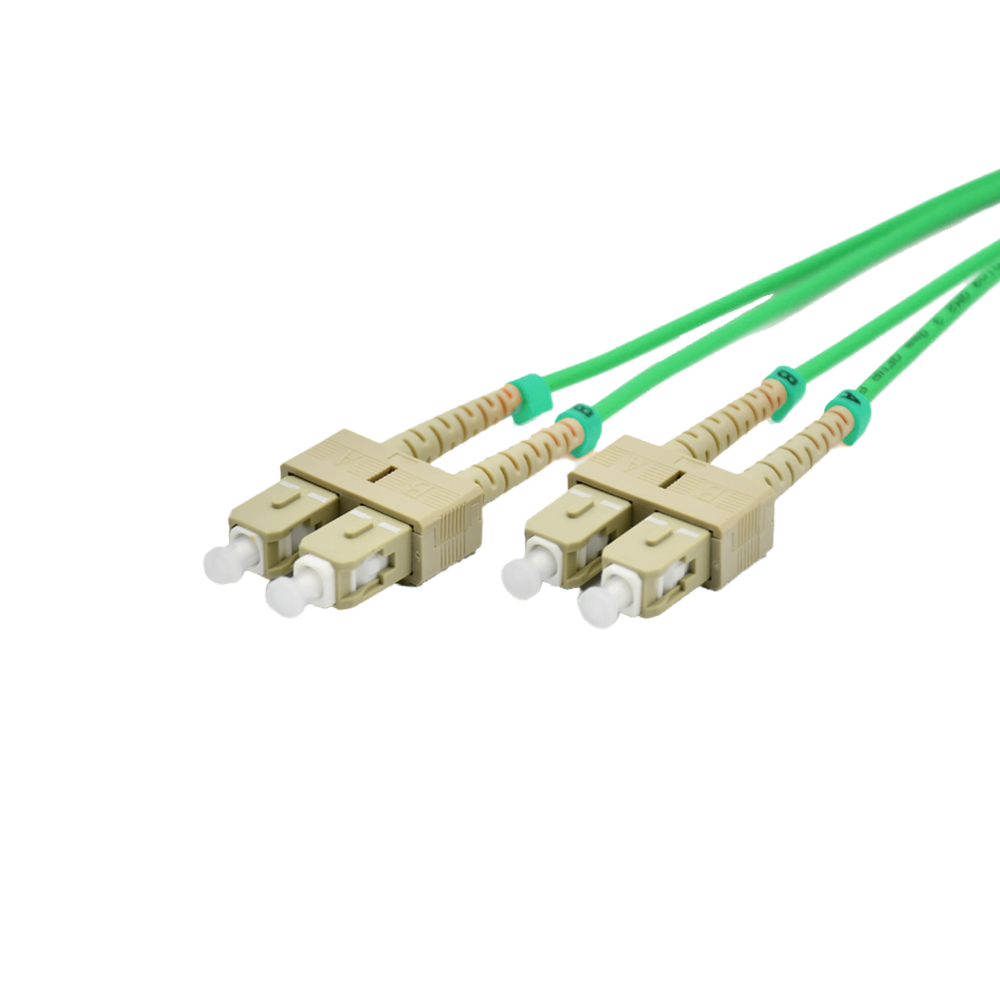

Designed for plenum areas, AFOPLUS's SC/PC to SC/PC fiber patch cable excels in safety and performance. The multimode OM5 fiber, with 50/125um specifications, handles multiple wavelengths, reducing cable clutter in busy networks. Duplex functionality is key for applications like fiber channel, enabling seamless two-way communication. Precision SC/PC connectors feature rugged construction, withstanding frequent mating cycles during maintenance, perfect for dynamic plenum setups. The 2.0mm thickness offers durability without sacrificing maneuverability, fitting through tight plenum conduits. OFNP plenum jacket ensures it meets strict fire codes, making it safe for use in ceilings and air-handling spaces. Whether linking switches or storage systems, this duplex fiber patch cord delivers consistent performance in plenum-critical zones.

5Connector A	SC PC Duplex	Connector B	SC PC Duplex
Fiber Count	2 Fiber	Fiber Grade	OM5
Fiber Mode	50/125um	Wavelength	850/1300nm
RoHS Compliancy Status	Compliant	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	2.0mm	Cable Jacket	PVC-OFNP (Plenum)
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	500 times	Tensile Strength (Long/Short Term)	60/100N
Insertion Loss	≤0.3dB	Return Loss	≥35dB
Attenuation at 850 nm	3.0dB/km	Attenuation at 1300 nm	1.0dB/km
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)
