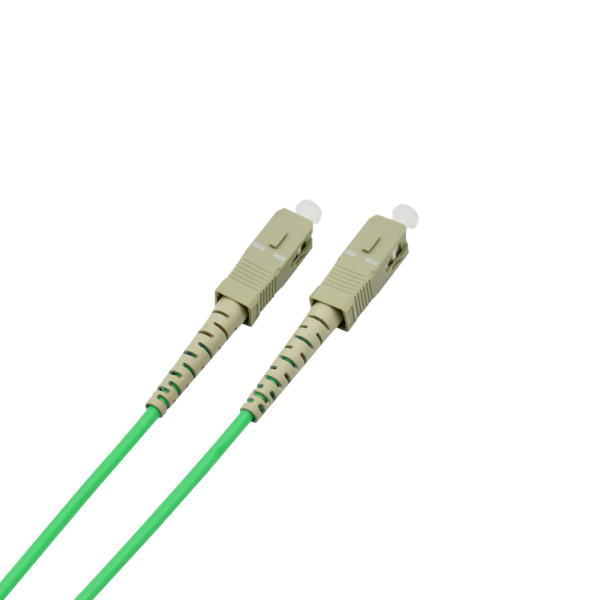

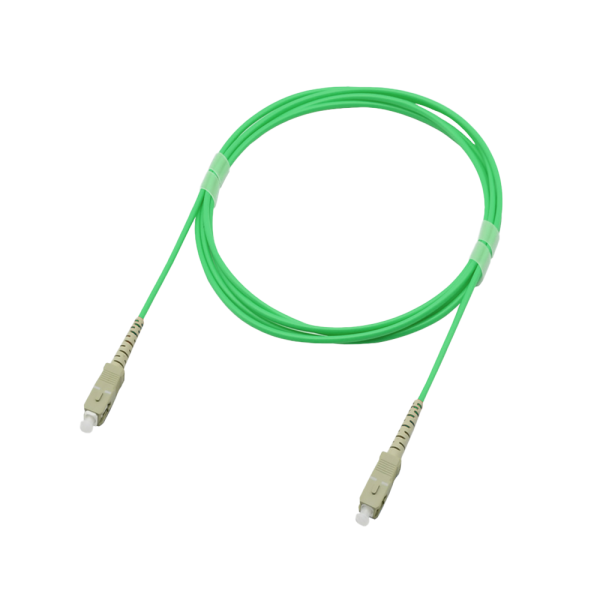

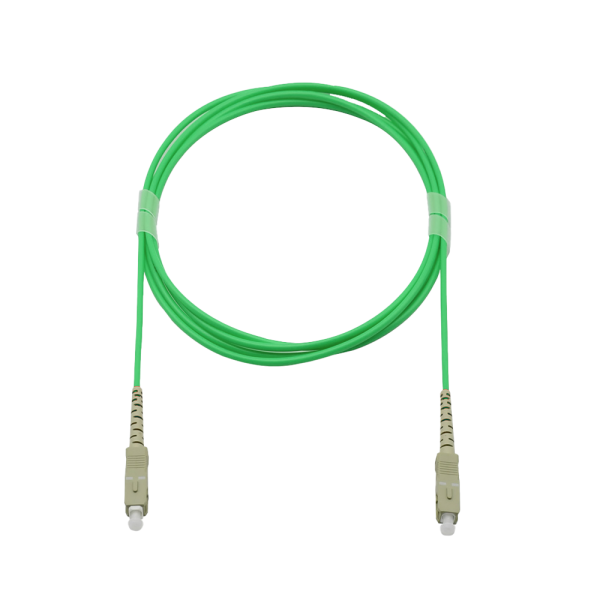

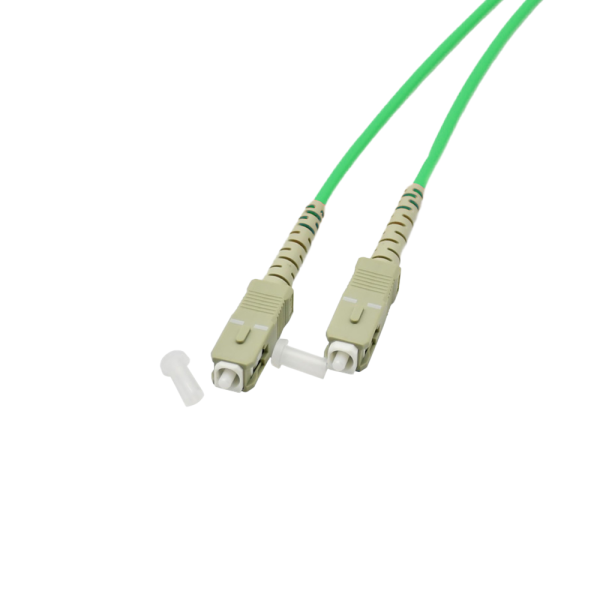

Explore AFOPLUS's high performance fiber optical patch cord, designed to revolutionize your fiber optic connectivity. The simplex 2.0mm cable is optimized for multi mode operation, enabling it to handle high speed data transfer with ease. This makes it an excellent choice for applications like data center backbones, where high speed and reliable data transfer is non-negotiable. The SC/PC connectors provide a secure and stable connection, ensuring that your network runs smoothly. The OFNP plenum jacket allows for safe installation in air-handling spaces, meeting the highest safety standards. With its durable construction, this sc to sc multi mode fiber patch cord is built to last, providing long-term value for your network investment.

Connector A	SC PC Simplex	Connector B	SC PC Simplex
Fiber Count	1 Fiber	Fiber Grade	OM5
Fiber Mode	50/125um	Wavelength	850/1300nm
RoHS Compliancy Status	Compliant	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	2.0mm	Cable Jacket	PVC-OFNP (Plenum)
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	500 times	Tensile Strength (Long/Short Term)	60/100N
Insertion Loss	≤0.3dB	Return Loss	≥35dB
Attenuation at 850 nm	3.0dB/km	Attenuation at 1300 nm	1.0dB/km
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)
