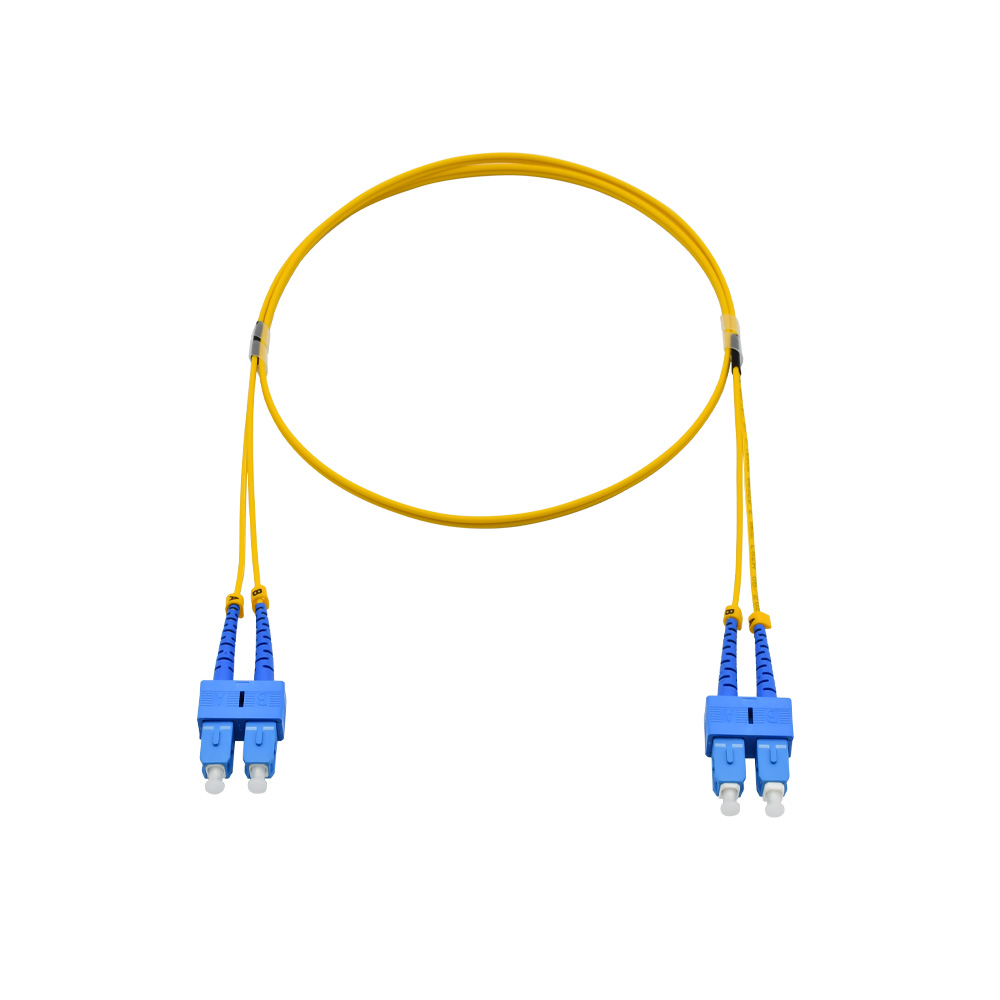

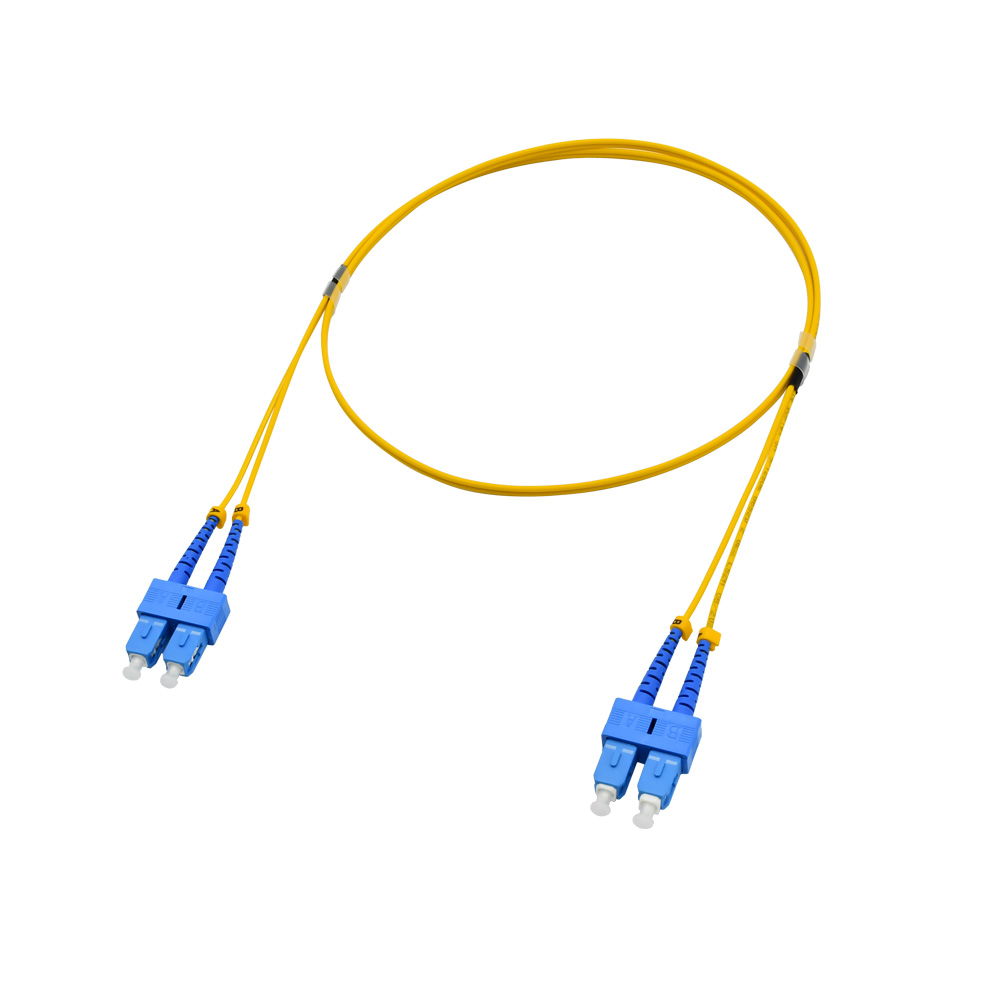

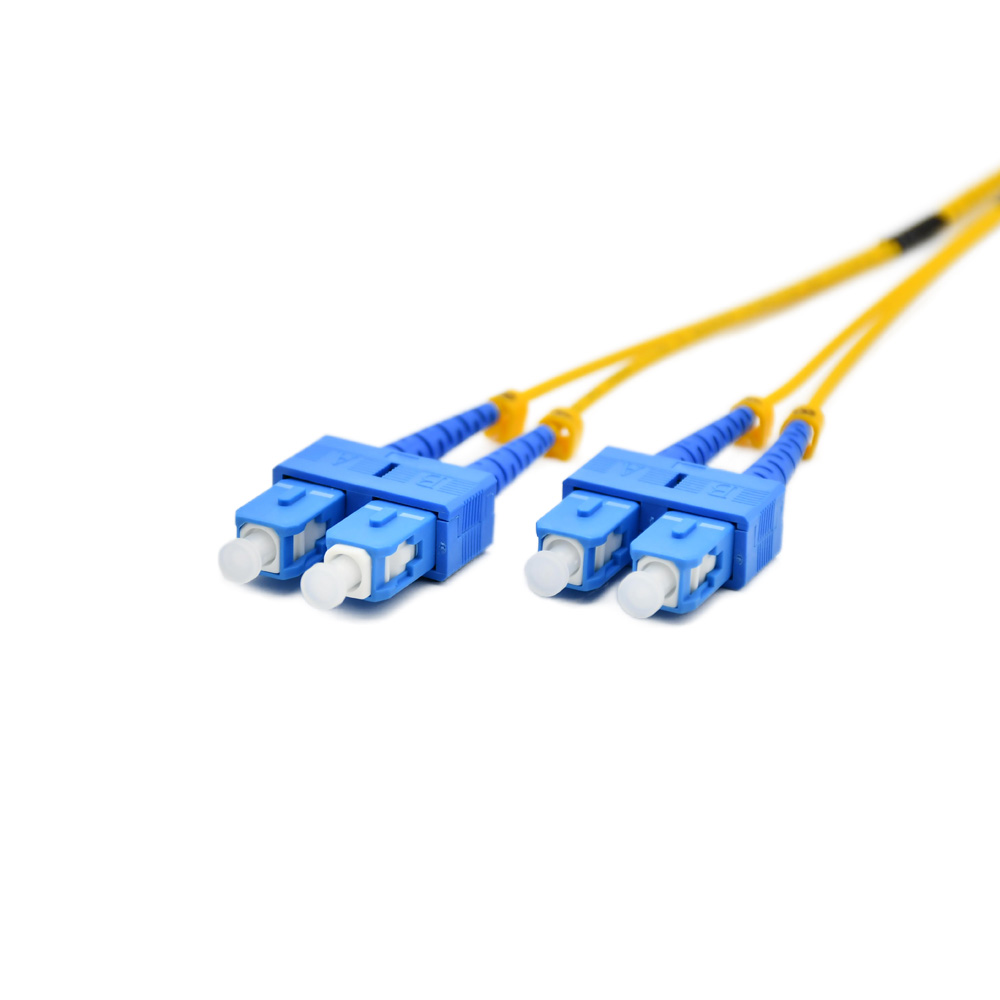

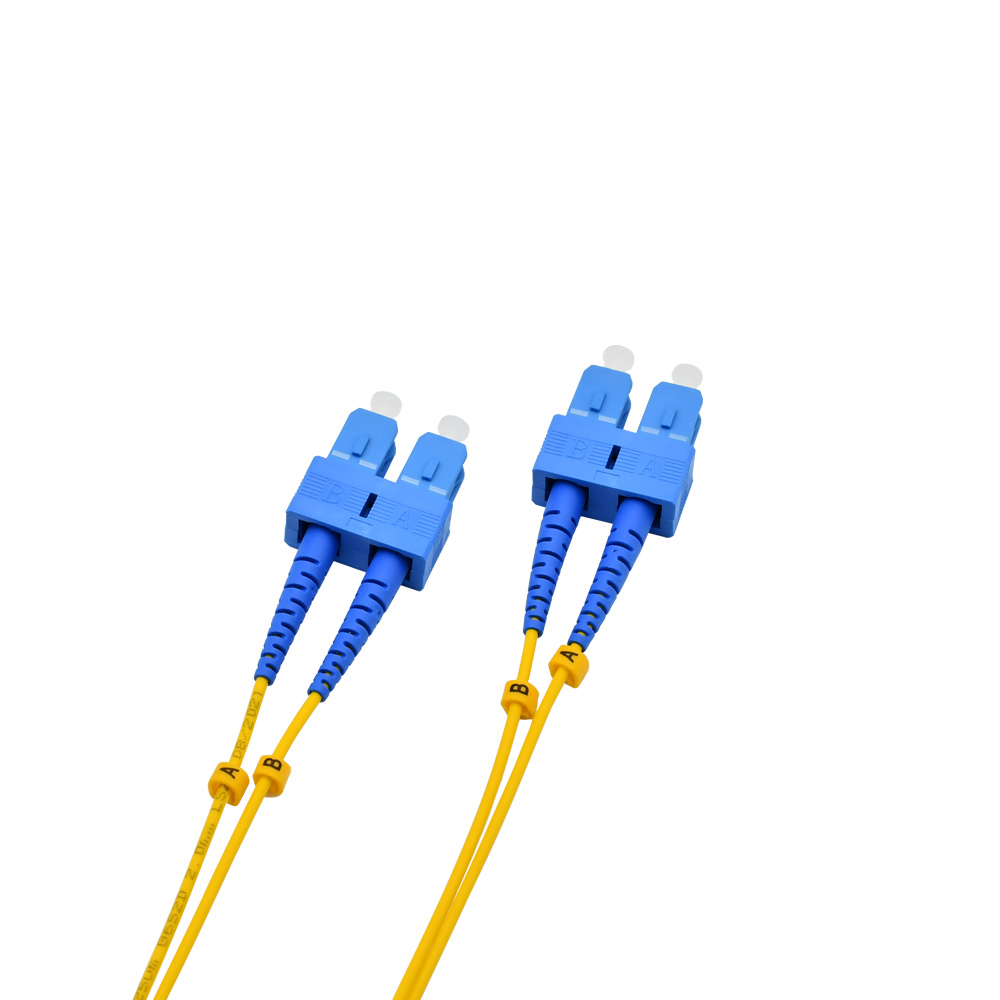

Welcome to the world of seamless high speed data transfer with AFOPLUS's fiber optic patch cord. Engineered for the most demanding vertical installation scenarios in modern fiber optic networks, this sc sc sm duplex patch cord is a paragon of advanced technology. The Corning Ultra duplex 2.0mm cable, housing single mode OS2 fiber, ensures minimal signal degradation over long vertical distances. In multi - story data centers where data needs to be transmitted swiftly between different floors, this os2 patch cord can handle the load with ease. The OFNR riser jacket meets strict fire-safety standards for vertical installations. It can be safely installed in vertical shafts, providing peace of mind in case of fire emergencies.

Connector A	SC UPC Duplex	Connector B	SC UPC Duplex
Fiber Count	2 Fiber	Fiber Grade	OS2
Fiber Mode	9/125μm	Wavelength	1310/1550nm
RoHS Compliancy Status	Compliant	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	2.0mm	Cable Jacket	PVC-OFNR (Riser)
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	500 times	Tensile Strength (Long/Short Term)	60/100N
Insertion Loss	≤0.3dB	Return Loss	≥50dB
Attenuation at 1310 nm	0.36dB/km	Attenuation at 1550 nm	0.22dB/km
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)
