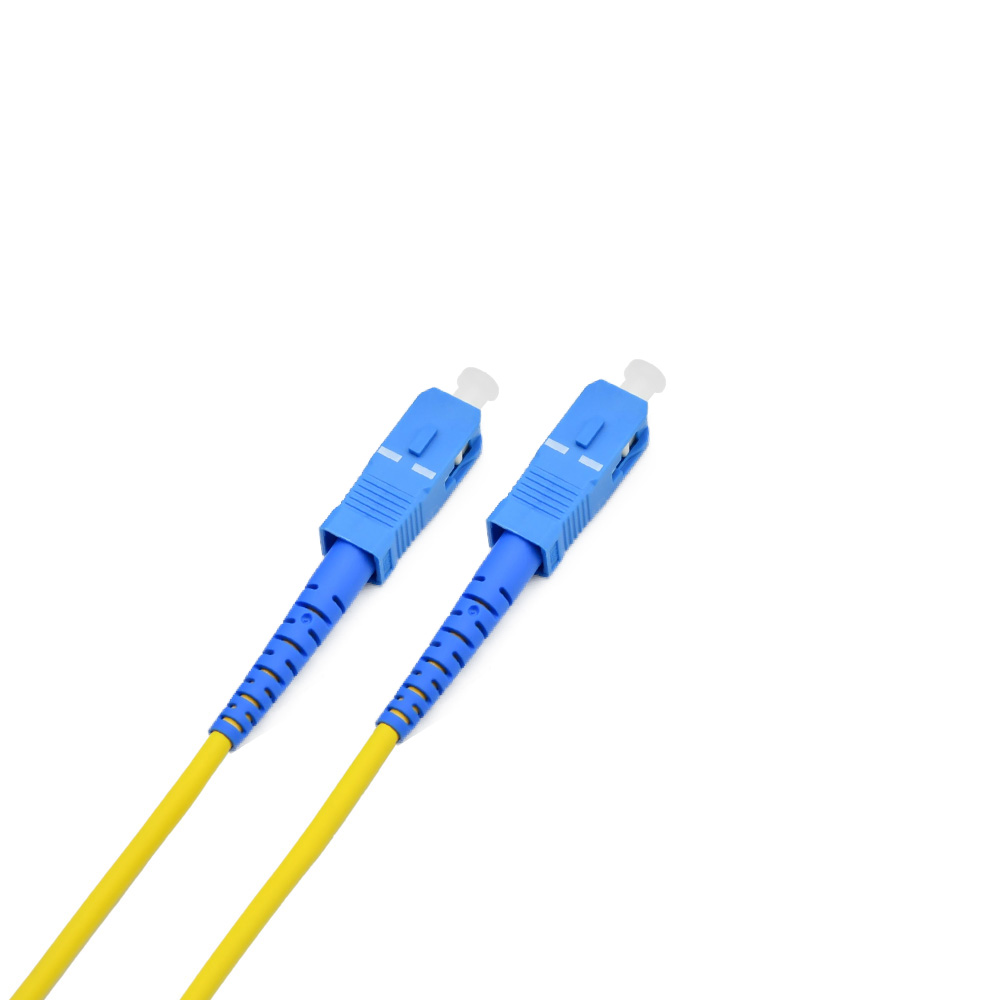

Revolutionize your network setup with AFOPLUS's state-of-the-art os2 fiber patch cable. The SC/UPC to SC/UPC ferrules ensure a low loss connection, and the single mode OS2 technology guarantees high speed data transfer over long distances. The 2.0mm Corning Ultra simplex cable is highly durable and features a Flame Retardant LSZH jacket for enhanced safety. Perfect for industrial automation and smart city projects, it enables reliable communication between devices. Upgrade your network infrastructure with this top-notch patchcord.

Connector A	SC UPC Simplex	Connector B	SC UPC Simplex
Fiber Count	1 Fiber	Fiber Grade	OS2
Fiber Mode	9/125μm	Wavelength	1310/1550nm
RoHS Compliancy Status	Compliant	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	2.0mm	Cable Jacket	Flame Retardant LSZH
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	500 times	Tensile Strength (Long/Short Term)	60/100N
Insertion Loss	≤0.3dB	Return Loss	≥50dB
Attenuation at 1310 nm	0.36dB/km	Attenuation at 1550 nm	0.22dB/km
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)
