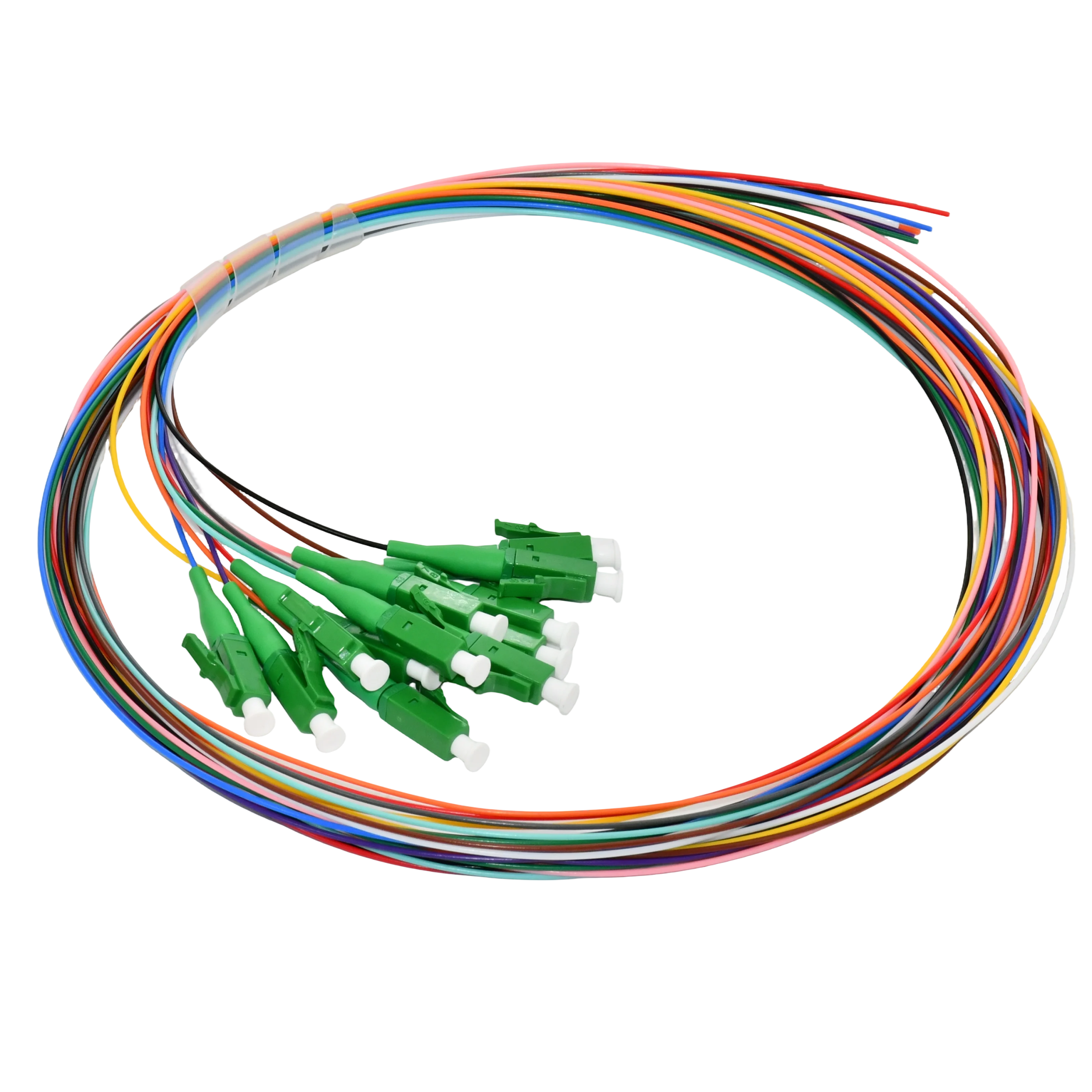

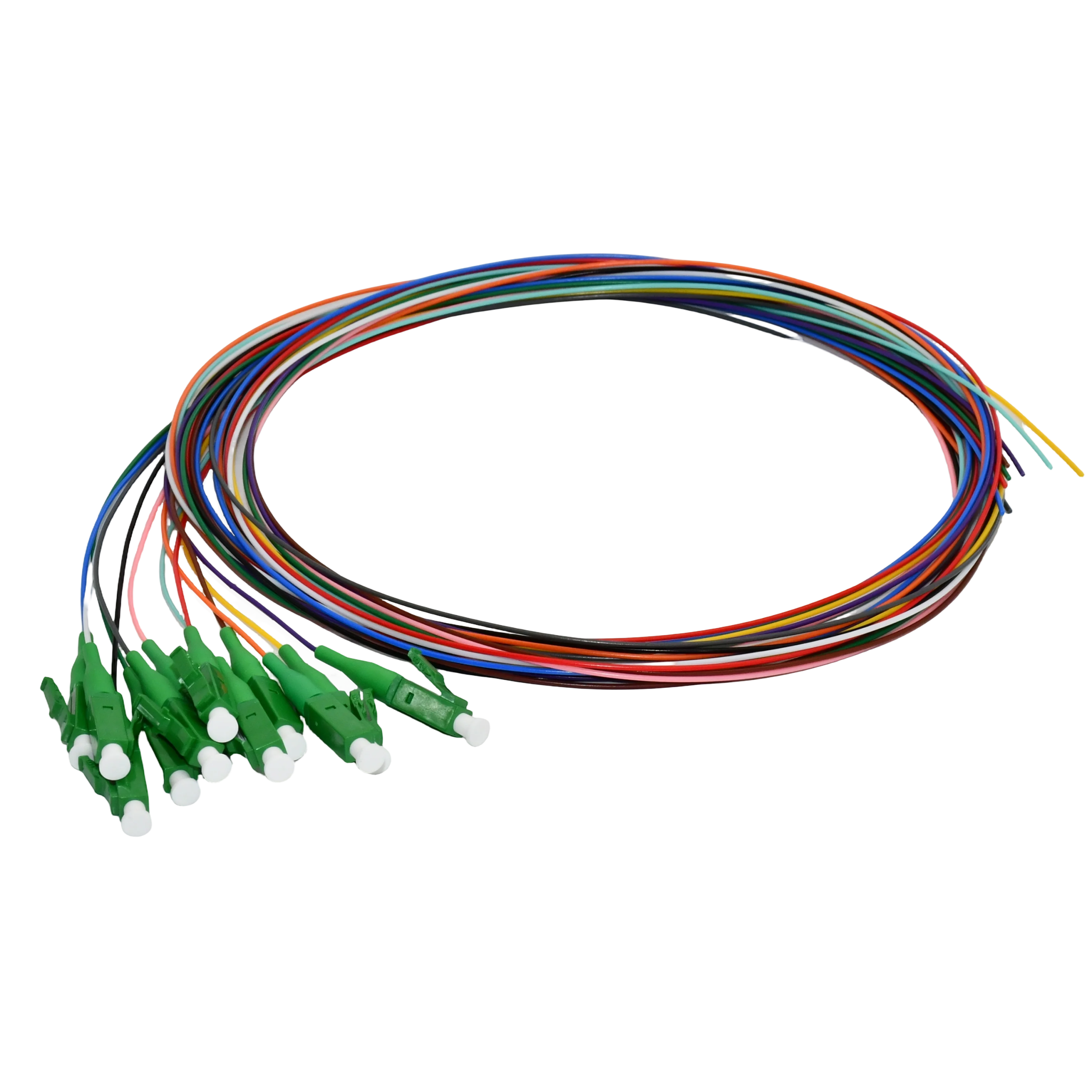

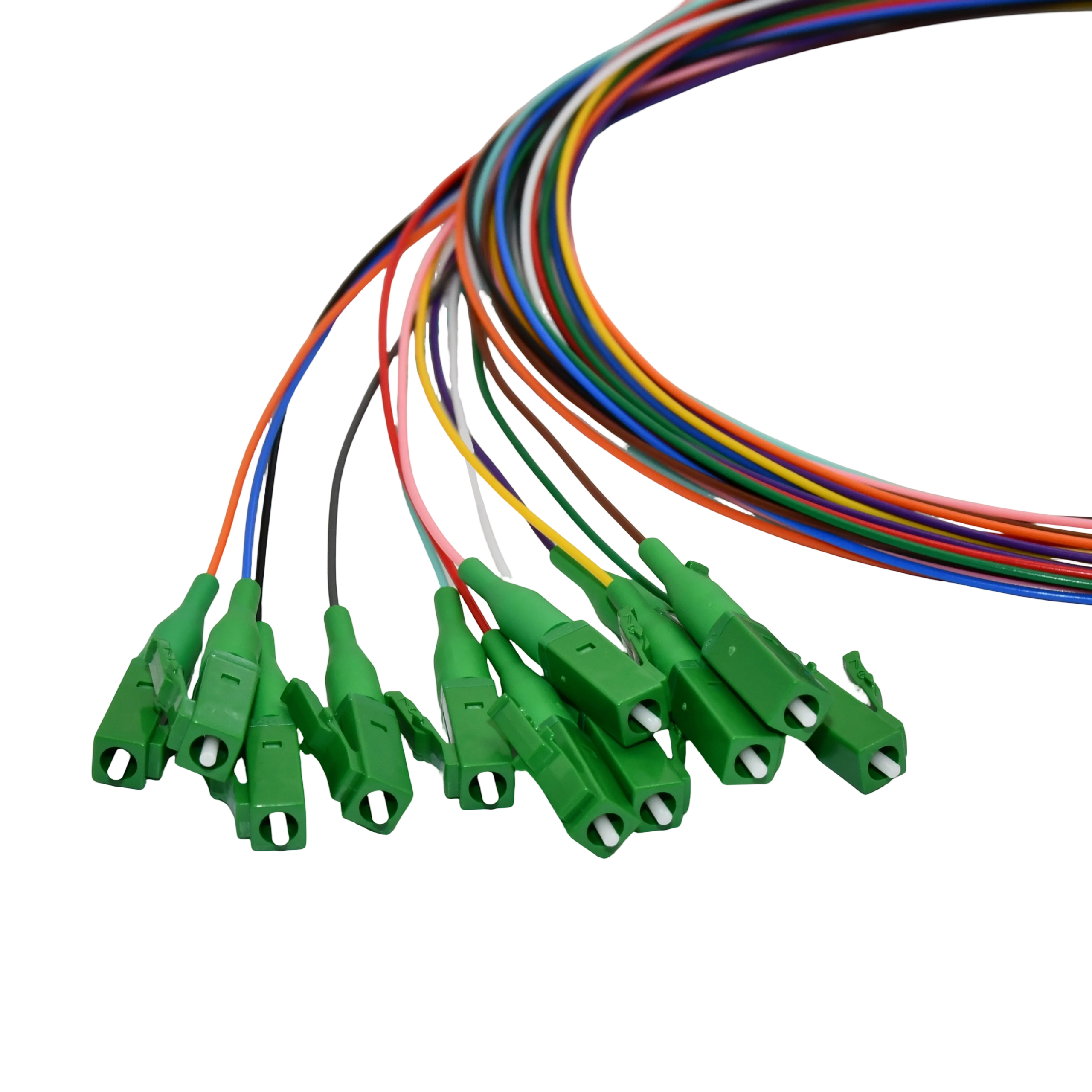

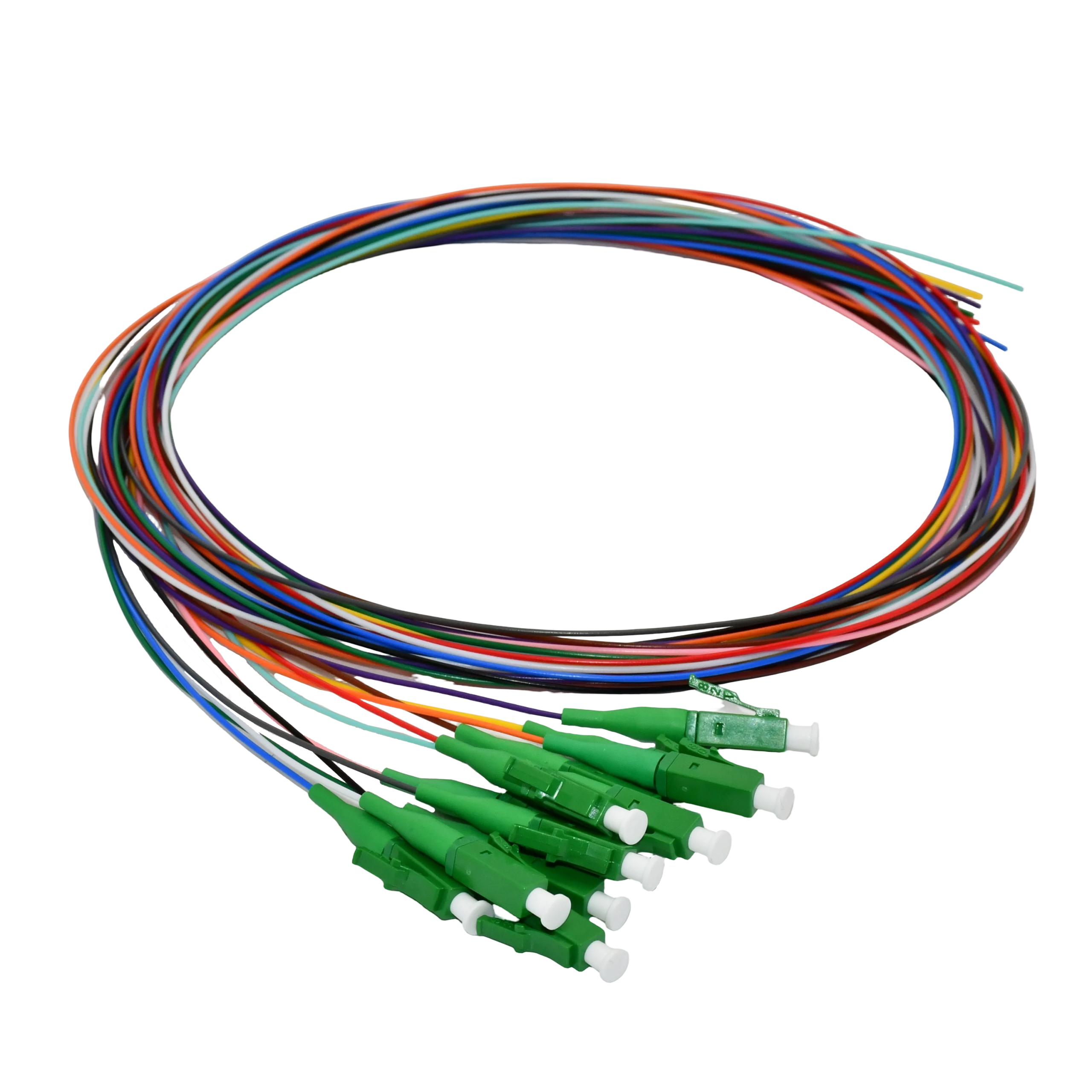

AOFPlus optic pigtail combines practical safety with rugged design, with its LSZH jacket that releases minimal smoke and no toxic fumes in case of fire, making the pigtail lc OS2 safe for use in homes or small offices where air quality matters. The slim 0.9mm jacket fits easily through tight spaces without sacrificing strength, while the 12-color coding simplifies installation and future maintenance. Built with Corning SMF-28 Ultra OS2 single mode fiber and an LC/APC connector, it balances performance with accessibility, supporting fast data speeds without requiring professional setup skills. Whether you're upgrading your home's internet to handle 4K streaming and gaming or setting up a home lab for tech projects, this fiber pigtail offers a safe, easy-to-use solution that fits seamlessly into daily life.

Connector A	LC APC Simplex	Connector B	Unterminated
Fiber Count	12 Fiber	Fiber Grade	Corning SMF-28 Ultra
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
Jacket Color	12-Color	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	0.9mm	Cable Jacket	Flame Retardant LSZH
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	500 times	Standard	RoHS Compliant
Insertion Loss	≤0.3dB	Return Loss	≥60dB
Attenuation at 1310 nm	0.36dB/km	Attenuation at 1550 nm	0.22dB/km
Operating Temperature	-40 to 75°C (-40 to 167℉)	Storage Temperature	-45 to 85°C (-49 to 185℉)
