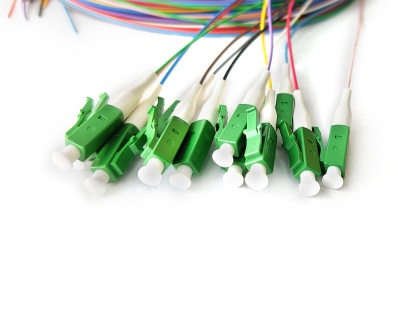

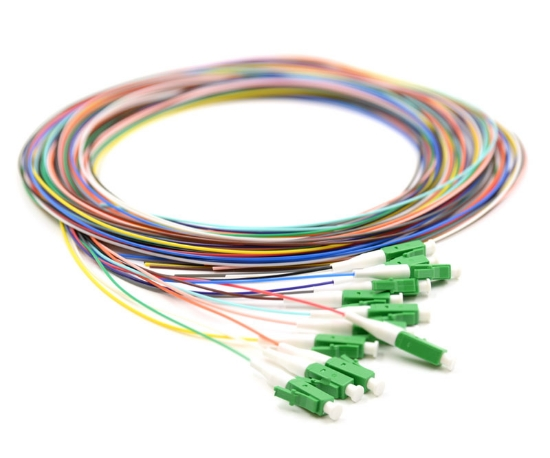

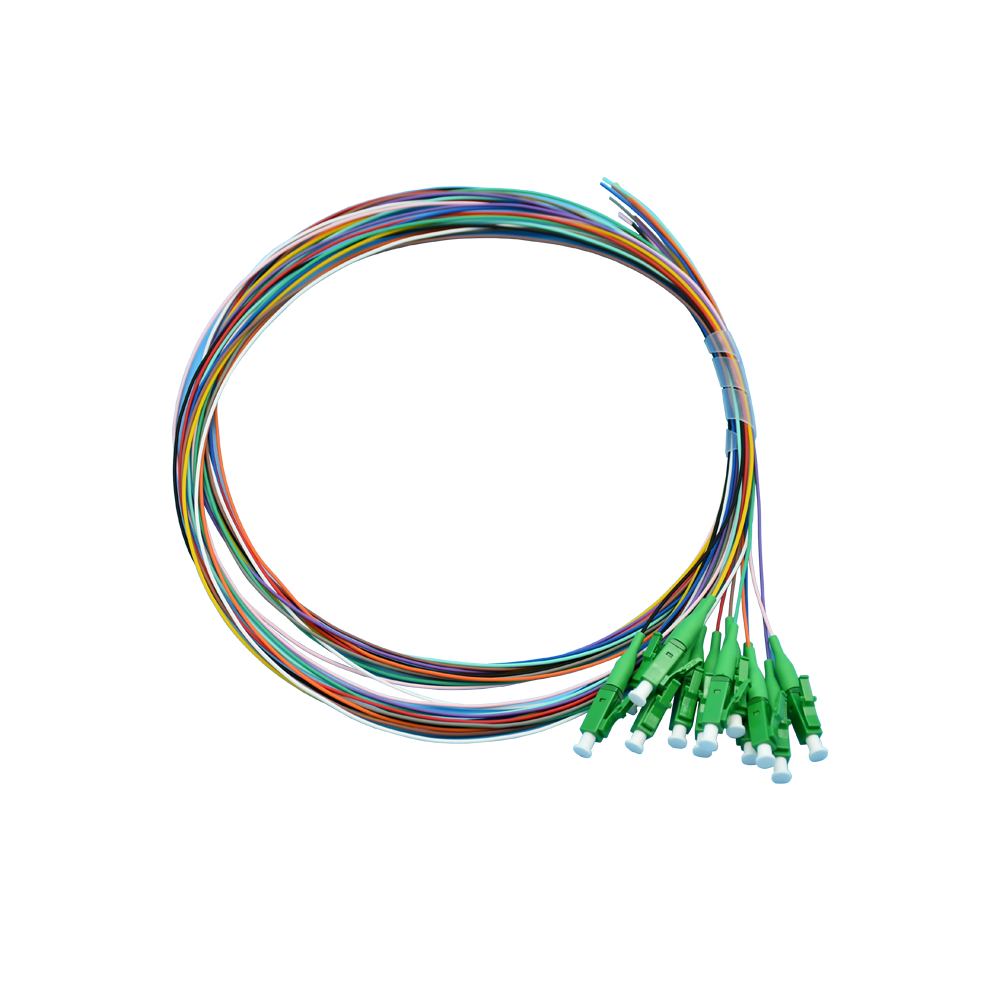

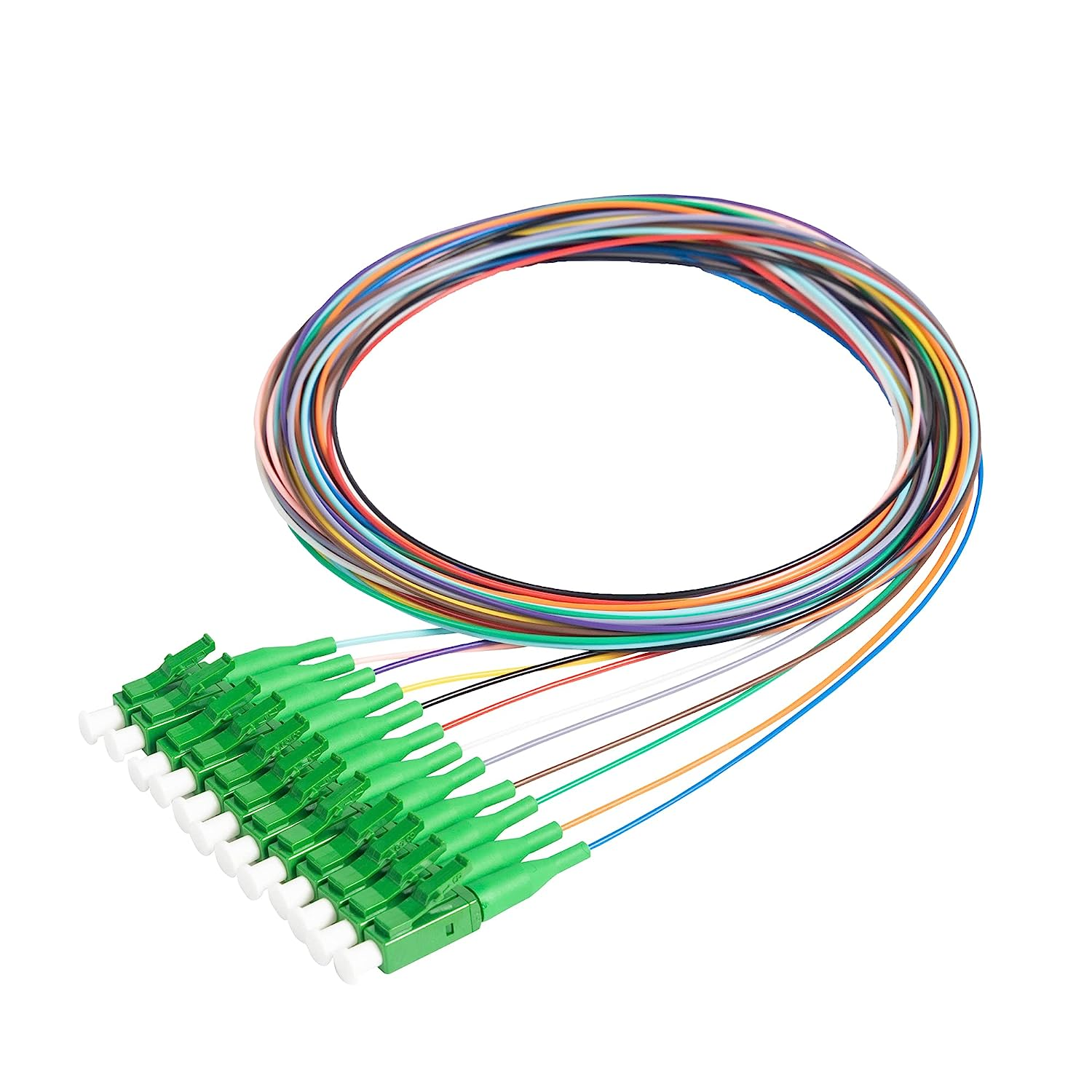

Upgrade your network with AOFPlus's single mode lc OS2 pigtail-perfect for seamless connectivity at home, offices, or small businesses! This LC/APC fiber optic pigtail features best bending sensitive Corning SMF-28 Ultra fiber, ensuring low loss: ??0.3dB and high speed data transfer for 4K streaming, video conferencing, or gaming. The 0.9mm PVC jacket offers safety in high-traffic areas like living rooms or server closets, while its durable design resists bending and environmental stress. Ideal for connecting modems, switches, or CCTV systems, it delivers reliable performance for everyday demands.

Connector A	LC APC Simplex	Connector B	Unterminated
Fiber Count	12 Fiber	Fiber Grade	Corning SMF-28 Ultra
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
Jacket Color	12-Color	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	0.9mm	Cable Jacket	PVC
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	500 times	Standard	RoHS Compliant
Insertion Loss	≤0.3dB	Return Loss	≥60dB
Attenuation at 1310 nm	0.36dB/km	Attenuation at 1550 nm	0.22dB/km
Operating Temperature	-40 to 75°C (-40 to 167℉)	Storage Temperature	-45 to 85°C (-49 to 185℉)
