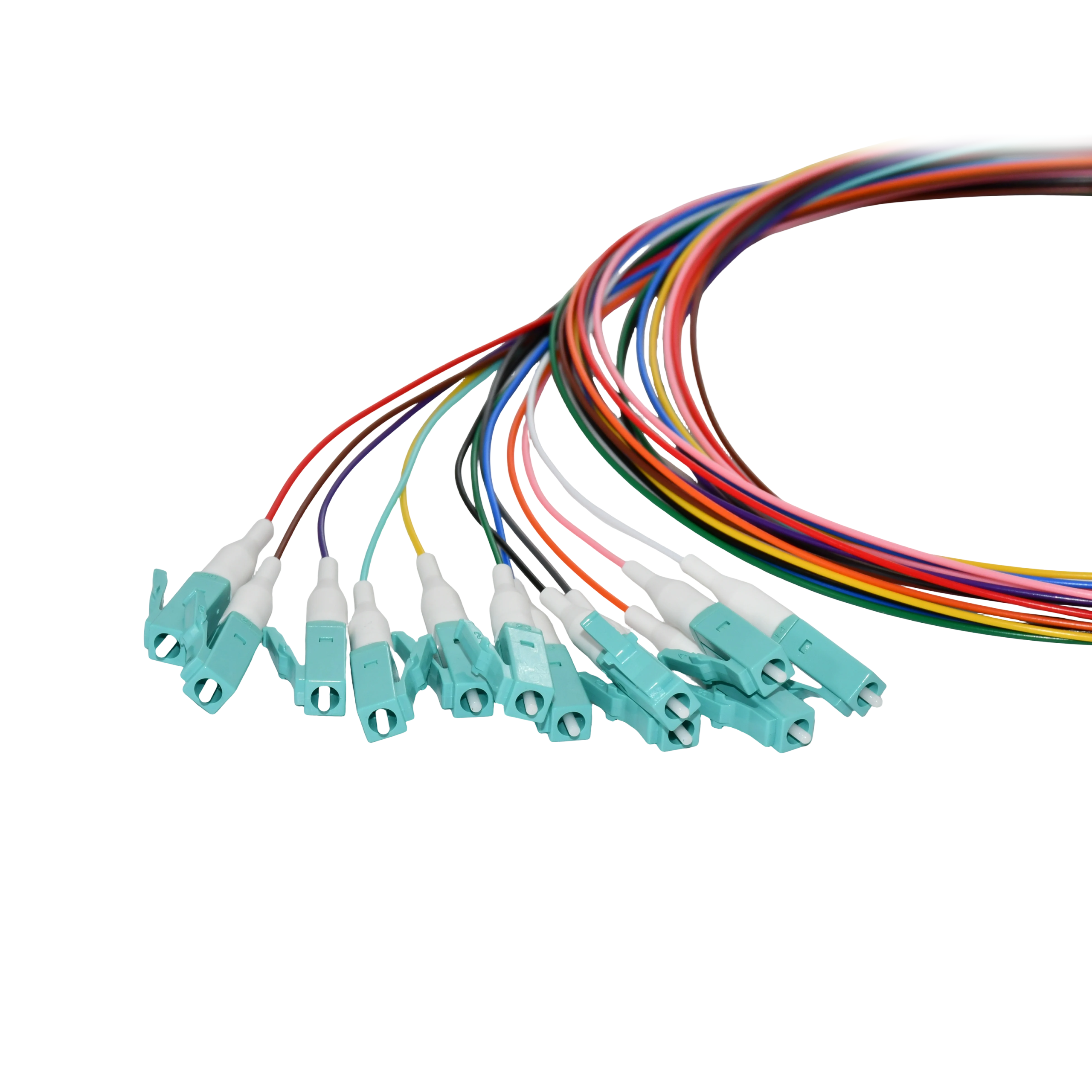

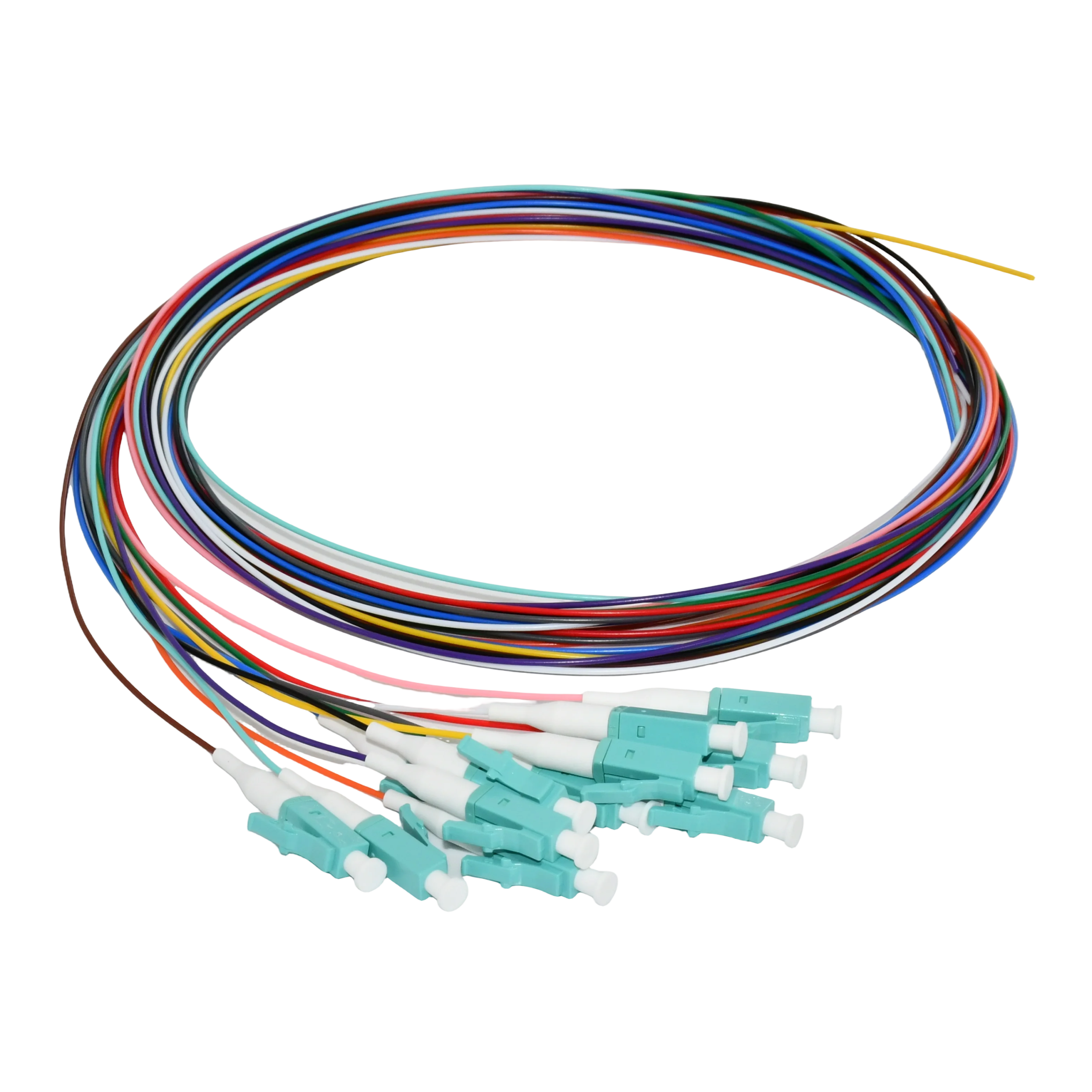

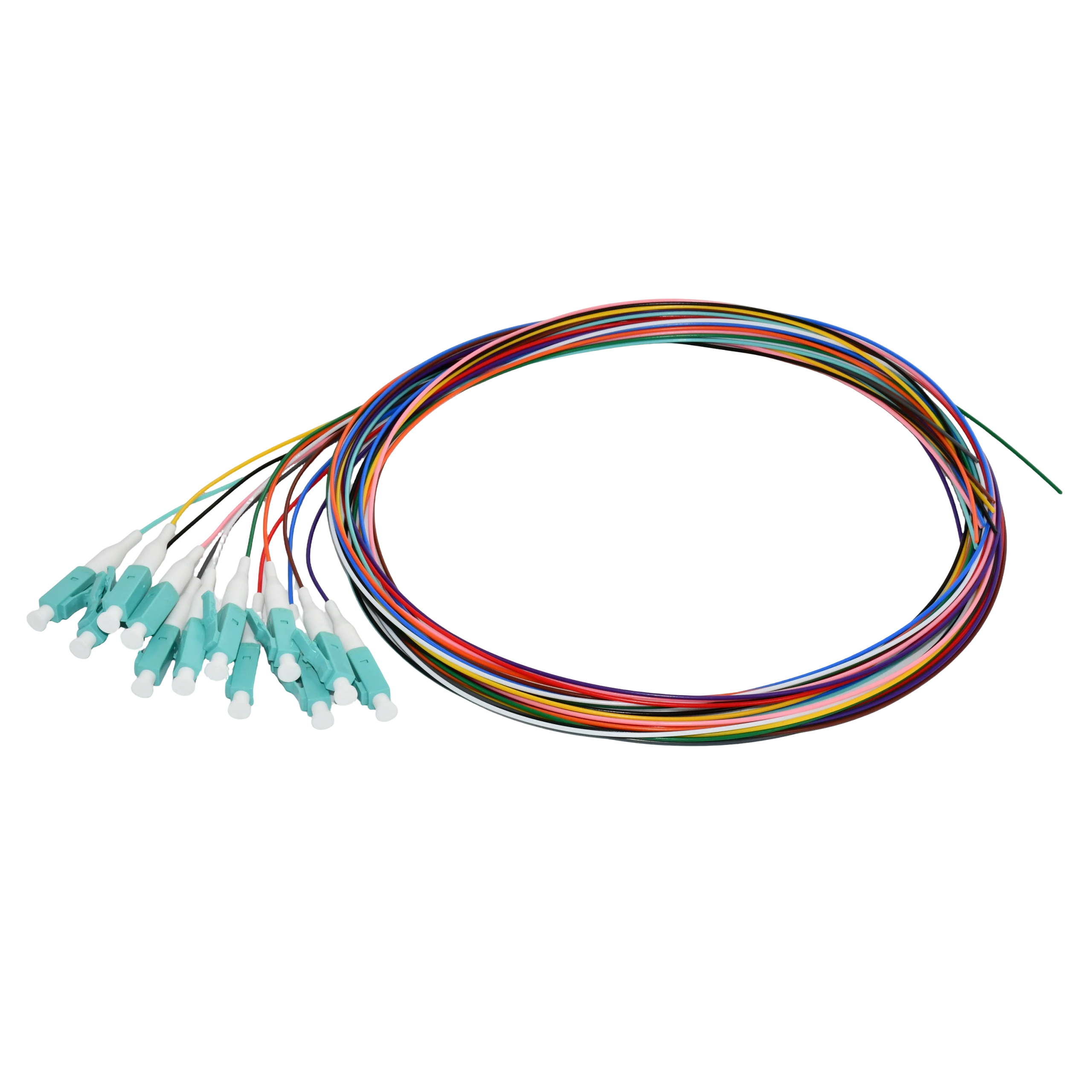

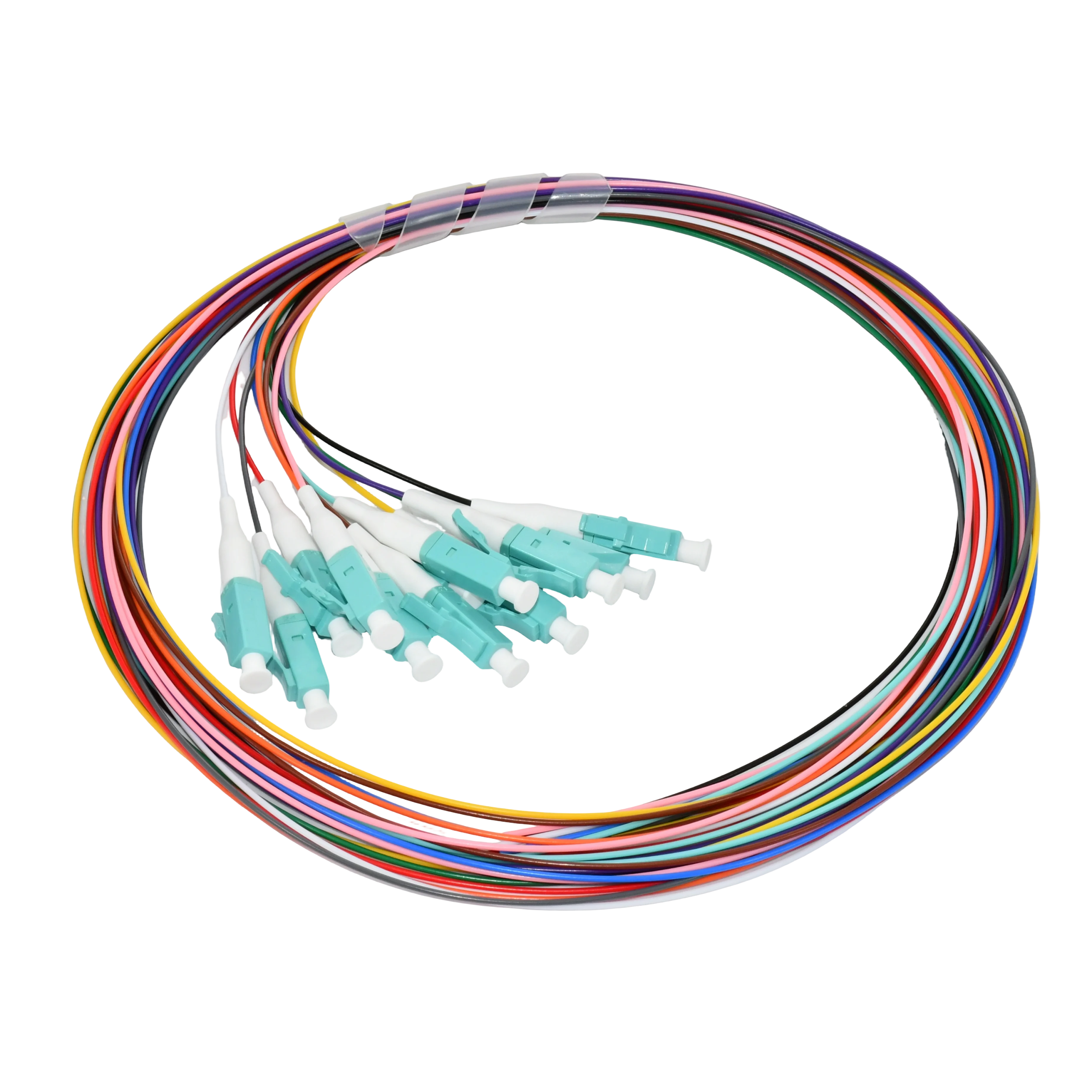

AOFPlus's fiber optic cable pigtail is a high performing product for optical fiber communication. The multi mode 12cores 50/125um om3 fiber offers excellent seamless connectivity data transmission. It's perfect for applications like connecting large-scale educational e-learning platforms to their user bases, where high speed and reliable data transfer is essential for online teaching and learning. The 0.9mm mm lc pigtail provides flexibility for installation in educational institutions, and its Flame Retardant LSZH jacket ensures safety in case of a fire.

Connector A	LC/PC Simplex	Connector B	Unterminated
Fiber Count	12 Fiber	Fiber Grade	Corning
Fiber Mode	OM3 50/125um	Wavelength	850/1300nm
Jacket Color	12-Color	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	0.9mm	Cable Jacket	Flame Retardant LSZH
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	500 times	Standard	RoHS Compliant
Insertion Loss	≤0.3dB	Return Loss	≥35dB
Attenuation at 850 nm	3.0dB/km	Attenuation at 1300 nm	1.0dB/km
Operating Temperature	-40 to 75°C (-40 to 167℉)	Storage Temperature	-45 to 85°C (-49 to 185℉)
