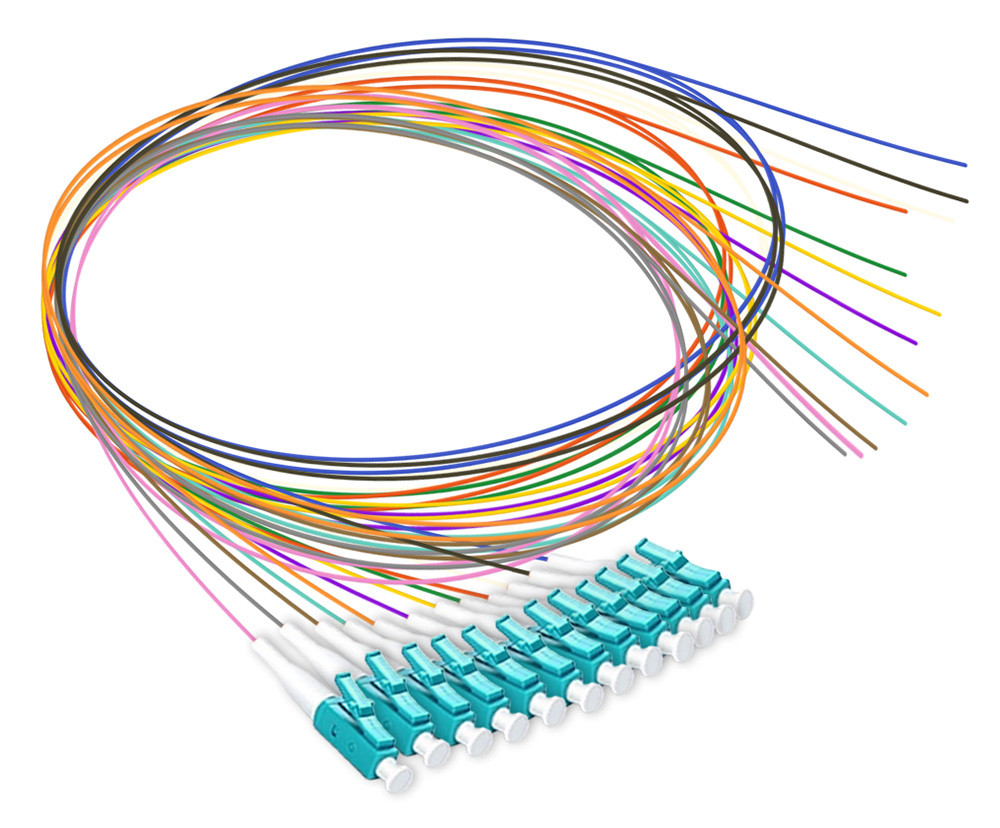

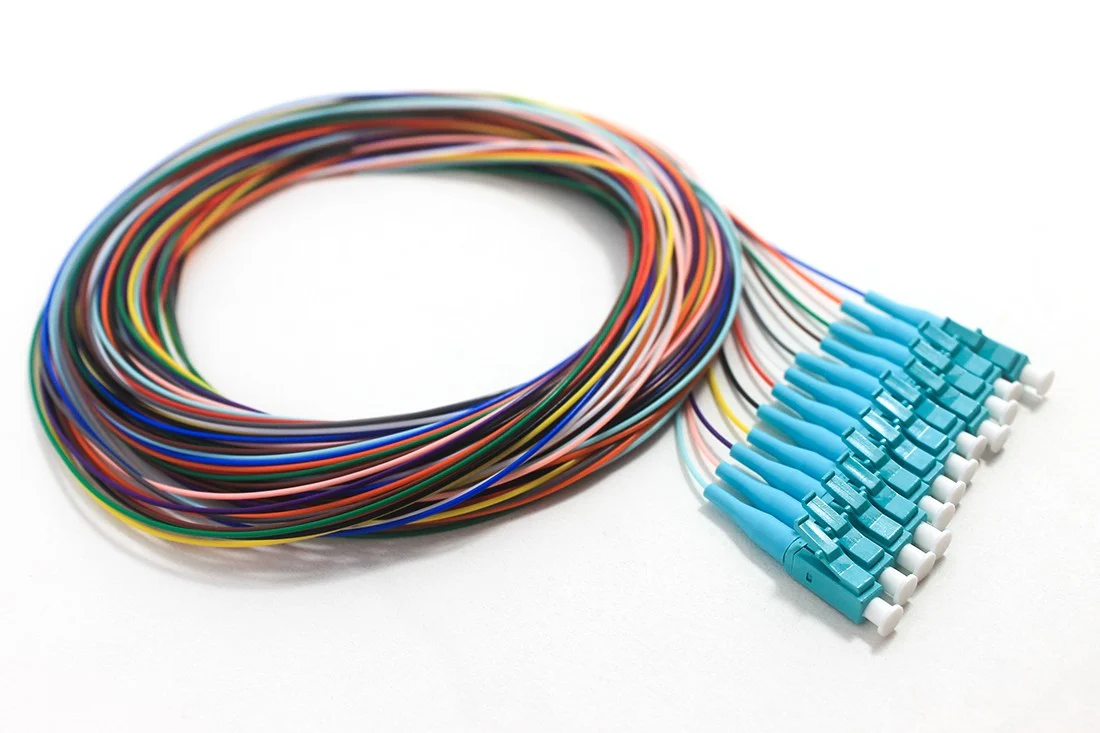

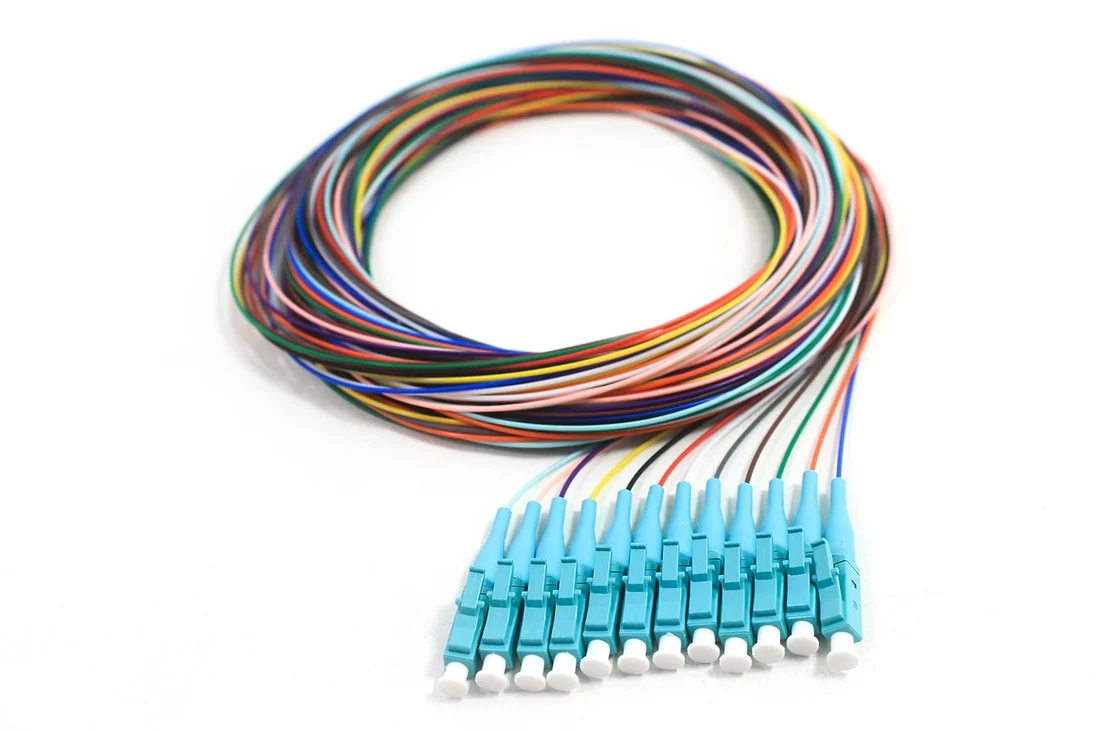

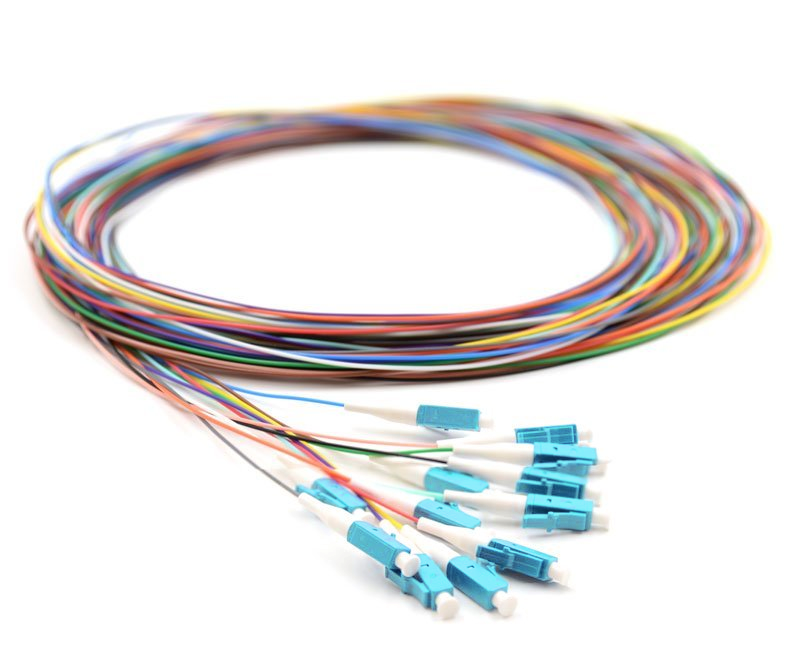

AOFPlus's essential corning 12 fiber pigtail is rigorously built with 0.9mm PVC jacket, meeting the strict fire safety codes for installation. The 50/125um OM3 fiber efficiently supports high-bandwidth data transfer up to 10GigE and beyond, while the durable LC connectors with PC polish ensure stable, low loss connections. Trust its robust construction and compliant design for secure operation. Making this lc pc pigtail perfect for safely and reliably deploying high speed links throughout office buildings and campuses.

Connector A	LC/PC Simplex	Connector B	Unterminated
Fiber Count	12 Fiber	Fiber Grade	Corning
Fiber Mode	OM3 50/125um	Wavelength	850/1300nm
Jacket Color	12-Color	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	0.9mm	Cable Jacket	PVC
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	500 times	Standard	RoHS Compliant
Insertion Loss	≤0.3dB	Return Loss	≥35dB
Attenuation at 850 nm	3.0dB/km	Attenuation at 1300 nm	1.0dB/km
Operating Temperature	-40 to 75°C (-40 to 167℉)	Storage Temperature	-45 to 85°C (-49 to 185℉)
