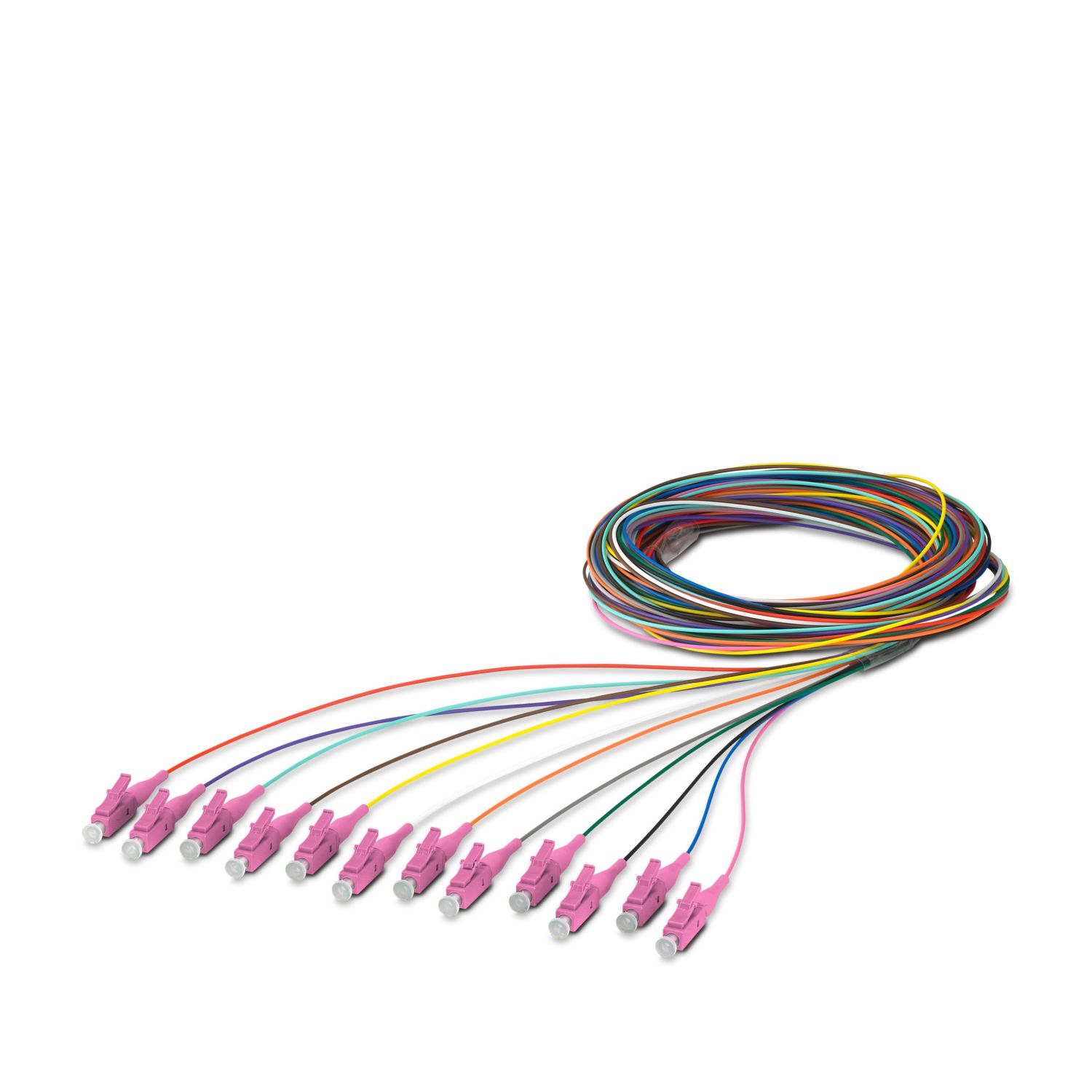

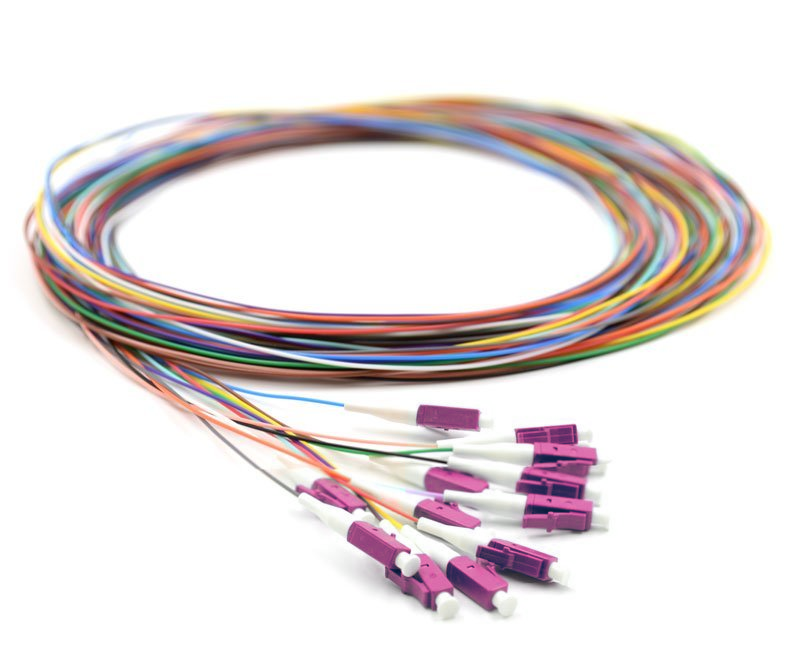

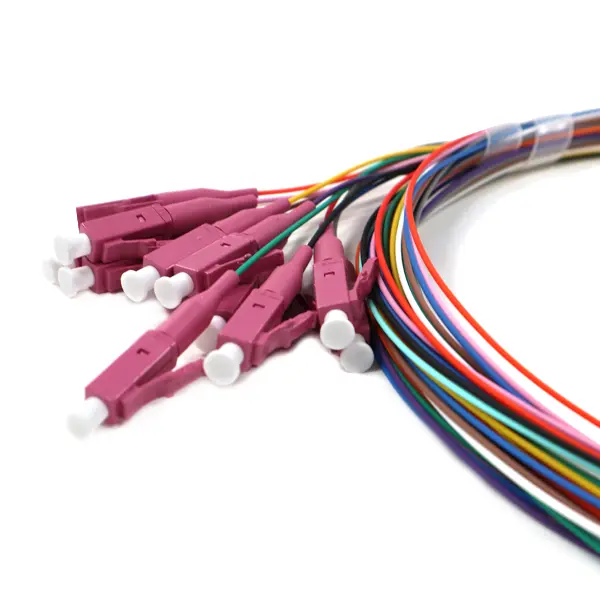

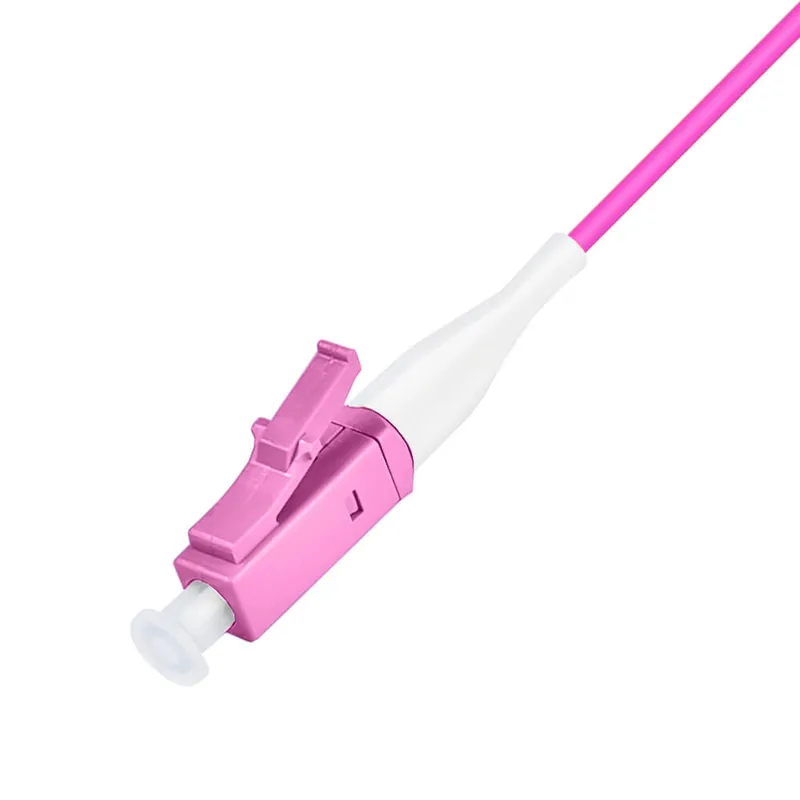

In industries where data accuracy is important, trust AOFPlus's lc fiber pigtail to deliver unmatched signal integrity and interference resistance. Multi mode 50/125um OM4's optimized modal bandwidth minimizes dispersion, ensuring crystal-clear transmission for time-sensitive applications like medical imaging or financial trading. The LC/PC connectors' precision polish reduces back reflection, protecting against signal degradation in long-haul setups. The 0.9mm fiber pigtail with flame retardant LSZH jacket, remains flexible enough for intricate hospital wiring or stock exchange data centers, where every millisecond counts.

Connector A	LC/PC Simplex	Connector B	Unterminated
Fiber Count	12 Fiber	Fiber Grade	Corning
Fiber Mode	OM4 50/125um	Wavelength	850/1300nm
Jacket Color	12-Color	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	0.9mm	Cable Jacket	Flame Retardant LSZH
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	500 times	Standard	RoHS Compliant
Insertion Loss	≤0.3dB	Return Loss	≥35dB
Attenuation at 850 nm	3.0dB/km	Attenuation at 1300 nm	1.0dB/km
Operating Temperature	-40 to 75°C (-40 to 167℉)	Storage Temperature	-45 to 85°C (-49 to 185℉)
