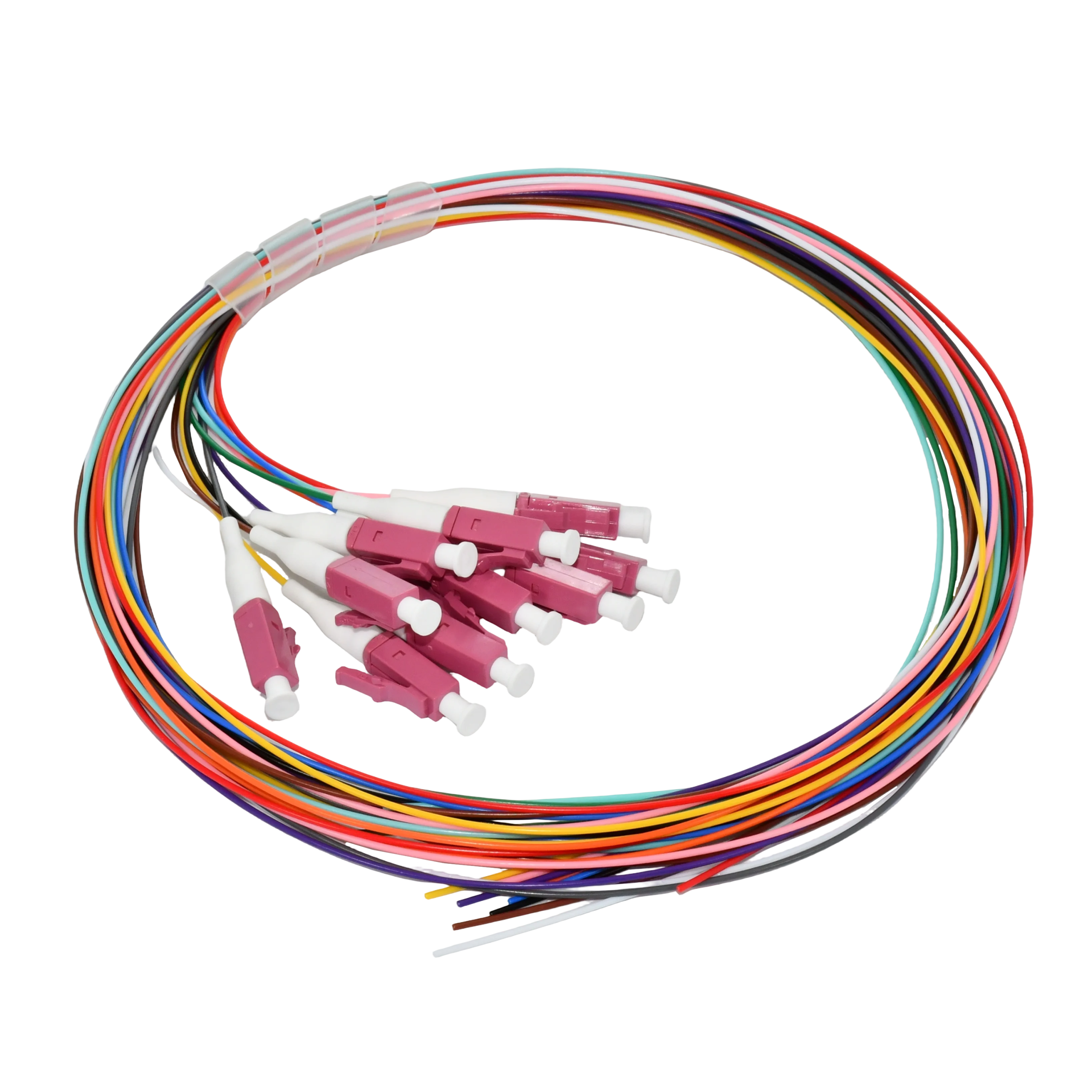

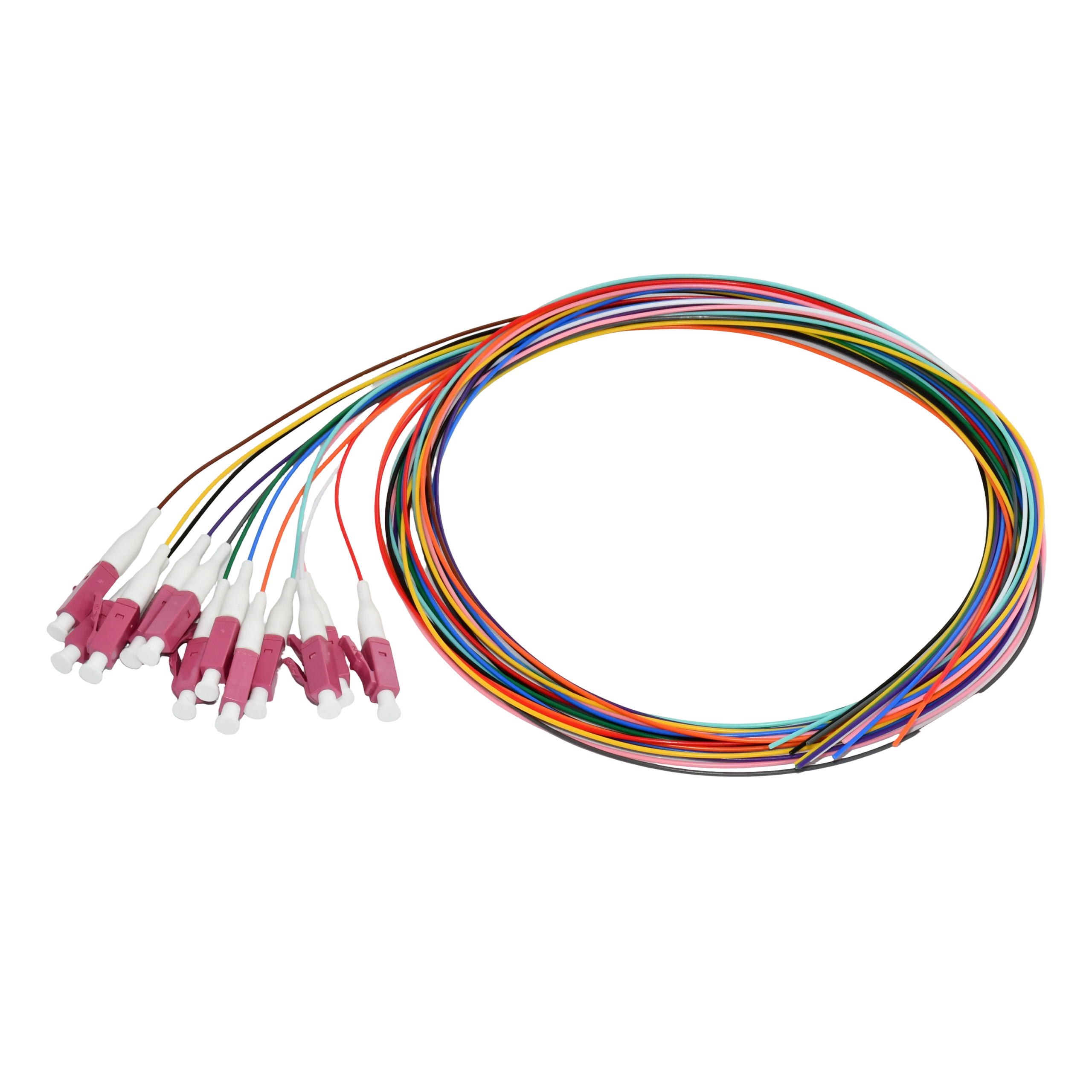

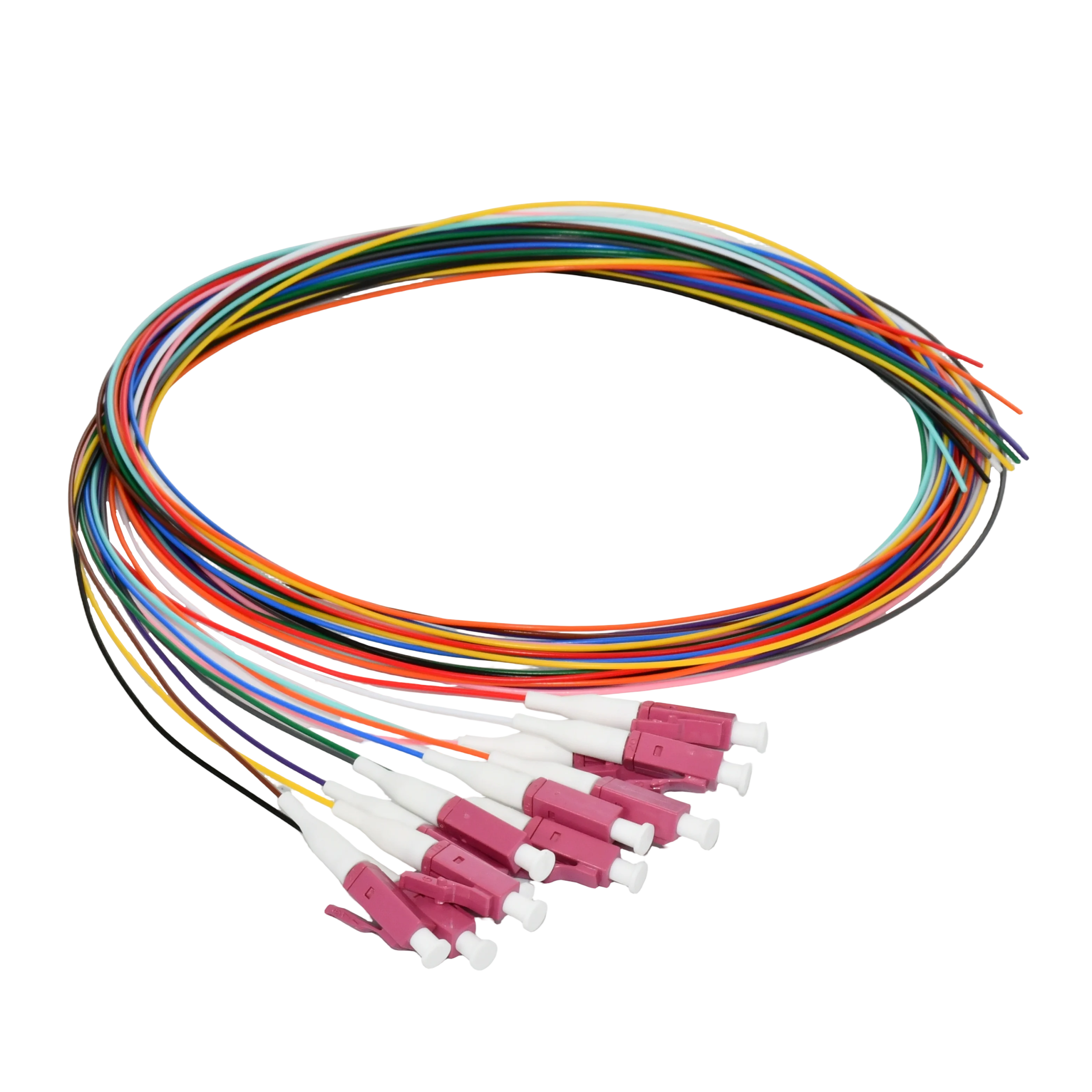

AOFPlus's fiber optic pigtail om4 is a premium solution engineered for speed, reliability, and modern network demands. The OM4 multimode 50/125um fiber is optimized for optimized transmission, supporting data rates up to 100Gbps. Whether you're streaming 8K video, managing cloud-based workflows, or running latency-sensitive applications, its low-attenuation design ensures zero lag and seamless signal integrity. The LC/PC connectors, featuring precision-polished zirconia ferrules, minimize signal loss and provide a secure, repeatable connection, perfect for high density setups. The 2.0mm Flame Retardant LSZH jacket emits minimal toxic fumes, meeting strict safety standards for indoor installations. Ideal for modern offices, gaming setups, or smart homes craving ultra-fast, reliable connections, this corning fiber pigtail transforms your network into a high speed highway, keeping you ahead in a world that never stops.

Connector A	LC/PC Simplex	Connector B	Unterminated
Fiber Count	12 Fiber	Fiber Grade	Corning
Fiber Mode	OM4 50/125um	Wavelength	850/1300nm
Jacket Color	12-Color	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	0.9mm	Cable Jacket	Flame Retardant LSZH
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	500 times	Standard	RoHS Compliant
Insertion Loss	≤0.3dB	Return Loss	≥35dB
Attenuation at 850 nm	3.0dB/km	Attenuation at 1300 nm	1.0dB/km
Operating Temperature	-40 to 75°C (-40 to 167℉)	Storage Temperature	-45 to 85°C (-49 to 185℉)
