Awaiting product image

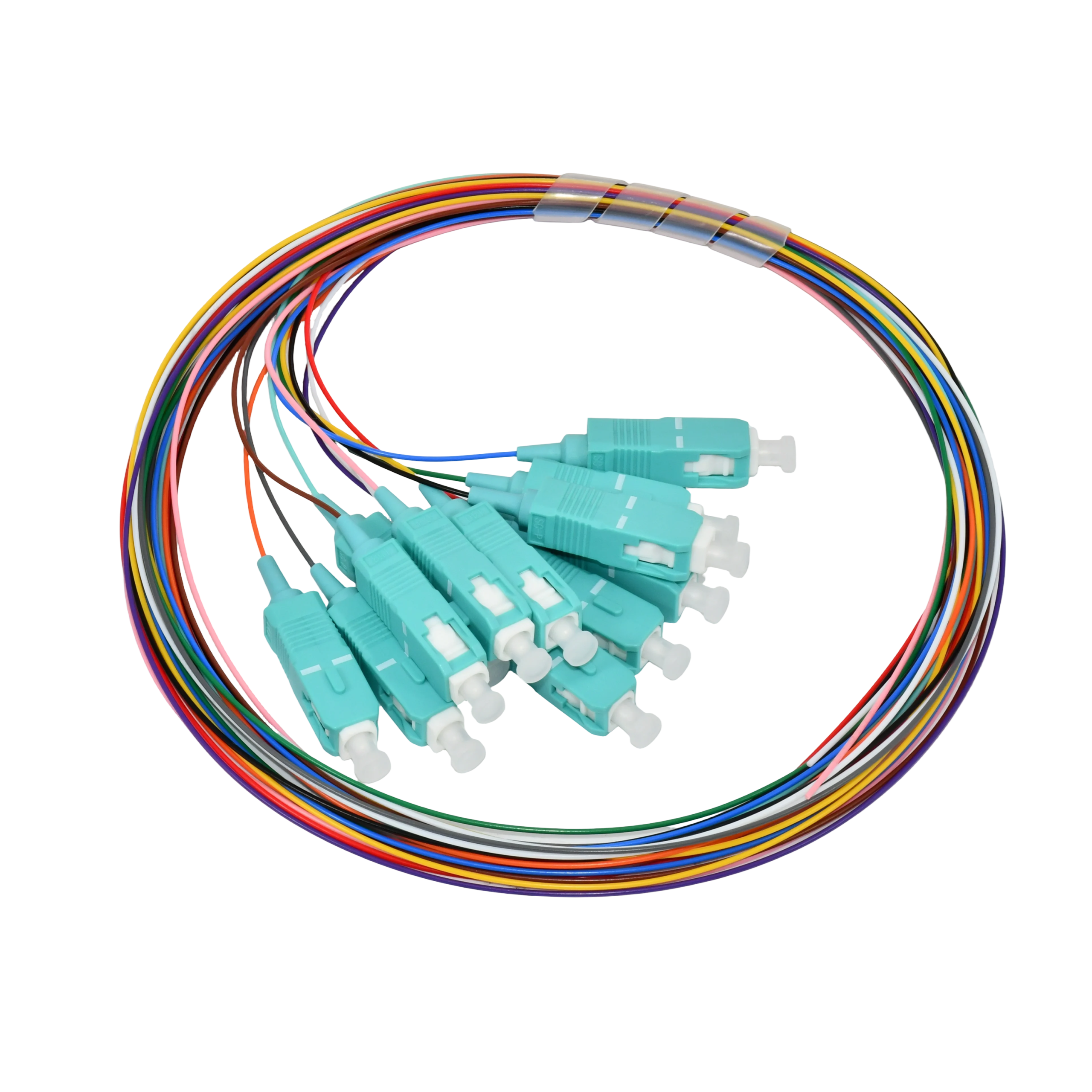

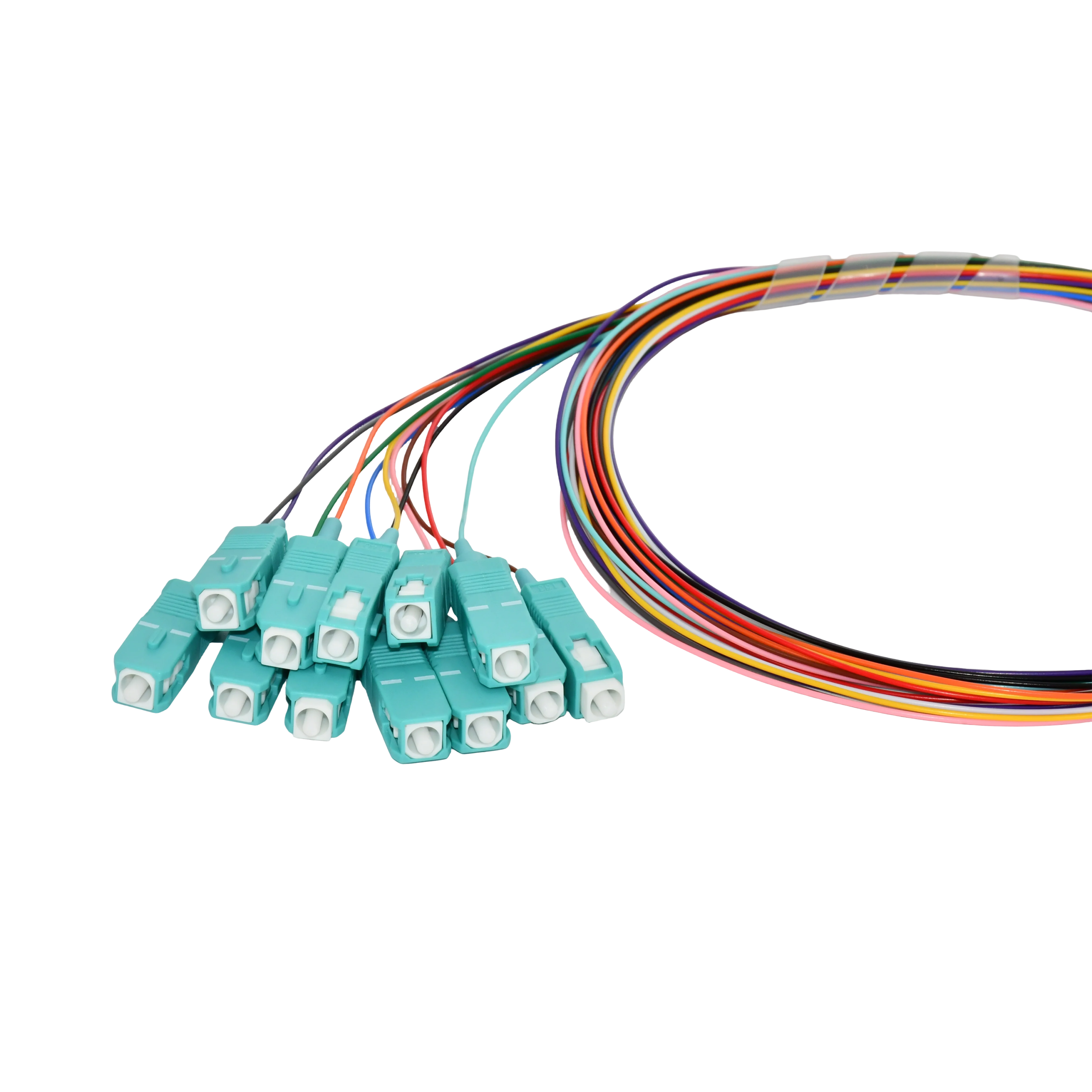

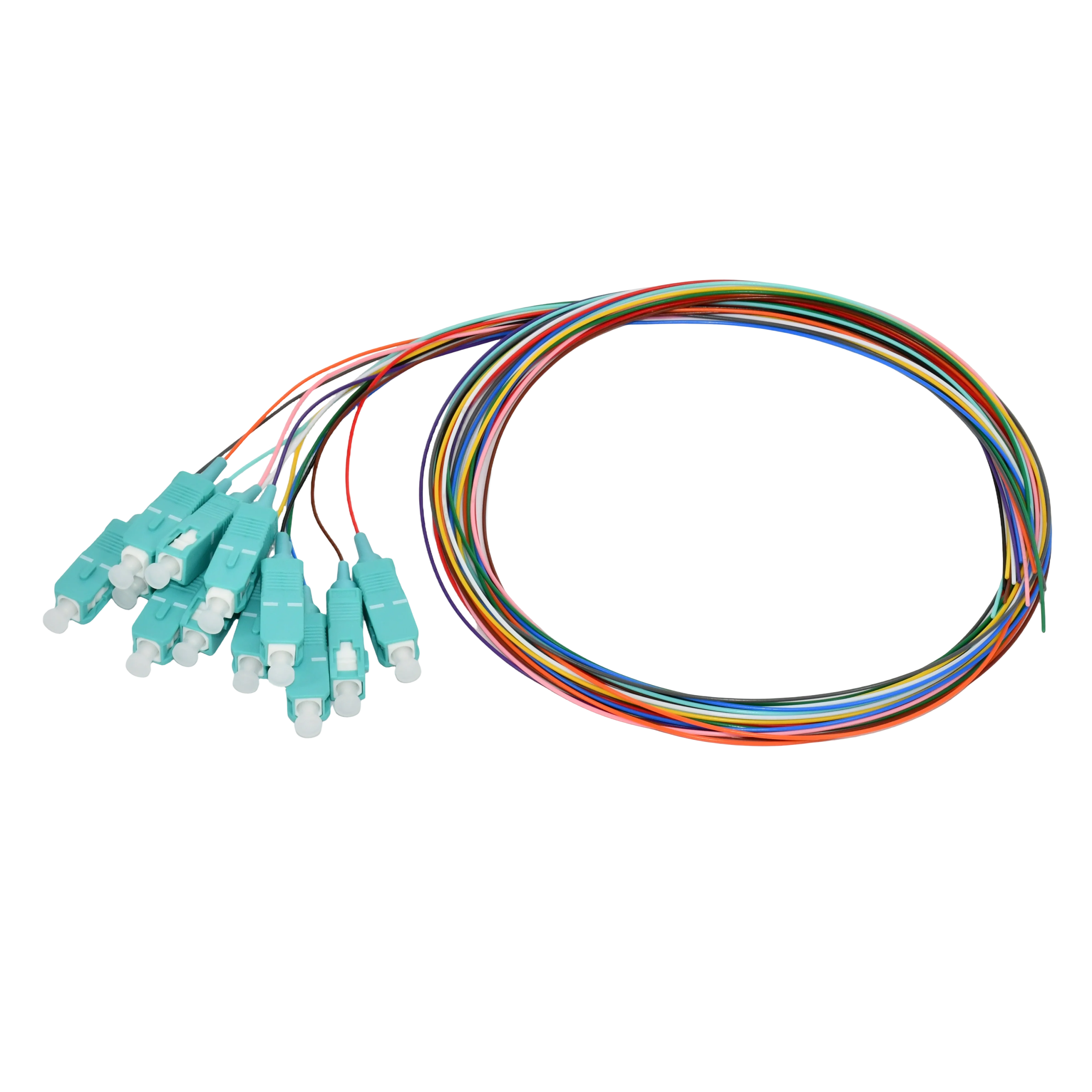

Fiber Optic Patch Cable|Fiber Optic Pigtail 12Colors SC/PC Multimode OM3 Corning 50/125um 0.9mm PVC 3m(10ft)

SKU: ASUM3TP03

Price range: $17.86 through $22.33
Buy more to save

Length
1m(3ft)2m(6.5ft)3m(10ft)
  • Shipping next day
  • Shipping via DHL | 1 year Warranty
  • 30 Days Returns
  • 30 Days Exchange

Warranty
Providing industry-leading limited lifetime warranty. Read the table for details of all  products' warranty.

Returns & Exchange
Refunds will be received about  5 business days after the receipt of returned items. Items in stock  for replacement can be shipped within  1 business day. Read the full return policy for details.

  • Free Shipping on Orders over $99 for Whole USA
QuantityPrice
1 - 49$22.33
50 - 99$18.98
100 +$17.86

Fiber Optic Patch Cable|Fiber Optic Pigtail 12Colors SC/PC Multimode OM3 Corning 50/125um 0.9mm PVC 3m(10ft)

Specifications

Unleash blazing speed with AOFPlus's sc multi mode pigtail! The 50/125um OM3 fiber is engineered to support 10G Ethernet applications effortlessly, enabling real-time data streams with minimal latency. The SC/PC connectors, featuring precision-polished end faces, provide a secure, low loss connection. Their user-friendly mechanism simplifies installation and maintenance, reducing downtime. Encased in a 0.9mm PVC jacket, this sc 12 fiber pigtail meets the strict fire safety standards, powering seamless business operations while ensuring protection in case of fire.
Connector ASC/PC SimplexConnector BUnterminated
Fiber Count12 FiberFiber GradeCorning
Fiber ModeOM3 50/125umWavelength850/1300nm
Jacket Color12-ColorCable TypeTight-Buffered
Cable Outside Diameter (OD)0.9mmCable JacketPVC
Min. Bend Radius (Optical Fiber)10mmMin. Bend Radius (Fiber Cable)10/5D (Dynamic/Static)
Connector Durability500 times StandardRoHS Compliant
Insertion Loss≤0.3dB Return Loss≥35dB
Attenuation at 850 nm3.0dB/km Attenuation at 1300 nm1.0dB/km
Operating Temperature-40 to 75°C (-40 to 167℉)Storage Temperature-45 to 85°C (-49 to 185℉)

Videos

Applications

FAQ

Yes, the SC/PC connectors are fully compatible with standard SC adapter panels. They provide a snug fit and ensure stable connections within patch enclosures or termination boxes.
The PVC jacket offers good mechanical strength and abrasion resistance. It withstands pulling and handling during installation without compromising optical performance.
Absolutely. The 0.9mm diameter and compact SC connector design make them perfectly suitable for standard splice trays, cassettes, and enclosures, ensuring neat and organized fiber management.
Performance-wise, both are identical in optical quality. The main difference is in jacket material-PVC is cost-effective and flexible for normal indoor use, while LSZH provides low-smoke protection in sensitive areas.
Yes, they are ideal for short-range connections such as within data centers or LANs. The OM3 50/125 um fiber ensures high-speed performance for 10G and 40G multimode transceivers with minimal signal loss.

Reviews

Reviews

There are no reviews yet.

Be the first to review “Fiber Optic Patch Cable|Fiber Optic Pigtail 12Colors SC/PC Multimode OM3 Corning 50/125um 0.9mm PVC 3m(10ft)”
