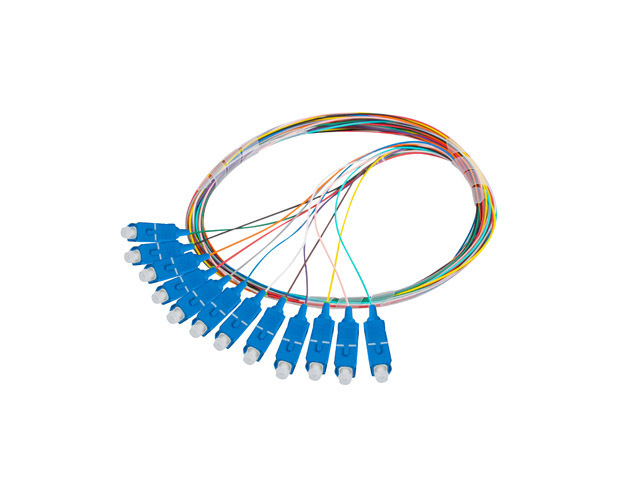

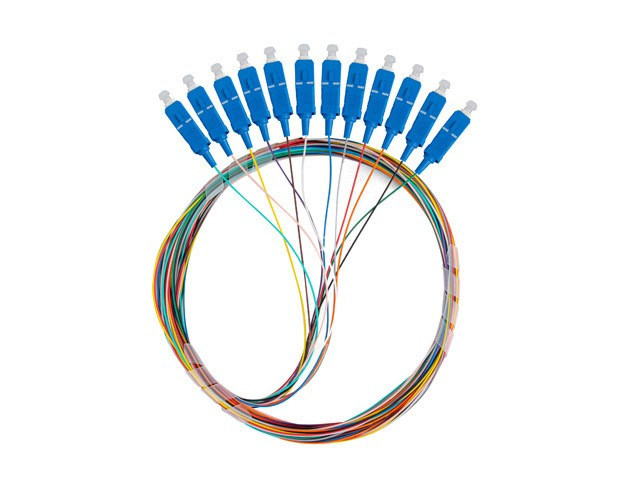

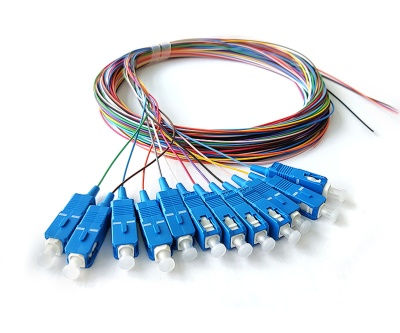

AOFPlus's sc upc pigtail is a game-changing product in the fiber optic market. The Corning Ultra 12 fiber lies at the core of its outstanding performance. The SC/UPC connectors provide a secure and stable connection. The UPC design helps in reducing back-reflection, which is crucial for maintaining a stable signal in high speed data transfer applications. The LSZH flame retardant jacket ensures compliance with fire-safety standards, making it suitable for use in commercial and residential buildings. The 0.9mm corning pigtail is flexible and easy to handle, making installation a breeze, even in tight spaces.

Connector A	SC UPC Simplex	Connector B	Unterminated
Fiber Count	12 Fiber	Fiber Grade	Corning SMF-28 Ultra
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
Jacket Color	12-Color	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	0.9mm	Cable Jacket	Flame Retardant LSZH
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	500 times	Standard	RoHS Compliant
Insertion Loss	≤0.3dB	Return Loss	≥50dB
Attenuation at 1310 nm	0.36dB/km	Attenuation at 1550 nm	0.22dB/km
Operating Temperature	-40 to 75°C (-40 to 167℉)	Storage Temperature	-45 to 85°C (-49 to 185℉)
