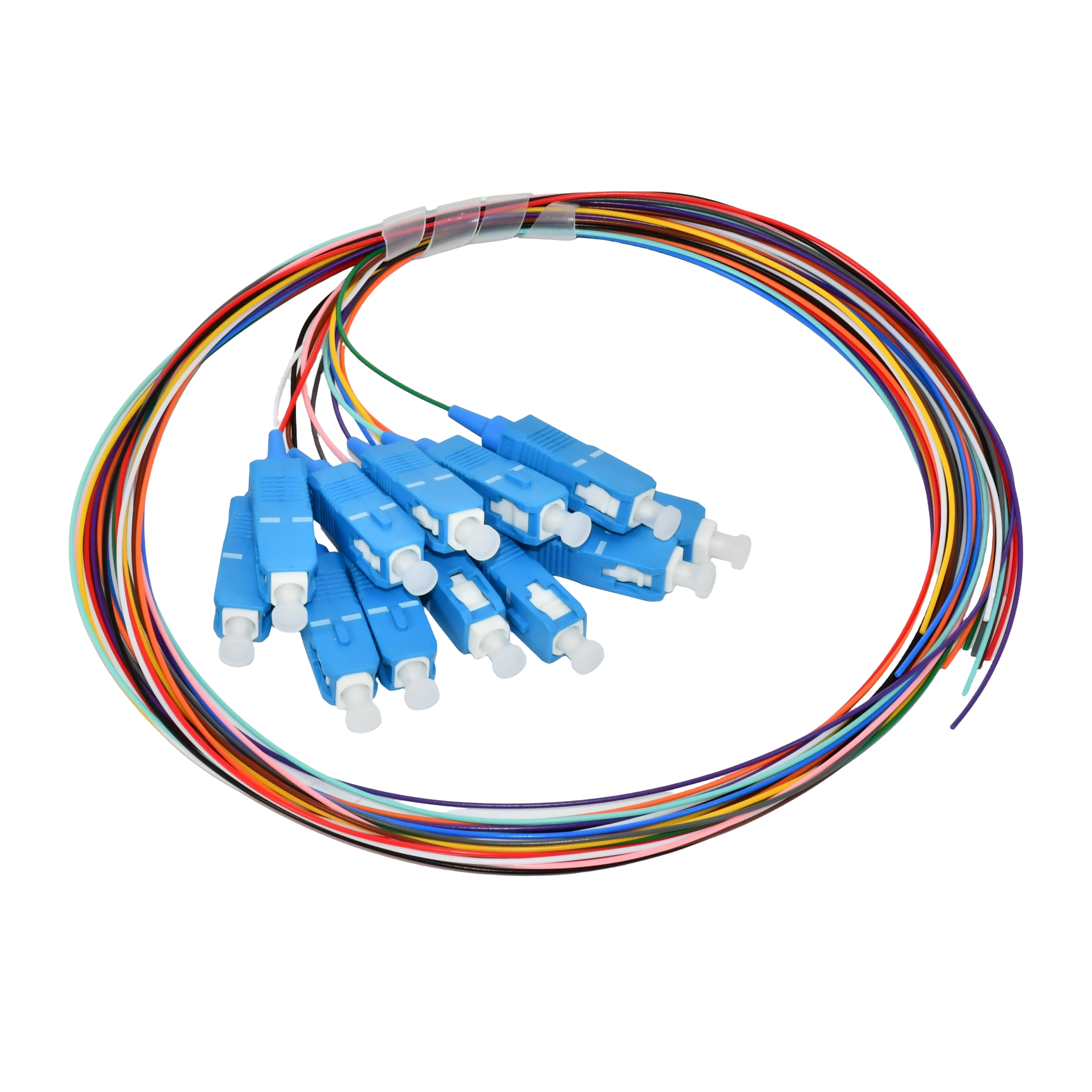

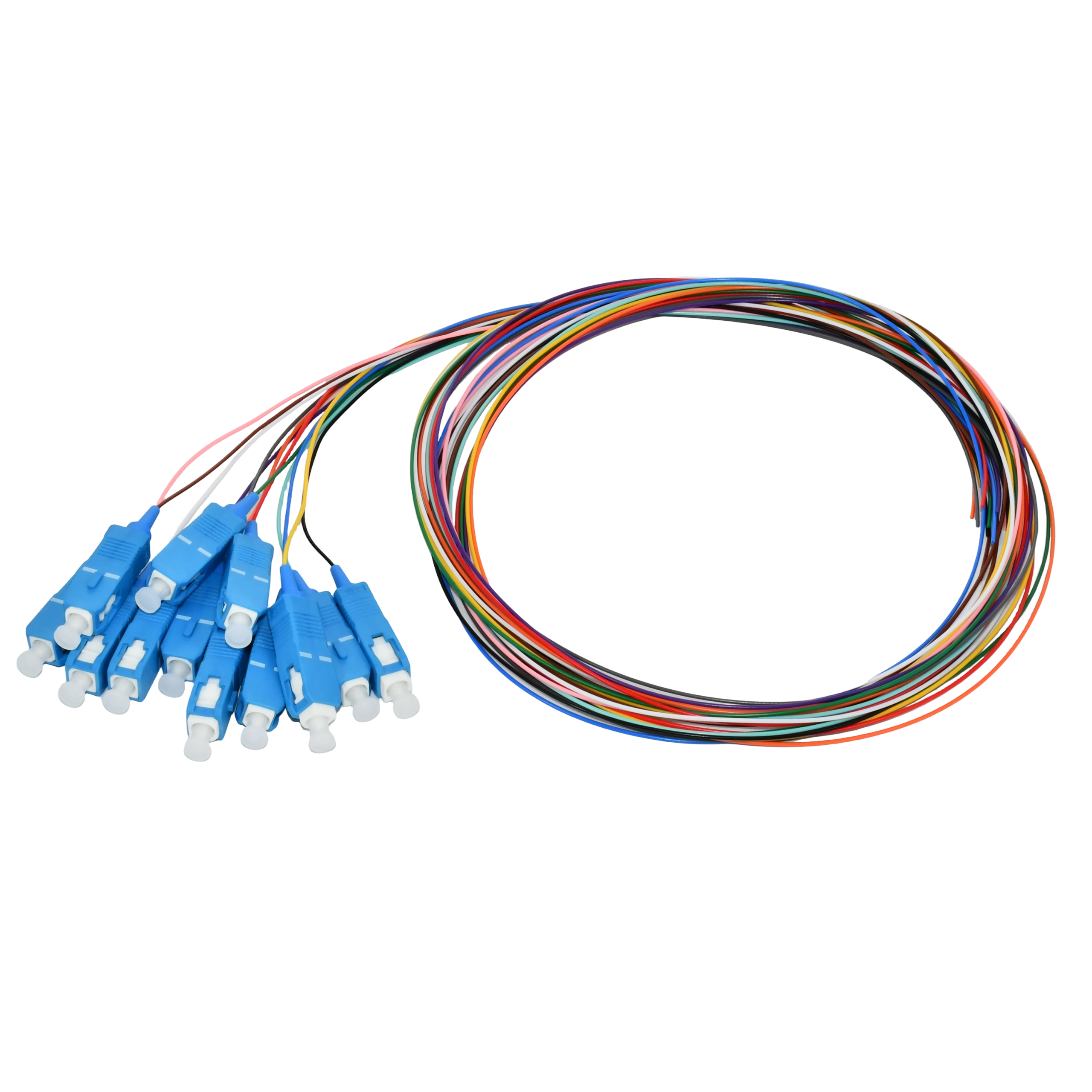

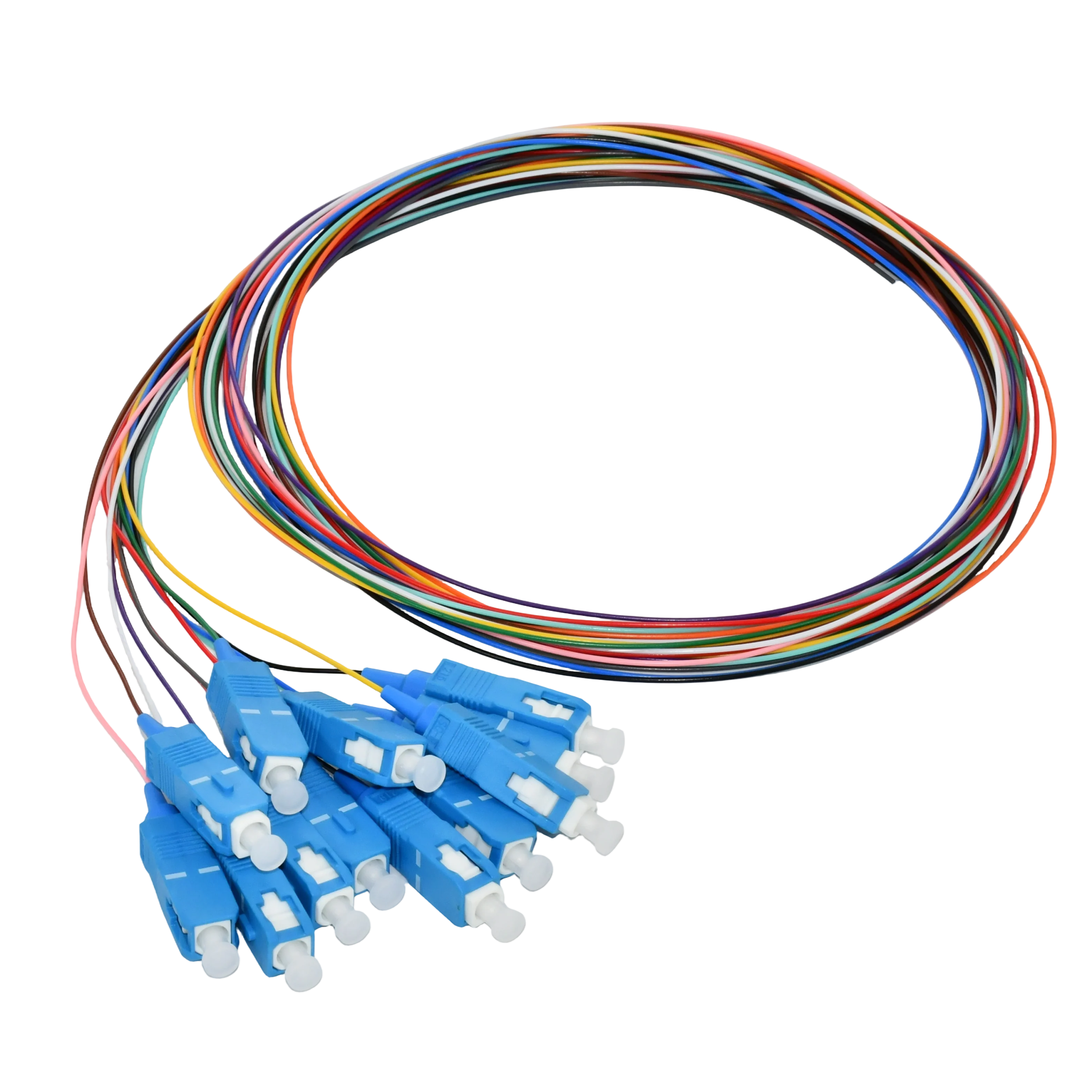

AOFPlus OS2 fiber pigtail is designed to eliminate signal interference and simplify network maintenance! The SC/UPC connector's ultra-polished ferrule ensures a tight, low-loss connection ??0.3dB, critical for applications where signal stability matters, like video conferencing, cloud-based data storage, or smart home automation. Unlike generic fibers, Corning SMF-28 Ultra OS2 is engineered for long-term reliability, with resistance to environmental factors like temperature changes (-40??C to 75??C) and moisture, ensuring consistent performance year-round. The 0.9mm PVC jacket is lightweight yet tough, making it easy to install in both residential and commercial spaces-whether you're running cables through a home's attic or a small office's cable tray.

Connector A	SC UPC Simplex	Connector B	Unterminated
Fiber Count	12 Fiber	Fiber Grade	Corning SMF-28 Ultra
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
Jacket Color	12-Color	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	0.9mm	Cable Jacket	PVC
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	500 times	Standard	RoHS Compliant
Insertion Loss	≤0.3dB	Return Loss	≥50dB
Attenuation at 1310 nm	0.36dB/km	Attenuation at 1550 nm	0.22dB/km
Operating Temperature	-40 to 75°C (-40 to 167℉)	Storage Temperature	-45 to 85°C (-49 to 185℉)
