Fiber Optical Transceiver|Optical Module 100G QSFP28 ZR4 LWDM 1310nm 40km Duplex LC/UPC Single Mode Cisco Compatible

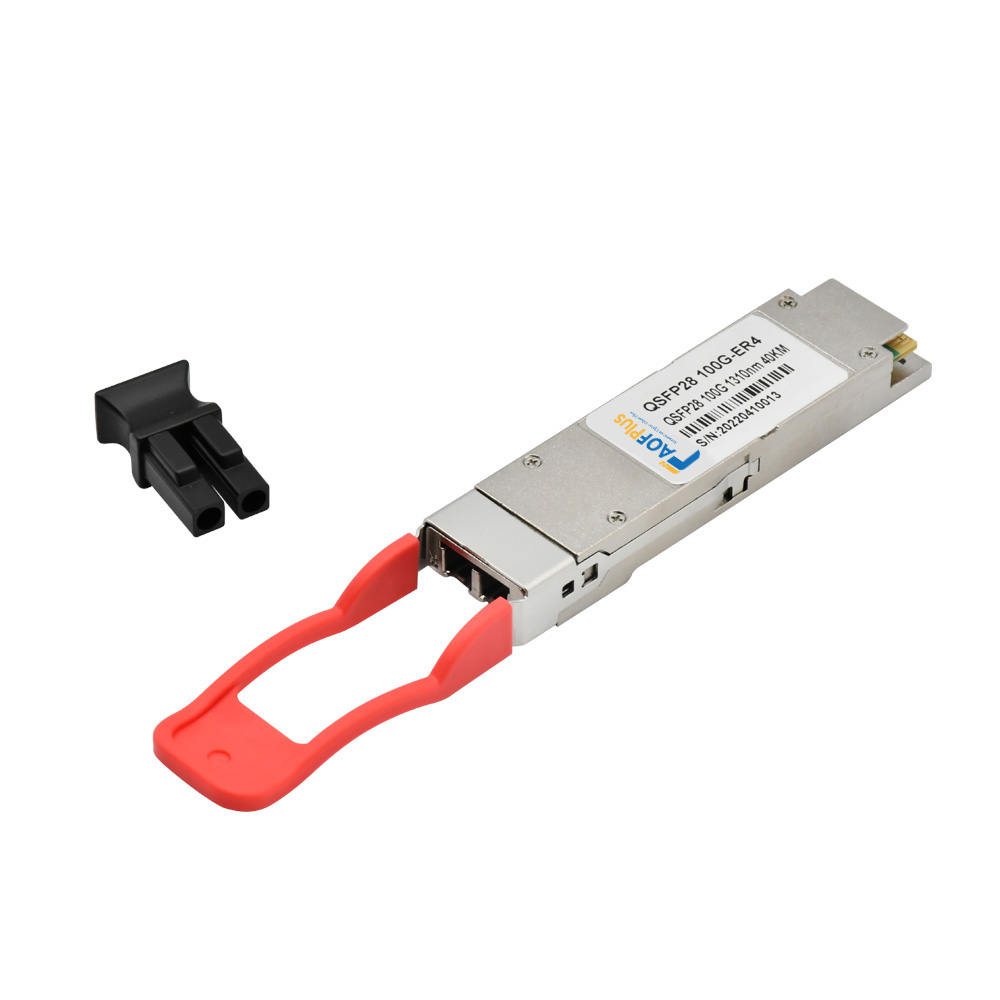

Fiber Optical Transceiver|Optical Module 100G QSFP28 ZR4 LWDM 1310nm 40km Duplex LC/UPC Single Mode Cisco Compatible - Image 2

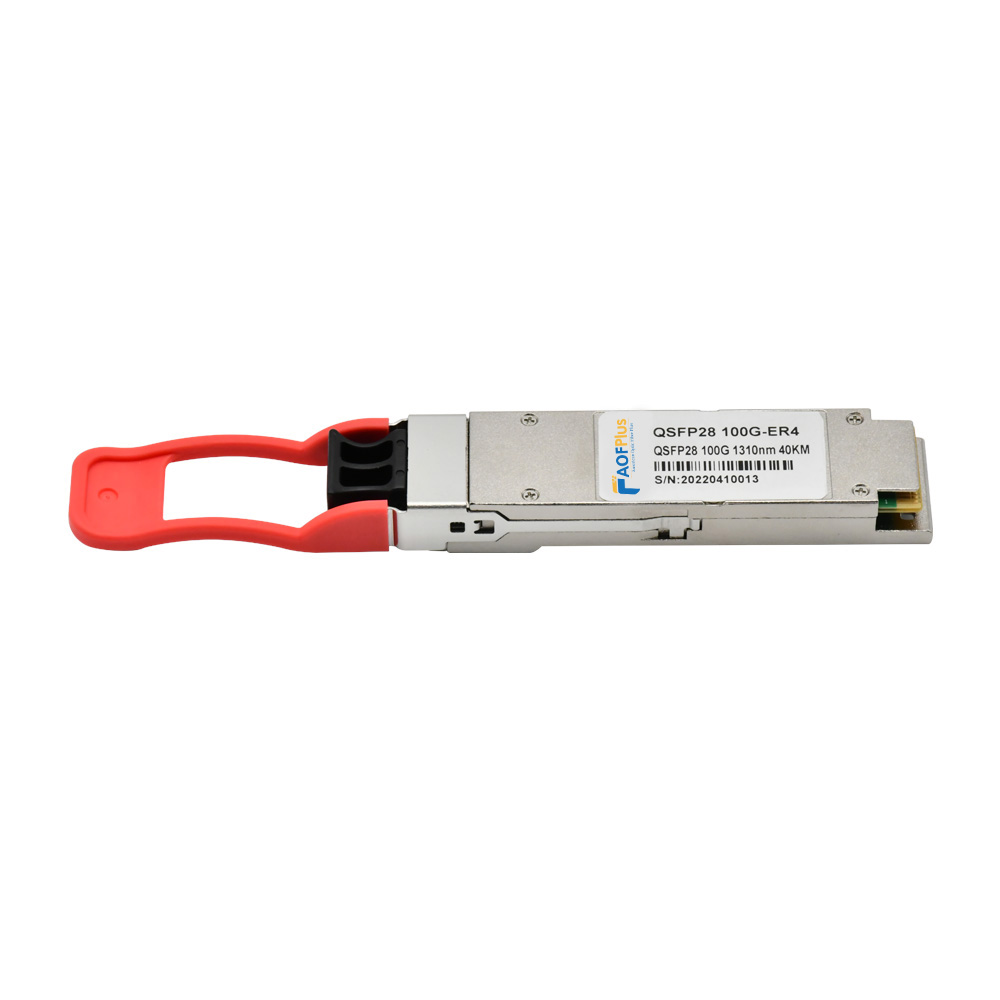

Fiber Optical Transceiver|Optical Module 100G QSFP28 ZR4 LWDM 1310nm 40km Duplex LC/UPC Single Mode Cisco Compatible - Image 3

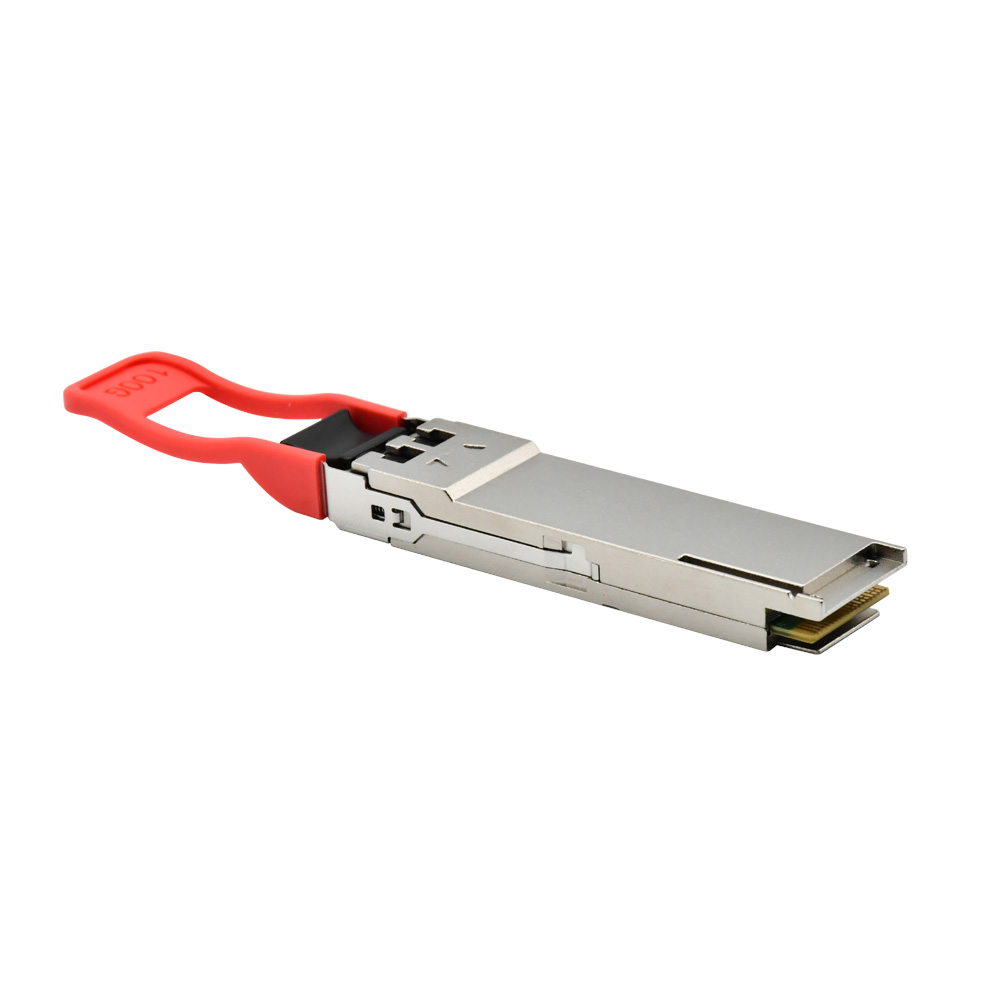

Fiber Optical Transceiver|Optical Module 100G QSFP28 ZR4 LWDM 1310nm 40km Duplex LC/UPC Single Mode Cisco Compatible - Image 4

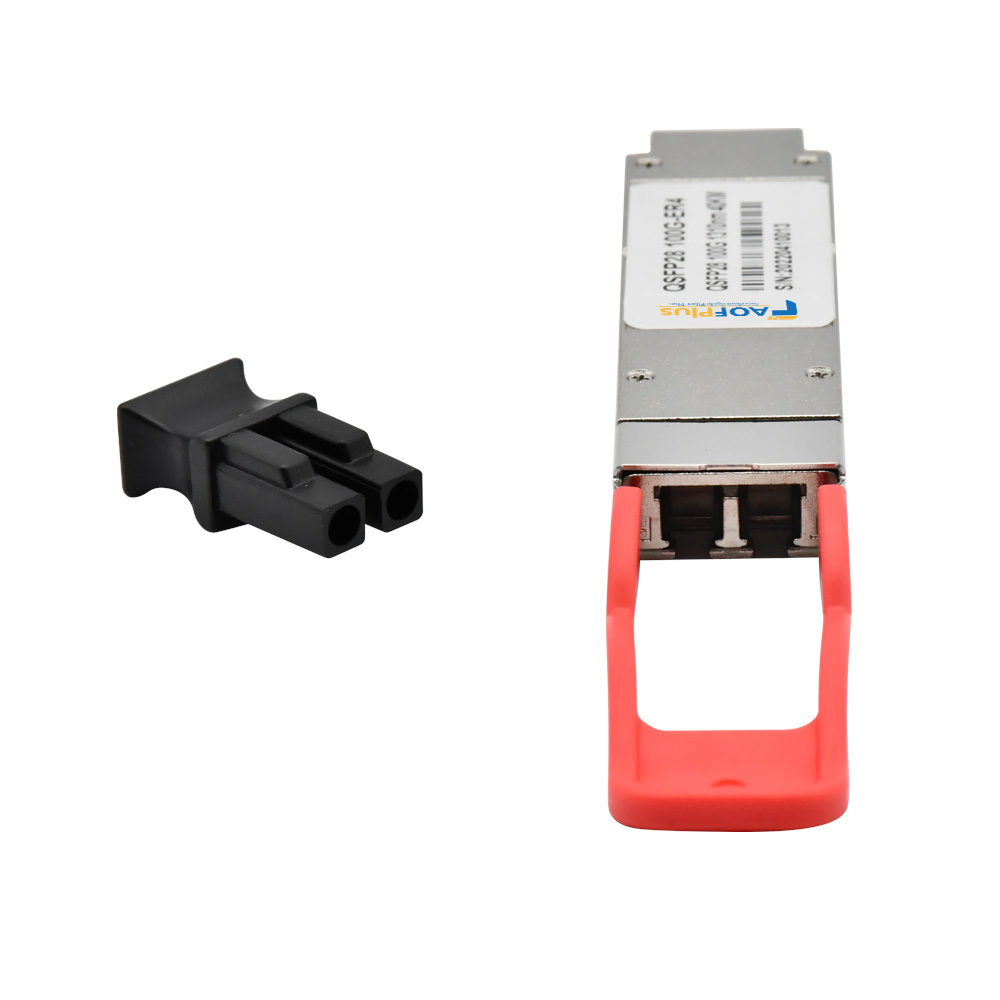

Fiber Optical Transceiver|Optical Module 100G QSFP28 ZR4 LWDM 1310nm 40km Duplex LC/UPC Single Mode Cisco Compatible

SKU: ASFP6L3140KC

Price range: $935.22 through $1,464.38
Buy more to save

Transceiver Models
850nm 100m1310nm 10km1310nm 40km1310nm 80km
  • Shipping via DHL/FedEx |
  • 3 years Warranty
  • 30 Days Returns
  • 30 Days Exchange

Warranty
Providing industry-leading limited lifetime warranty. Read the table for details of all  products' warranty.

Returns & Exchange
Refunds will be received about  5 business days after the receipt of returned items. Items in stock  for replacement can be shipped within  1 business day. Read the full return policy for details.

  • Free Shipping on Orders over $99 for Whole USA
  • Pre-order within 5 working days
QuantityPrice
1 - 4 $1,199.00
5 - 49 $1,139.05
50 - 99 $1,055.12
100 + $935.22
QuantityPrice
1 - 4 $1,199.00
5 - 49 $1,139.05
50 - 99 $1,055.12
100 + $935.22
QuantityPrice
1 - 4 $1,199.00
5 - 49 $1,139.05
50 - 99 $1,055.12
100 + $935.22
QuantityPrice
1 - 4 $1,199.00
5 - 49 $1,139.05
50 - 99 $1,055.12
100 + $935.22
QuantityPrice
1 - 4 $1,199.00
5 - 49 $1,139.05
50 - 99 $1,055.12
100 + $935.22
QuantityPrice
1 - 4 $1,199.00
5 - 49 $1,139.05
50 - 99 $1,055.12
100 + $935.22
QuantityPrice
1 - 4 $1,199.00
5 - 49 $1,139.05
50 - 99 $1,055.12
100 + $935.22
QuantityPrice
1 - 4 $1,464.38
5 - 49 $1,391.16
50 - 99 $1,288.65
100 + $1,142.22
QuantityPrice
1 - 4 $1,199.00
5 - 49 $1,139.05
50 - 99 $1,055.12
100 + $935.22
QuantityPrice
1 - 4 $1,199.00
5 - 49 $1,139.05
50 - 99 $1,055.12
100 + $935.22
QuantityPrice
1 - 4 $1,199.00
5 - 49 $1,139.05
50 - 99 $1,055.12
100 + $935.22

Fiber Optical Transceiver|Optical Module 100G QSFP28 ZR4 LWDM 1310nm 40km Duplex LC/UPC Single Mode Cisco Compatible

Specifications

Fiber Optical Transceiver 100G QSFP28 ZR4 LWDM operats at 1310nm over single-mode fiber, it provides a remarkable 40km reach. This allows for seamless connectivity between different nodes within city, such as data centers, corporate offices, and government institutions. The LWDM technology multiplexes wavelengths, enhancing bandwidth utilization. The qsfp28 transceiver can handle the simultaneous transmission of high-definition surveillance footage, public transportation data, and e-government services information. Its compatibility with the QSFP28 form factor simplifies installation and integration into existing MAN infrastructure, making it an essential component for upgrading urban network capabilities.
Form Factor QSFP28 Max. Data Rate 100Gbps
Wavelength 1310nm Max. Cable Distance 40KM
Connector Duplex LC Media SMF
Transmitter Type 4 x EML Receiver Type APO
TX Power -2.9~4.5dBm Commercial temperature range 0℃~70℃(32°F to 158°F)
Power Consumption ≤4.5W Minimum Receiver Power -20.9~-4.9dBm
Core Size 9um/125um Receiver Overload 4.5dBm
CDR (Clock and Data Recovery) TX & RX Built-in CDR Extinction Ratio ＞4dB
DDM/DOM Supported Modulation Format 4x 25G NRZ
Packaging Technology BOX Packaging Protocols QSFP28 MSA Compliant
