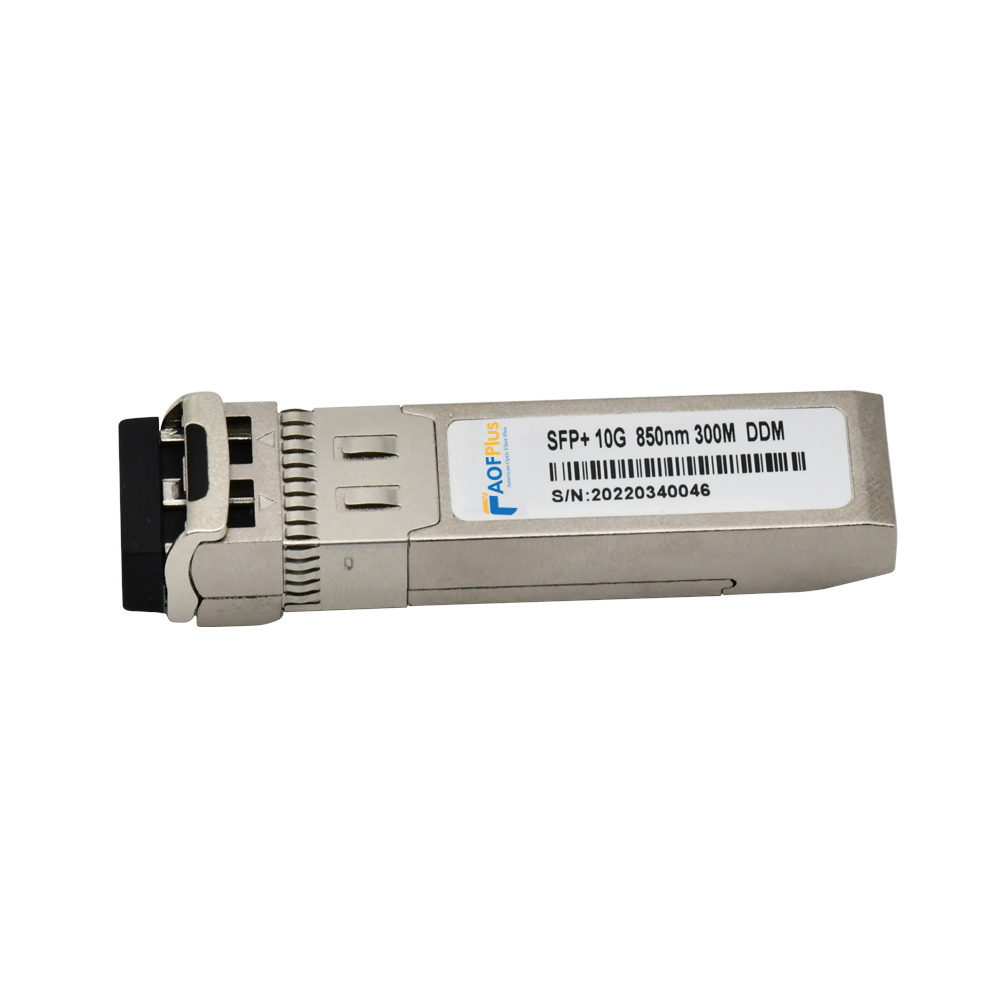

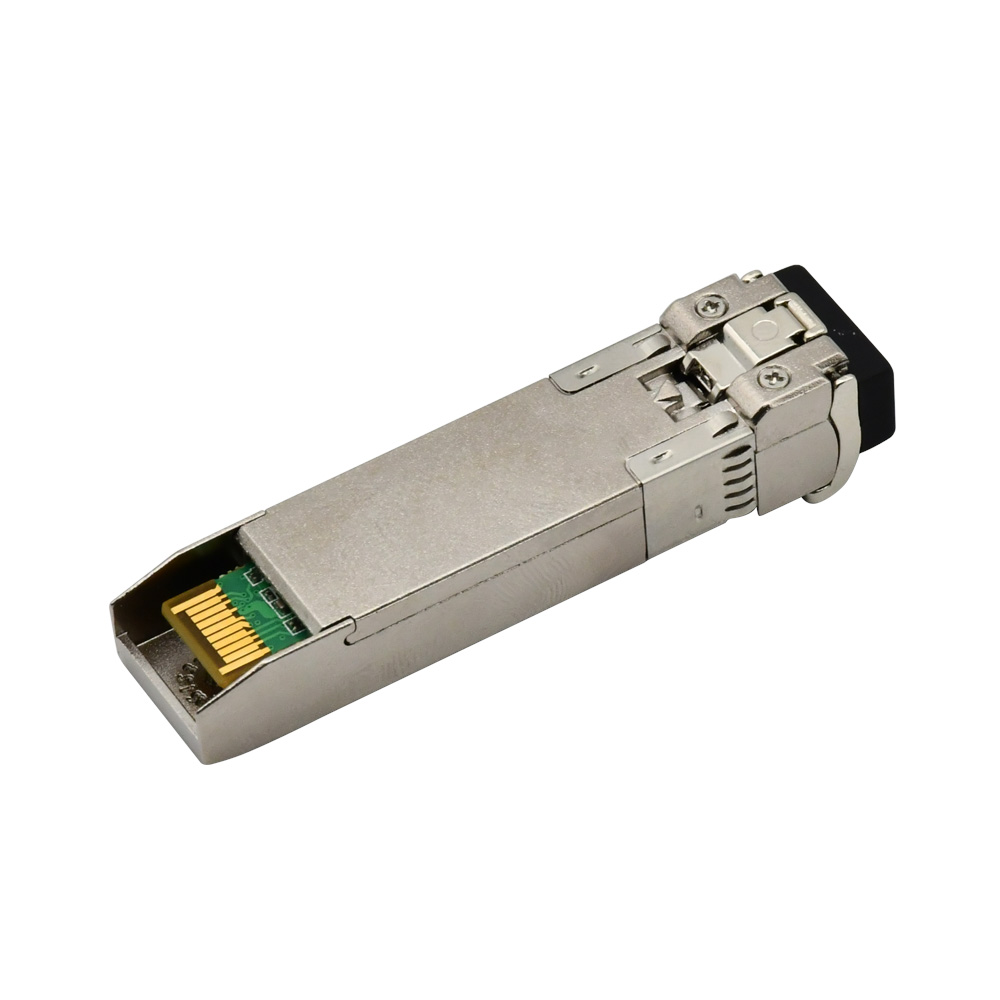

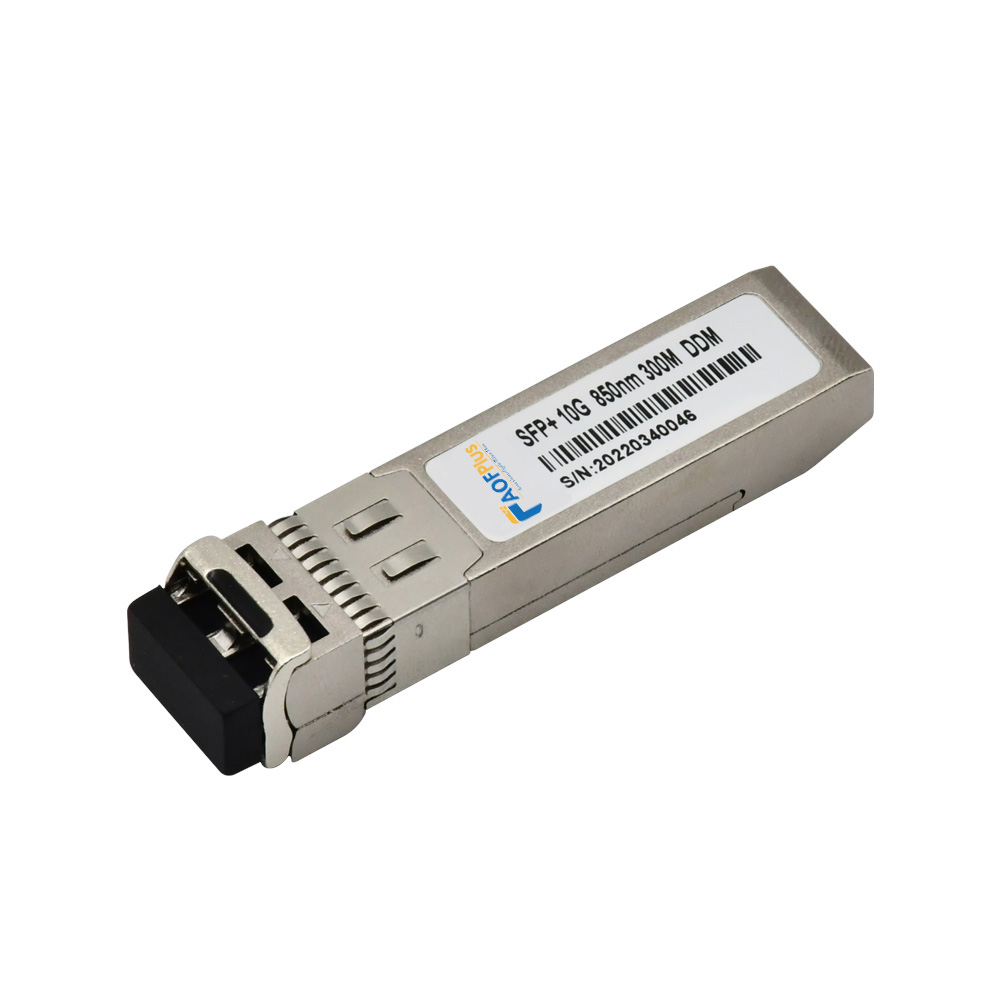

10G SFP+ SR Fiber Optical Transceiver is a high-performance optical module. Operating at 850nm, the sfp+ transceiver takes full advantage of multimode fiber to support 10 Gigabit Ethernet data transfer, meeting the demands of modern network applications. Its duplex LC/UPC connectors, with the LC ensuring a secure connection and the UPC polish minimizing signal reflection and insertion loss, guarantee reliable data transmission. This multimode sfp+ module is especially useful in scenarios like large data centers, where it can interconnect servers and switches to maintain smooth data flow, even during peak usage. The 300m transmission distance over multimode fiber provides flexibility in network design, eliminating the need for additional repeaters in many cases.

Form Factor	SFP+	Max. Data Rate	10Gbps
Wavelength	850nm	Max. Cable Distance	300M
Connector	Duplex LC	Media	MMF
Transmitter Type	850nm VCSEL	Receiver Type	PIN
DDM/DOM	Supported	Commercial temperature range	0℃~70℃(32°F to 158°F)
TX Power	-6.5~-1dBm	Receive sensitivity	< -11.1dBm
Power Consumption	≤1w	Receiver Overload	-1dBm
Power Budget	3.8dBm	Extinction Ratio	>3dB
Core Size	50/125µm	Protocols	IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432,SFP+ MSA Compliant, CPRI, eCPRI
