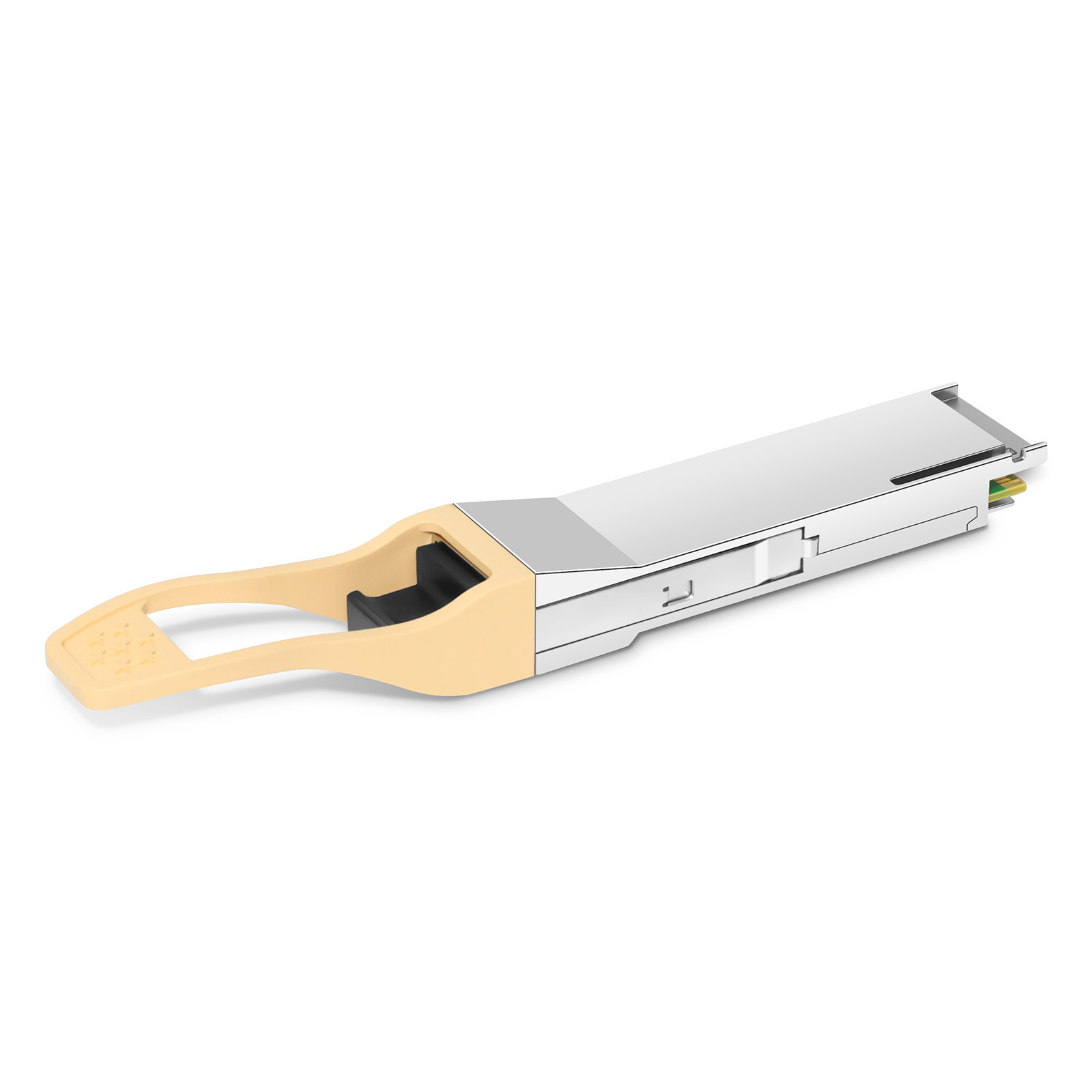

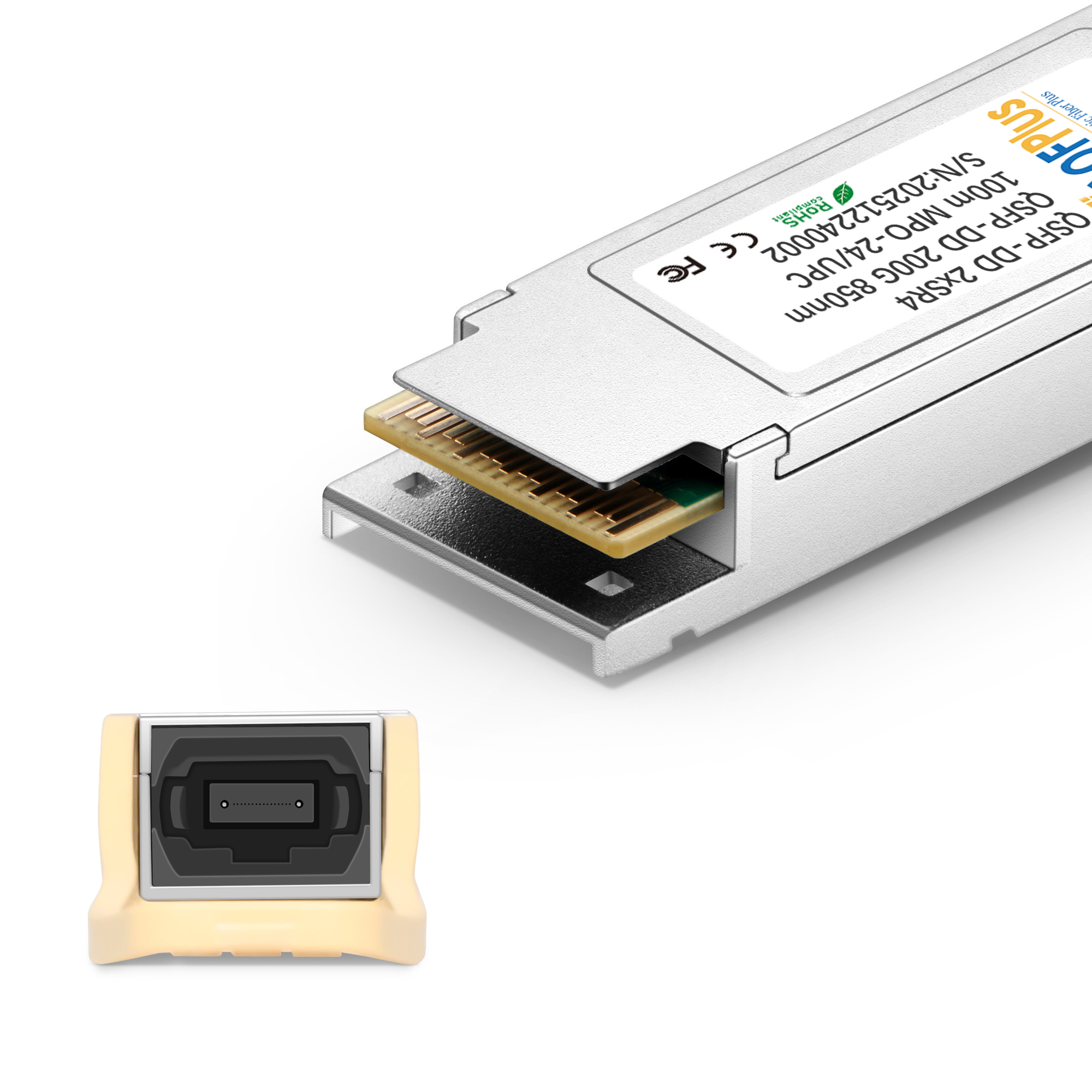

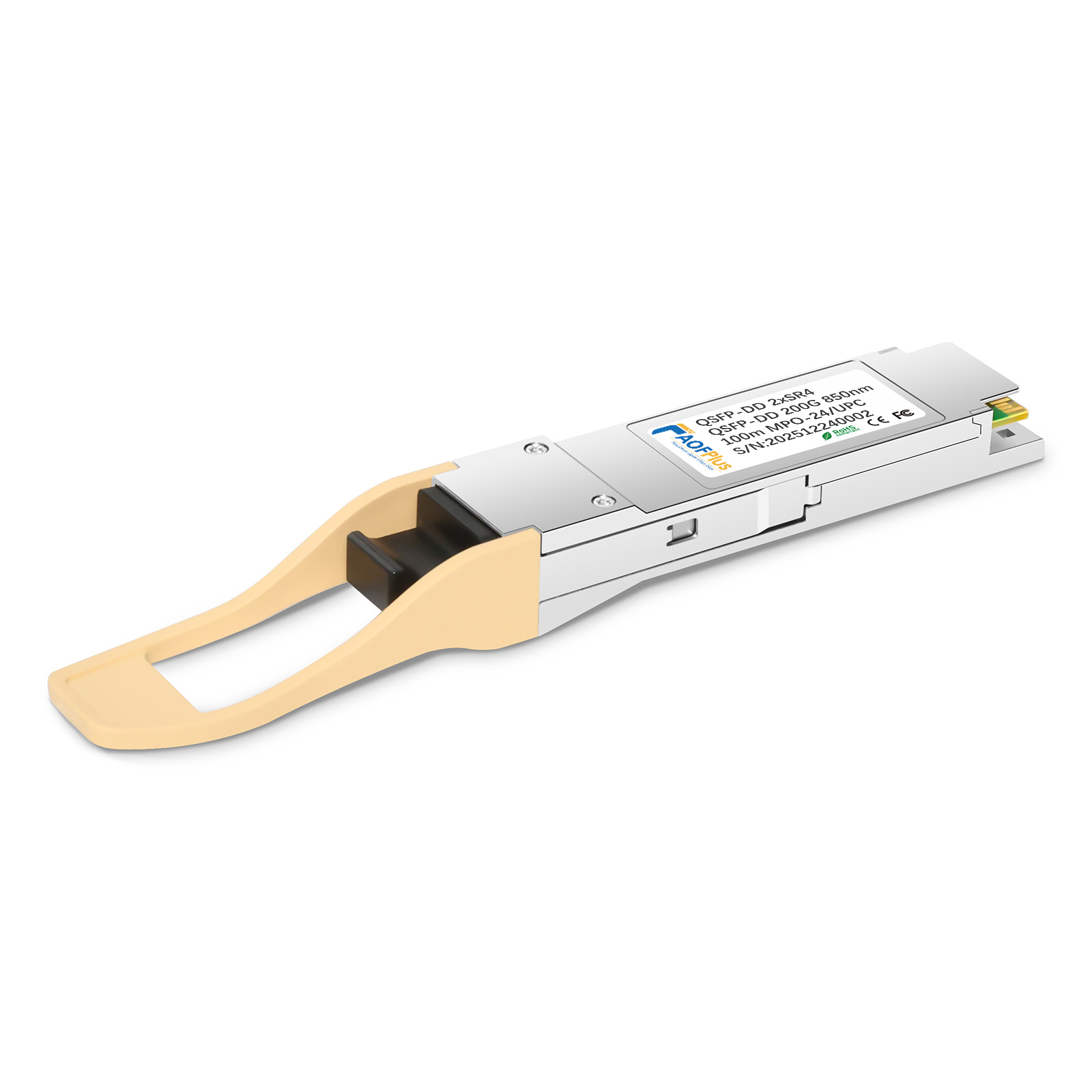

Fiber Optical Transceiver|Optical Module 200G QSFP-DD 2 x SR4 850nm 100m DOM MPO-24/UPC Multimode Cisco Compatible
Fiber Optical Transceiver|Optical Module 200G QSFP-DD 2 x SR4 850nm 100m DOM MPO-24/UPC Multimode Cisco Compatible - Image 2
Fiber Optical Transceiver|Optical Module 200G QSFP-DD 2 x SR4 850nm 100m DOM MPO-24/UPC Multimode Cisco Compatible - Image 3
Fiber Optical Transceiver|Optical Module 200G QSFP-DD 2 x SR4 850nm 100m DOM MPO-24/UPC Multimode Cisco Compatible - Image 4

Fiber Optical Transceiver|Optical Module 200G QSFP-DD 2 x SR4 850nm 100m DOM MPO-24/UPC Multimode Cisco Compatible

SKU: ASFPDDMMM100MC

Price range: $280.02 through $359.00
Buy more to save

Transceiver Models
850nm 100m MPO-12/UPC850nm 100m MPO-24/UPC1310nm 2km
  • Shipping via DHL/FedEx |
  • 3 years Warranty
  • 30 Days Returns
  • 30 Days Exchange

Warranty
Providing industry-leading limited lifetime warranty. Read the table for details of all  products' warranty.

Returns & Exchange
Refunds will be received about  5 business days after the receipt of returned items. Items in stock  for replacement can be shipped within  1 business day. Read the full return policy for details.

  • Free Shipping on Orders over $99 for Whole USA
  • Pre-order within 2-3 weeks
QuantityPrice
1 - 4 $359.00
5 - 49 $341.05
50 - 99 $315.92
100 + $280.02
QuantityPrice
1 - 4 $359.00
5 - 49 $341.05
50 - 99 $315.92
100 + $280.02
QuantityPrice
1 - 4 $359.00
5 - 49 $341.05
50 - 99 $315.92
100 + $280.02
QuantityPrice
1 - 4 $359.00
5 - 49 $341.05
50 - 99 $315.92
100 + $280.02
QuantityPrice
1 - 4 $359.00
5 - 49 $341.05
50 - 99 $315.92
100 + $280.02
QuantityPrice
1 - 4 $359.00
5 - 49 $341.05
50 - 99 $315.92
100 + $280.02
QuantityPrice
1 - 4 $359.00
5 - 49 $341.05
50 - 99 $315.92
100 + $280.02
QuantityPrice
1 - 4 $359.00
5 - 49 $341.05
50 - 99 $315.92
100 + $280.02
QuantityPrice
1 - 4 $359.00
5 - 49 $341.05
50 - 99 $315.92
100 + $280.02

Fiber Optical Transceiver|Optical Module 200G QSFP-DD 2 x SR4 850nm 100m DOM MPO-24/UPC Multimode Cisco Compatible

Specifications

200G QSFP-DD 2 x SR4 Fiber Optical Transceiver is set to redefine modern data center operations. Operating at 850nm over multimode fiber, it offers a 100m reach, making it ideal for high-speed, short-range data transfer needs. The innovative 24CMPO|MTP/UPC interface, designed for multimode fiber, allows for seamless integration and enhanced connectivity. It can split into 2 x SR4 channels, effectively doubling the data flow paths. The DOM feature provides technicians with instant access to crucial performance metrics, such as optical power levels and temperature readings. By detecting issues early, THE 200G fiber module can prevent costly downtime and keep the data center humming smoothly.
Form Factor QSFP-DD Max. Data Rate 206.24Gbps(8x25.78Gbps)
Wavelength 850nm Max. Cable Distance 100m
Connector MPO-24/UPC Media MMF
Transmitter Type VCSEL Receiver Type PIN
TX Power -8.4~2.4dBm Minimum Receiver Power -10.3dBm
Power Budget 1.9dB Receiver Overload 3.4dBm
Power Consumption ≤4.5W Extinction Ratio >2dB
DDM/DOM Supported Commercial Temperature Range 0℃~70℃(32°F to 158°F)
Modulation (Electrical) 8x25G-NRZ Modulation (Optical) 8x25G-NRZ
