200G QSFP56 FR4 Fiber Optical Transceiver plays a crucial role in modern enterprise campuses. Operating at 1310nm over single-mode fiber, which is ideal for interconnecting multiple buildings within a campus. This enables seamless data flow for daily operations like file sharing among departments, video conferencing for meetings, and access to shared resources. The duplex LC/UPC connectors ensure a stable and precise connection, with the UPC polish reducing signal reflection. The DOM feature provides real-time visibility into the transceiver's performance metrics, allowing IT staff to quickly identify and address any potential issues. Its compatibility with the QSFP56 form factor makes it easy to integrate into existing campus network infrastructure, enhancing overall network efficiency.

Form Factor	QSFP56	Max. Data Rate	200Gbps
Wavelength	1310nm	Max. Cable Distance	2KM

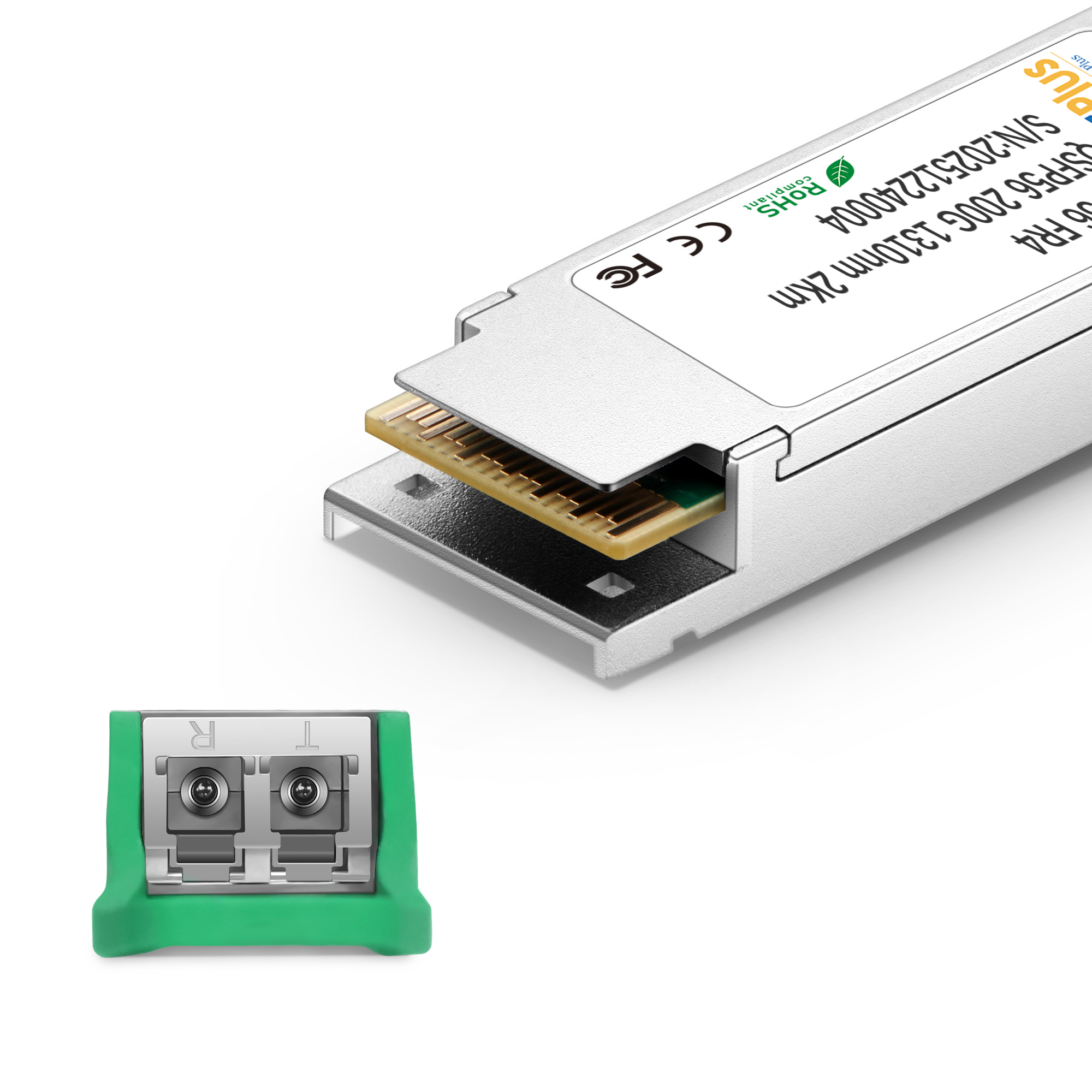

Connector	Duplex LC/UPC	Media	SMF
Transmitter Type	DFB	Receiver Type	PIN
TX Power	-4.2~4.7dBm	Minimum Receiver Power	-8.2dBm
Power Budget	4dB	Receiver Overload	4.7dBm
Power Consumption	≤6.5W	Extinction Ratio	>3.5dB
DDM/DOM	Supported	Commercial Temperature Range	0℃~70℃(32°F to 158°F)
Modulation (Electrical)	4x50G-PAM4	Modulation (Optical)	4x50G-PAM4
