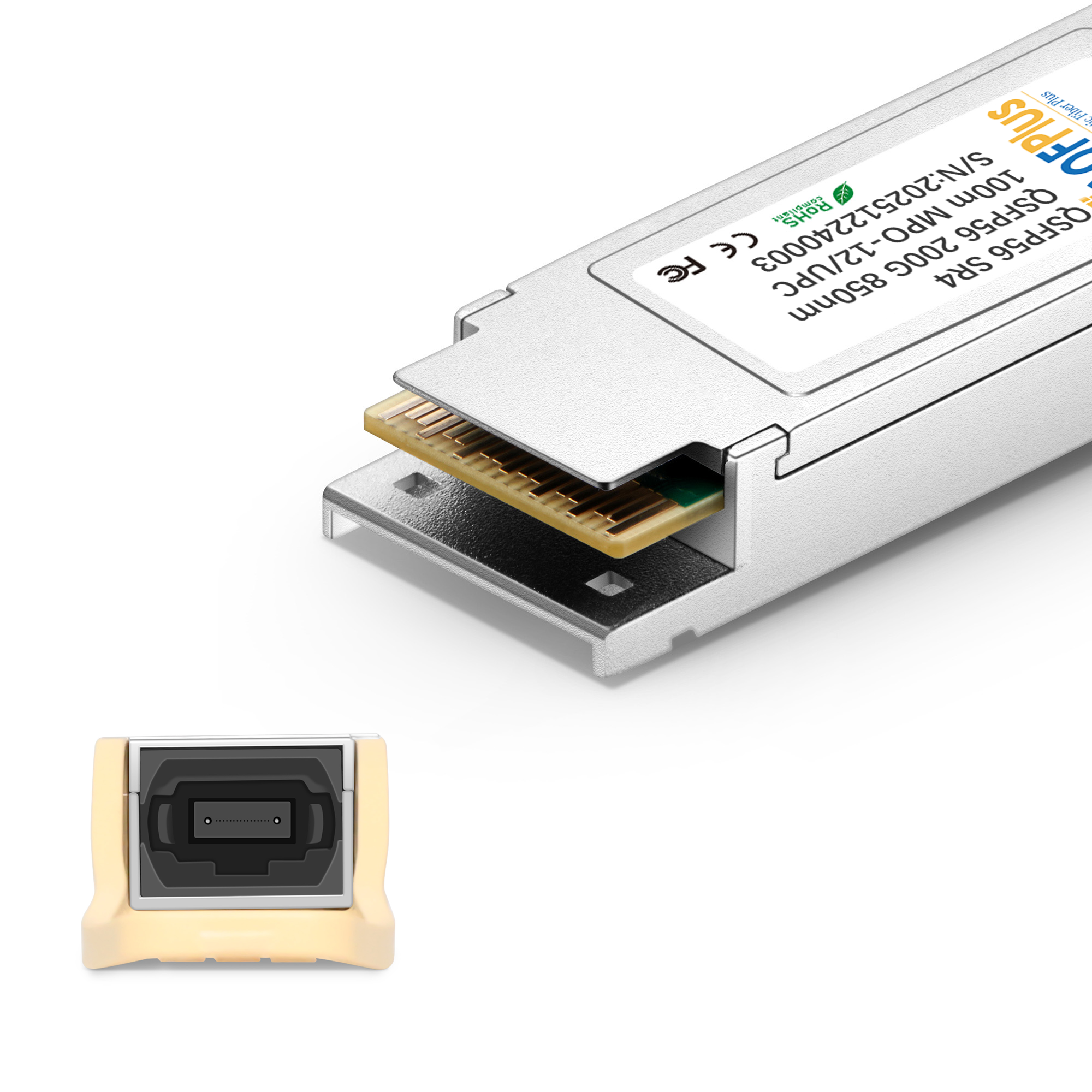

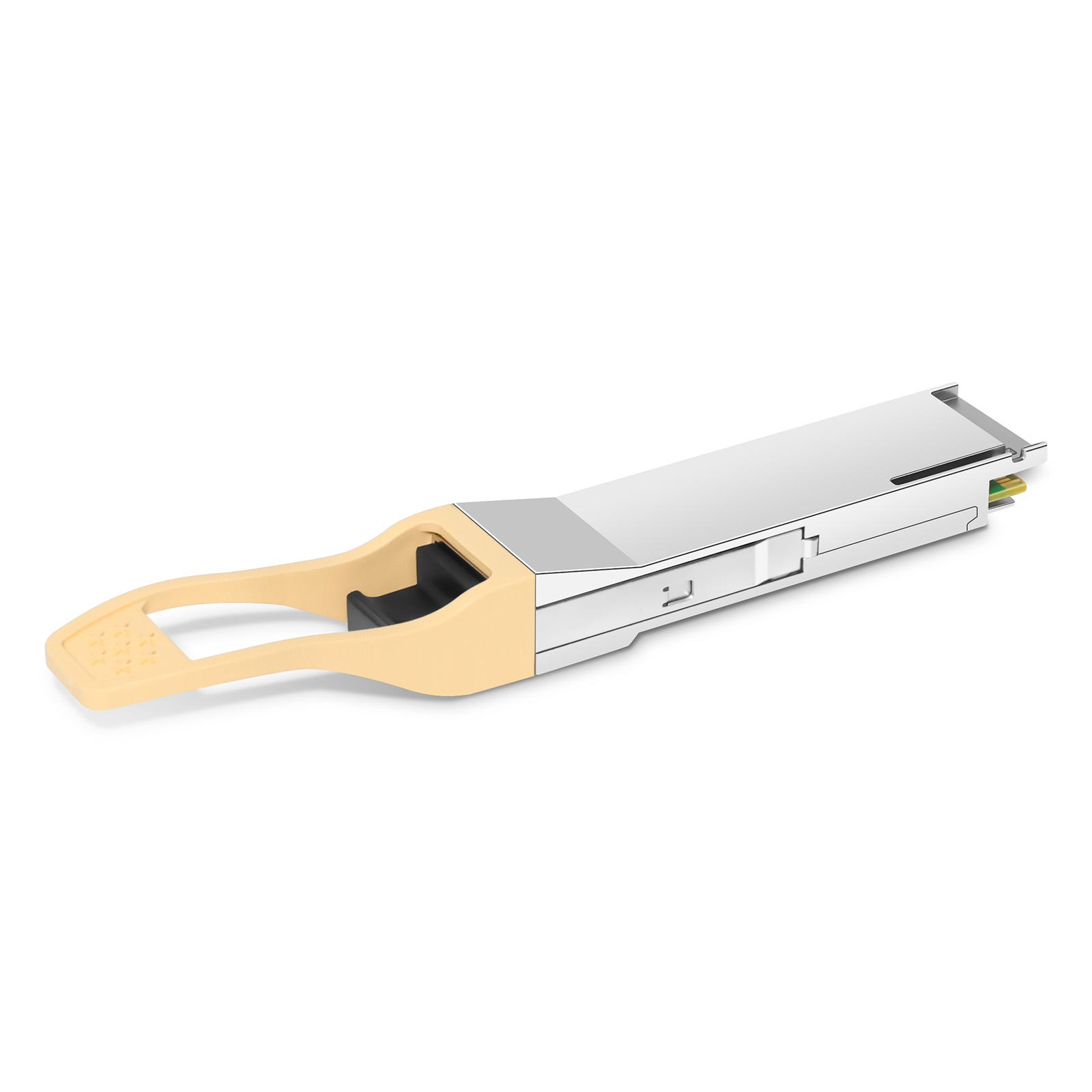

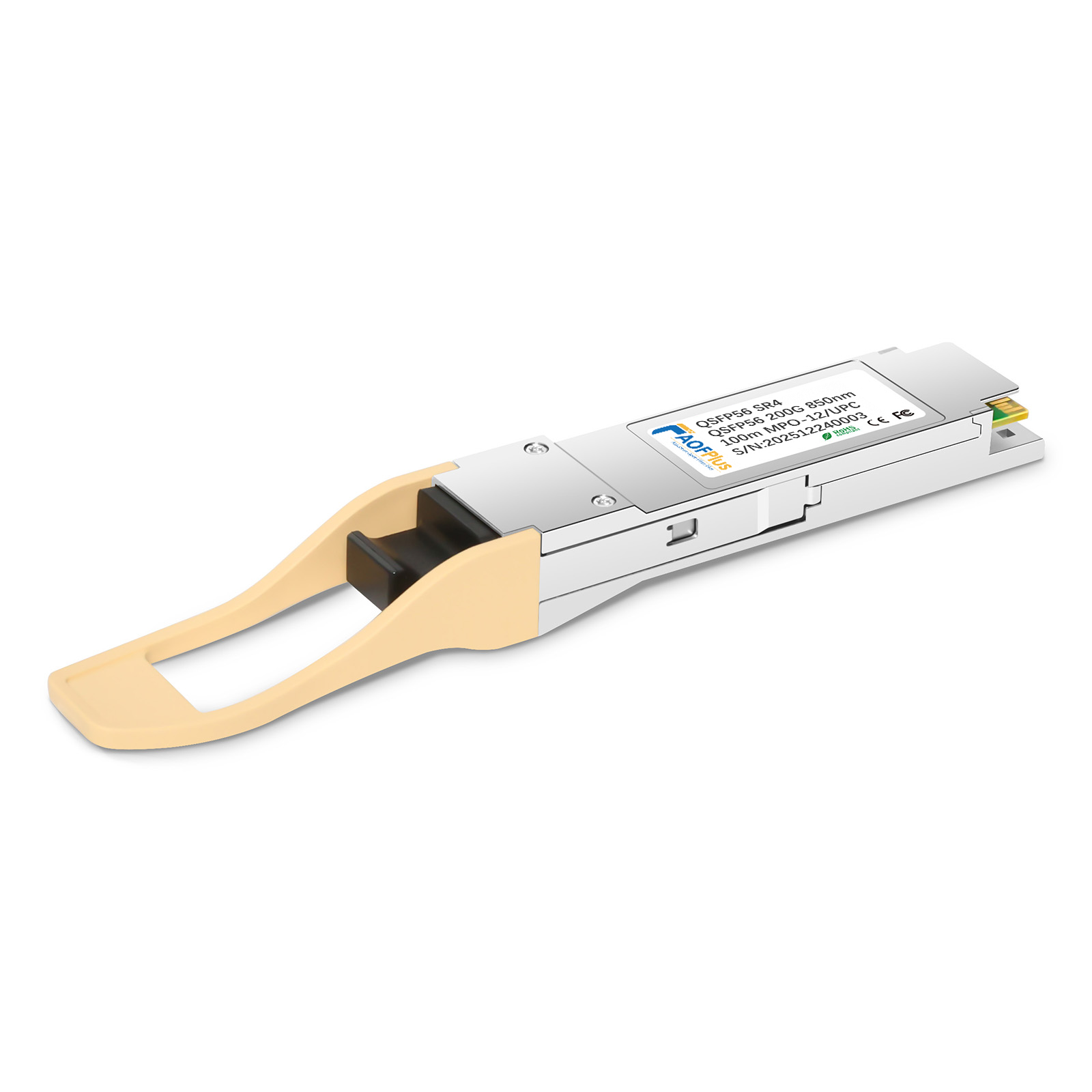

The unique MPO-12/UPC breakout design allows it to split into 4 x 50G-SR channels, optimizing data distribution within racks. This means that in a densely populated server area, it can simultaneously handle multiple data streams, ensuring seamless operation for applications like real-time financial analytics, big data processing, and content delivery networks. 200G QSFP56 SR4 Fiber Optical Transceiver operats at 850nm over multimode fiber, it provides a 100m reach, which is perfect for short-range, high-bandwidth applications. The DOM feature offers real-time insights into the transceiver's performance, such as optical power and temperature. Data center technicians can quickly detect any anomalies and take corrective action, minimizing downtime.

Form Factor	QSFP56	Max. Data Rate	200Gbps
Wavelength	850nm	Max. Cable Distance	70m at OM3/100m at OM4
Connector	MPO-12/UPC	Media	MMF
Transmitter Type	VCSEL 850nm	Receiver Type	PIN
TX Power	-6.5~4dBm	Minimum Receiver Power	-6.5dBm
Power Budget	3.5dB	Receiver Overload	5dBm
Power Consumption	≤5W	Extinction Ratio	>3dB
DDM/DOM	Supported	Commercial Temperature Range	0℃~70℃(32°F to 158°F)
Modulation (Electrical)	4x50G-PAM4	Modulation (Optical)	4x50G-PAM4
