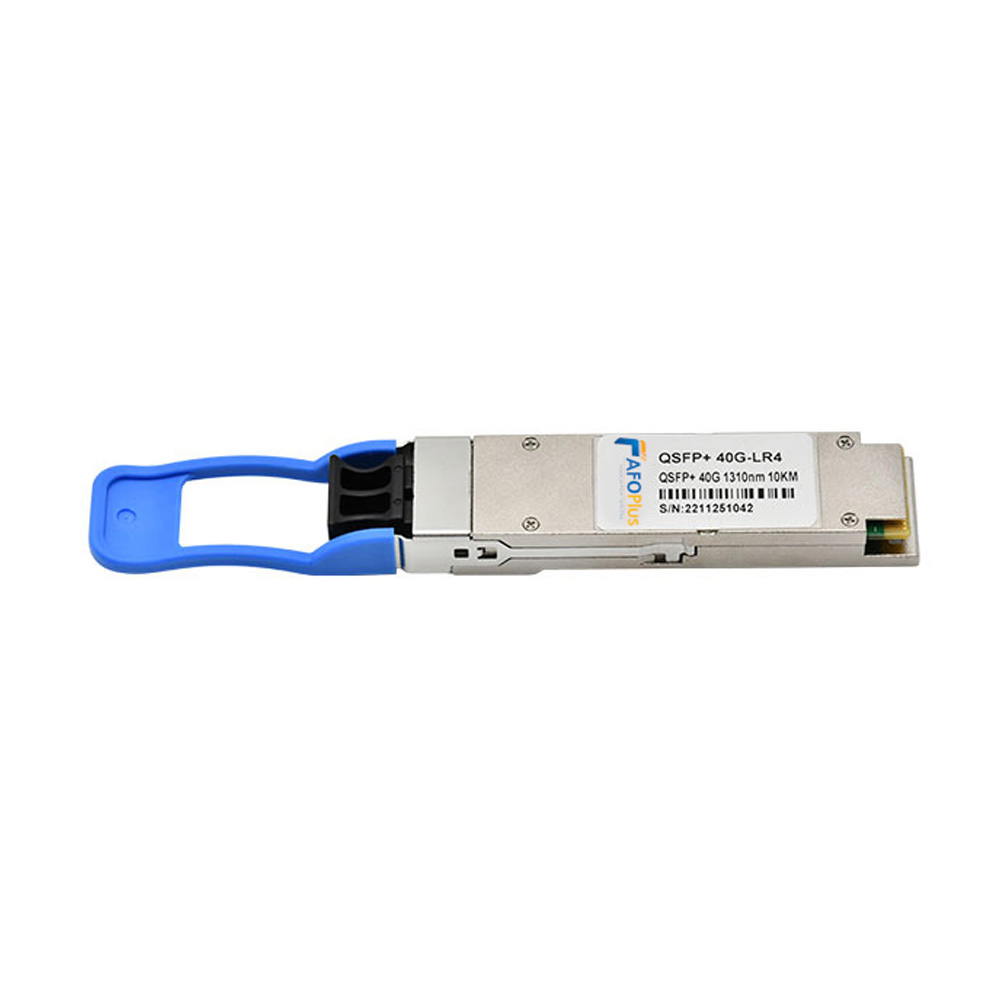

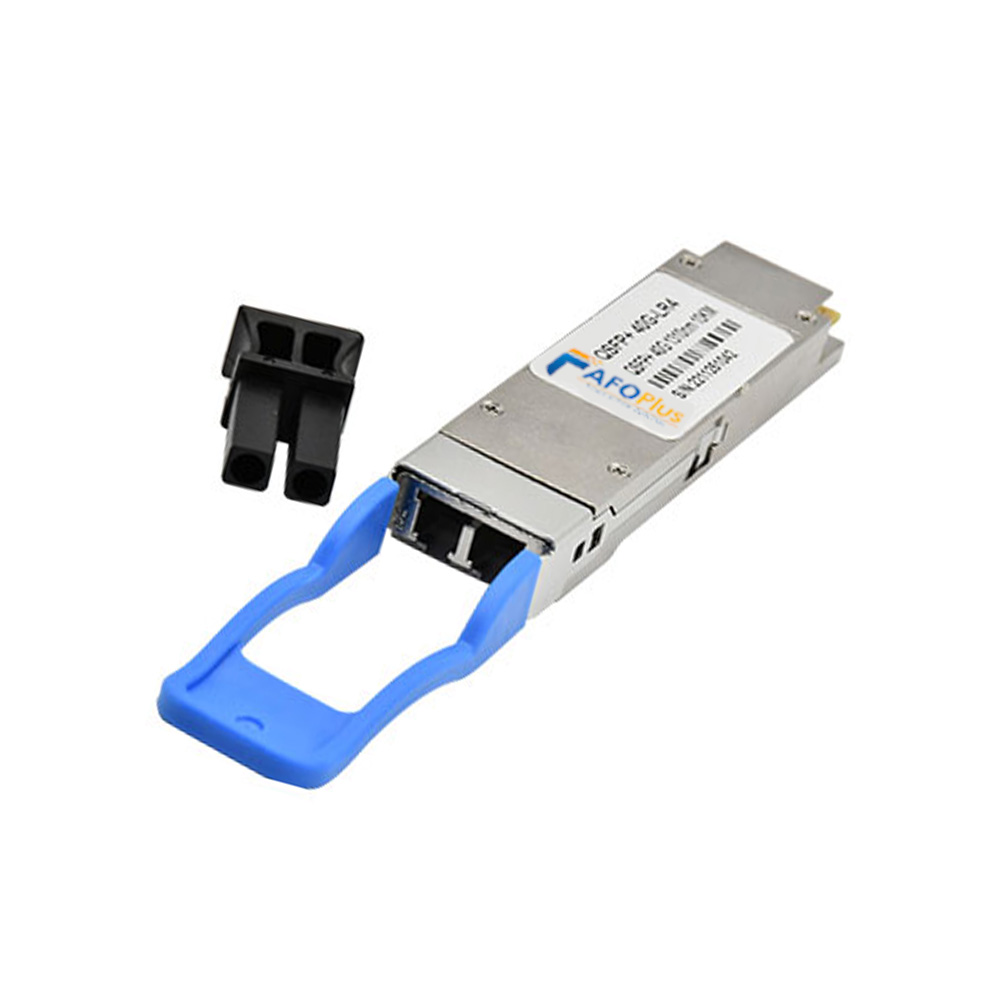

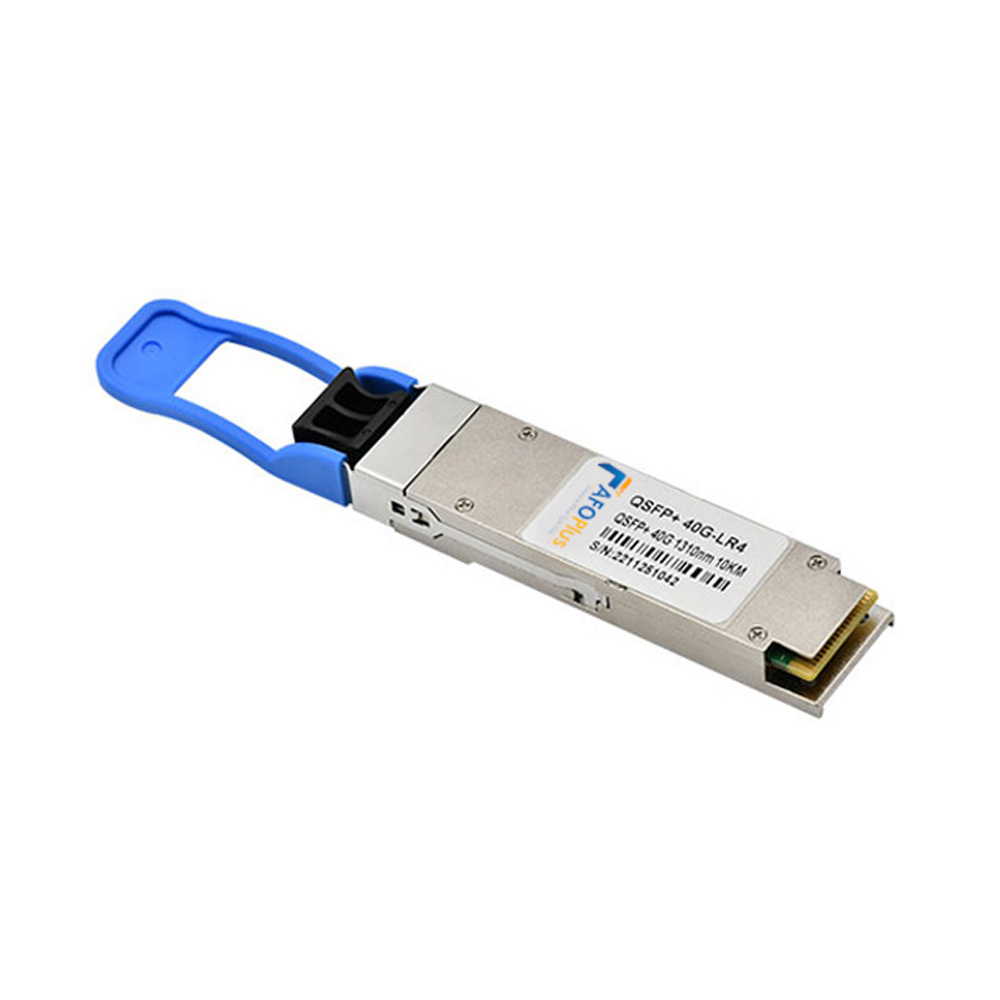

40G QSFP+ LR4 fiber module takes center stage in the modern networking arena. Operating at 1310nm on single-mode fiber, it presents a reliable 10km transmission range, which changes local network expansions. The duplex LC/UPC connectors offer a seamless and robust link. With the QSFP+ form factor, integrating this transceiver into pre-existing network setups is a breeze, which can be effortlessly retrofit their systems, ensuring a continuous and high-speed 40G data stream across the 10km span, and thus supercharging the overall network performance.

Form Factor	QSFP+	Max. Data Rate	40Gbps
Wavelength	1310nm	Max. Cable Distance	10KM

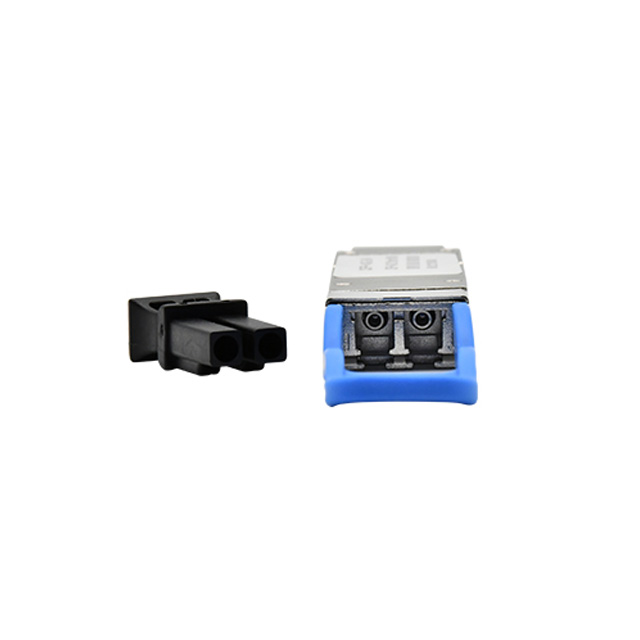

Connector	Duplex LC	Media	SMF
Transmitter Type	1310 DFB	Receiver Type	PIN
Power Budget	4dB	Commercial temperature range	0℃~70℃(32°F to 158°F)
TX Power	-7~2.5dBm	Receive sensitivity	< -11dBm
Power Consumption	≤3.5w	Receiver Overload	2.3dBm
Core Size	9/125µm	Extinction Ratio	>3.5dB
Modulation	NRZ	Bit Error Ratio (BER)	1E-12
Host FEC	Supported	Protocols	OTN OTU3, 40G Ethernet, Fiber Channel, SATA/SAS3, MSA Compliant
