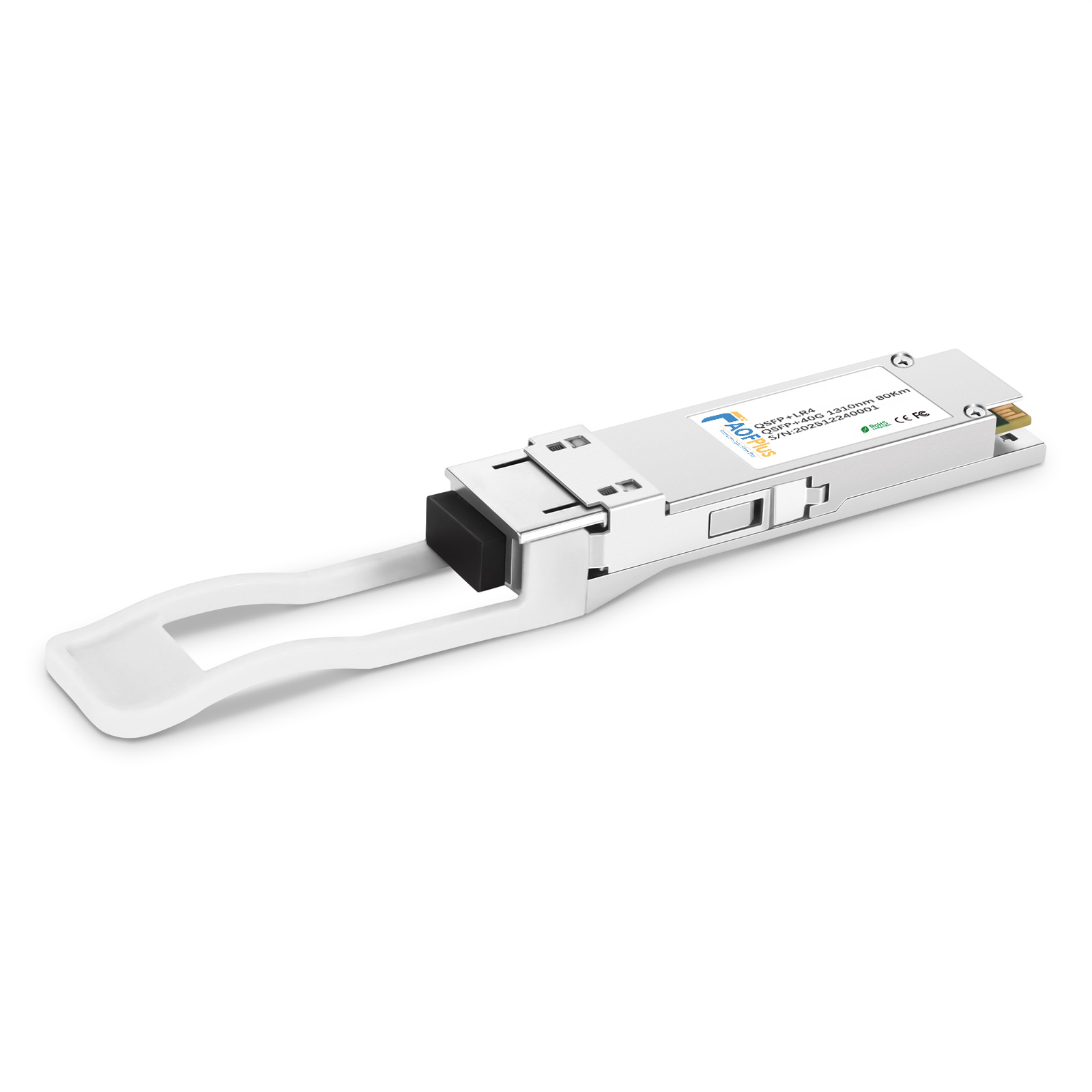

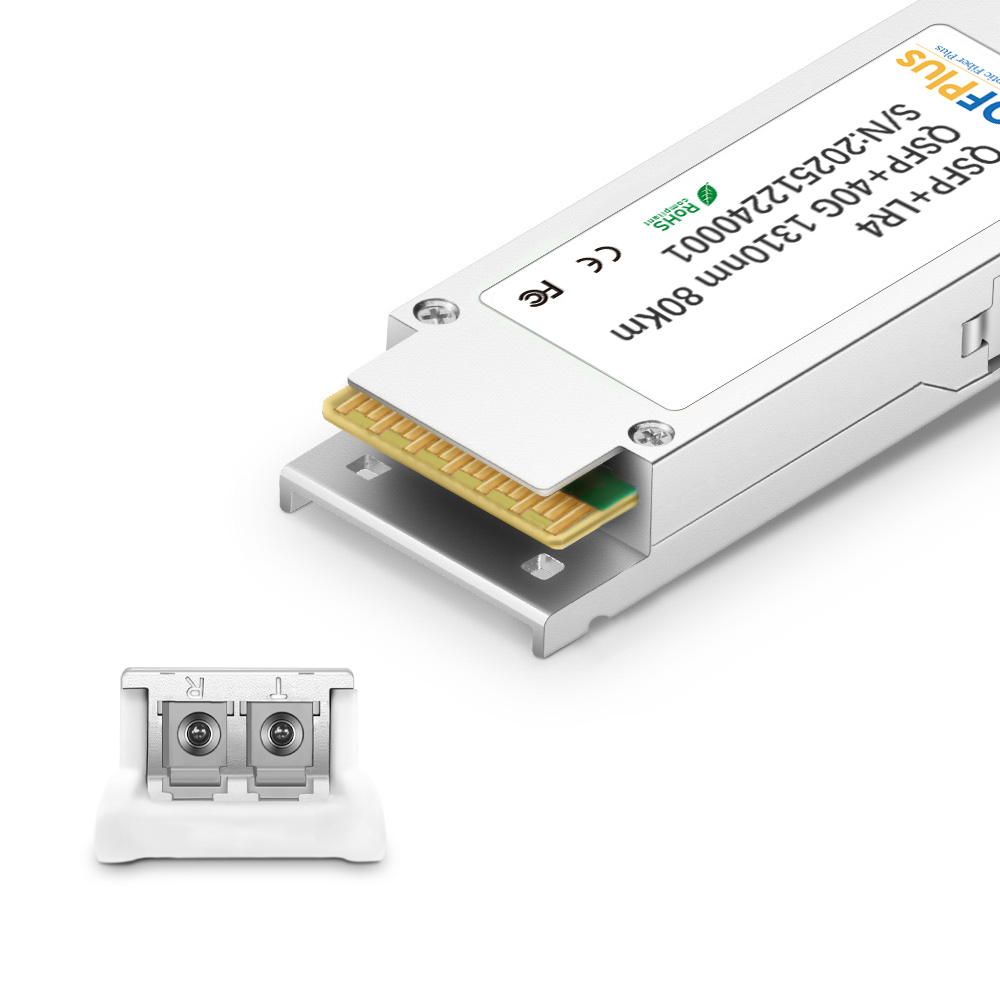

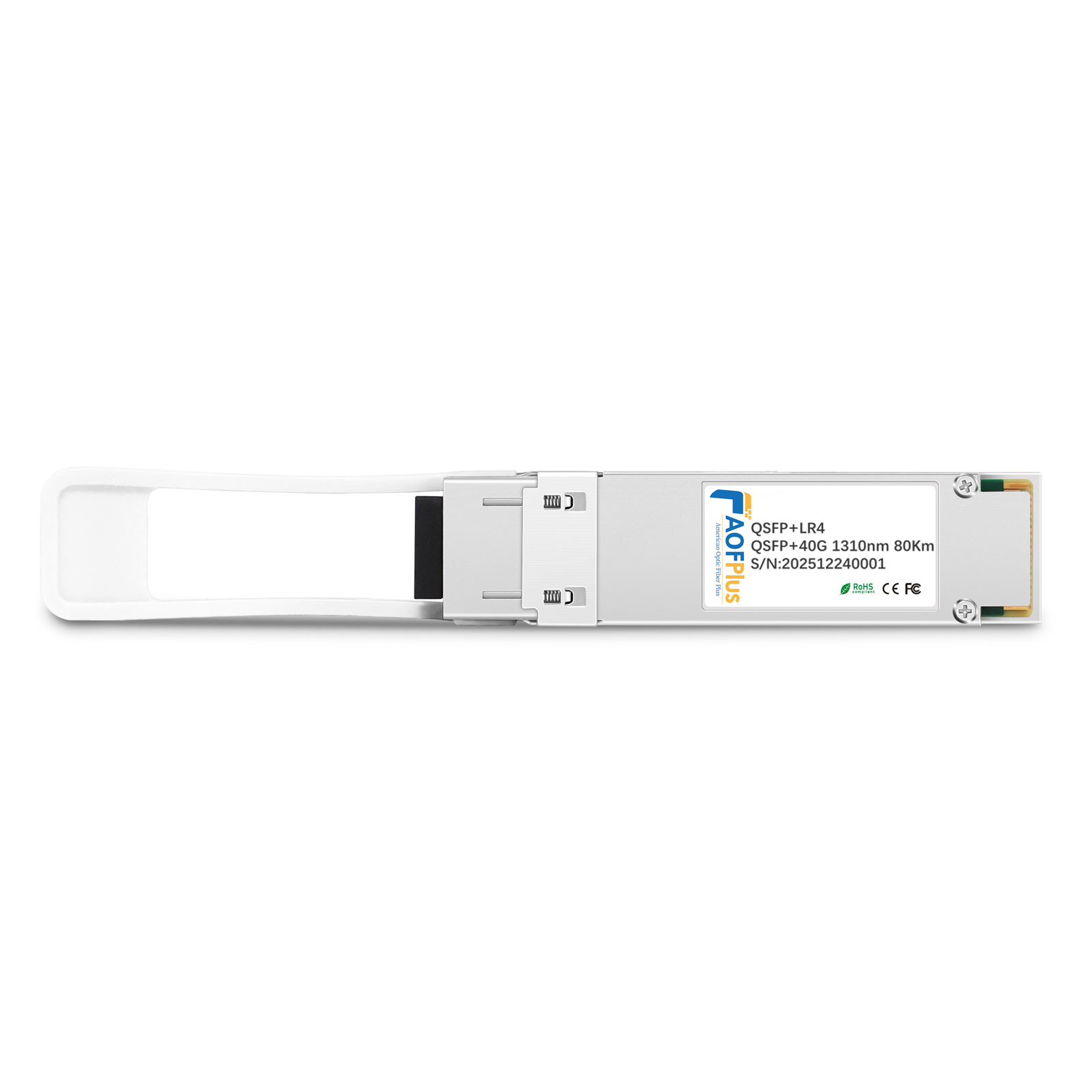

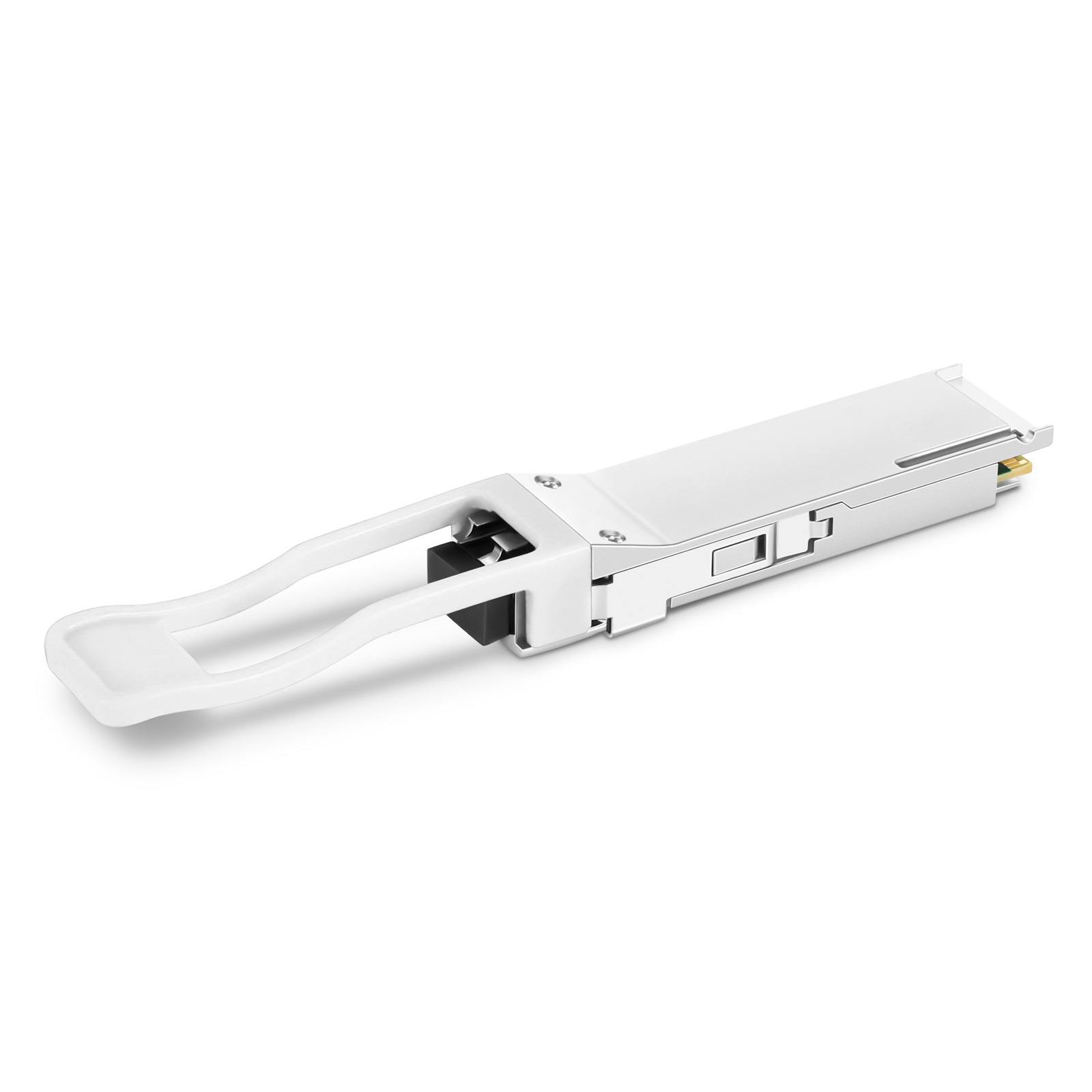

Fiber Optical Transceiver 40G QSFP+ LWDM operats at 1310nm on single-mode fiber, it covers a remarkable 80km transmission distance, positioning it as a prime choice for bridging distances in regional network setups. The duplex LC/UPC connectors provide a solid connection. With the QSFP+ form factor, integrating this transceiver into pre-existing network architectures is a breeze. Network administrators can smoothly incorporate it, ensuring a seamless 40G data stream across the 80km expanse, thus bolstering overall network productivity and responsiveness.

Form Factor	QSFP+	Max. Data Rate	40Gbps
Wavelength	1310nm	Max. Cable Distance	80KM
Connector	Duplex LC	Media	SMF
Transmitter Type	1310 DFB	Receiver Type	PIN
Power Budget	4dB	Commercial temperature range	0℃~70℃(32°F to 158°F)
TX Power	-7~2.5dBm	Receive sensitivity	< -11dBm
Power Consumption	≤3.5w	Receiver Overload	2.3dBm
Core Size	9/125µm	Extinction Ratio	>3.5dB
Modulation	NRZ	Bit Error Ratio (BER)	1E-12
Host FEC	Supported	Protocols	OTN OTU3, 40G Ethernet, Fiber Channel, SATA/SAS3, MSA Compliant
