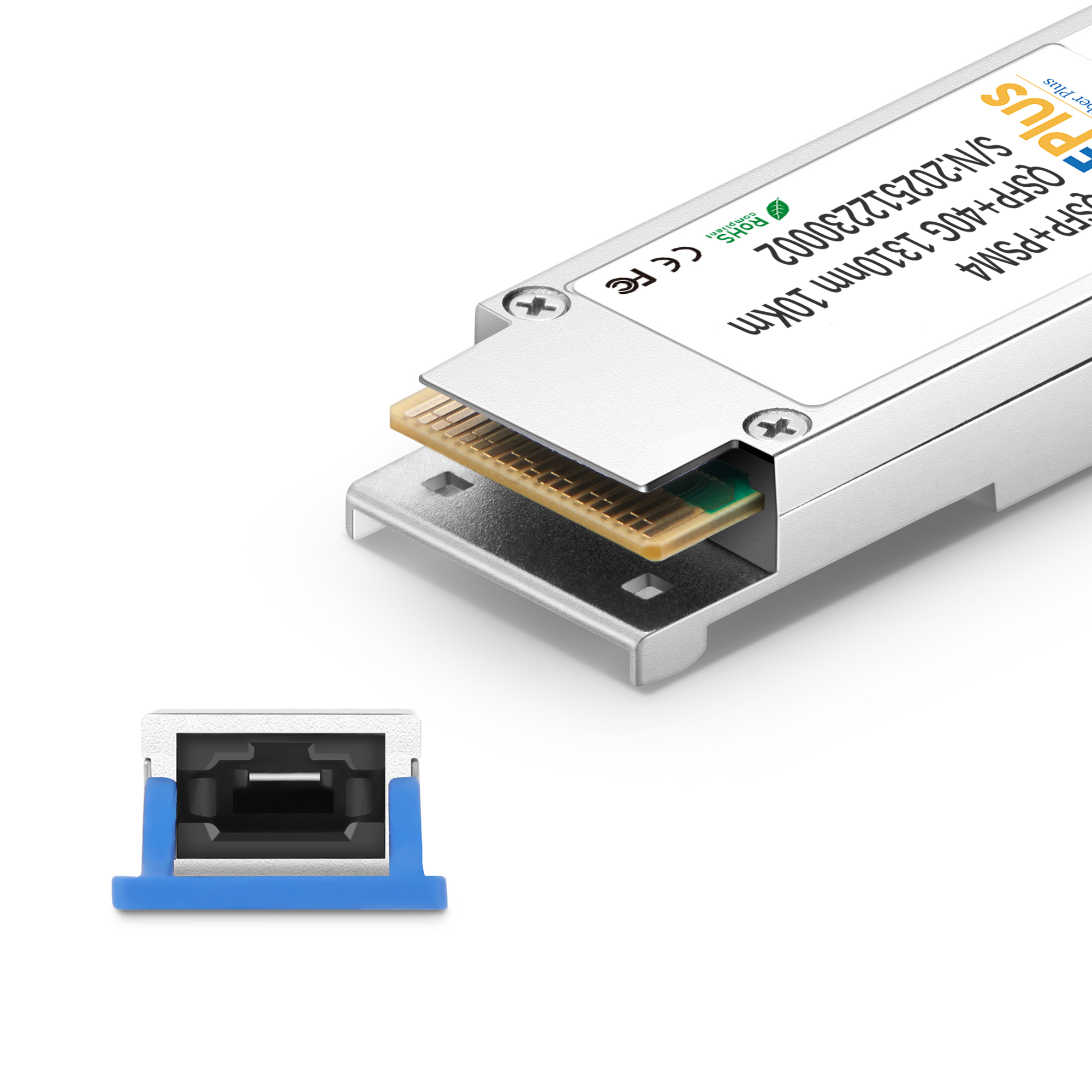

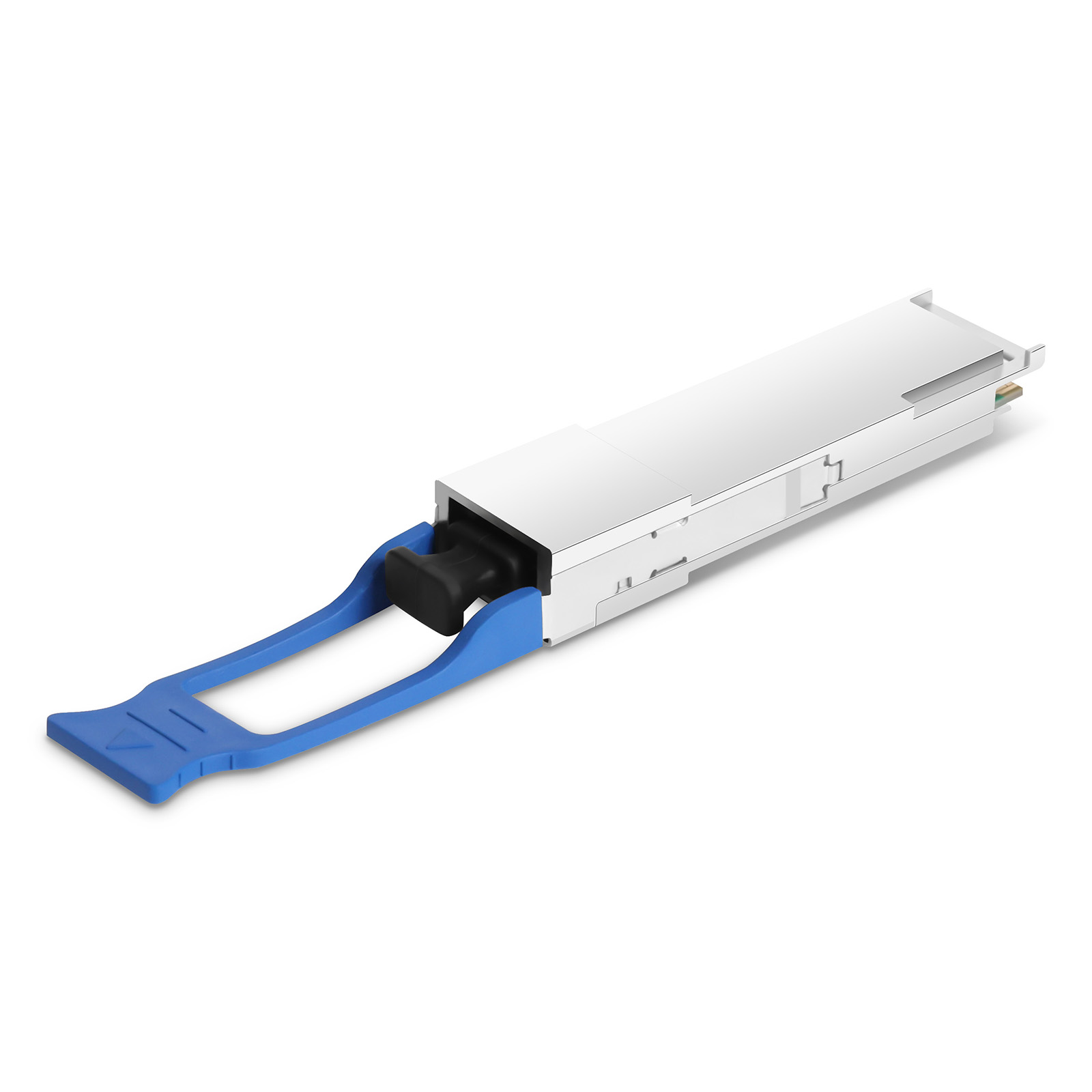

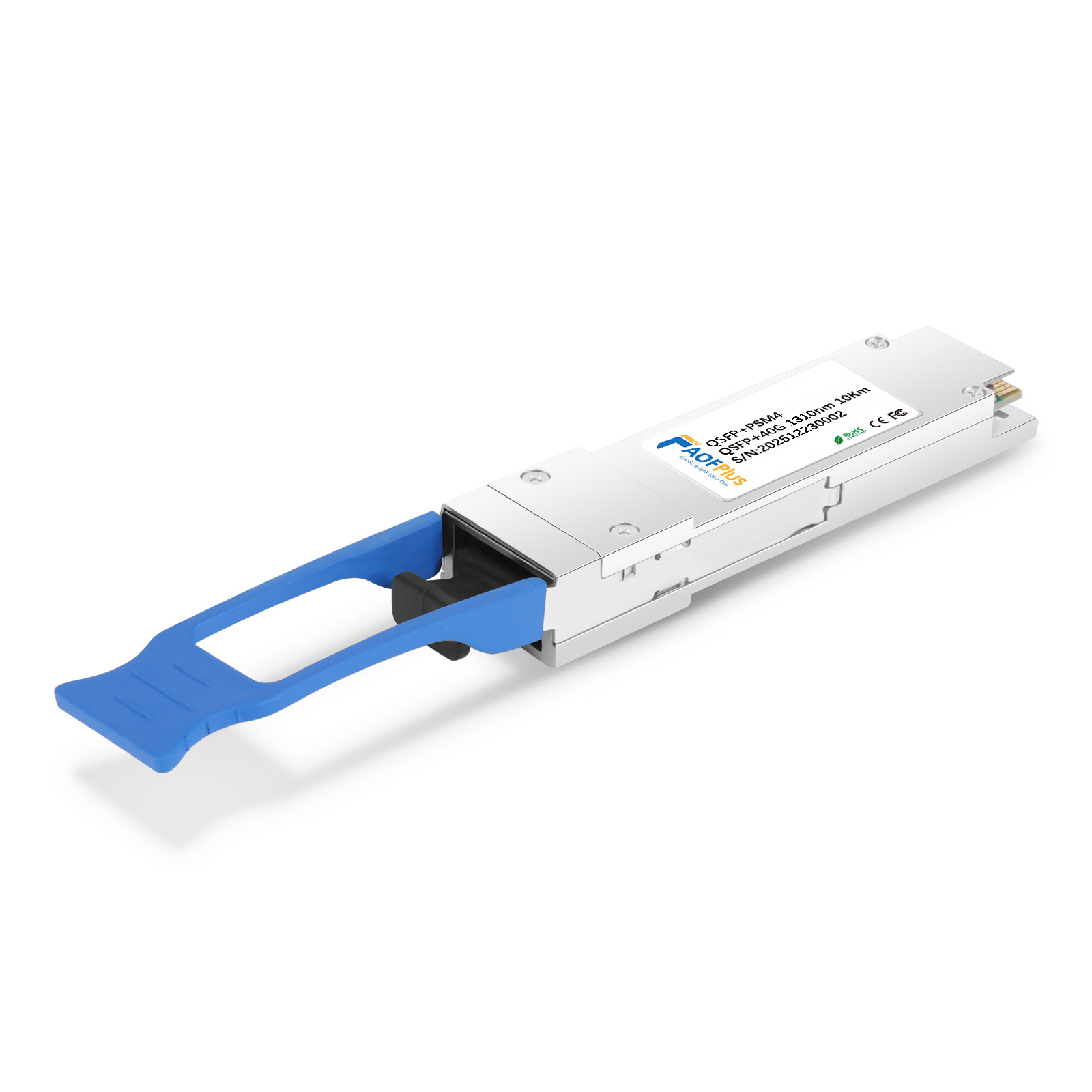

AOFPlus's 40G QSFP+ CWDM Fiber Optical Transceiver operats at 1310nm over single-mode fiber, it offers a reliable 10km reach, making it well-suited for a variety of local network connectivity needs. The MPO Connector simplifies installation and enhances connection density, facilitating seamless integration into network setups. Its design ensures a stable link, minimizing signal disruptions. With the QSFP+ form factor, network engineers can easily incorporate this transceiver into existing infrastructures. This enables smooth upgrades and ensures a consistent 40G data flow across the 10km span, boosting overall network performance.

Form Factor	QSFP+	Max. Data Rate	40Gbps
Wavelength	1310nm	Max. Cable Distance	10KM
Connector	MPO/MTP	Media	SMF
Transmitter Type	CWDM EML	Receiver Type	PIN
TX Power	-2.7~4.5dBm	Commercial temperature range	0℃~70℃(32°F to 158°F)
Power Consumption	≤3.5w	Receive sensitivity	＜-10dBm
Core Size	9/125µm	Receiver Overload	0.5dBm
Extinction Ratio	＞4.5dBm	Protocols	40G Ethernet
