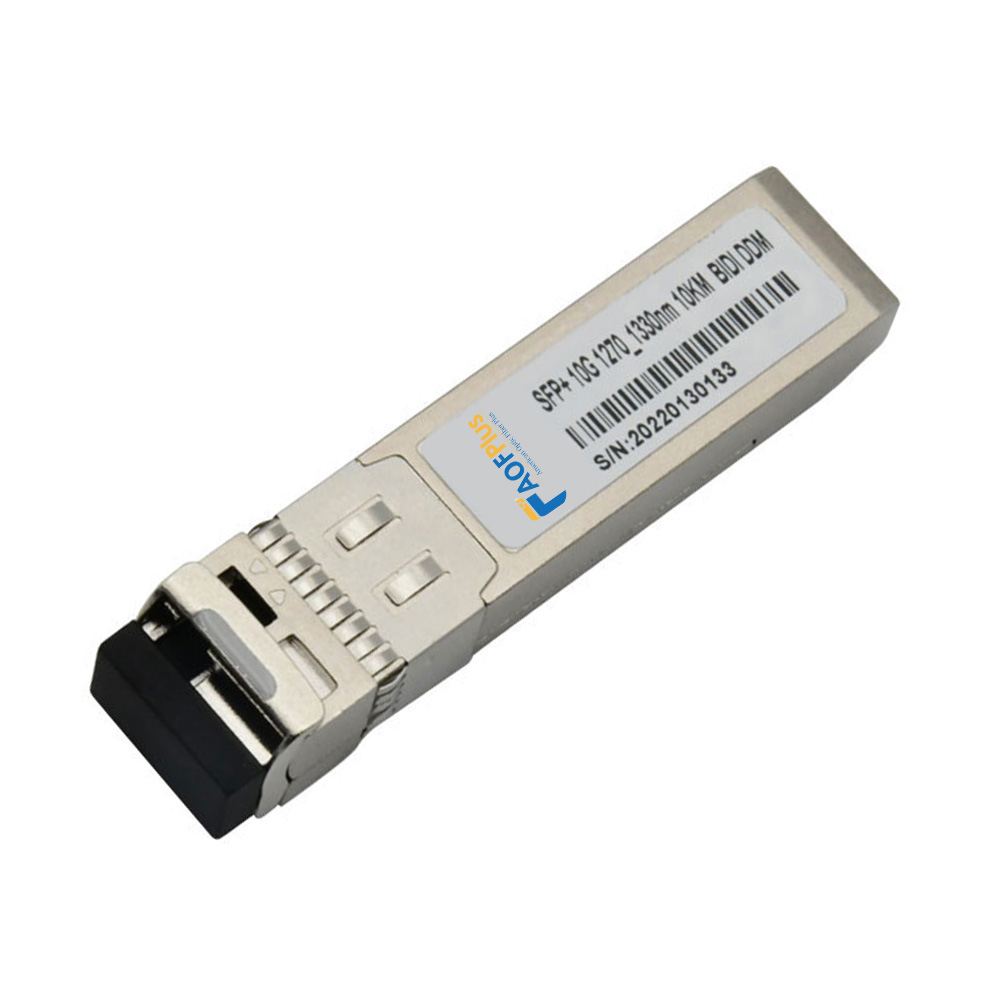

Fiber Optical Transceiver|Optical Module Cisco Compatible 10G SFP+ BiDi TX1270nm RX1330nm 10km LC/UPC Single Mode

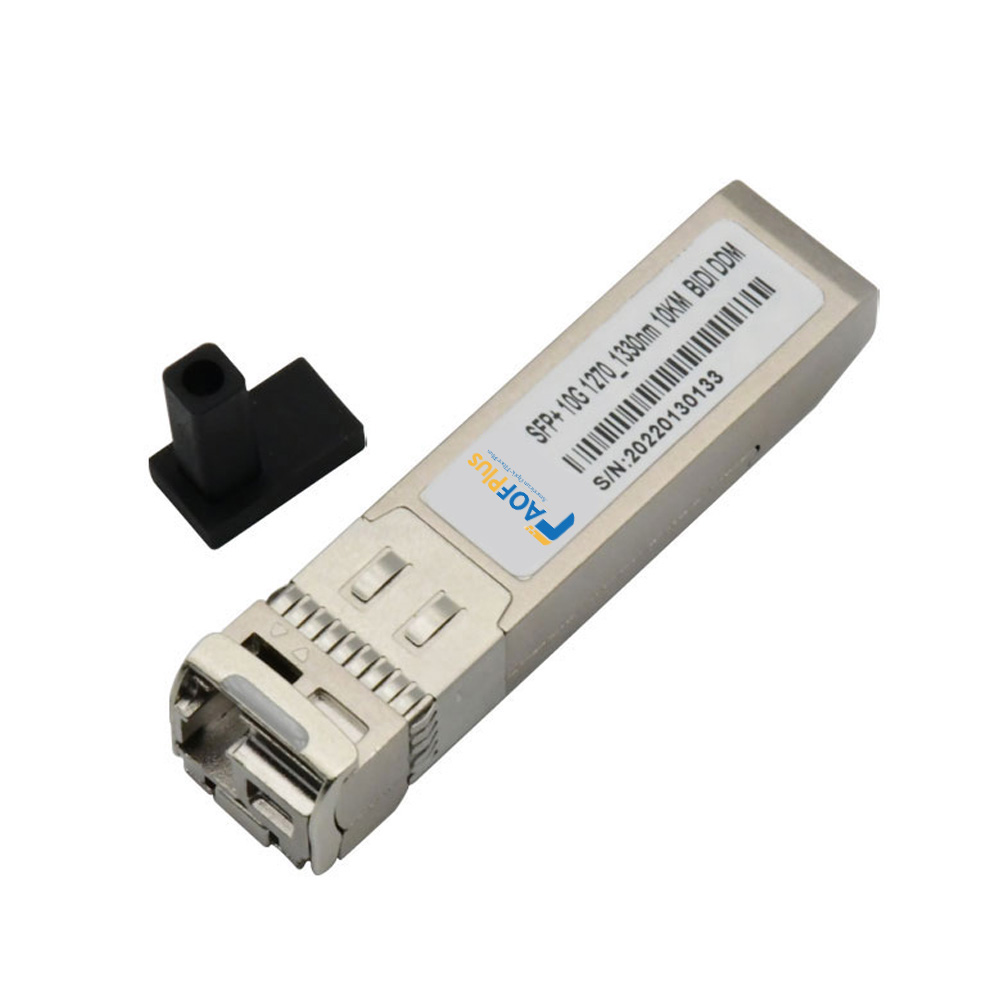

Fiber Optical Transceiver|Optical Module Cisco Compatible 10G SFP+ BiDi TX1270nm RX1330nm 10km LC/UPC Single Mode - Image 2

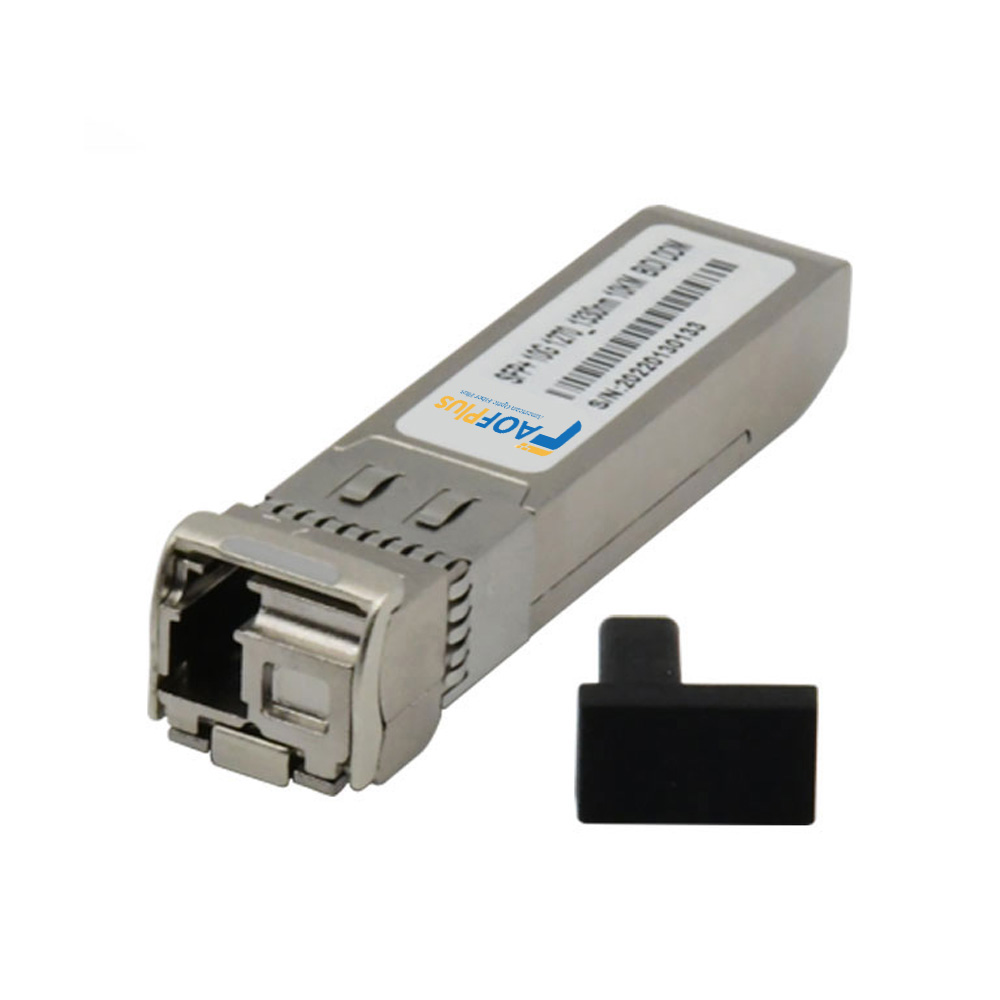

Fiber Optical Transceiver|Optical Module Cisco Compatible 10G SFP+ BiDi TX1270nm RX1330nm 10km LC/UPC Single Mode - Image 3

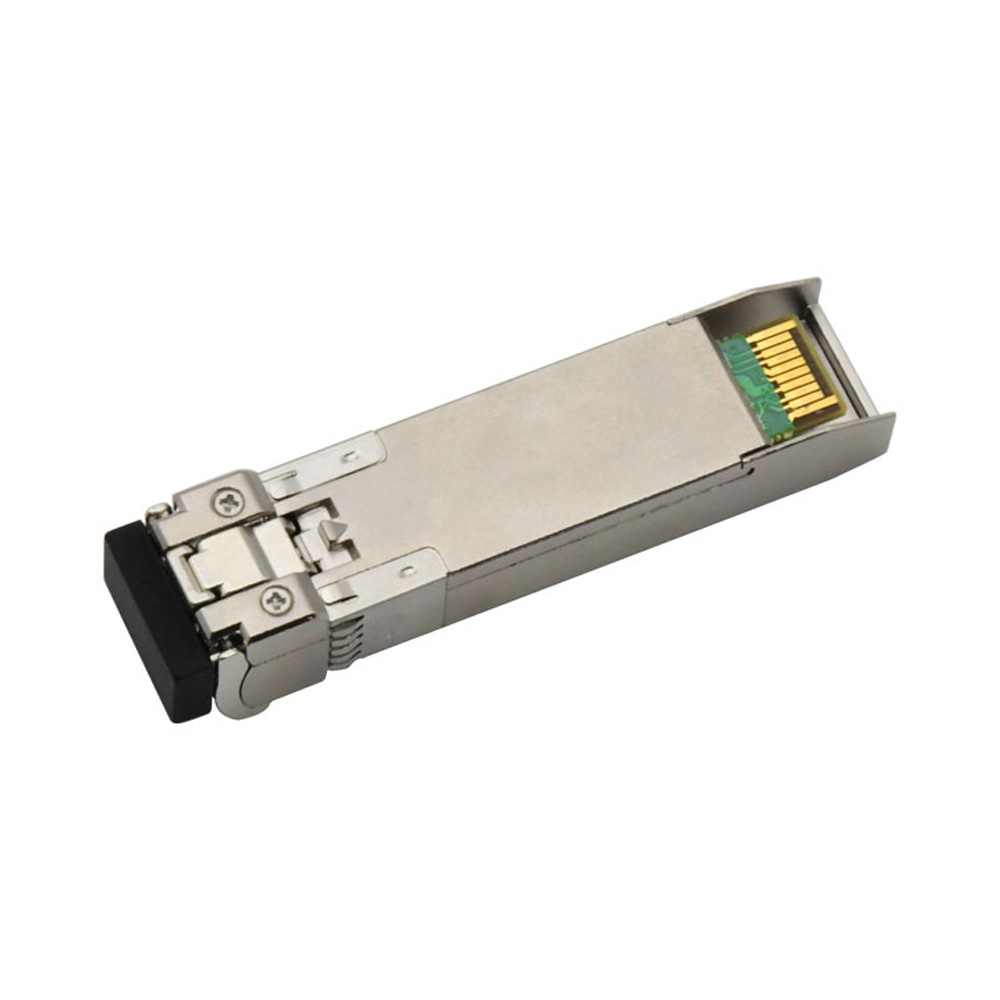

Fiber Optical Transceiver|Optical Module Cisco Compatible 10G SFP+ BiDi TX1270nm RX1330nm 10km LC/UPC Single Mode - Image 4

Fiber Optical Transceiver|Optical Module Cisco Compatible 10G SFP+ BiDi TX1270nm RX1330nm 10km LC/UPC Single Mode

SKU: ASFP2273310KC

Price range: $25.40 through $47.50
Buy more to save

Transceiver Models
TX1330nm RX1270nm 10kmTX1270nm RX1330nm 10kmTX1330nm RX1270nm 20kmTX1270nm RX1330nm 20kmTX1330nm RX1270nm 40kmTX1270nm RX1330nm 40kmTX1550nm RX1490nm 80kmTX1490nm RX1550nm 80kmTX1550nm RX1490nm 100kmTX1490nm RX1550nm 100km
  • Shipping via DHL/FedEx |
  • 3 years Warranty
  • 30 Days Returns
  • 30 Days Exchange

Warranty
Providing industry-leading limited lifetime warranty. Read the table for details of all  products' warranty.

Returns & Exchange
Refunds will be received about  5 business days after the receipt of returned items. Items in stock  for replacement can be shipped within  1 business day. Read the full return policy for details.

  • Free Shipping on Orders over $99 for Whole USA
QuantityPrice
1 - 4 $47.50
5 - 49 $45.13
50 - 99 $41.80
100 + $37.05
QuantityPrice
1 - 4 $47.50
5 - 49 $45.13
50 - 99 $41.80
100 + $37.05
QuantityPrice
1 - 4 $47.50
5 - 49 $45.13
50 - 99 $41.80
100 + $37.05
QuantityPrice
1 - 4 $32.57
5 - 49 $30.94
50 - 99 $28.66
100 + $25.40
QuantityPrice
1 - 4 $32.57
5 - 49 $30.94
50 - 99 $28.66
100 + $25.40
QuantityPrice
1 - 4 $32.57
5 - 49 $30.94
50 - 99 $28.66
100 + $25.40
QuantityPrice
1 - 4 $47.50
5 - 49 $45.13
50 - 99 $41.80
100 + $37.05
QuantityPrice
1 - 4 $47.50
5 - 49 $45.13
50 - 99 $41.80
100 + $37.05

Fiber Optical Transceiver|Optical Module Cisco Compatible 10G SFP+ BiDi TX1270nm RX1330nm 10km LC/UPC Single Mode

Specifications

10G SFP+ BiDi fiber optical transceiver is a high performance optical module designed for compatibility with popular brands' systems. This 10G SFP+ BiDi transceiver supports simultaneous transmission and reception over a single fiber, operating at transmit and receive wavelengths of 1270nm and 1330nm respectively, and achieving a distance of up to 10km. Equipped with LC/UPC interface for precise and stable optical connections, the fiber optical transceiver's compact form factor and hot-pluggable design allow for easy integration into existing network infrastructure, ensuring seamless operation without disrupting ongoing network activities.
Form Factor SFP+ Max. Data Rate 10Gbps
Wavelength 1270nm-TX/1330nm-RX Max. Cable Distance 10KM
Connector Simplex LC Media SMF
TX Power -8.2~0.5dBm Receiver Type PIN
Transmitter Type 1270/1330nm DFB Receiver Sensitivity < -14.4dBm
Typical Power Consumption ≤1.5W Receiver Overload 0.5dBm
Power Budget 6.2dBm Extinction Ratio >3.5dB
Commercial temperature range 0℃~70℃(32°F to 158°F) Protocols SFP+ MSA Compliant, CPRI, eCPRI
