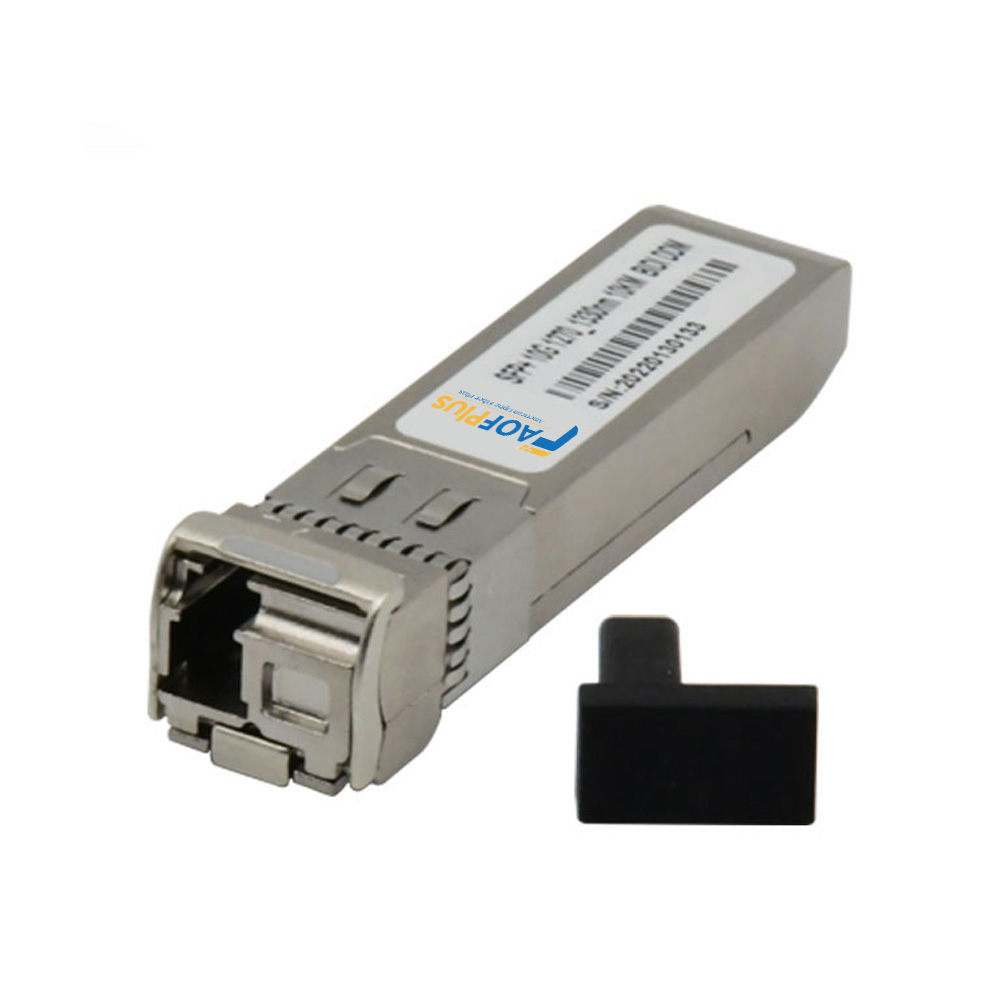

10G SFP BiDi TX1270nm RX1330nm 20km Fiber Optical Transceiver 1

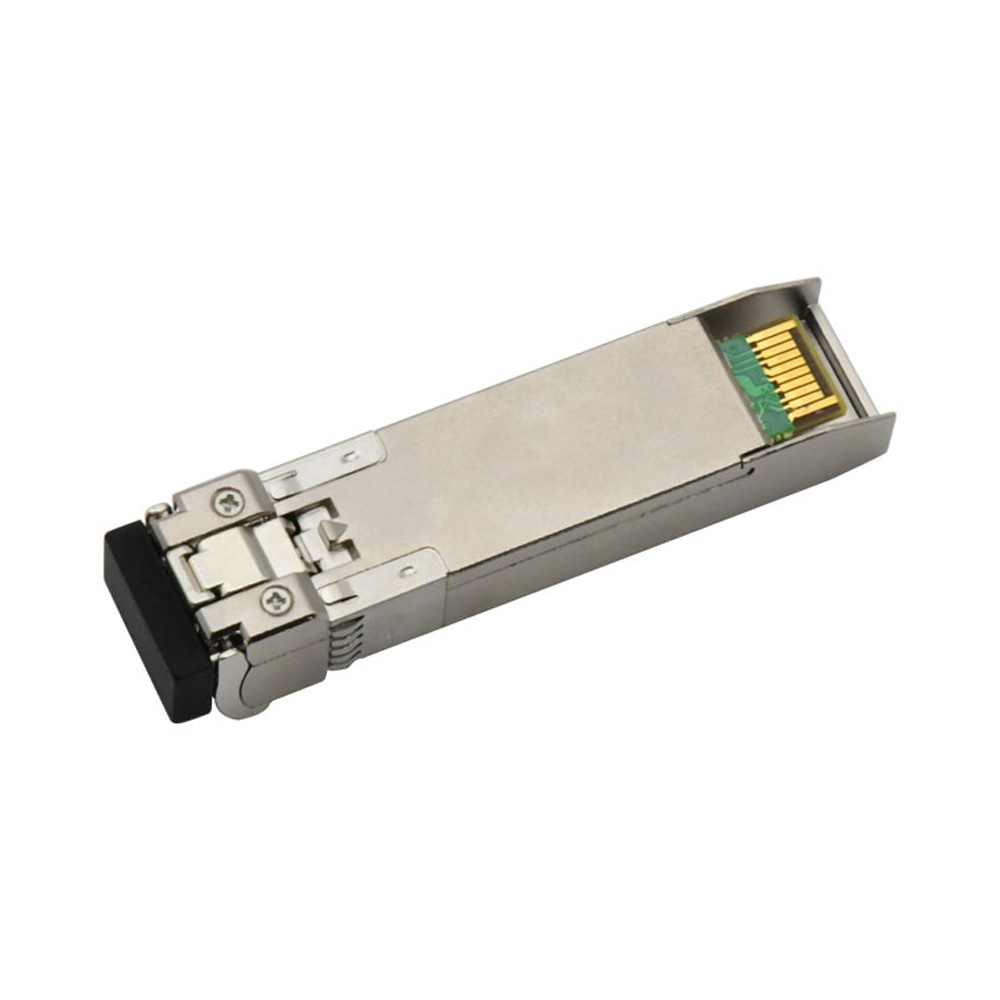

10G SFP BiDi TX1270nm RX1330nm 20km Fiber Optical Transceiver 2

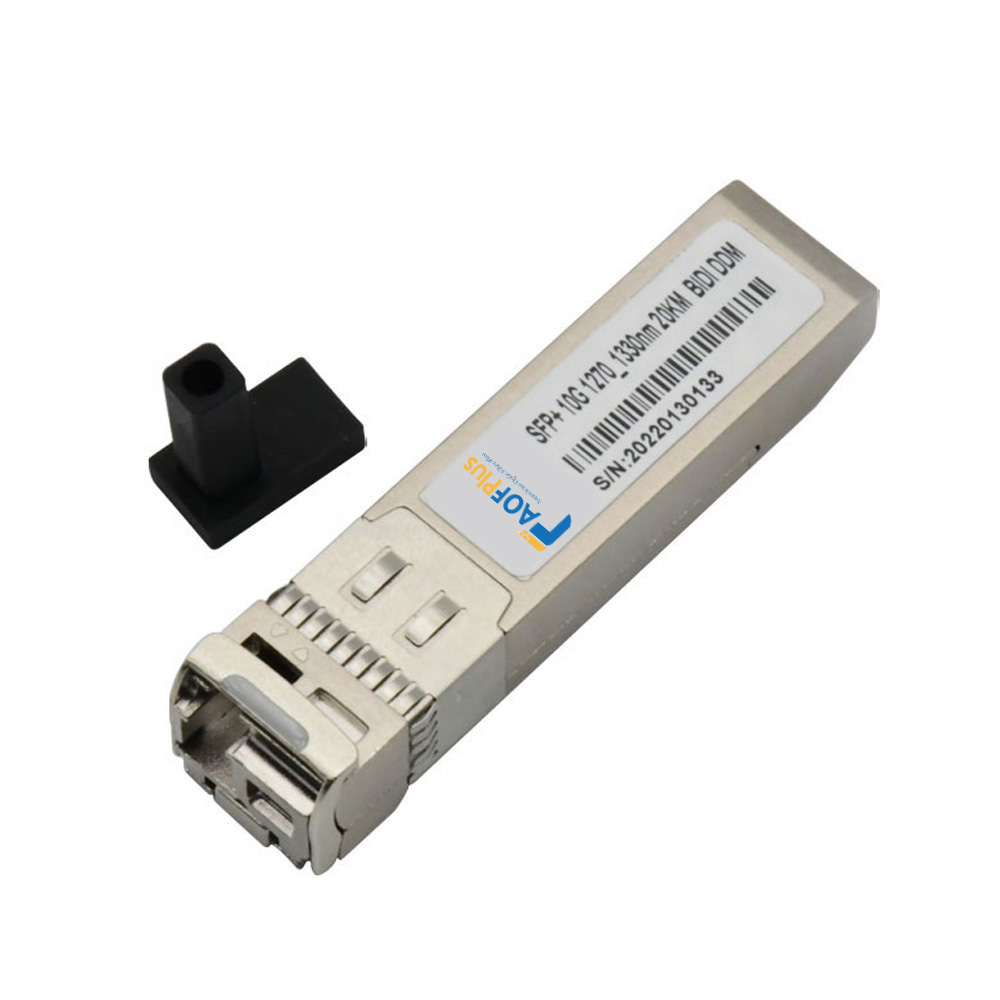

10G SFP BiDi TX1270nm RX1330nm 20km Fiber Optical Transceiver 3

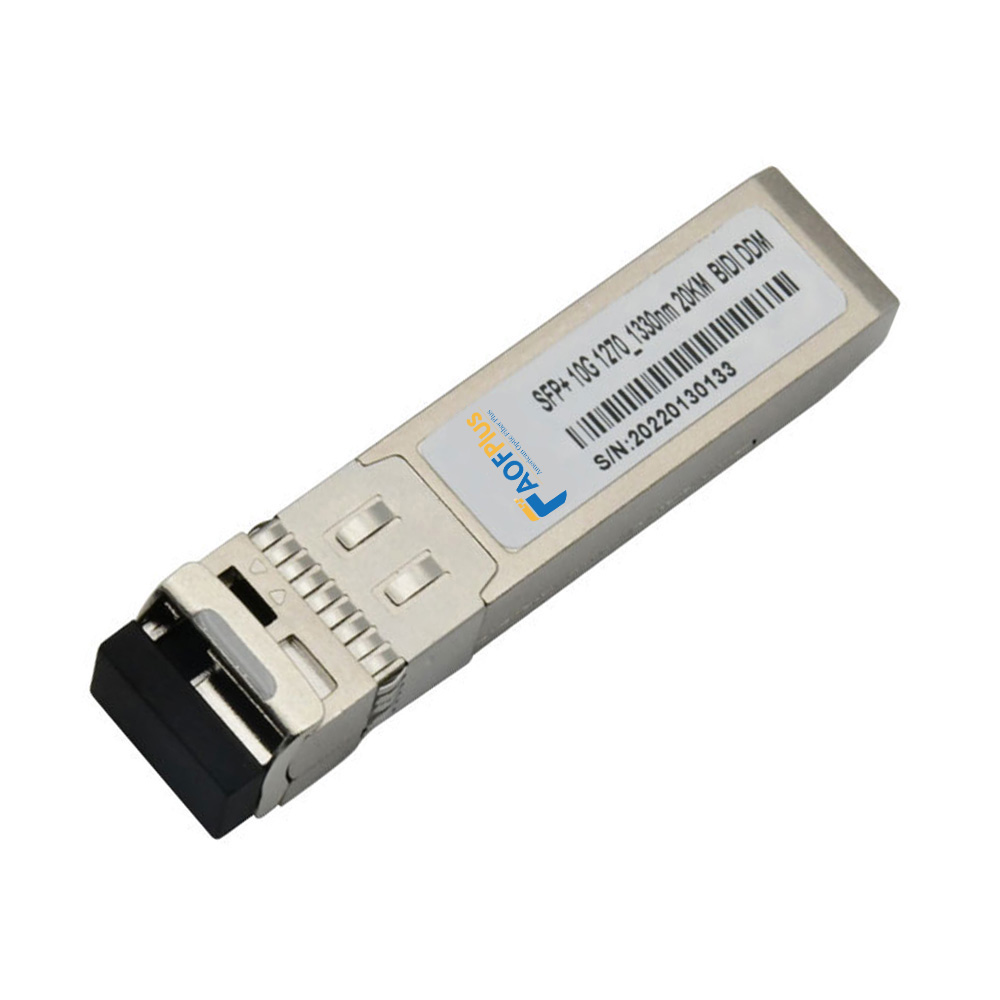

10G SFP BiDi TX1270nm RX1330nm 20km Fiber Optical Transceiver 4

Fiber Optical Transceiver|Optical Module Cisco Compatible 10G SFP+ BiDi TX1270nm RX1330nm 20km LC/UPC Single Mode

SKU: ASFP2273320KC

Price range: $25.40 through $47.50
Buy more to save

Transceiver Models
TX1330nm RX1270nm 10kmTX1270nm RX1330nm 10kmTX1330nm RX1270nm 20kmTX1270nm RX1330nm 20kmTX1330nm RX1270nm 40kmTX1270nm RX1330nm 40kmTX1550nm RX1490nm 80kmTX1490nm RX1550nm 80kmTX1550nm RX1490nm 100kmTX1490nm RX1550nm 100km
  • Shipping via DHL/FedEx |
  • 3 years Warranty
  • 30 Days Returns
  • 30 Days Exchange
2392586 200

Warranty
Providing industry-leading limited lifetime warranty. Read the table for details of all  products' warranty.

Returns & Exchange
Refunds will be received about  5 business days after the receipt of returned items. Items in stock  for replacement can be shipped within  1 business day. Read the full return policy for details.

  • Free Shipping on Orders over $99 for Whole USA
  • If order <100pcs, ship within 4days(except Friday); if order 100pcs+, negotiate deliver time.
QuantityPrice
1 - 4$47.50
5 - 49$45.13
50 - 99$41.80
100 +$37.05
QuantityPrice
1 - 4$47.50
5 - 49$45.13
50 - 99$41.80
100 +$37.05
QuantityPrice
1 - 4$47.50
5 - 49$45.13
50 - 99$41.80
100 +$37.05
QuantityPrice
1 - 4$47.50
5 - 49$45.13
50 - 99$41.80
100 +$37.05
QuantityPrice
1 - 4$47.50
5 - 49$45.13
50 - 99$41.80
100 +$37.05
QuantityPrice
1 - 4$47.50
5 - 49$45.13
50 - 99$41.80
100 +$37.05
QuantityPrice
1 - 4$32.57
5 - 49$30.94
50 - 99$28.66
100 +$25.40
QuantityPrice
1 - 4$32.57
5 - 49$30.94
50 - 99$28.66
100 +$25.40
QuantityPrice
1 - 4$32.57
5 - 49$30.94
50 - 99$28.66
100 +$25.40
QuantityPrice
1 - 4$47.50
5 - 49$45.13
50 - 99$41.80
100 +$37.05
QuantityPrice
1 - 4$47.50
5 - 49$45.13
50 - 99$41.80
100 +$37.05

Fiber Optical Transceiver|Optical Module Cisco Compatible 10G SFP+ BiDi TX1270nm RX1330nm 20km LC/UPC Single Mode

Specifications

10G SFP+ BIDI optical module transceiver supports bidirectional communication with transmit and receive wavelengths of 1270nm and 1330nm, respectively, enabling efficient data transfer over a single fiber strand. With a transmission distance of 20km, the 10G SFP+ BiDi module is perfect for extending network reach in large-scale enterprises and data centers. Crafted with LC/UPC interface, this single-mode SFP+ fiber transceiver ensures robust and reliable optical connections, providing superior performance and reliability for your network infrastructure.
Form FactorSFP+Max. Data Rate10Gbps
Wavelength1270nm-TX/1330nm-RXMax. Cable Distance20KM
ConnectorSimplex LCMediaSMF
TX Power-3~3dBmReceiver TypePIN
Transmitter Type1270/1330nm DFBReceiver Sensitivity< -14.4dBm
Typical Power Consumption≤1.5WReceiver Overload0.5dBm
Power Budget8.4dBmExtinction Ratio>3.5dB
Commercial temperature range0℃~70℃(32°F to 158°F)ProtocolsSFP+ MSA Compliant, CPRI, eCPRI
