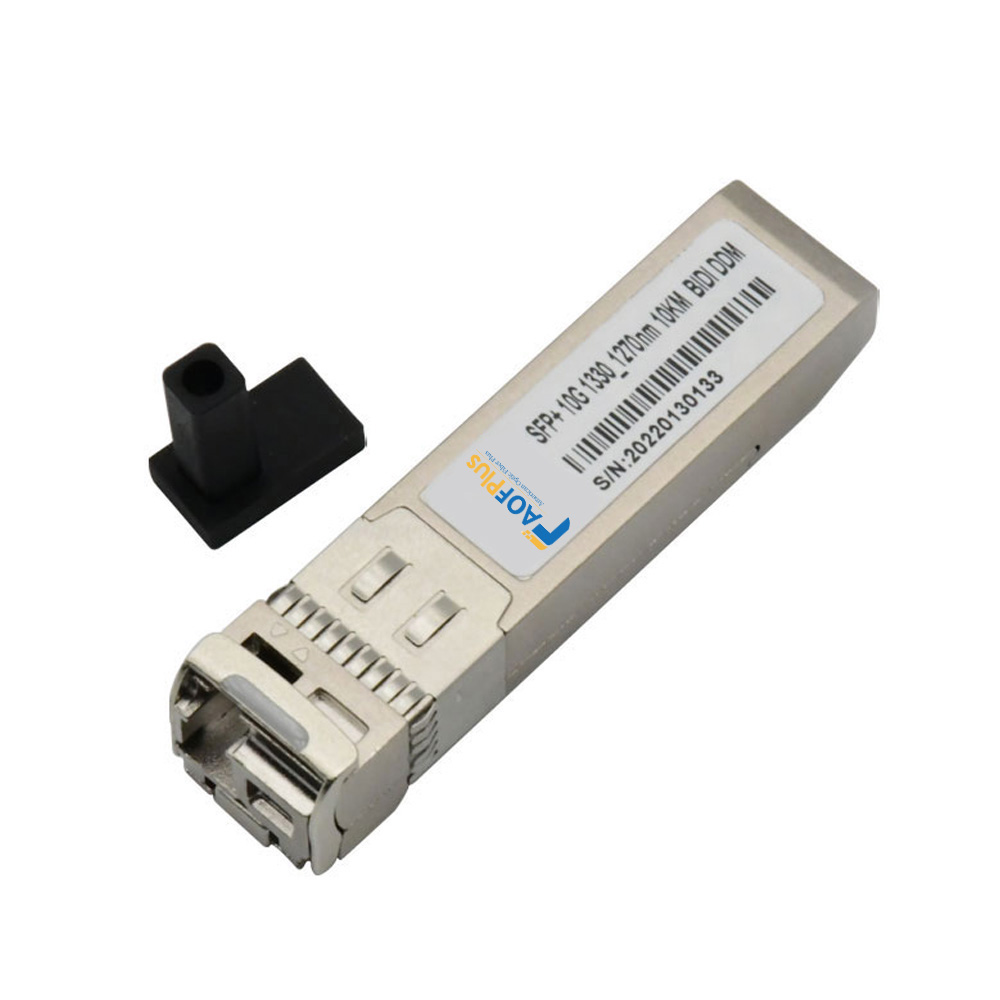

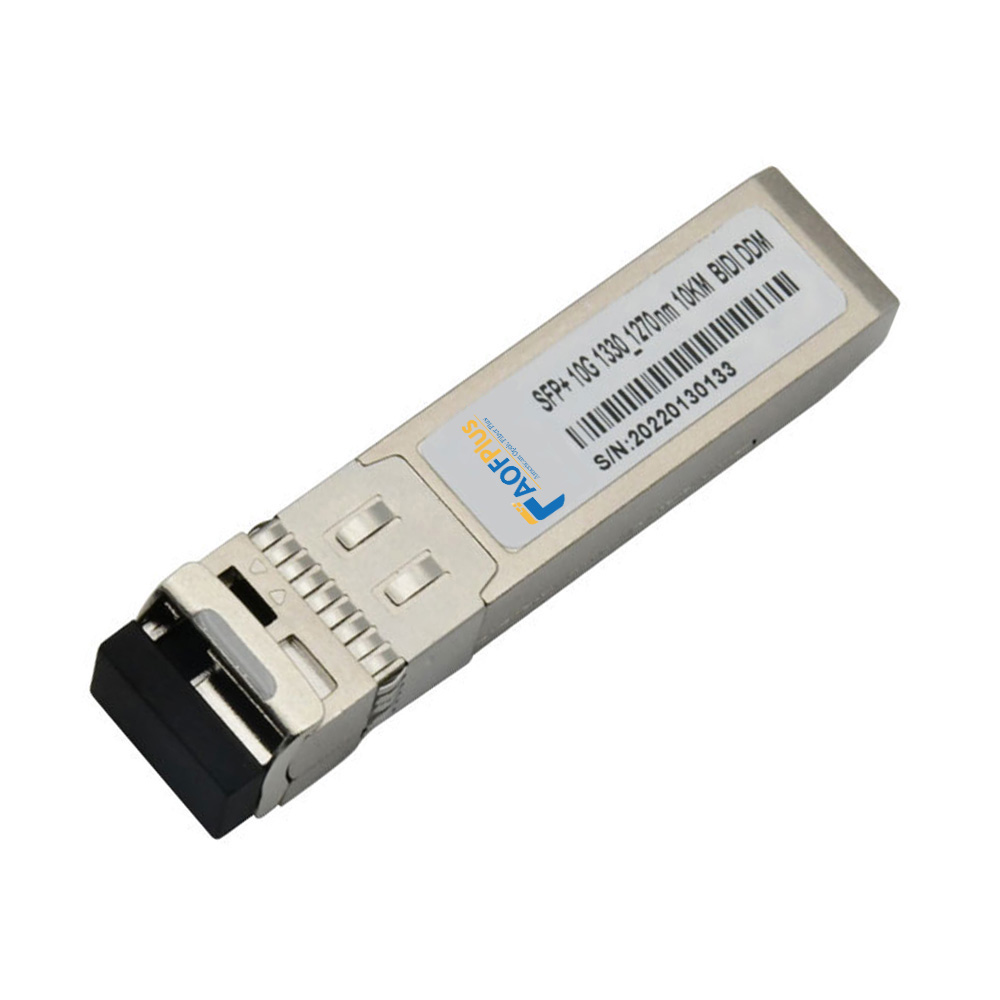

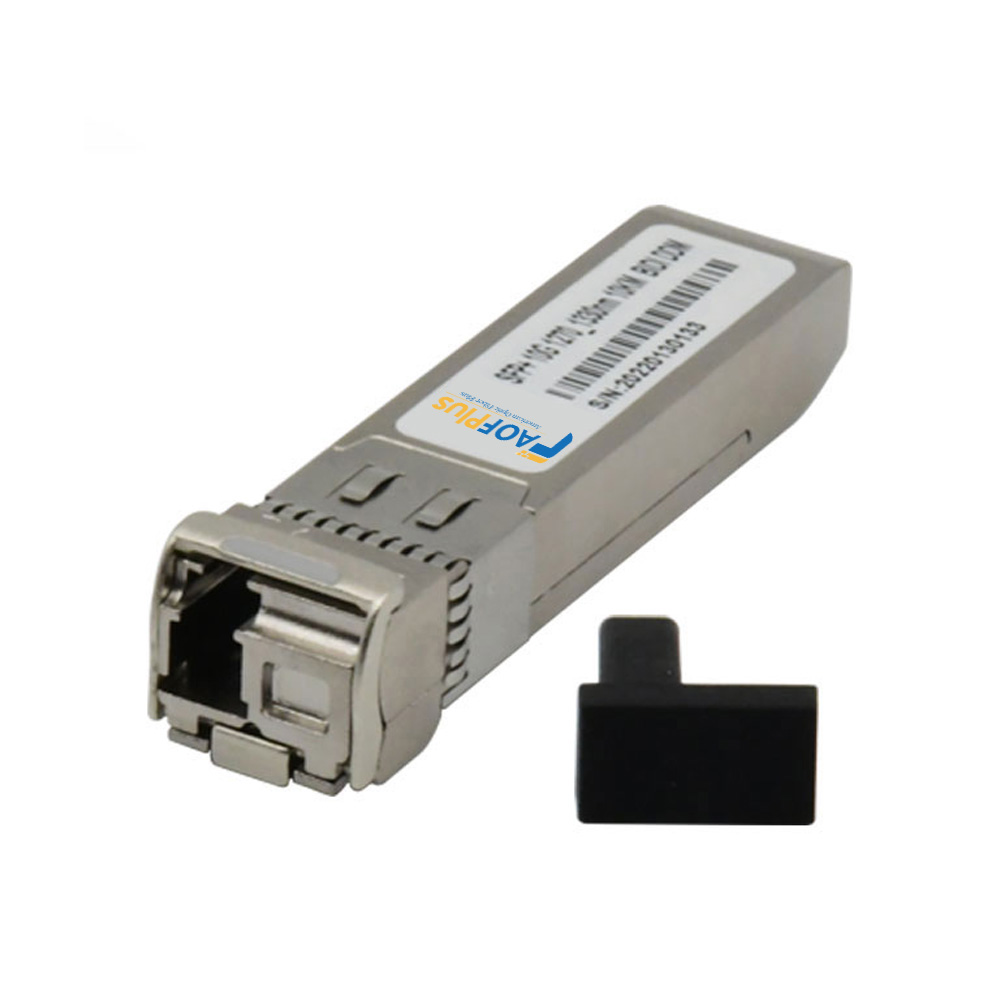

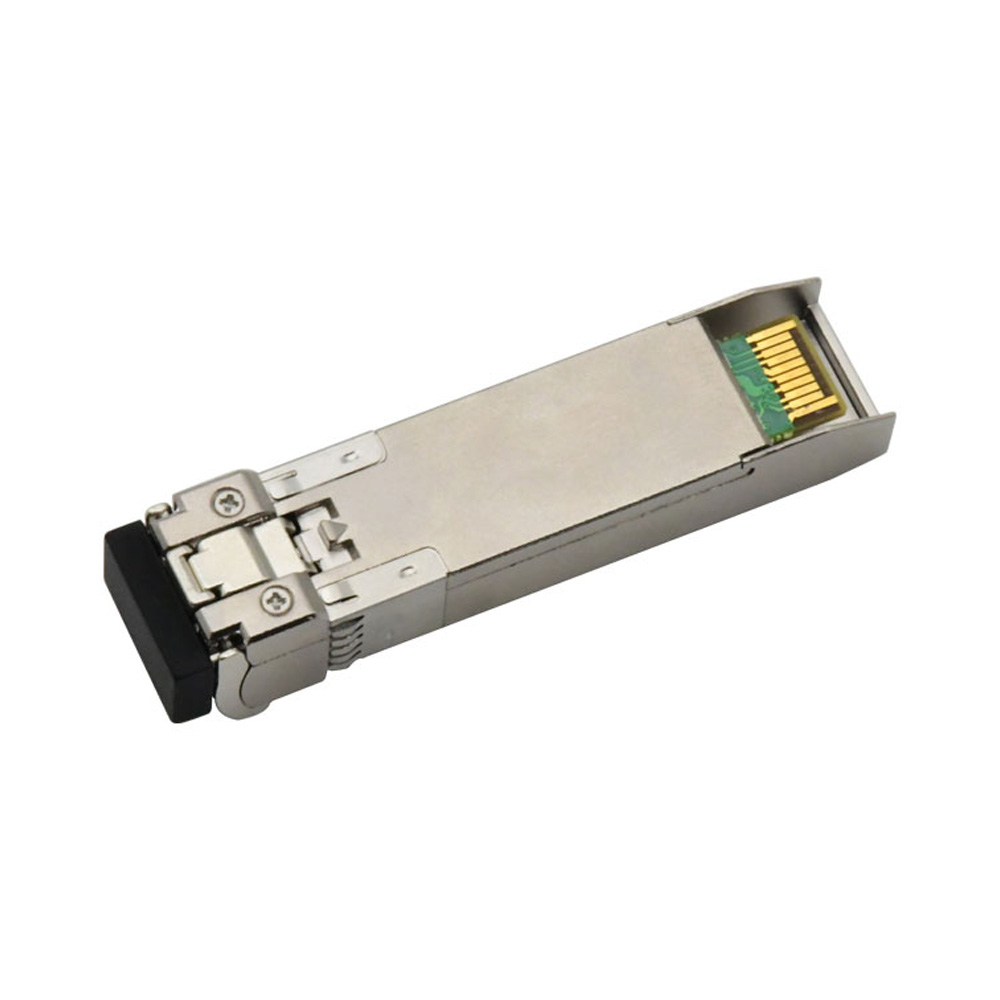

As a perfessional transceiver module supplier, AOFPlus is offering 10G SFP+ BiDi fiber transceiver. This bidi transceiver facilitates simultaneous data transmission and reception over a single fiber strand, employing a transmit wavelength of 1330nm and a receive wavelength of 1270nm to achieve a reach of 10km. Designed for single-mode fiber applications, it features LC/UPC interface that ensure robust and reliable optical connections. Its compact form factor and hot-pluggable design make it easy to deploy in existing network infrastructures without disrupting ongoing operations. Rigorously tested for compatibility and performance, this single mode 10G SFP+ BiDi transceiver is an excellent choice for enhancing network bandwidth and extending reach in demanding enterprise and data center environments.

Form Factor	SFP+	Max. Data Rate	10Gbps
Wavelength	1330nm-TX/1270nm-RX	Max. Cable Distance	10KM
Connector	Simplex LC	Media	SMF
TX Power	-8.2~0.5dBm	Receiver Type	PIN
Transmitter Type	1330/1270nm DFB	Receiver Sensitivity	< -14.4dBm
Typical Power Consumption	≤1.5W	Receiver Overload	0.5dBm
Power Budget	6.2dBm	Extinction Ratio	>3.5dB
Commercial temperature range	0℃~70℃(32°F to 158°F)	Protocols	SFP+ MSA Compliant, CPRI, eCPRI
