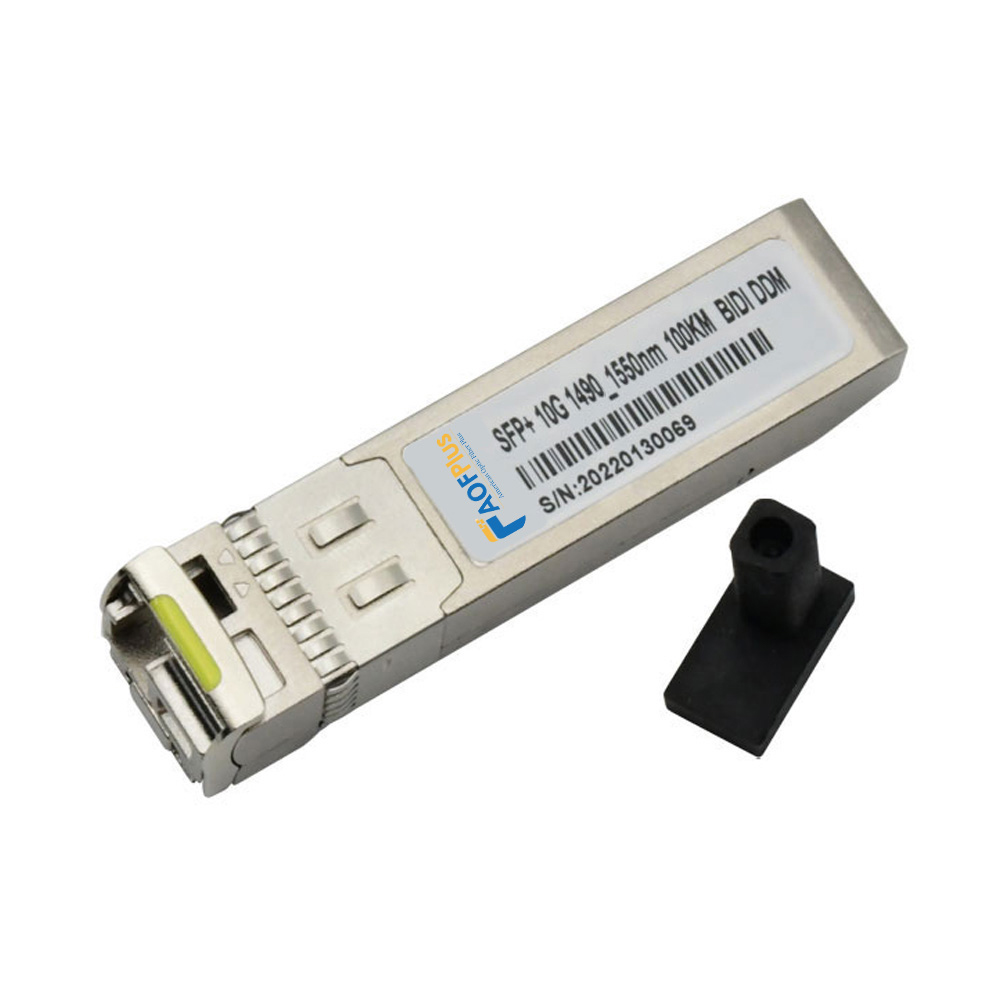

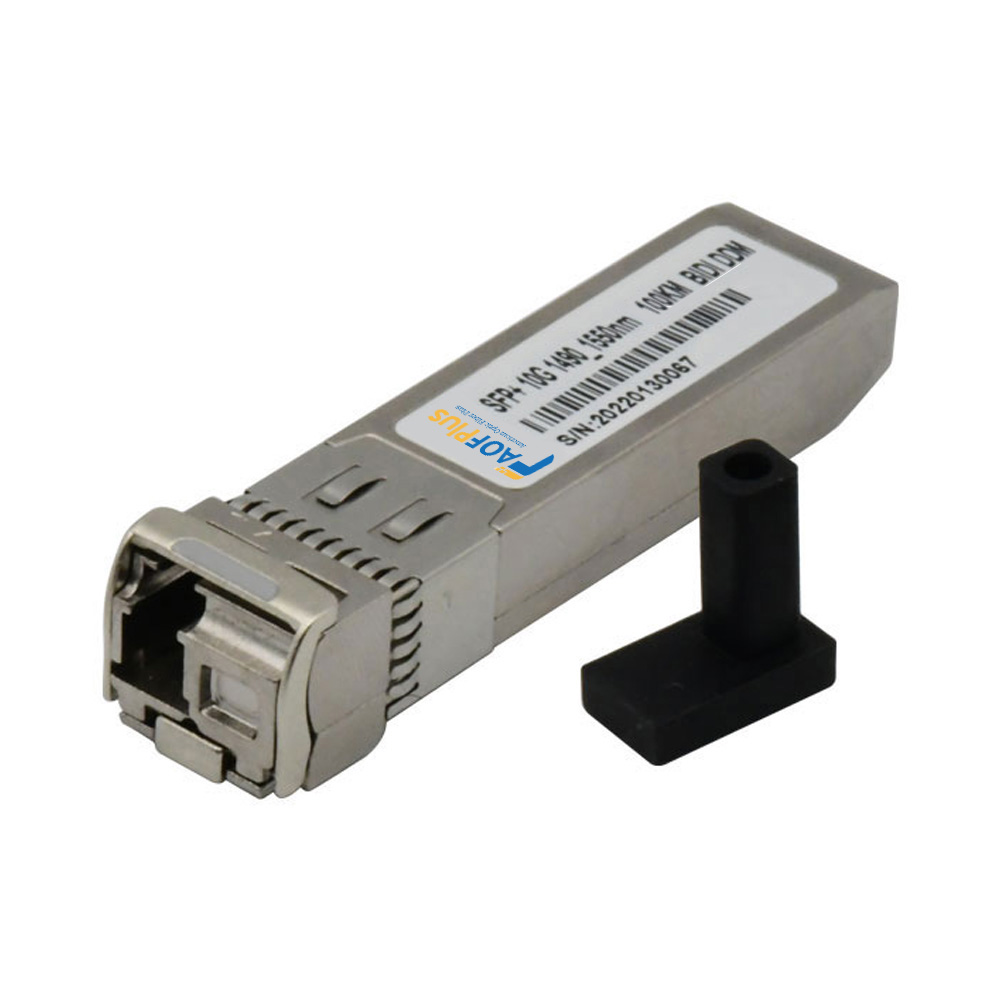

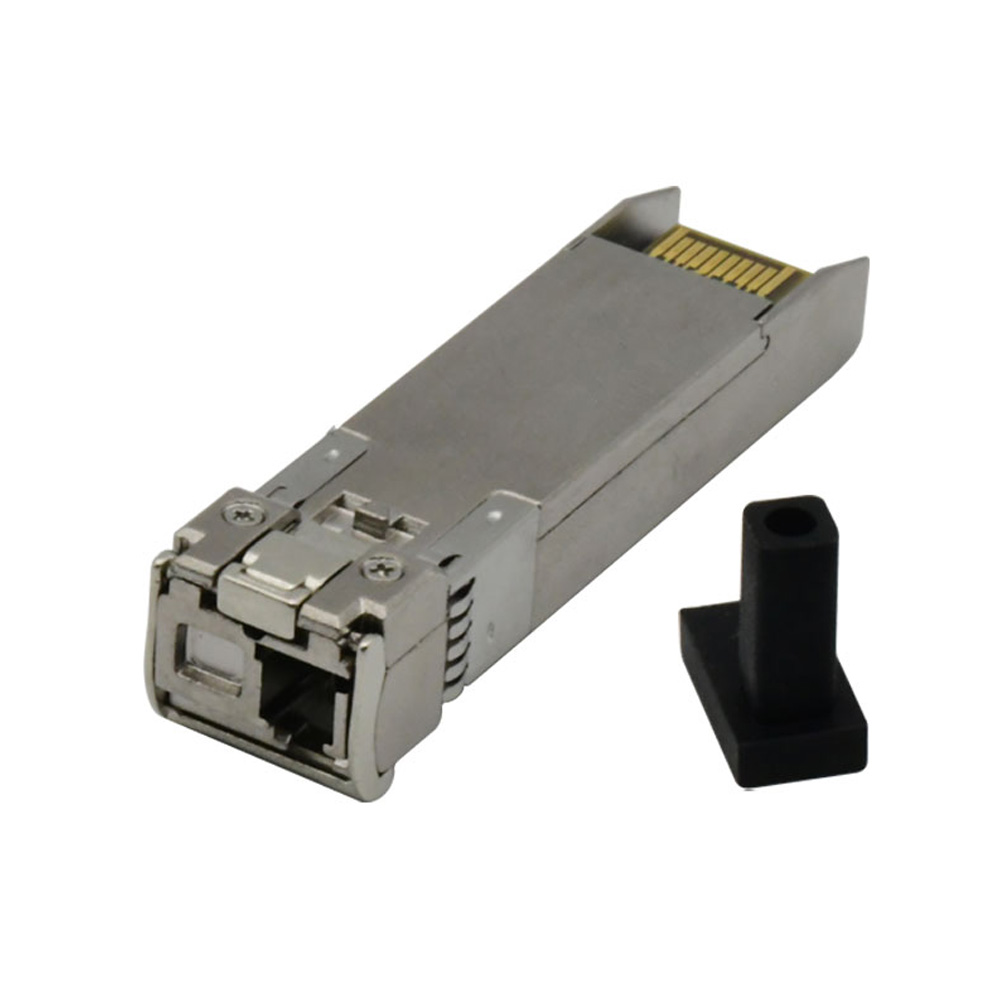

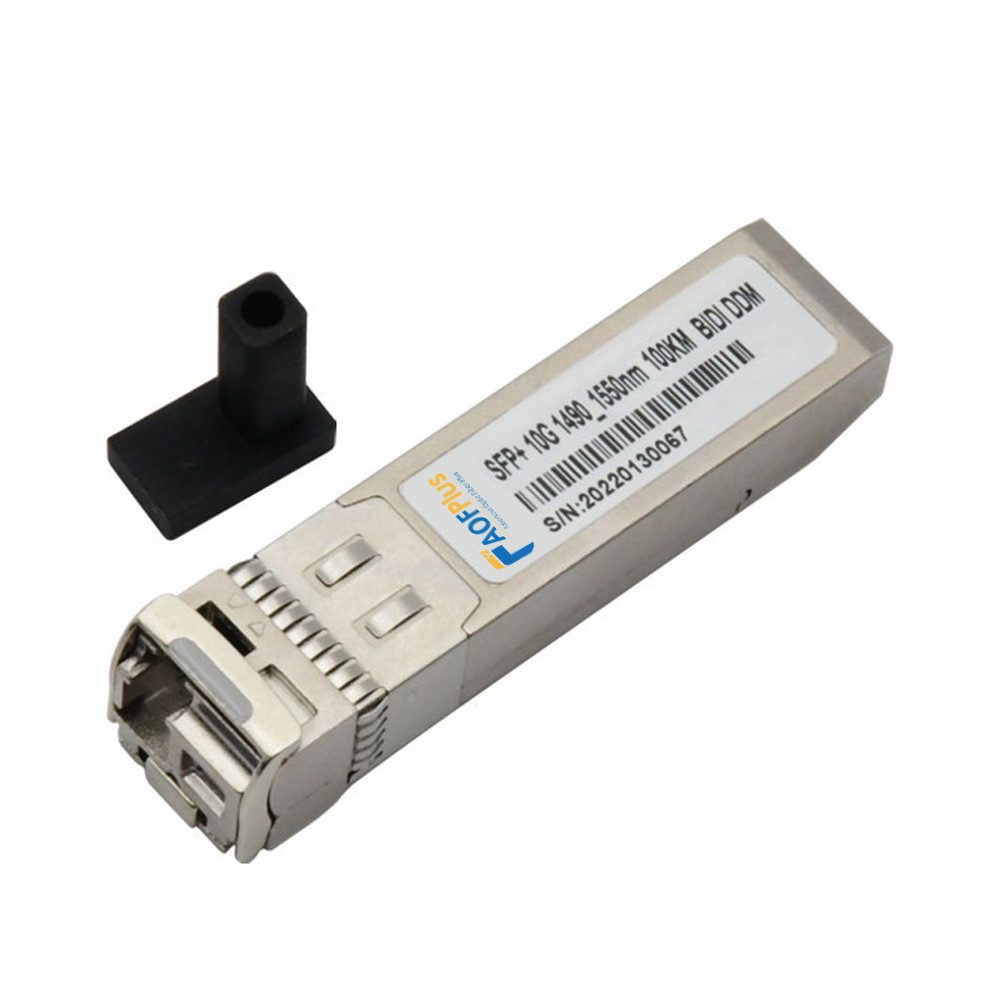

Fiber Optical Transceiver|Optical Module Cisco Compatible 10G SFP+ BiDi TX1490nm RX1550nm 100km LC/UPC Single Mode
Fiber Optical Transceiver|Optical Module Cisco Compatible 10G SFP+ BiDi TX1490nm RX1550nm 100km LC/UPC Single Mode - Image 2
Fiber Optical Transceiver|Optical Module Cisco Compatible 10G SFP+ BiDi TX1490nm RX1550nm 100km LC/UPC Single Mode - Image 3
Fiber Optical Transceiver|Optical Module Cisco Compatible 10G SFP+ BiDi TX1490nm RX1550nm 100km LC/UPC Single Mode - Image 4

Fiber Optical Transceiver|Optical Module Cisco Compatible 10G SFP+ BiDi TX1490nm RX1550nm 100km LC/UPC Single Mode

SKU: ASFP24955100KC

Price range: $545.22 through $1,278.64
Buy more to save

Transceiver Models
TX1330nm RX1270nm 10kmTX1270nm RX1330nm 10kmTX1330nm RX1270nm 20kmTX1270nm RX1330nm 20kmTX1330nm RX1270nm 40kmTX1270nm RX1330nm 40kmTX1550nm RX1490nm 80kmTX1490nm RX1550nm 80kmTX1550nm RX1490nm 100kmTX1490nm RX1550nm 100km
  • Shipping via DHL/FedEx |
  • 3 years Warranty
  • 30 Days Returns
  • 30 Days Exchange

Warranty
Providing industry-leading limited lifetime warranty. Read the table for details of all  products' warranty.

Returns & Exchange
Refunds will be received about  5 business days after the receipt of returned items. Items in stock  for replacement can be shipped within  1 business day. Read the full return policy for details.

  • Free Shipping on Orders over $99 for Whole USA
QuantityPrice
1 - 4 $699.00
5 - 49 $664.05
50 - 99 $615.12
100 + $545.22
QuantityPrice
1 - 4 $699.00
5 - 49 $664.05
50 - 99 $615.12
100 + $545.22
QuantityPrice
1 - 4 $699.00
5 - 49 $664.05
50 - 99 $615.12
100 + $545.22
QuantityPrice
1 - 4 $1,278.64
5 - 49 $1,214.71
50 - 99 $1,125.20
100 + $997.34
QuantityPrice
1 - 4 $1,278.64
5 - 49 $1,214.71
50 - 99 $1,125.20
100 + $997.34
QuantityPrice
1 - 4 $1,278.64
5 - 49 $1,214.71
50 - 99 $1,125.20
100 + $997.34
QuantityPrice
1 - 4 $699.00
5 - 49 $664.05
50 - 99 $615.12
100 + $545.22

Fiber Optical Transceiver|Optical Module Cisco Compatible 10G SFP+ BiDi TX1490nm RX1550nm 100km LC/UPC Single Mode

Specifications

In the fast-evolving landscape of network technology, SFP+ 10G bidi TX1490nm RX1550nm transceiver emerges as a true standout. It can seamless compatible with popular brands, eliminating compatibility headaches. Cranking out data at a 10G SFP+ rate, it's the engine behind next-gen applications. Take, for example, real-time augmented reality experiences that demand split-second data syncing. The BiDi tech, with its TX at 1490nm and RX at 1550nm, is doubling the traffic capacity. Paired with an astonishing 100km single-mode fiber reach and those trusty LC/UPC connectors, it's the go-to for building resilient, long-haul connections that span cities and regions.
Form Factor SFP+ Max. Data Rate 10Gbps
Wavelength 1490nm-TX/1550nm-RX Max. Cable Distance 100KM
Connector Simplex LC Media SMF
TX Power 0~5dBm Receiver Type APD
Transmitter Type 1490/1550nm EML Receiver Sensitivity < -22dBm
Typical Power Consumption ≤2.5W Commercial temperature range 0℃~70℃(32°F to 158°F)
DOM Supported Protocols SFP+ MSA Compliant, CPRI, eCPRI
