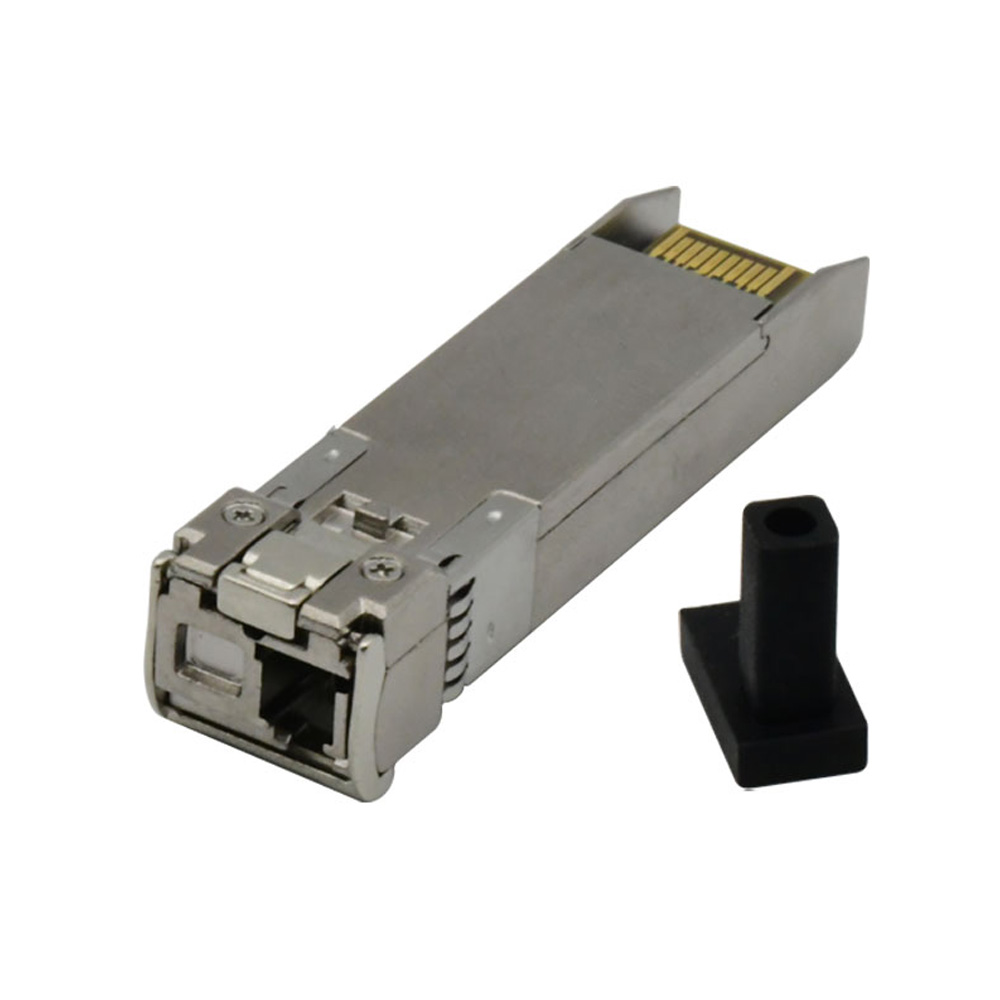

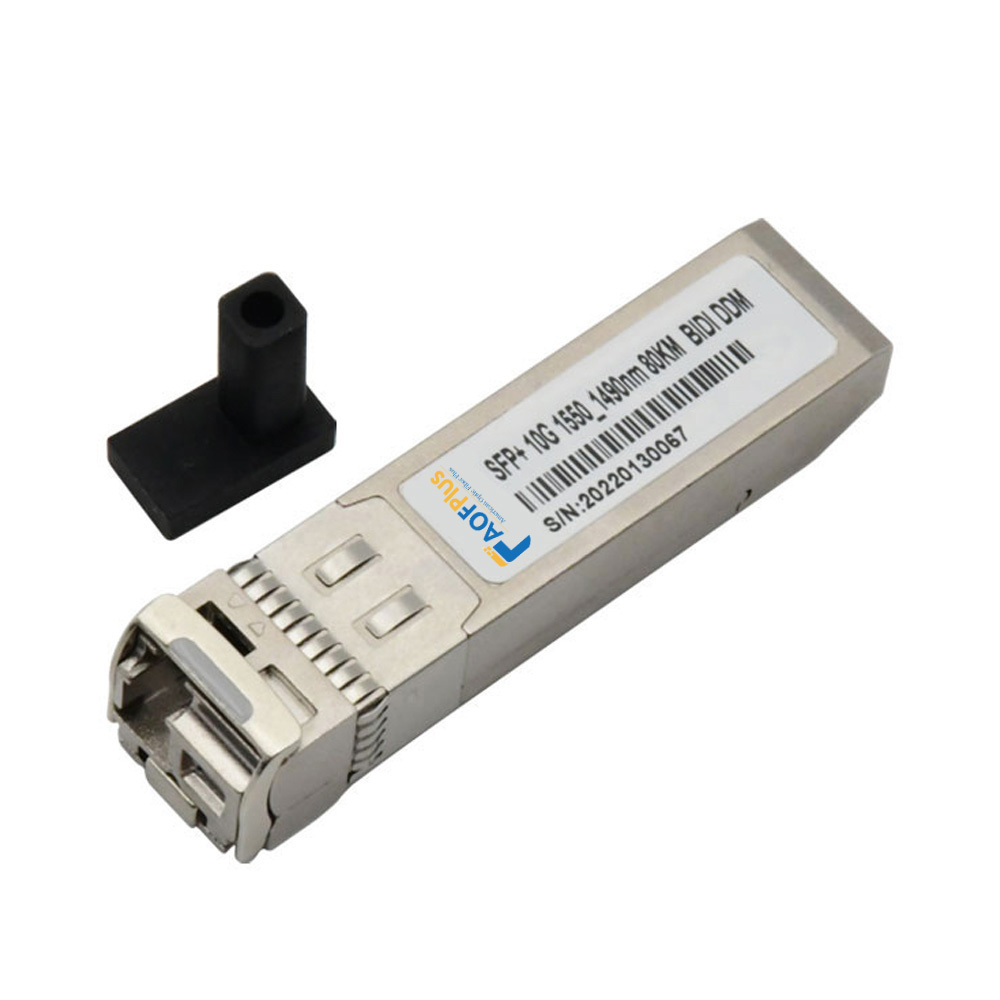

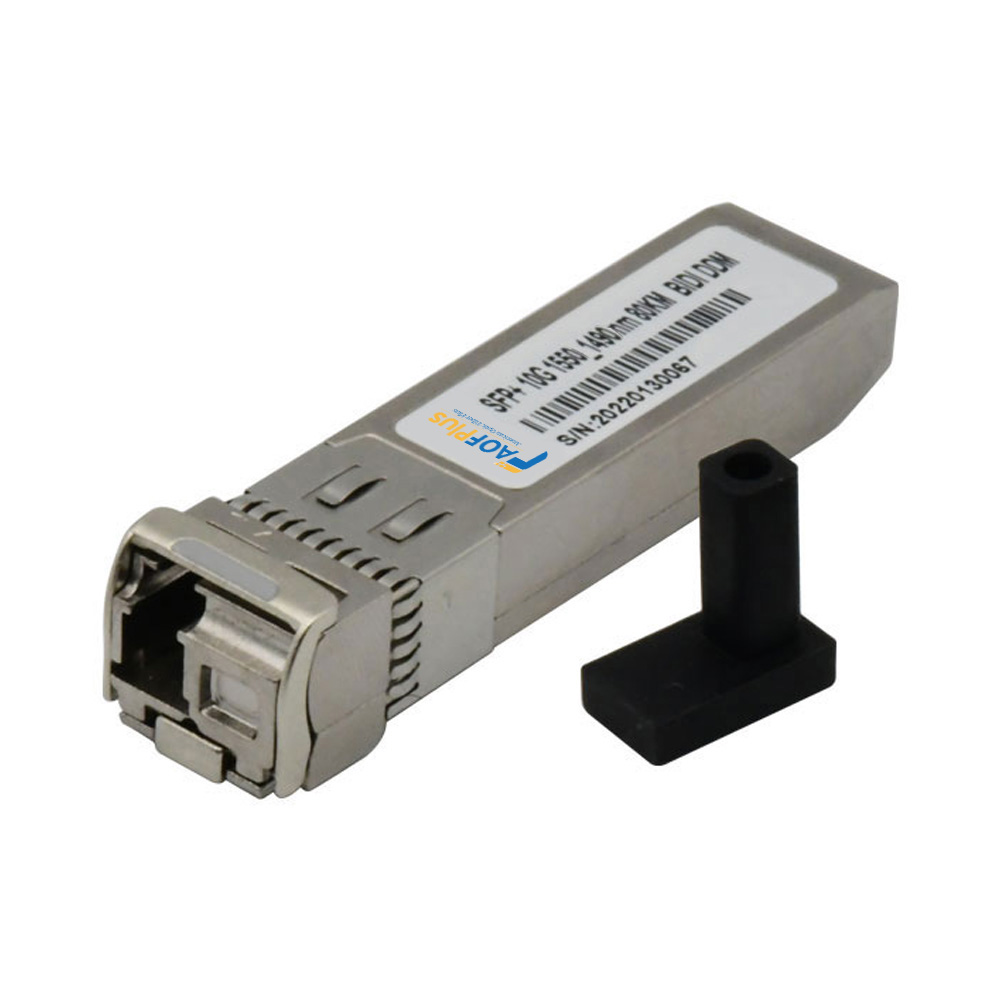

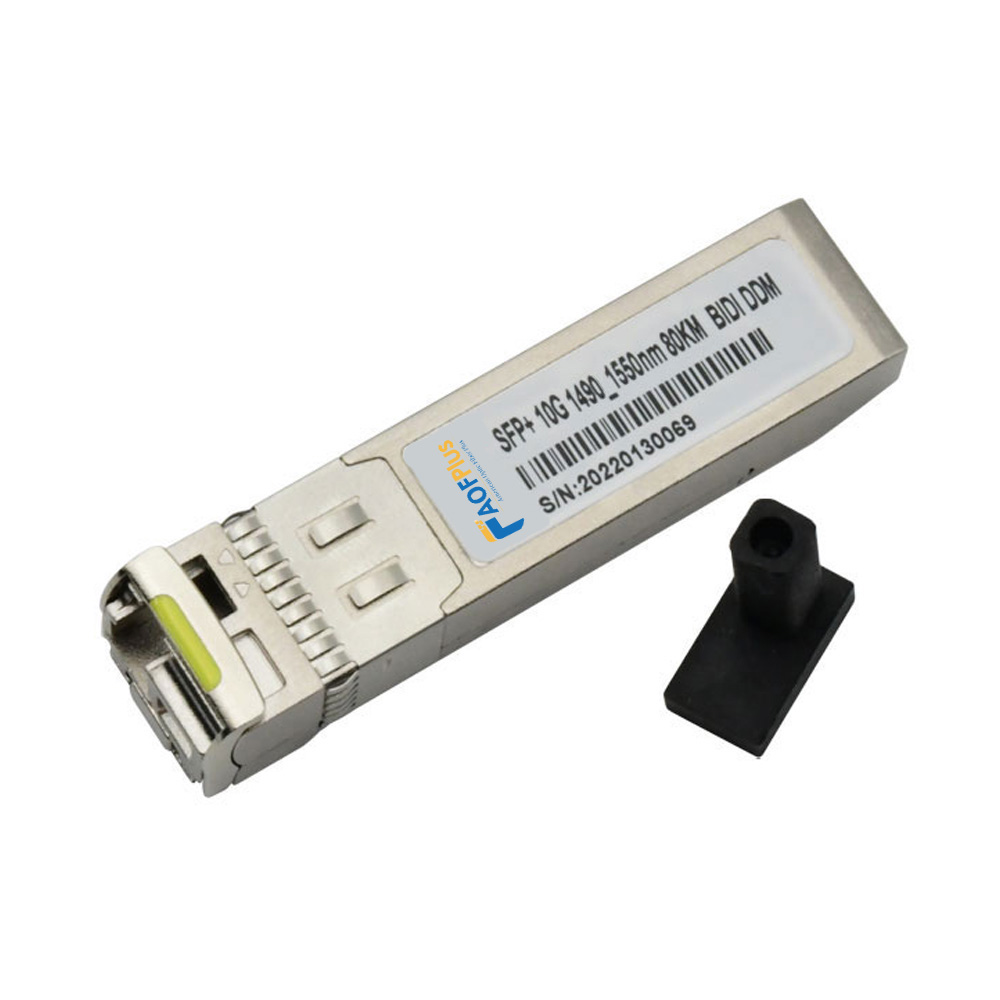

Fiber Optical Transceiver|Optical Module Cisco Compatible 10G SFP+ BiDi TX1550nm RX1490nm 80km LC/UPC Single Mode
Fiber Optical Transceiver|Optical Module Cisco Compatible 10G SFP+ BiDi TX1550nm RX1490nm 80km LC/UPC Single Mode - Image 2
Fiber Optical Transceiver|Optical Module Cisco Compatible 10G SFP+ BiDi TX1550nm RX1490nm 80km LC/UPC Single Mode - Image 3
Fiber Optical Transceiver|Optical Module Cisco Compatible 10G SFP+ BiDi TX1550nm RX1490nm 80km LC/UPC Single Mode - Image 4

Fiber Optical Transceiver|Optical Module Cisco Compatible 10G SFP+ BiDi TX1550nm RX1490nm 80km LC/UPC Single Mode

SKU: ASFP2554980KC

Price range: $310.44 through $447.37
Buy more to save

Transceiver Models
TX1330nm RX1270nm 10kmTX1270nm RX1330nm 10kmTX1330nm RX1270nm 20kmTX1270nm RX1330nm 20kmTX1330nm RX1270nm 40kmTX1270nm RX1330nm 40kmTX1550nm RX1490nm 80kmTX1490nm RX1550nm 80kmTX1550nm RX1490nm 100kmTX1490nm RX1550nm 100km
  • Shipping via DHL/FedEx |
  • 3 years Warranty
  • 30 Days Returns
  • 30 Days Exchange

Warranty
Providing industry-leading limited lifetime warranty. Read the table for details of all  products' warranty.

Returns & Exchange
Refunds will be received about  5 business days after the receipt of returned items. Items in stock  for replacement can be shipped within  1 business day. Read the full return policy for details.

  • Free Shipping on Orders over $99 for Whole USA
QuantityPrice
1 - 4 $398.00
5 - 49 $378.10
50 - 99 $350.24
100 + $310.44
QuantityPrice
1 - 4 $398.00
5 - 49 $378.10
50 - 99 $350.24
100 + $310.44
QuantityPrice
1 - 4 $398.00
5 - 49 $378.10
50 - 99 $350.24
100 + $310.44
QuantityPrice
1 - 4 $447.37
5 - 49 $425.00
50 - 99 $393.69
100 + $348.95
QuantityPrice
1 - 4 $447.37
5 - 49 $425.00
50 - 99 $393.69
100 + $348.95
QuantityPrice
1 - 4 $447.37
5 - 49 $425.00
50 - 99 $393.69
100 + $348.95
QuantityPrice
1 - 4 $398.00
5 - 49 $378.10
50 - 99 $350.24
100 + $310.44

Fiber Optical Transceiver|Optical Module Cisco Compatible 10G SFP+ BiDi TX1550nm RX1490nm 80km LC/UPC Single Mode

Specifications

As a leading-edge optical module, AOFPlus's bidi transceiver comes with built-in various brands compatibility, ensuring a smooth installation. Operating at 10G SFP+ speed, the sfp+ fiber module serves as the backbone for bandwidth-intensive applications like virtual reality streaming and genomics data analysis. The BiDi technology, with TX at 1550nm and RX at 1490nm, enables two-way traffic on a single fiber, reducing the need for extra fiber lines. Alongside its 80km single-mode fiber span and reliable LC/UPC connectors, this single mode sfp+ module guarantees seamless communication over extremely long distances, significantly enhancing overall network productivity and reliability.
Form Factor SFP+ Max. Data Rate 10Gbps
Wavelength 1550nm-TX/1490nm-RX Max. Cable Distance 80KM
Connector Simplex LC Media SMF
TX Power 0~5dBm Receiver Type APD
Transmitter Type 1550/1490nm EML Receiver Sensitivity < -21dBm
Typical Power Consumption ≤2.5W Commercial temperature range 0℃~70℃(32°F to 158°F)
DOM Supported Protocols SFP+ MSA Compliant, CPRI, eCPRI
