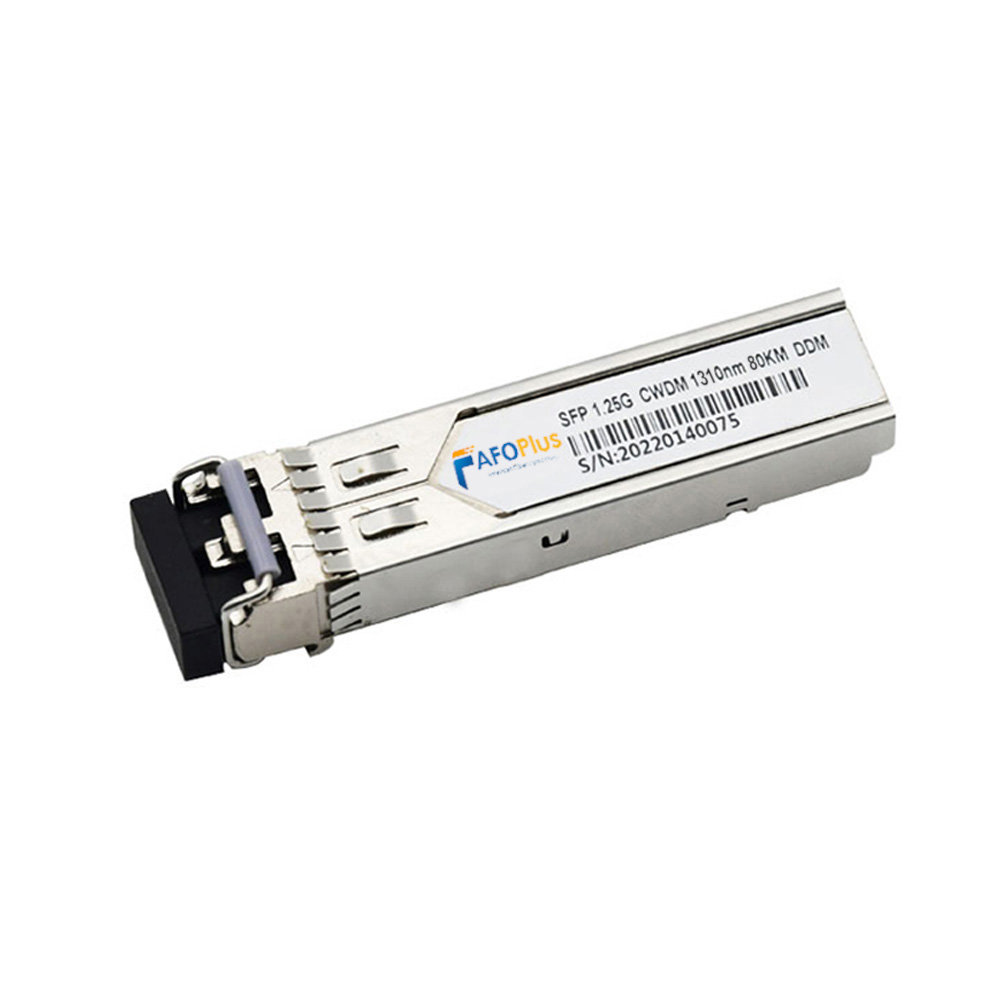

Fiber Optical Transceiver|Optical Module Cisco Compatible CWDM 1.25G SFP 1310nm 80km Duplex LC/UPC Single Mode

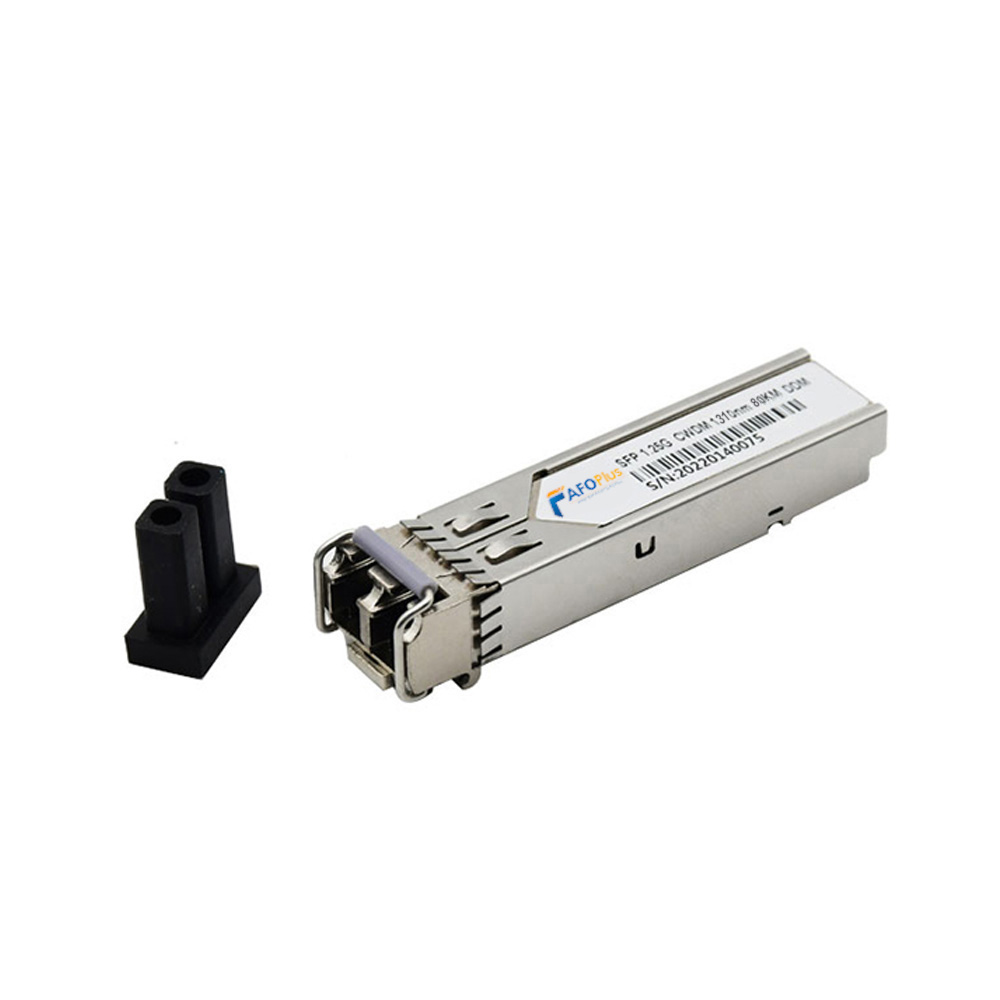

Fiber Optical Transceiver|Optical Module Cisco Compatible CWDM 1.25G SFP 1310nm 80km Duplex LC/UPC Single Mode - Image 2

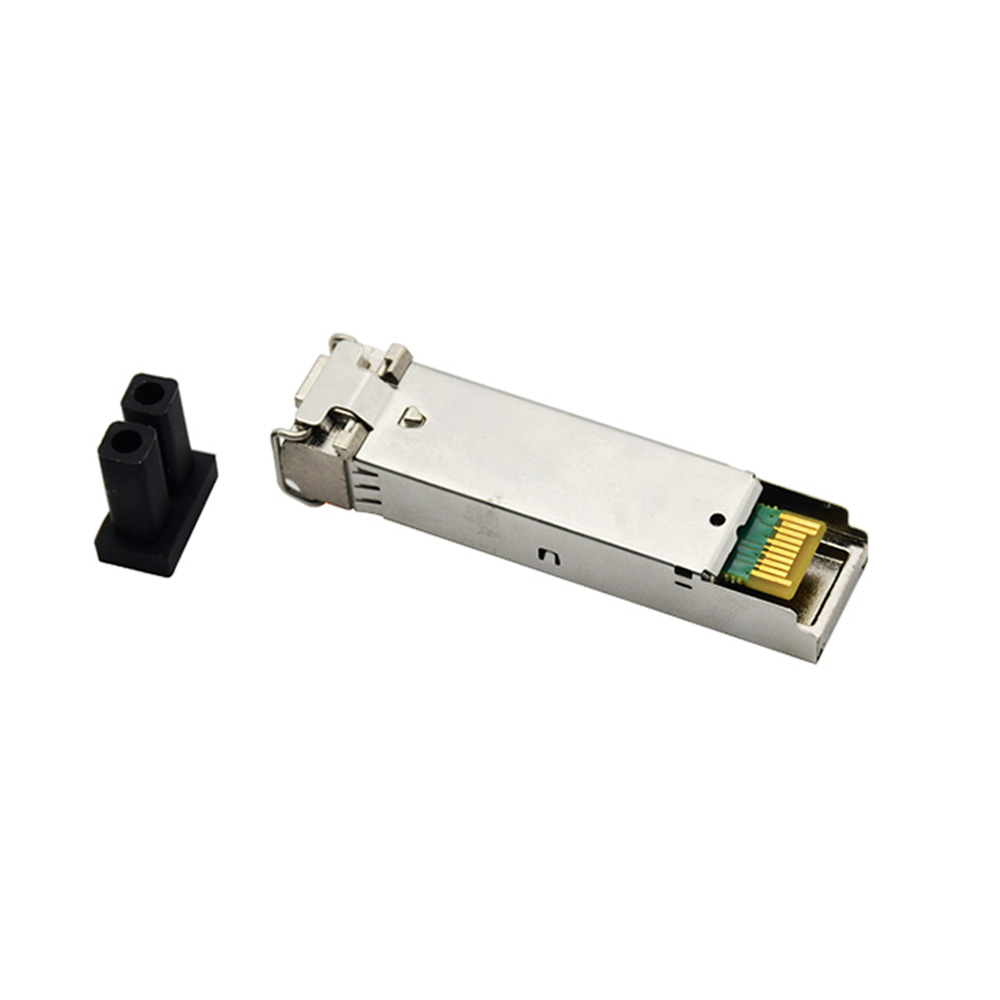

Fiber Optical Transceiver|Optical Module Cisco Compatible CWDM 1.25G SFP 1310nm 80km Duplex LC/UPC Single Mode - Image 3

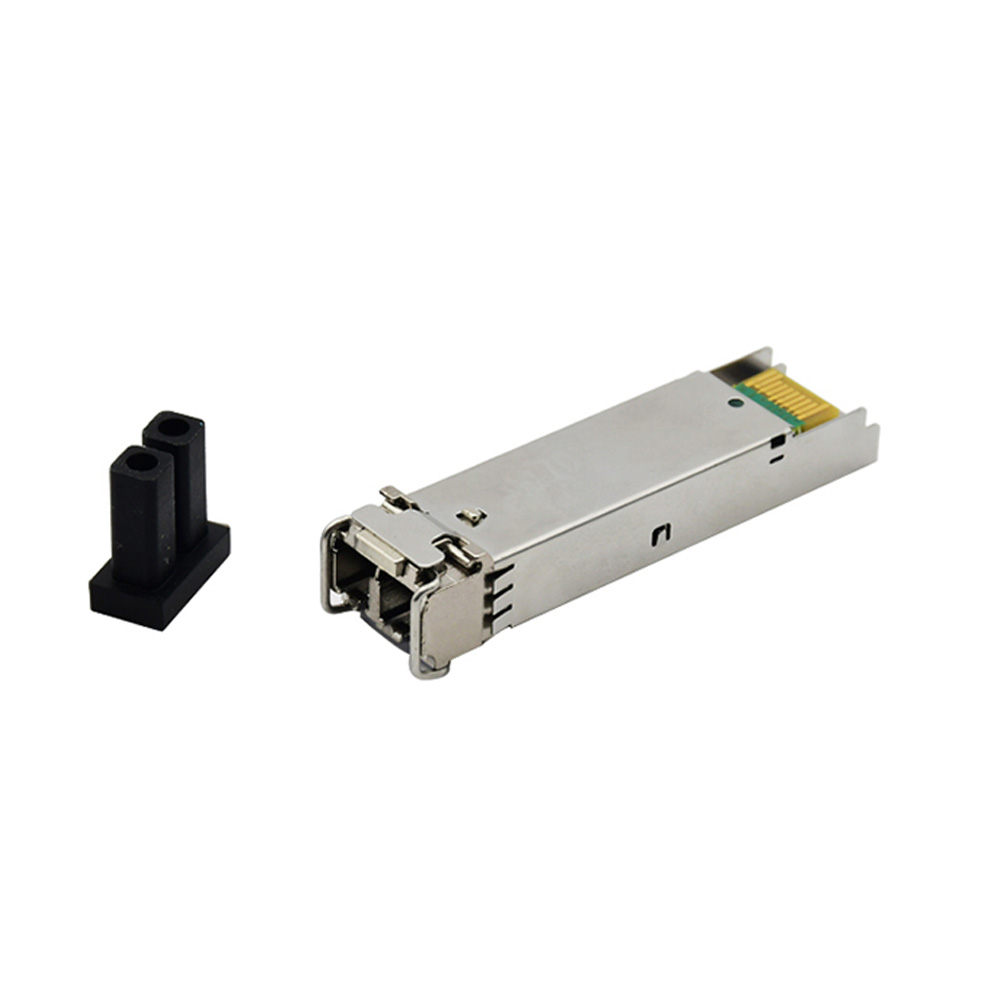

Fiber Optical Transceiver|Optical Module Cisco Compatible CWDM 1.25G SFP 1310nm 80km Duplex LC/UPC Single Mode - Image 4

Fiber Optical Transceiver|Optical Module Cisco Compatible CWDM 1.25G SFP 1310nm 80km Duplex LC/UPC Single Mode

SKU: ASFPC13180KC

Price range: $31.68 through $59.85
Buy more to save

Transceiver Models
1610nm 80km1590nm 80km1570nm 80km1550nm 80km1530nm 80km1510nm 80km1490nm 80km1450nm 80km1470nm 80km1430nm 80km1410nm 80km1390nm 80km1370nm 80km1350nm 80km1330nm 80km1310nm 80km1290nm 80km1270nm 80km
  • Shipping via DHL/FedEx |
  • 3 years Warranty
  • 30 Days Returns
  • 30 Days Exchange

Warranty
Providing industry-leading limited lifetime warranty. Read the table for details of all  products' warranty.

Returns & Exchange
Refunds will be received about  5 business days after the receipt of returned items. Items in stock  for replacement can be shipped within  1 business day. Read the full return policy for details.

  • Free Shipping on Orders over $99 for Whole USA
QuantityPrice
1 - 4 $59.85
5 - 49 $56.86
50 - 99 $52.67
100 + $46.68
QuantityPrice
1 - 4 $59.85
5 - 49 $56.86
50 - 99 $52.67
100 + $46.68
QuantityPrice
1 - 4 $40.62
5 - 49 $38.59
50 - 99 $35.75
100 + $31.68
QuantityPrice
1 - 4 $59.85
5 - 49 $56.86
50 - 99 $52.67
100 + $46.68
QuantityPrice
1 - 4 $59.85
5 - 49 $56.86
50 - 99 $52.67
100 + $46.68
QuantityPrice
1 - 4 $59.85
5 - 49 $56.86
50 - 99 $52.67
100 + $46.68

Fiber Optical Transceiver|Optical Module Cisco Compatible CWDM 1.25G SFP 1310nm 80km Duplex LC/UPC Single Mode

Specifications

Operating within the 1270-1610nm wavelength range, 1.25G CWDM SFP Transceiver supports data rates of 1.25Gbps and offers extended reach of up to 80km over single-mode fiber. The duplex LC/UPC interface ensure robust and reliable optical signaling, minimizing signal loss and maximizing network efficiency. Compatible with various brands networking equipment, this CWDM SFP module seamlessly integrates into existing network infrastructures, enhancing overall performance and scalability. Its compact design and rugged construction make it ideal for a variety of network environments, from enterprise data centers to metro networks.
Form Factor SFP Max Data Rate 1.25Gbps
Wavelength 1310nm Max Cable Distance 80km
Connector Duplex LC Media SMF
Transmitter Type CWDM DFB Receiver Type PIN
TX Power 0~5dBm SMSR 30dB
Power Consumption ≤1W RX Power -28~3dBm
Power Budget 24dB Receiver Sensitivity <-24dBm
DDM/DOM Supported Commercial Temperature Range 0°C to 70°C(32℉-158℉)
EMC (Electro Magnetic Comnatihilitv) Supported Protocols SFP MSA SFF-8472
