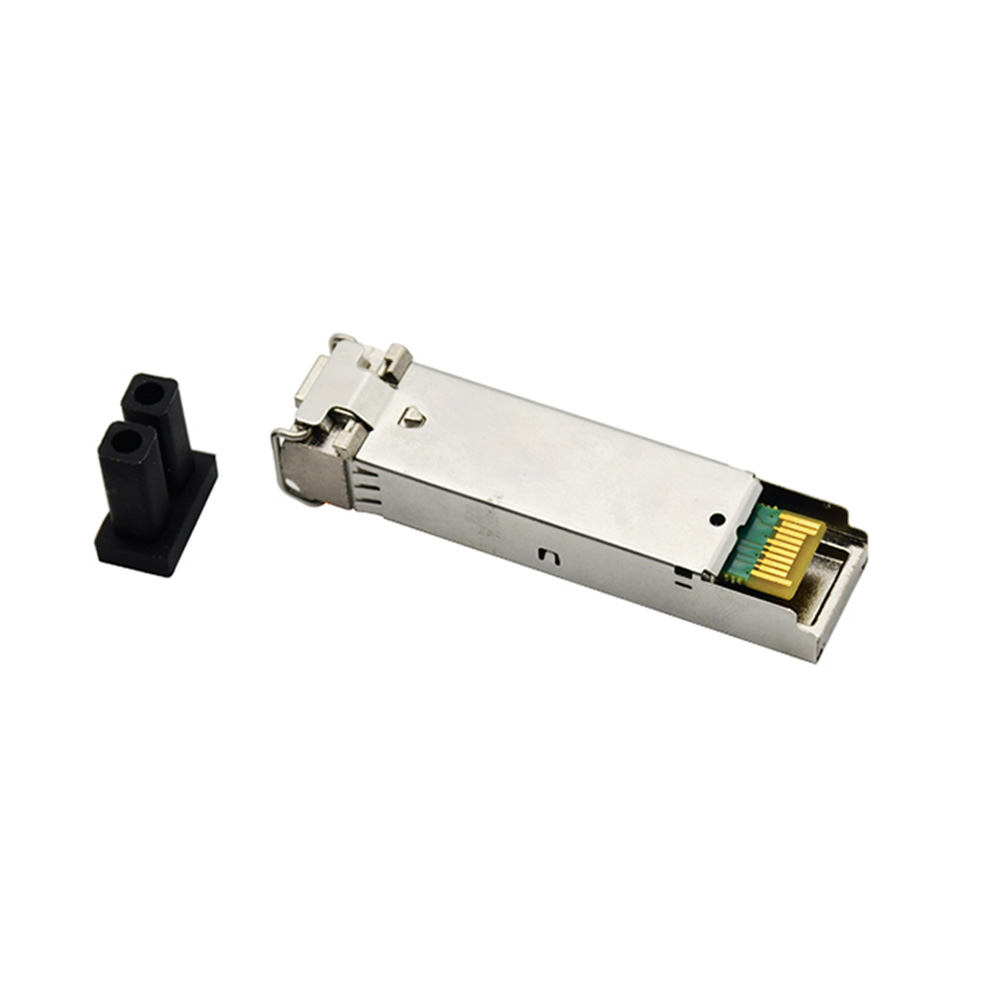

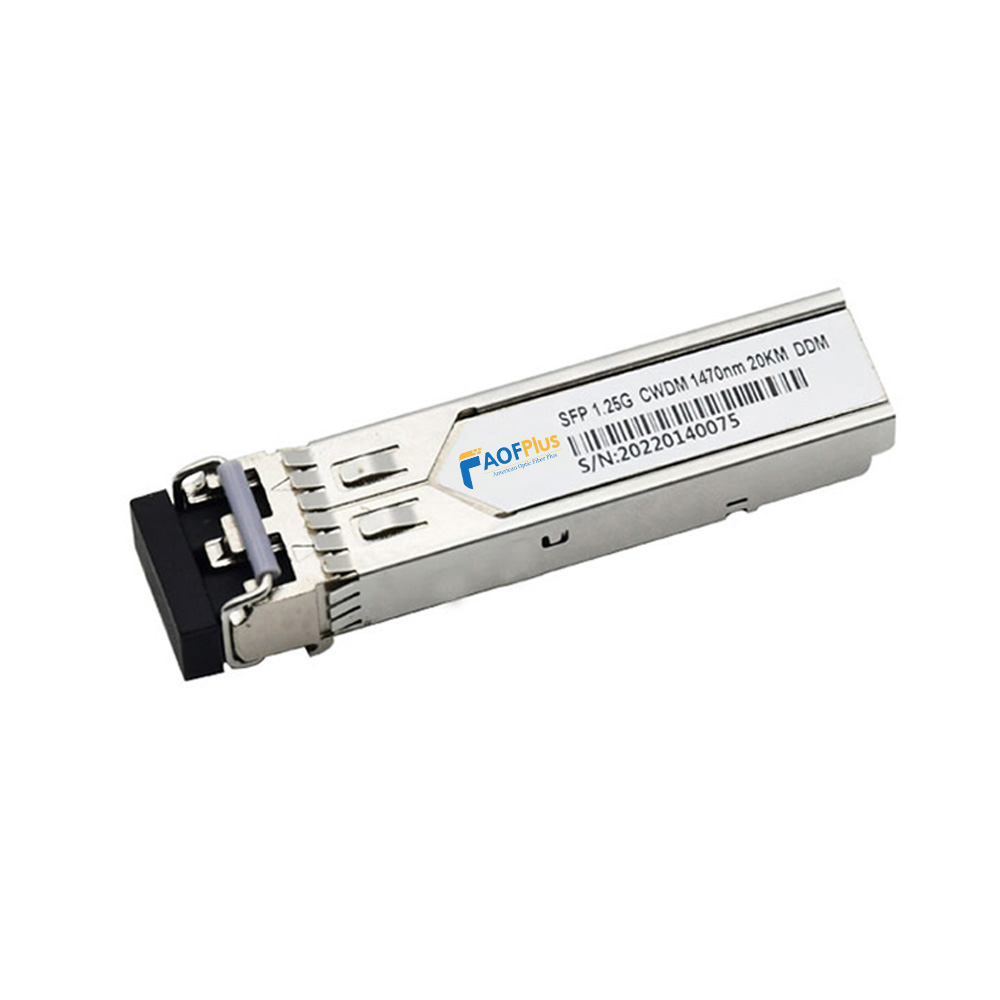

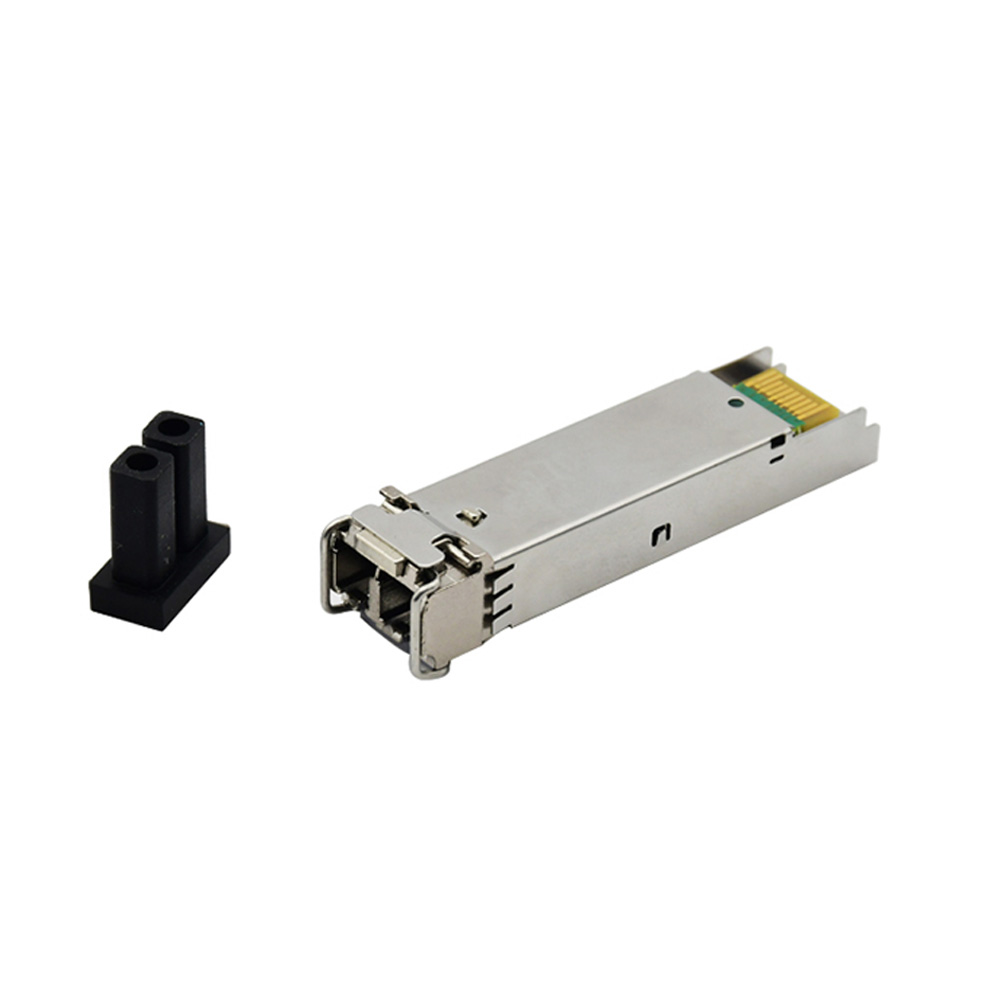

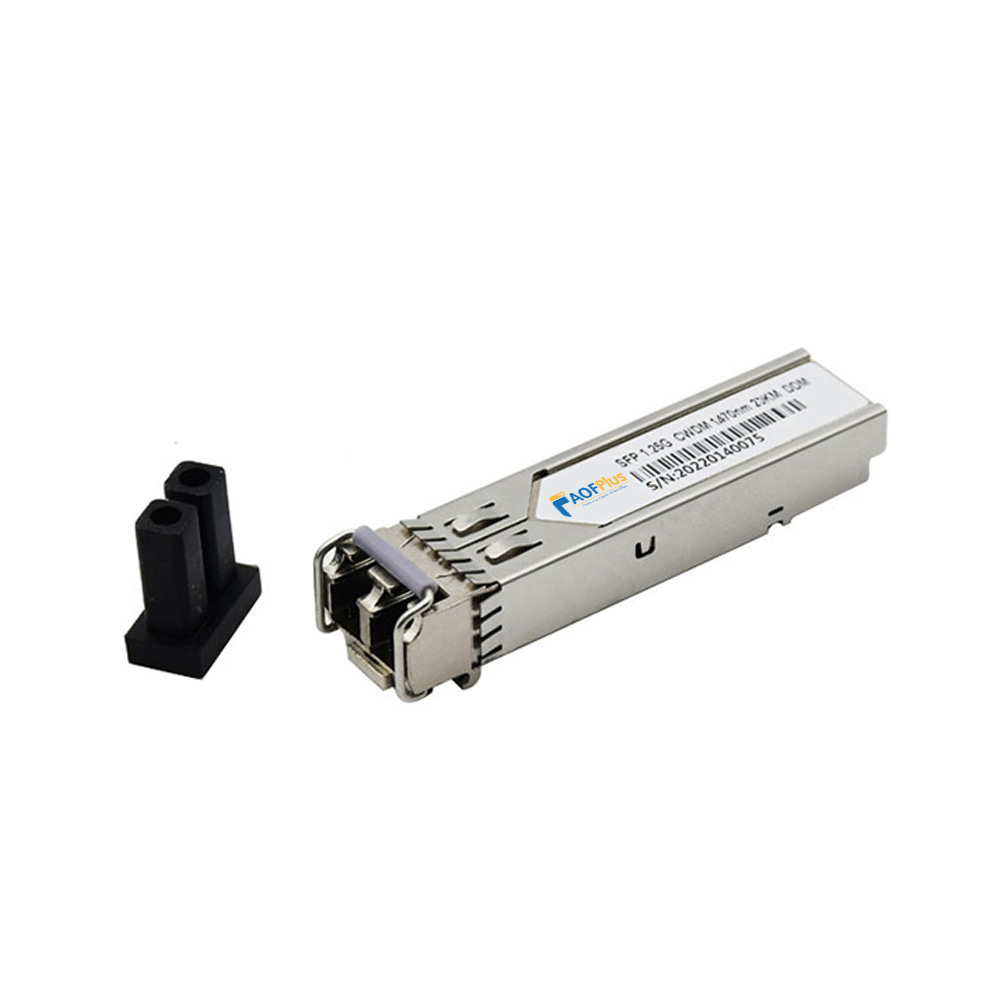

Fiber Optical Transceiver|Optical Module Cisco Compatible CWDM 1.25G SFP 1470nm 20km Duplex LC/UPC Single Mode
Fiber Optical Transceiver|Optical Module Cisco Compatible CWDM 1.25G SFP 1470nm 20km Duplex LC/UPC Single Mode - Image 2
Fiber Optical Transceiver|Optical Module Cisco Compatible CWDM 1.25G SFP 1470nm 20km Duplex LC/UPC Single Mode - Image 3
Fiber Optical Transceiver|Optical Module Cisco Compatible CWDM 1.25G SFP 1470nm 20km Duplex LC/UPC Single Mode - Image 4

Fiber Optical Transceiver|Optical Module Cisco Compatible CWDM 1.25G SFP 1470nm 20km Duplex LC/UPC Single Mode

SKU: ASFPC14720KC

Price range: $43.29 through $55.50
Buy more to save

Transceiver Models
1610nm 20km1590nm 20km1570nm 20km1550nm 20km1530nm 20km1510nm 20km1490nm 20km1470nm 20km1450nm 20km1430nm 20km1410nm 20km1390nm 20km1370nm 20km1350nm 20km1330nm 20km1310nm 20km1290nm 20km1270nm 20km
  • Shipping via DHL/FedEx |
  • 3 years Warranty
  • 30 Days Returns
  • 30 Days Exchange

Warranty
Providing industry-leading limited lifetime warranty. Read the table for details of all  products' warranty.

Returns & Exchange
Refunds will be received about  5 business days after the receipt of returned items. Items in stock  for replacement can be shipped within  1 business day. Read the full return policy for details.

  • Free Shipping on Orders over $99 for Whole USA
QuantityPrice
1 - 4 $55.50
5 - 49 $52.73
50 - 99 $48.84
100 + $43.29
QuantityPrice
1 - 4 $55.50
5 - 49 $52.73
50 - 99 $48.84
100 + $43.29
QuantityPrice
1 - 4 $55.50
5 - 49 $52.73
50 - 99 $48.84
100 + $43.29
QuantityPrice
1 - 4 $55.50
5 - 49 $52.73
50 - 99 $48.84
100 + $43.29
QuantityPrice
1 - 4 $55.50
5 - 49 $52.73
50 - 99 $48.84
100 + $43.29
QuantityPrice
1 - 4 $55.50
5 - 49 $52.73
50 - 99 $48.84
100 + $43.29
QuantityPrice
1 - 4 $55.50
5 - 49 $52.73
50 - 99 $48.84
100 + $43.29

Fiber Optical Transceiver|Optical Module Cisco Compatible CWDM 1.25G SFP 1470nm 20km Duplex LC/UPC Single Mode

Specifications

CWDM 1.25G SFP optical transceiver is a versatile network component. Operating within the 1270-1610nm wavelength range, the single fiber SFP CWDM transceiver module supports data rates of 1.25Gbps over single-mode fiber, extending the transmission distance to 20km. Designed with duplex LC/UPC interface, this optic transceiver module ensures robust and efficient optical signaling. Perfect for upgrading network infrastructures, it seamlessly integrates with popular brands' swithes, enhancing performance and reliability.
Form Factor SFP Max Data Rate 1.25Gbps
Wavelength 1470nm Max Cable Distance 20km
Connector Duplex LC Media SMF
Transmitter Type CWDM DFB Receiver Type PIN
TX Power -5~0dBm SMSR 30dB
Power Consumption ≤1W RX Power -24~-1dBm
Power Budget 19dB Receiver Sensitivity <-24dBm
DDM/DOM Supported Commercial Temperature Range 0°C to 70°C(32℉-158℉)
EMC (Electro Magnetic Comnatihilitv) Supported Protocols SFP MSA SFF-8472
