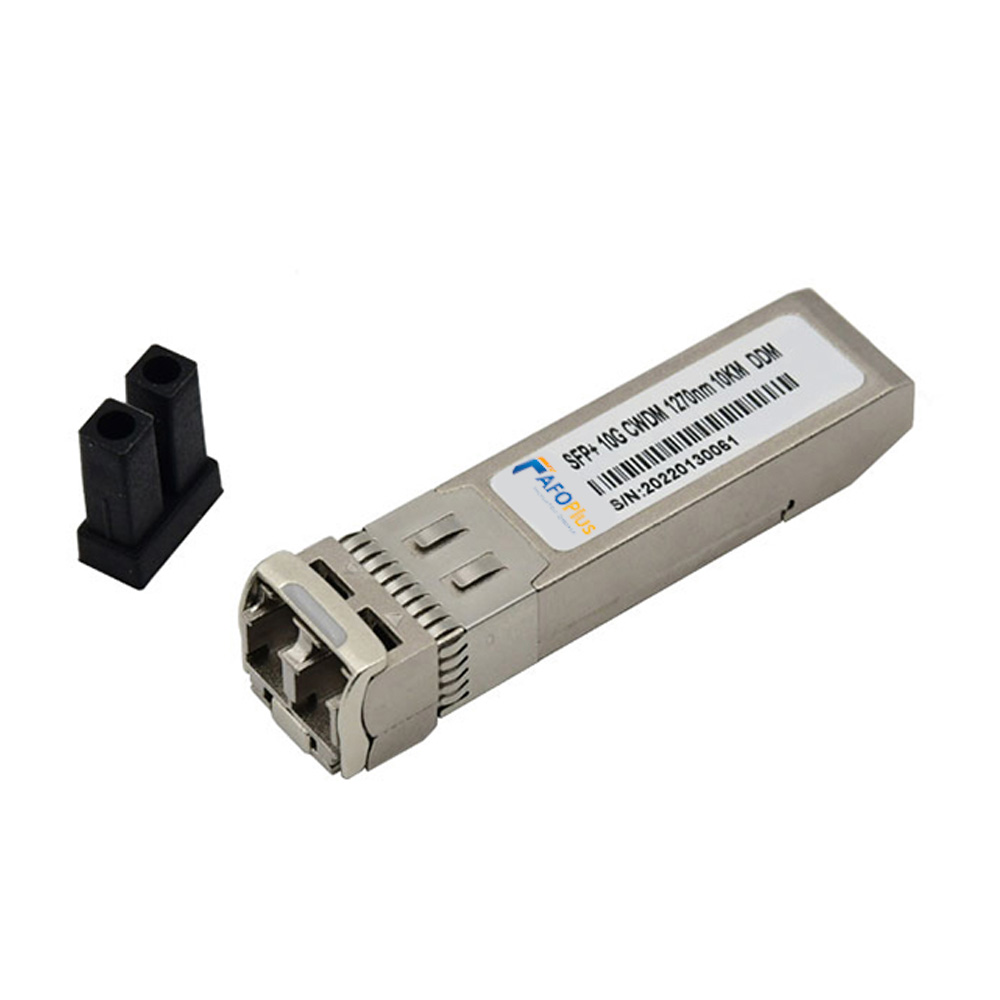

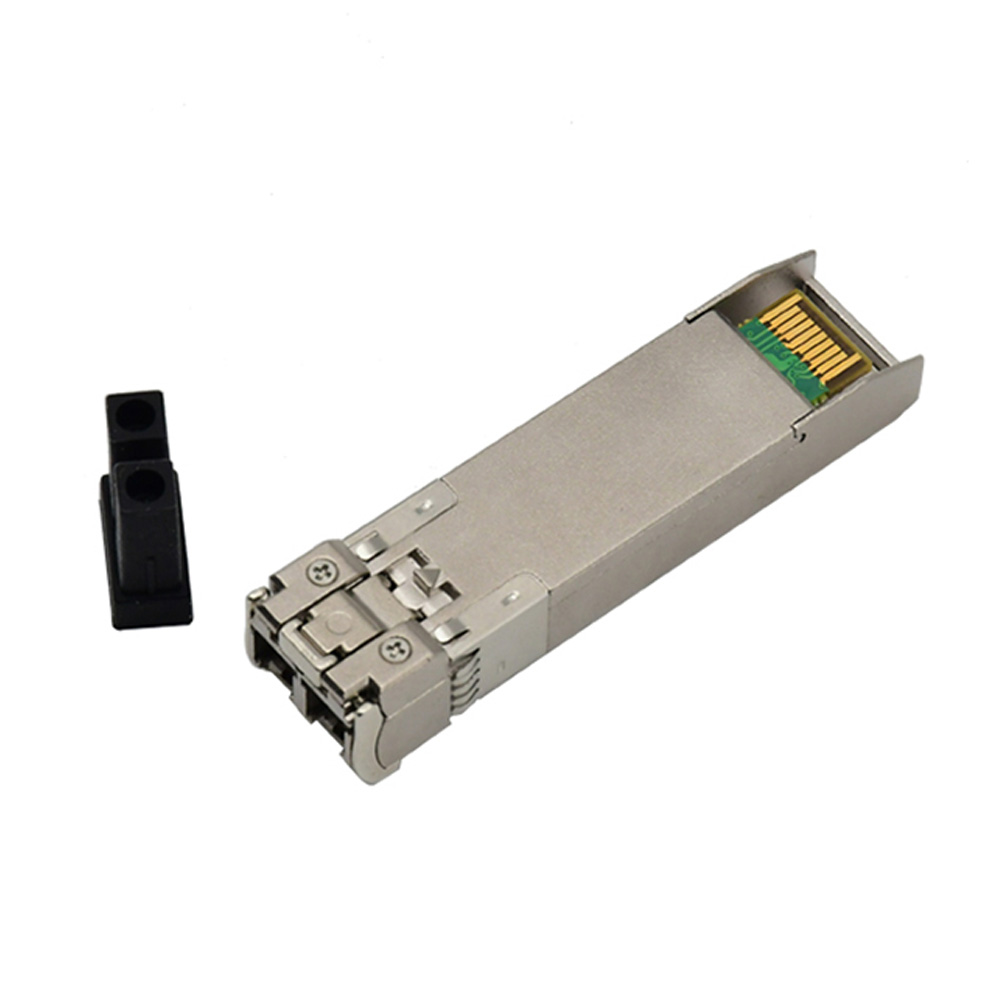

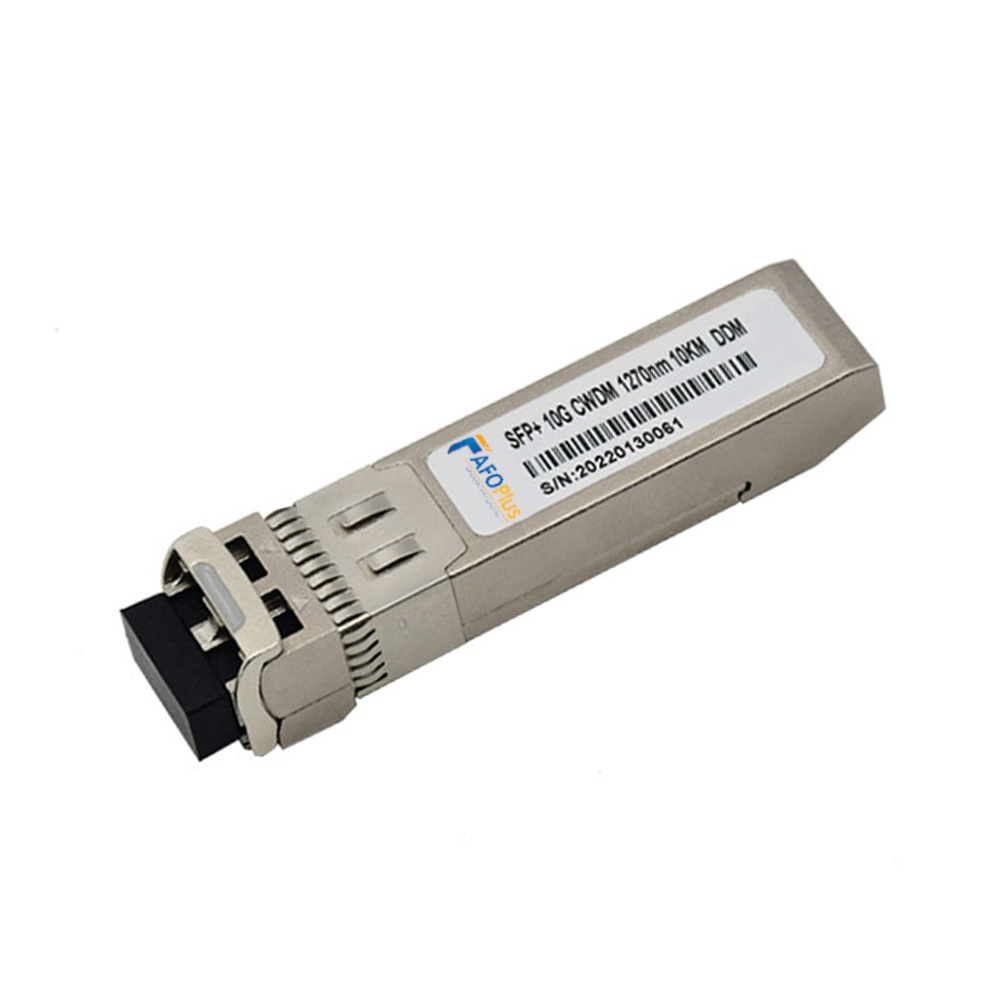

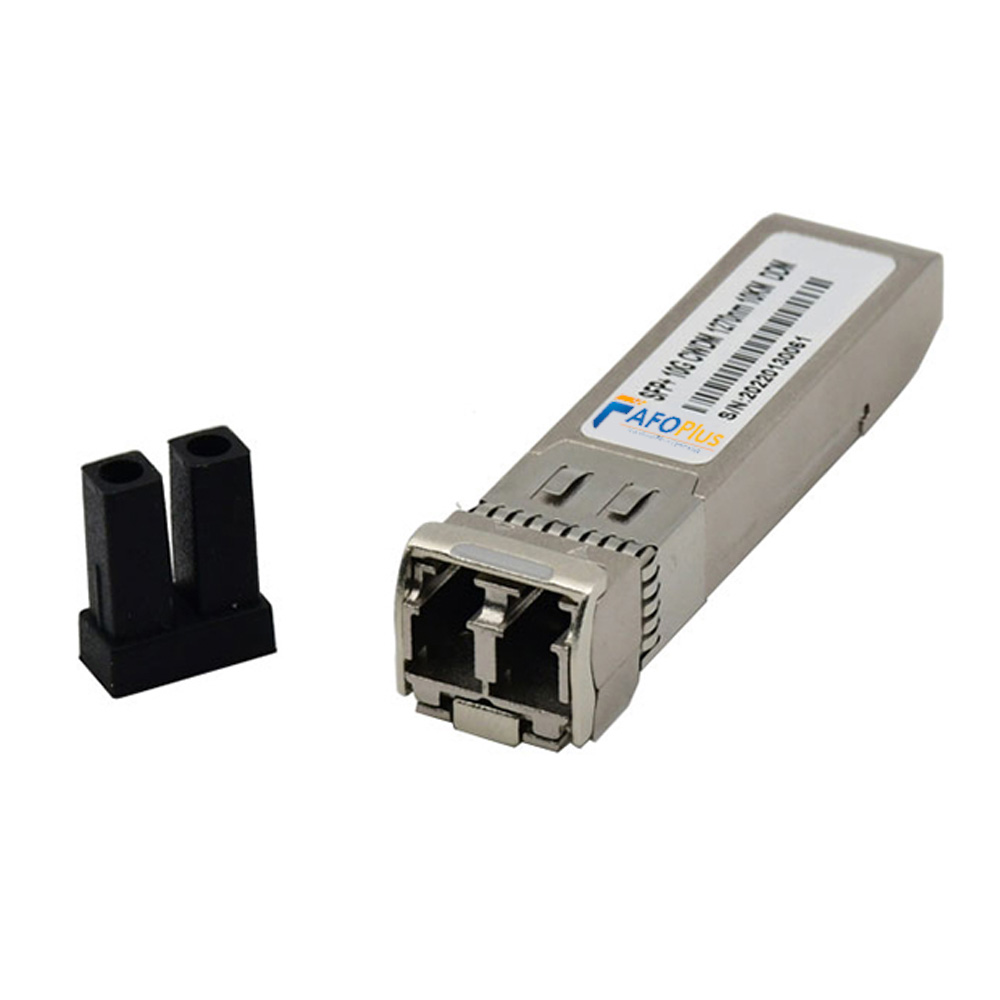

As a versatile network component, 10G SFP+ CWDM fiber optical transceiver supports data rates of up to 10G, operating within the 1270-1370nm wavelength range, enabling efficient and reliable data transmission over single-mode fiber. With a transmission distance of up to 10km, the 10G SFP+ transceiver is ideal for short to medium haul network connections. The duplex LC/UPC interface provides a secure and stable connection, ensuring minimal signal loss and optimal network performance. Its compact and rugged design makes it easy to install and deploy in a variety of network environments, from enterprise data centers to campus networks.

Form Factor	SFP+	Max Data Rate	10Gbps
Wavelength	1270-1370nm	Max Cable Distance	10km
Connector	Duplex LC	Media	SMF
Transmitter Type	CWDM DFB	Receiver Type	PIN
TX Power	-3.8~3.2dBm	RX Power	-14.4~0.5dBm
Power Consumption	≤1.5W	Receiver Sensitivity	<-14.4dBm
Power Budget	24dB	Commercial Temperature Range	0°C to 70°C(32℉-158℉)
DDM/DOM	Supported	Modulation	NRZ
Packaging Technology	TO	Protocols	SFP+ MSA Compliant, CPRI, eCPRI, ITU-T

Form Factor	SFP+	Max Data Rate	10Gbps
Wavelength	1270-1370nm	Max Cable Distance	10km
Connector	Duplex LC	Media	SMF
Transmitter Type	CWDM DFB	Receiver Type	PIN
TX Power	-3.8~3.2dBm	RX Power	-14.4~0.5dBm
Power Consumption	≤1.5W	Receiver Sensitivity	<-14.4dBm
Power Budget	24dB	Commercial Temperature Range	0°C to 70°C(32℉-158℉)
DDM/DOM	Supported	Modulation	NRZ
Packaging Technology	TO	Protocols	SFP+ MSA Compliant, CPRI, eCPRI, ITU-T
