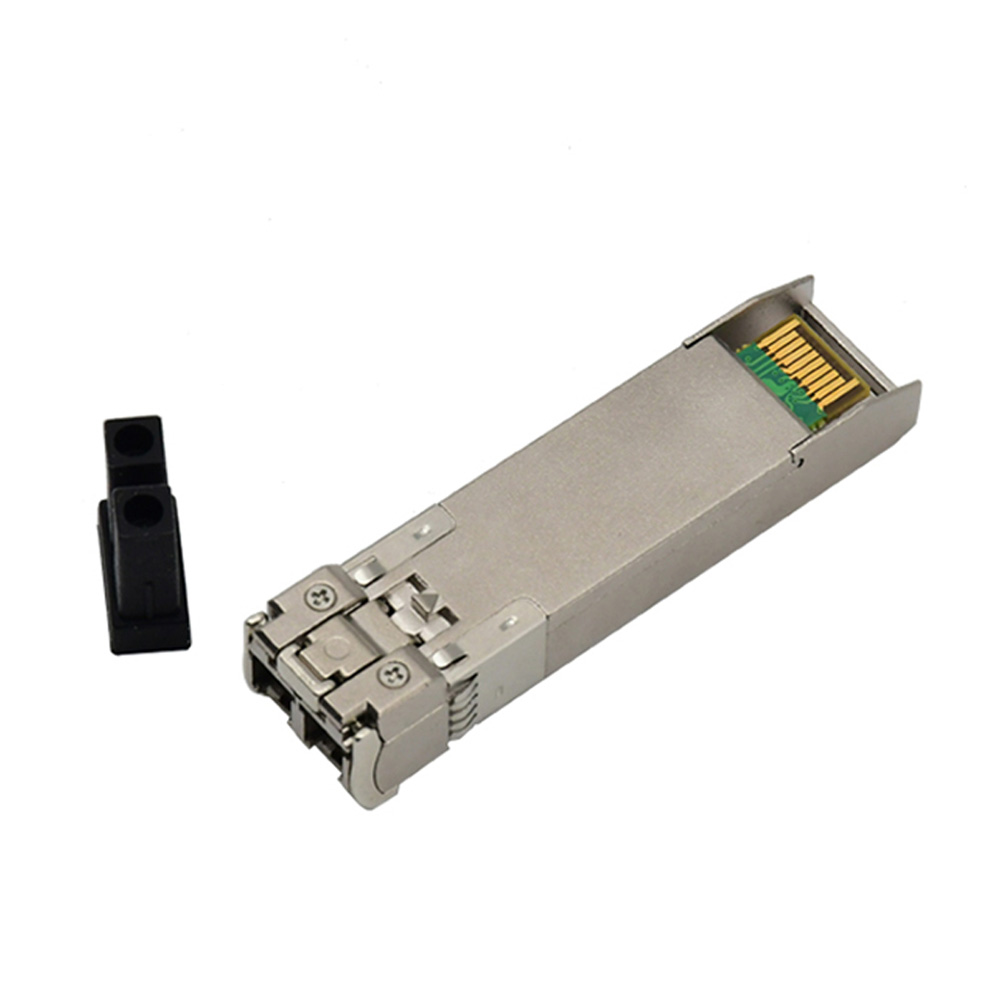

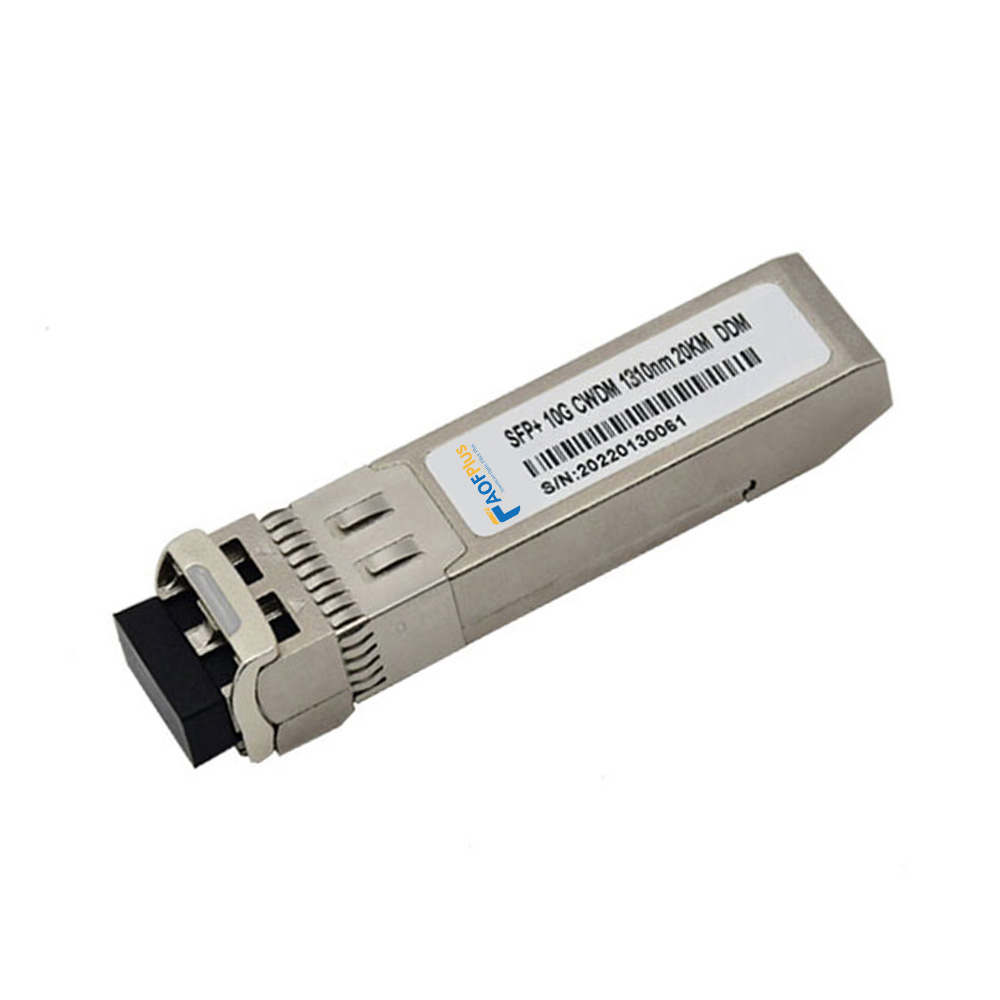

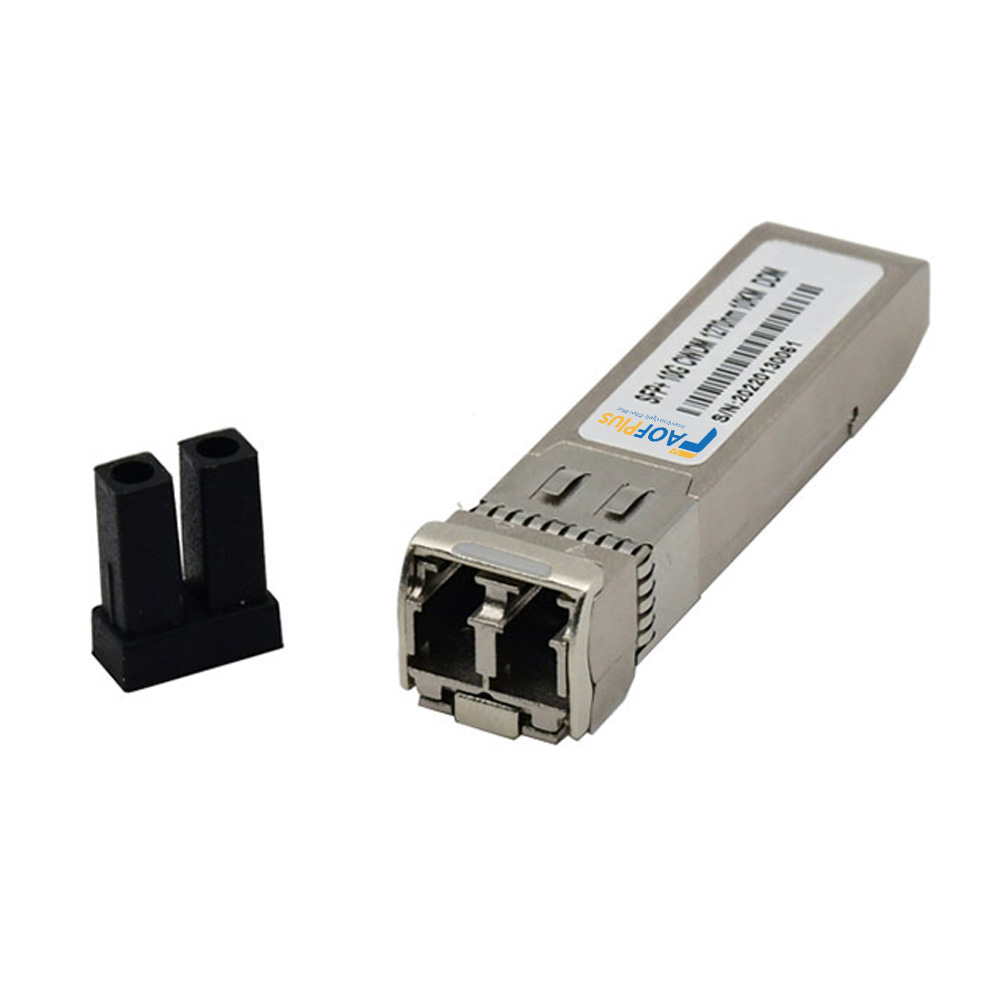

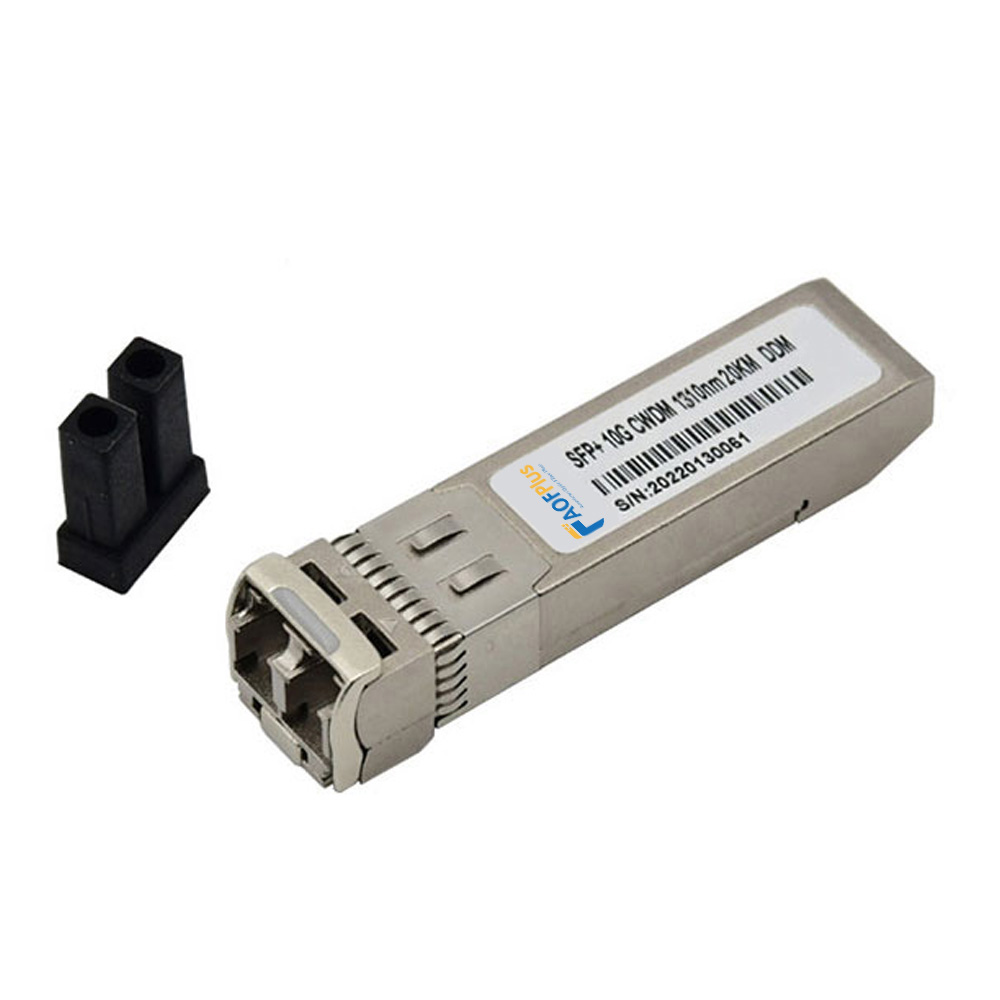

AFOPLUS's CWDM 10G SFP+ fiber optical transceiver is operating in the 1270-1370nm wavelength range, supporting data rates of up to 10G per second for high-bandwidth applications. With a robust transmission distance of 20km, the CWDM SFP+ transceiver seamlessly connects network nodes across extended distances. Equipped with duplex LC/UPC interface for reliable and robust connections, this CWDM SFP+ module integrates seamlessly into existing networking infrastructures, enhancing network capacity, reliability, and scalability. Its compact, rugged design makes it perfect for diverse network environments, from enterprise data centers to metro networks.

Form Factor	SFP+	Max Data Rate	10Gbps
Wavelength	1270-1370nm	Max Cable Distance	20km
Connector	Duplex LC	Media	SMF
Transmitter Type	CWDM DFB	Receiver Type	PIN
TX Power	0~7dBm	RX Power	-14.4~0.5dBm
Power Consumption	≤1.5W	Receiver Sensitivity	<-14.4dBm
Modulation	NRZ	Extinction Ratio	>3.5dB
DDM/DOM	Supported	Commercial Temperature Range	0°C to 70°C(32℉-158℉)
Packaging Technology	TO	Protocols	SFP+ MSA Compliant, CPRI, eCPRI, ITU-T G.652
